Attributes

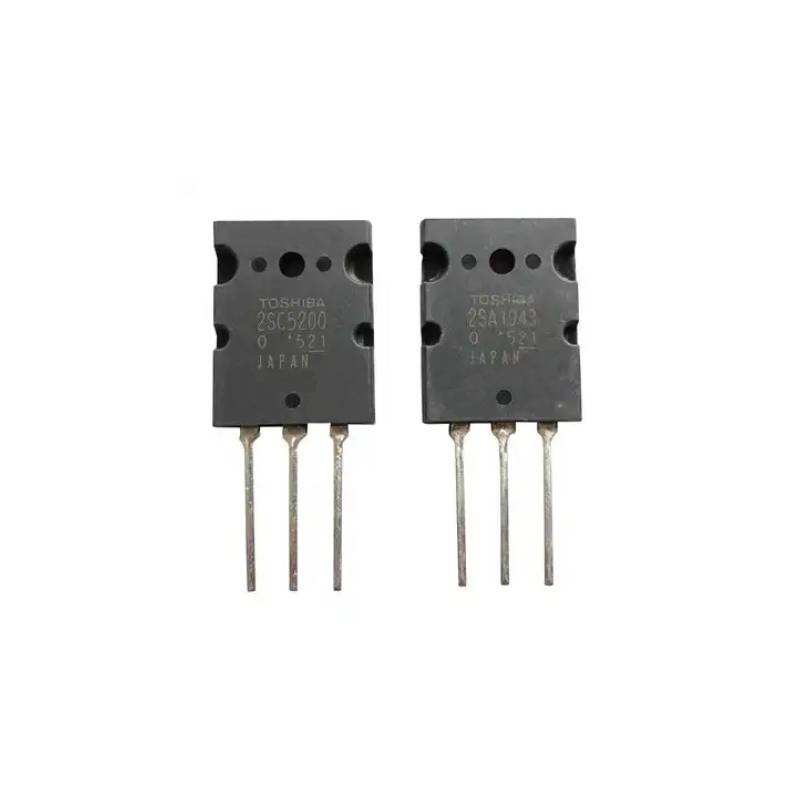

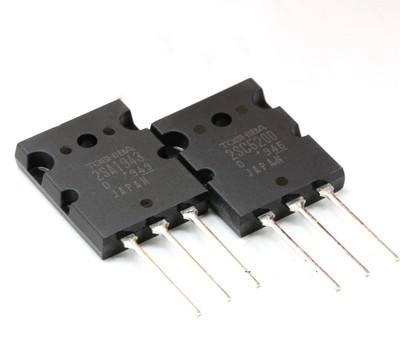

2SA1943/2SC5200Model Number
TransistorType
ToshibaBrand Name
Through HolePackage Type
Transistors MOSFET 75V 80ADescription
JapanPlace of Origin
Package / Case:TO-220-3
Operating Temperature:-55°C ~ 150°C (TJ)
Series:STripFE
D/C:Newest
Application:General Purpose
Supplier Type:Original Manufacturer, ODM, Agency, Retailer
Cross Reference:Transistor
Media Available:Datasheet, Photo, EDA/CAD Models
Mounting Type:Through Hole
FET Type:N-Channel
Drain to Source Voltage (Vdss):75V
Current - Continuous Drain (Id) @ 25°C:80A (Tc)
Rds On (Max) @ Id, Vgs:11mOhm @@ 40A 10V
Vgs(th) (Max) @ Id:4V @@ 250ua
Gate Charge (Qg) (Max) @ Vgs:160nC @@ 10V
Input Capacitance (Ciss) (Max) @ Vds:3700pF @@ 25V
Drive Voltage (Max Rds On, Min Rds On):10V
Vgs (Max):±20V
Mounting Type:Through Hole
Description:MOSFET N-CH 75V 80A TO-220
Operating Temperature:-55°C ~ 175°C (TJ)
Applications:General Purpose
