Attributes
Wrapping,Windingusage
Automatic, Semi-AutomaticOperating Mode

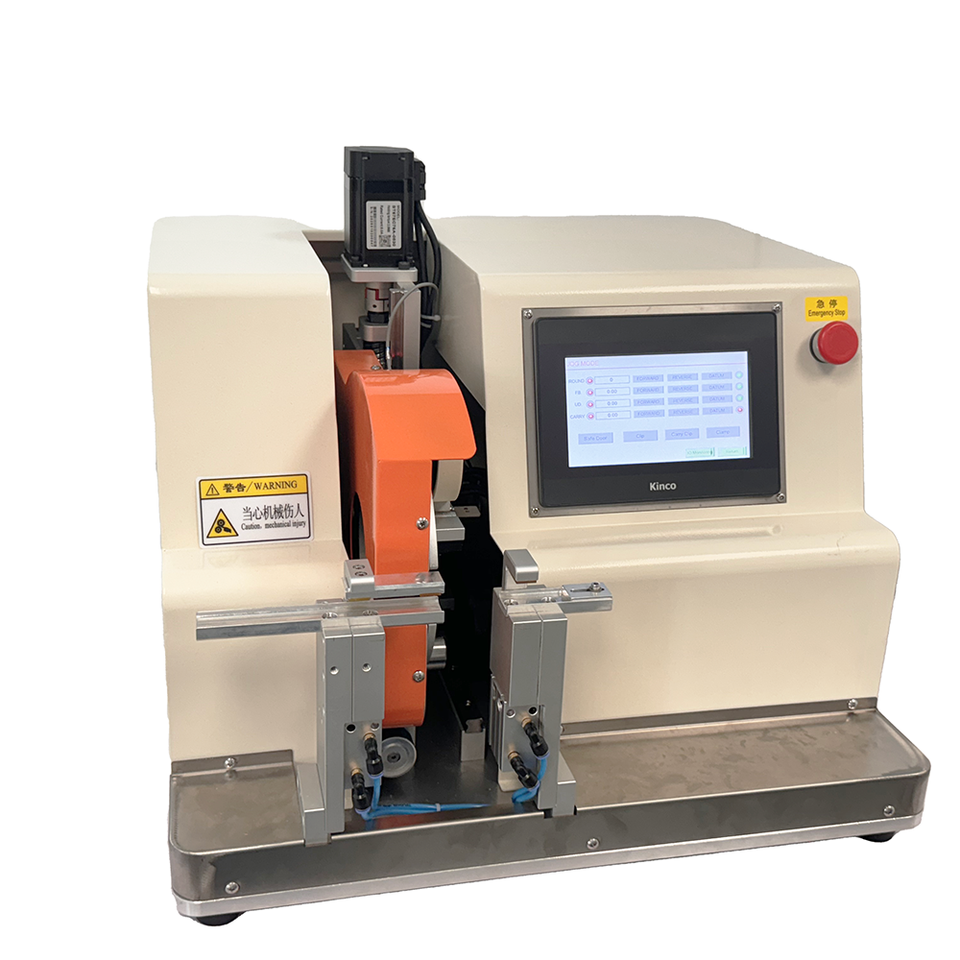

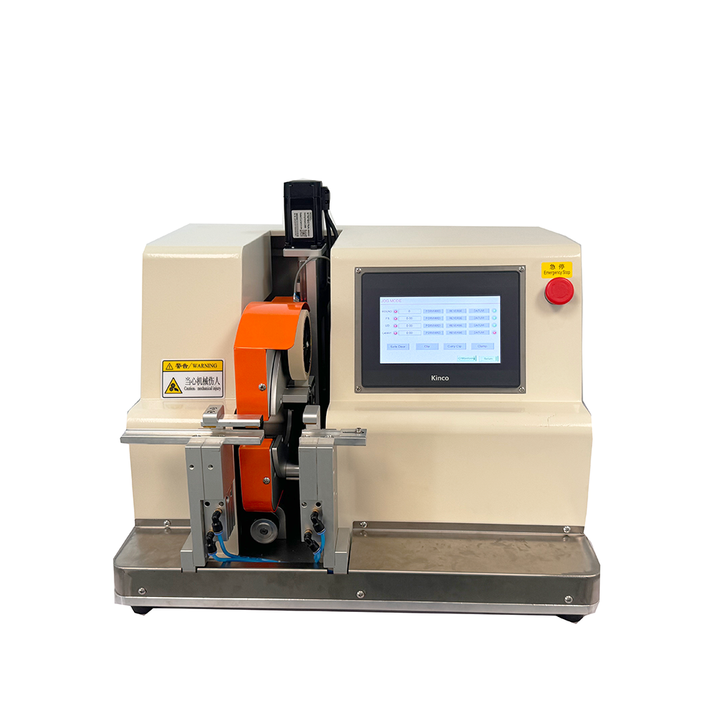

SR-6830model number
65Weight (KG)
Guangdong, Chinaplace of origin
Sinradbrand name
Dimension(L*W*H):760*630*500mm
Air pressure:0.4-0.6MPa
Tape type:PVC, velvet, acetic acid tape. (without release paper)

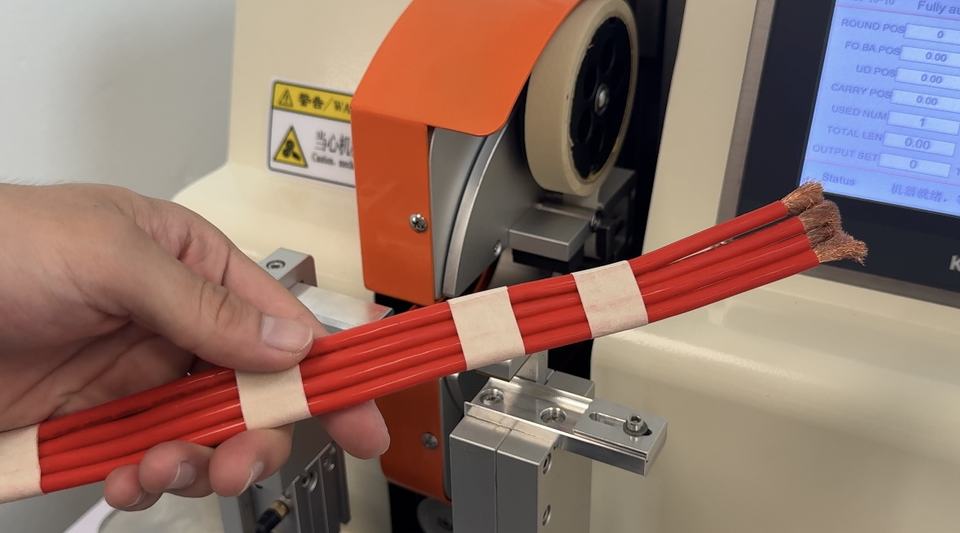

Cable type:Single wire or multiple wire bundles after intermediate point crimping
Work efficiency:360pcs/hour
Winding position accuracy:±2mm
Winding overlap accuracy:±0.5mm, depends on product
Max cable winding size:square: 10*20mm (max) Circle: OD 22mm
Tape specification:10-20mm, inner diameter 38mm, outer diameter 96mm
Tape length:not limited
