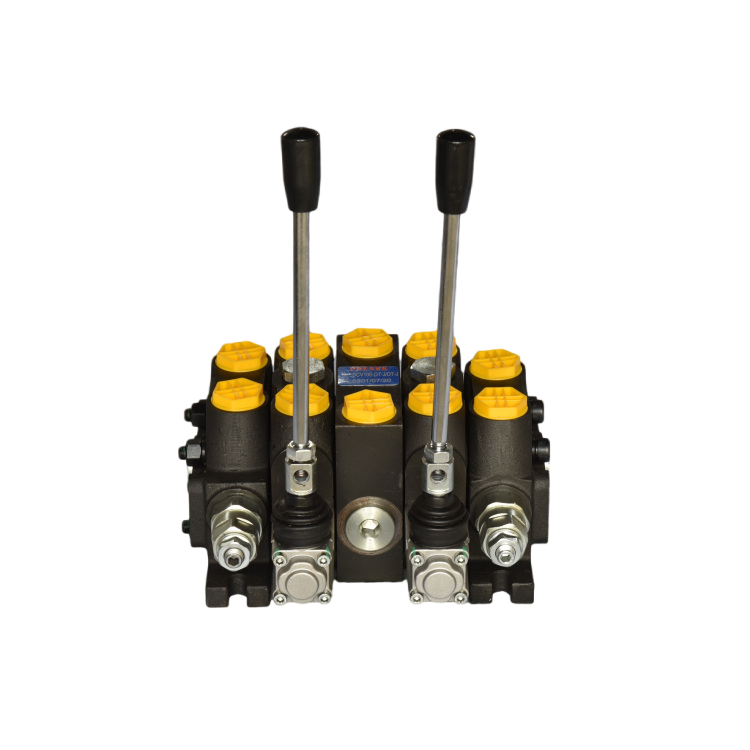

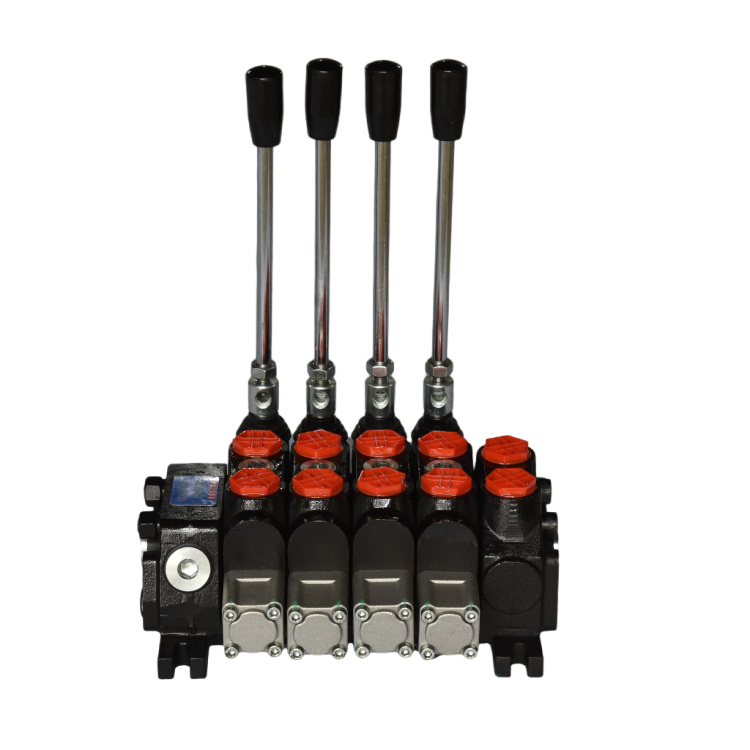

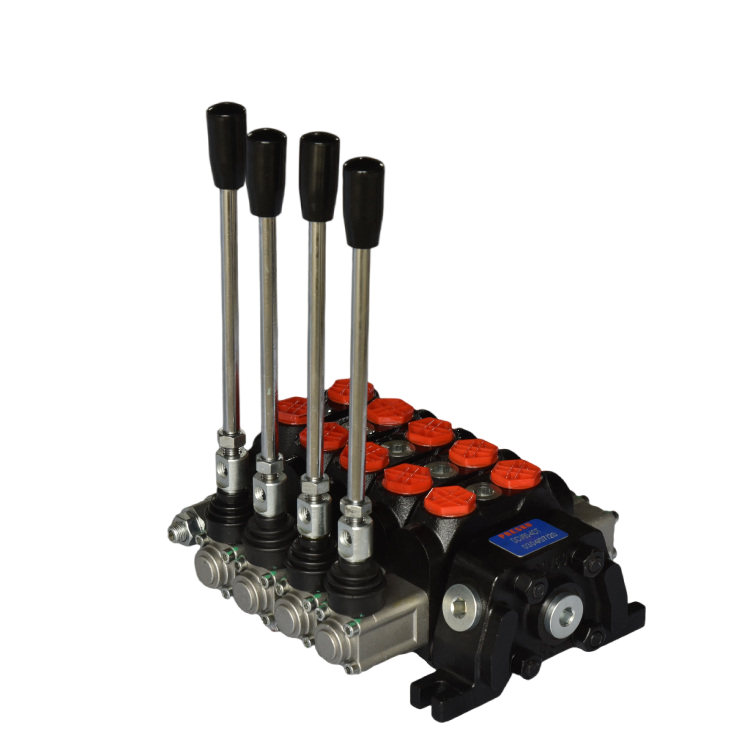

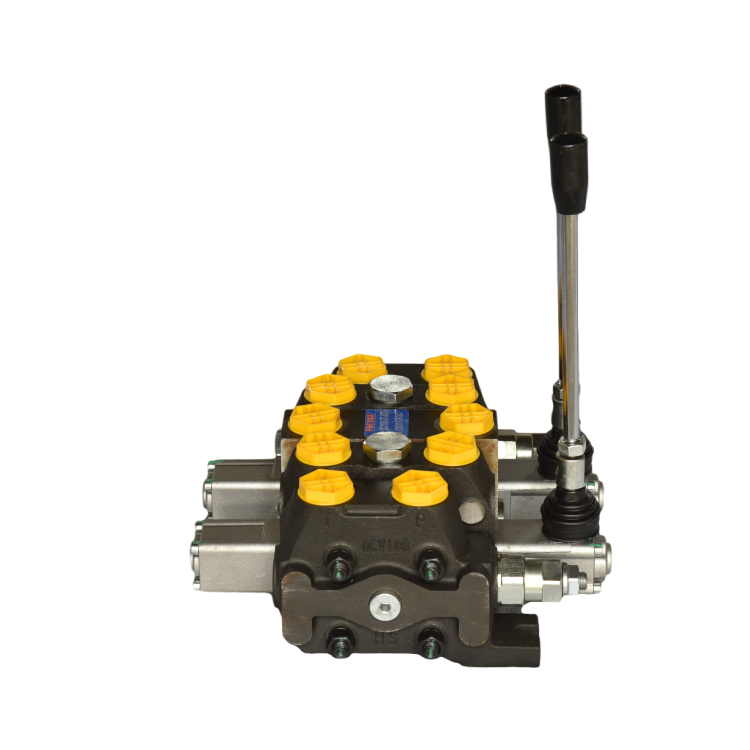

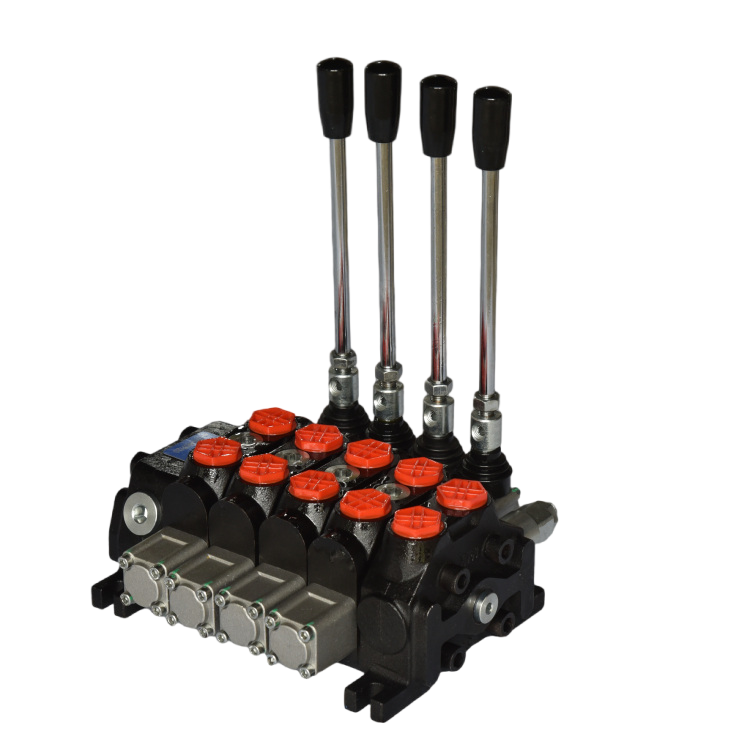

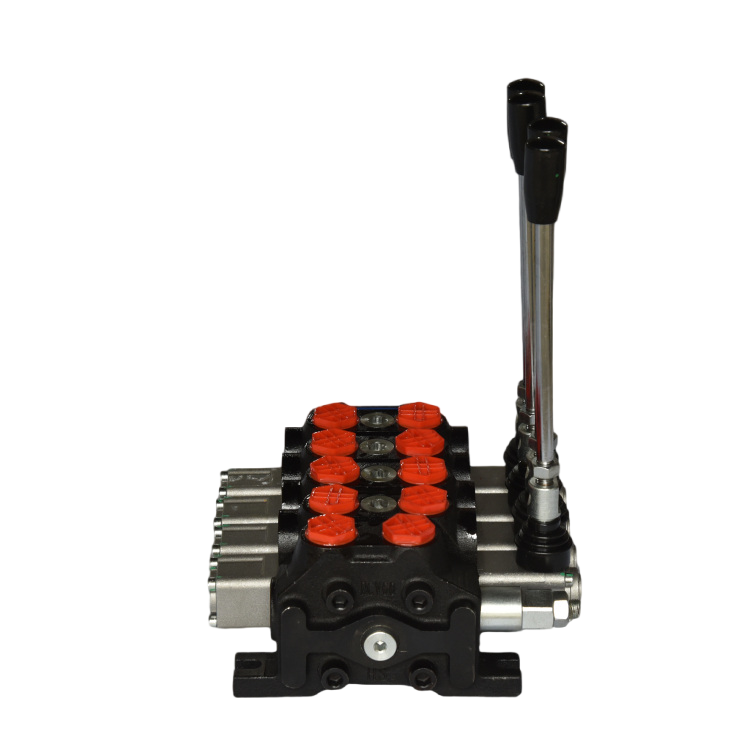

HUAMAO Manual Operated Custom Hydraulic Monoblock Joystick Directional Control Valve for Construction Machinery
No reviews yet
Attributes
Manual Directional Control ValveValve type
4Number Of Ways
315 barMaximum pressure
40 LPMMaximum Flow Rate
1/2 inPort Connection Size
1/2 inchPressure Connection
Flow Range (gpm):10 GPM
Warranty:1 Year
Showroom Location:China
Dimension(L*W*H):50*40*30
Place of Origin:China
Weight:2.5
Brand Name:HUAMAO
Power(W):Manual/Hydraulic Control
Pressure:250 bar
Structure:Monoblock
Number of Spools:1 / 2 / 3 / 4 / 5 / 6 / 7 spools (customizable)
Valve Type:4/3 way, monoblock directional control valve
Port Size:Inlet/Outlet: G1/2 (1/2") / Working Ports: G3/8 (3/8")
Control Method:Manual lever control (joystick/solenoid optional)
Spool Type:Open center / Closed center (customizable)
Fluid Compatibility:Mineral hydraulic oil (anti-wear)
Operating Temperature:-40°C ~ +80°C
Fluid Viscosity Range:12 ~ 400 cSt
Filtration Level:≤ 25 μm (recommended)
Mounting Type:Standard manifold mounting
Weight (approx.):2.5kg (1-spool) / 3.8kg (3-spool) / 5.0kg (6-spool)
Application:Forklifts, Wheel Loaders, Agricultural Machinery
OEM/ODM Service:Available
Key attributes
Valve type
Manual Directional Control Valve
Number Of Ways
4
Maximum pressure
315 bar
Maximum Flow Rate
40 LPM
Port Connection Size
1/2 in
Pressure Connection
1/2 inch
Flow Range (gpm)
10 GPM
Warranty
1 Year
Showroom Location
China
Dimension(L*W*H)
50*40*30
Place of Origin
China
Weight
2.5
Brand Name
HUAMAO
Power(W)
Manual/Hydraulic Control
Pressure
250 bar
Structure
Monoblock
Number of Spools
1 / 2 / 3 / 4 / 5 / 6 / 7 spools (customizable)
Valve Type
4/3 way, monoblock directional control valve
Port Size
Inlet/Outlet: G1/2 (1/2") / Working Ports: G3/8 (3/8")
Control Method
Manual lever control (joystick/solenoid optional)
Spool Type
Open center / Closed center (customizable)
Fluid Compatibility
Mineral hydraulic oil (anti-wear)
Operating Temperature
-40°C ~ +80°C
Fluid Viscosity Range
12 ~ 400 cSt
Filtration Level
≤ 25 μm (recommended)
Mounting Type
Standard manifold mounting
Weight (approx.)
2.5kg (1-spool) / 3.8kg (3-spool) / 5.0kg (6-spool)
Application
Forklifts, Wheel Loaders, Agricultural Machinery
OEM/ODM Service
Available
Packaging and delivery
Selling Units
Single item
Lead time
Customization options
Customized logo(+ from /Min. order: 50 pieces)
Customized packaging(+ from /Min. order: 50 pieces)
View details
Product descriptions from the supplier
50 - 99 pieces
$250
100 - 199 pieces
$240
>= 200 pieces
$230
