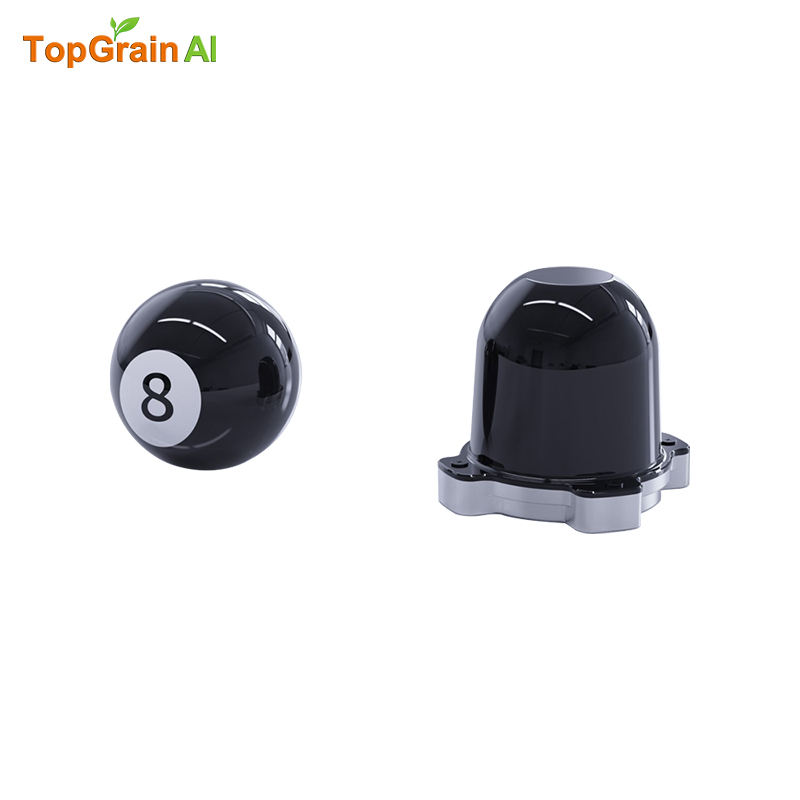

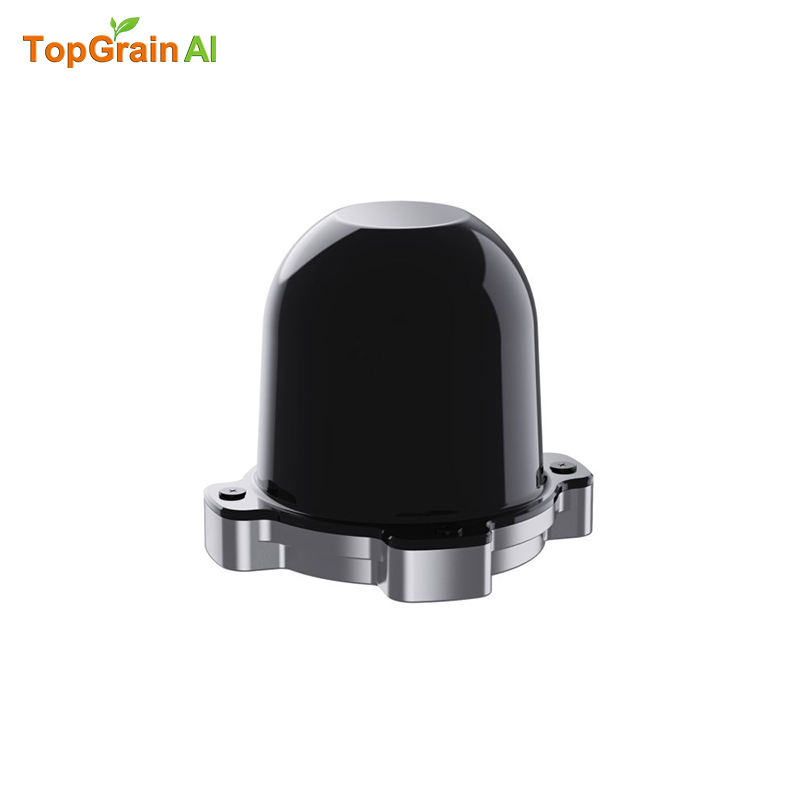

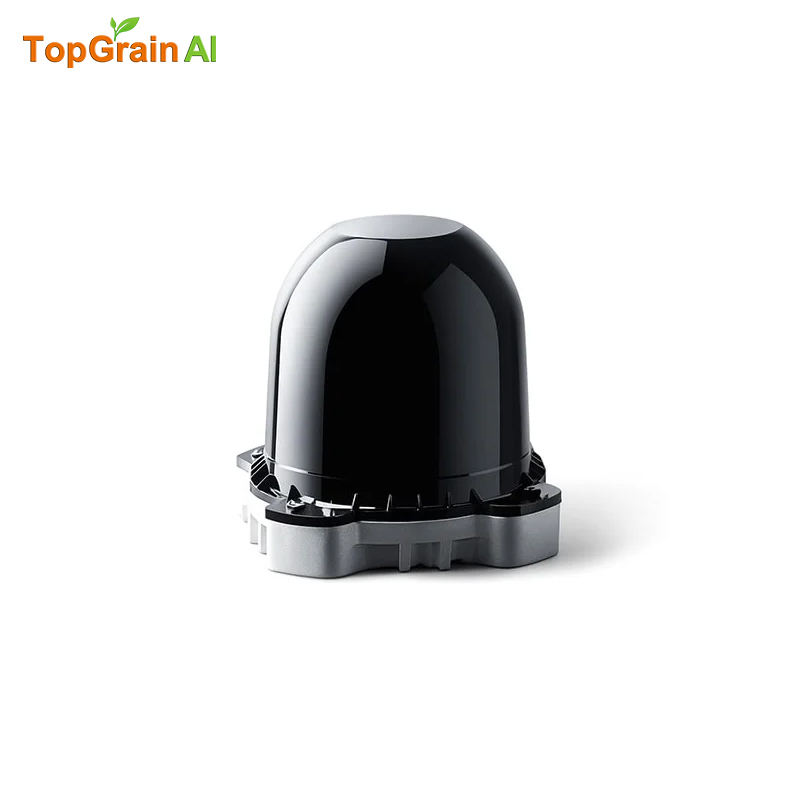

Hesai JT16 Mini 3D LiDAR Sensor 16-Channel High Resolution 360x40 FOV Affordable LiDAR for Robotics AGV Obstacle Avoidance SLAM

No reviews yet
$510
Minimum order quantity: 1 piece
Sample price: $510
Select now

Specification

HESAI JT16 LiDAR
Customization options
Customized packaging (Min. order: 200 pieces)

Key attributes

Mounting Type

Embedded installation

Manufacturer Part Number

JT16

Brand Name

HESAI LiDAR

Usage

Automatic Driving,ADAS,Robot,Train,Vehicle

Output

Other

Description

HESAI Long-Range Lidar

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Easy Return

Make free local returns for defects on qualifying purchases

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Key attributes

Mounting Type
Embedded installation
Manufacturer Part Number
JT16
Brand Name
HESAI LiDAR
Usage
Automatic Driving,ADAS,Robot,Train,Vehicle
Output
Other
Description
HESAI Long-Range Lidar
Place of Origin
Guangdong, China
Series
JT16 LiDAR
Theory
Launch laser beam and receive its reflected signal
Brand
HESAI
Amplifier Type
TIA, Transimpedance Amplifier
Voltage - Supply
Other
Output Type
Other
Current - Supply
Other
Operating Temperature
20℃ to 55℃
Resolution (Bits)
0.6° (5 Hz) 1.2° (10 Hz)
Features
High precision, high resolution, etc.
Current - Supply (Max)
Other
Packaging
Other
Frequency
Other
Output Configuration
Other
Current
Other
Voltage Rating
Other
Operating Force
Other
Oxygen Range
Other
Humidity Range
Other
Size
JT16 LiDAR
Size / Dimension
Height: 64 mm Bottom: 61.53/75.5 mm
Measuring Range
0.15 to 100 m
Resolution
Other
Interface
Other
Technology
Other
Sensing Range
30 m (at 10% reflectivity, for all channels)
Current - Output (Max)
Other
Bandwidth
Other
Function
Other
Acceleration Range
Other
Sensitivity (LSB/g)
Other
Sensitivity (mV/g)
Other
Sensitivity (LSB/(°/s))
Other
Sensitivity (mV/°/s)
Other
Sensing Distance
Other
Current - Output
Other
Power - Rated
Other
Voltage - Output Difference (Typ) @ Distance
Other
Voltage - Output (Typ) @ Distance
Other
Voltage - Max
Other
Voltage - DC Reverse (Vr) (Max)
Other
Power - Max
4.3 W
Sensing Object
People,vehicles,obstacles,traffic signs etc.
Sensing Light
Other
Resistance
Other
Resistance Tolerance
Other
Sensing Temperature - Local
Other
Sensing Temperature - Remote
Other
Current Rating - AC
Other
Current Rating - DC
Other
Tolerance
Other
Voltage - Rated
DC 12 to 16 V
Flow Sensor Type
Other
Voltage - Input
Other
Application
Other
Output Function
Other
Mfg Date Code
2025 and Newer
Cross Reference
Other
Scanning method
Mechanical rotation
Number of channels
16
Instrumented range
0.15 to 100 m
Ranging capability
30 m (at 10% reflectivity, for all channels)
Ranging precision
3 cm (typical, 1)
Ranging accuracy
±3 cm (typical)
Horizontal FOV
360°
Horizontal resolution
0.6° (5 Hz) 1.2° (10 Hz)
Vertical FOV
40° (0° to 40°)
Vertical resolution
2.67° (average)
Frame rate
5/10 Hz
Return mode
Single return: Last/Strongest (default)
Wavelength
905 nm
Laser class
Class 1 Eye Safe
Ingress protection
IP6K6
Dimensions
Height: 64 mm Bottom: 61.53/75.5 mm

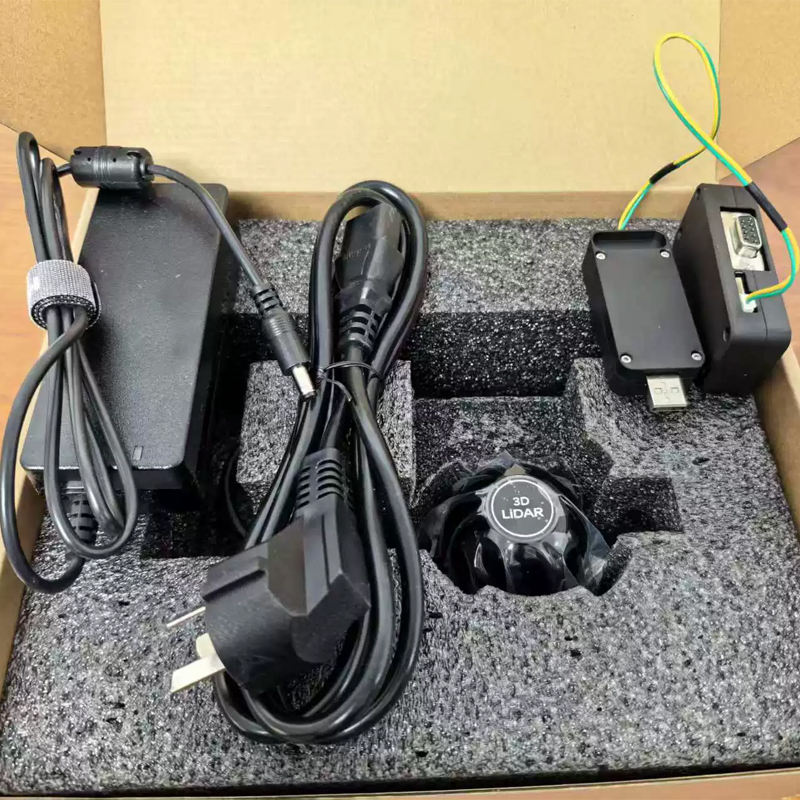

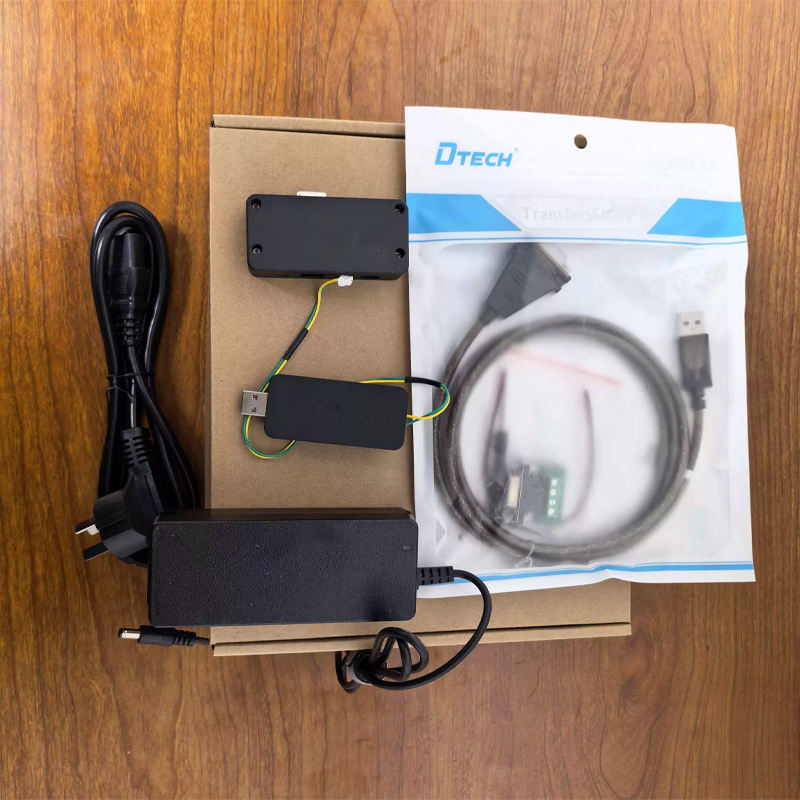

Packaging and delivery

Selling Units
Single item
Single package size
30X25X20 cm
Single gross weight
0.75 kg
