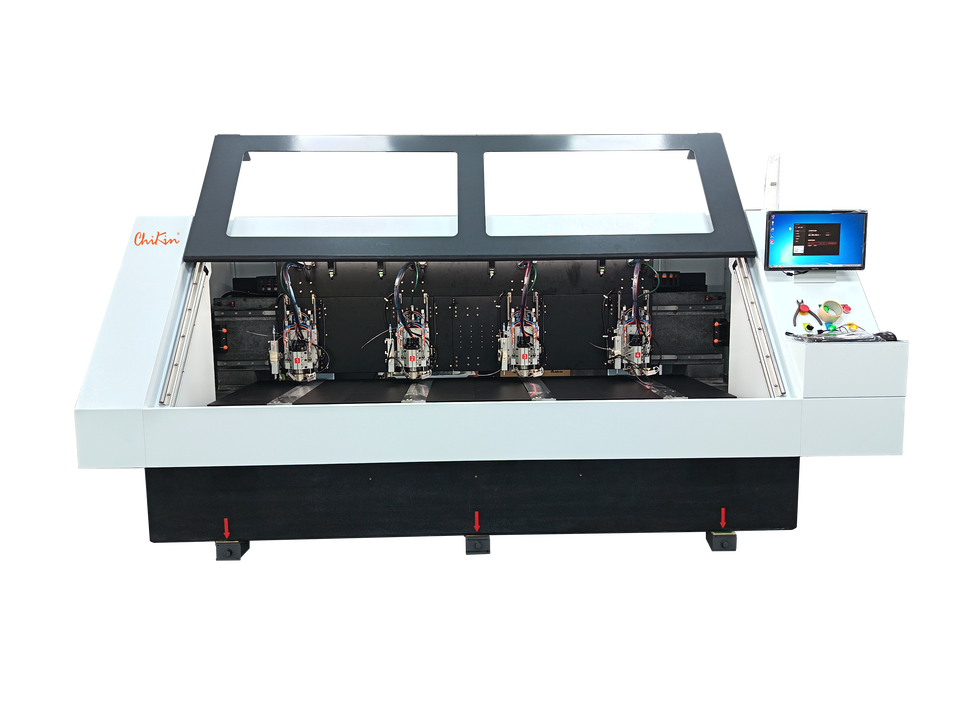

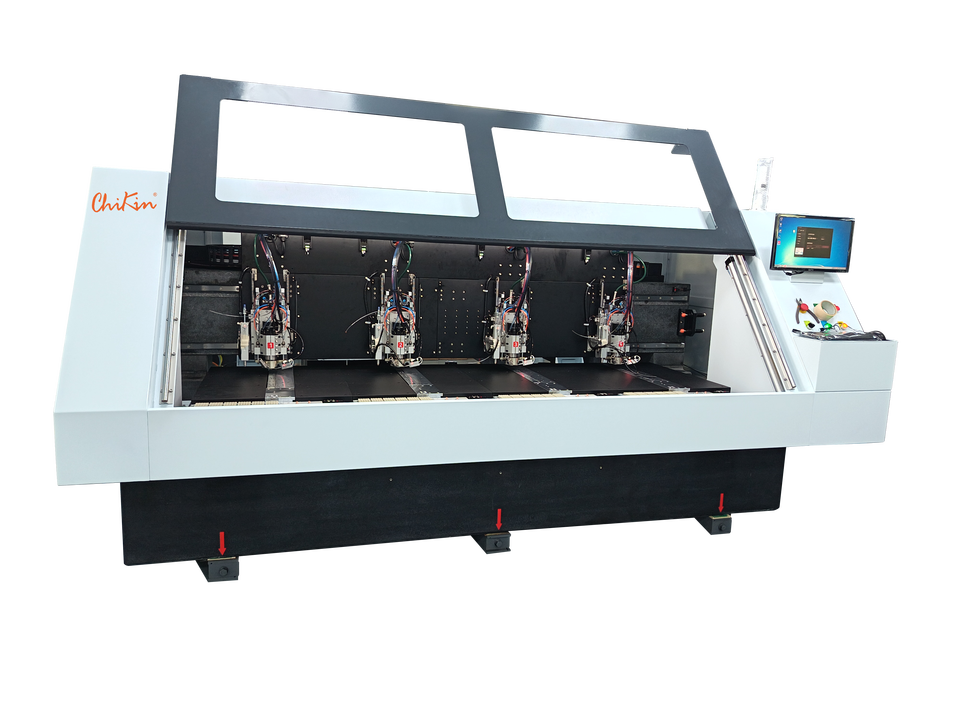

High Accuracy 4 Axis Hole Drilling Machine With Linear Motor for FR1/FR4/CEM1/Metal Core Printed Circuit Boards

No reviews yet

$57,500

1-2 sets

$57,100

3-4 sets

$56,800

≥5 sets

drilling capacity

Key attributes

type

PCB Drilling Machine

max. drilling dia. (mm)

6.35

voltage

380 V, 220 V

cnc or not

CNC

core components

Bearing, Motor, PLC, Spindle, Servo, Collet

machinery test report

Provided

Shipping

Select shipping

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

1-year warranty

Access to free parts replacement and repair coverage

Only orders placed and paid through Alibaba.com can enjoy free protection by

Payment & financing

Buy now, pay later

Service

Free replacement parts & online technical support

Free replacement parts & online technical support

1-year warranty

1-year warranty

Key attributes

type

PCB Drilling Machine

max. drilling dia. (mm)

6.35

voltage

380 V, 220 V

cnc or not

CNC

core components

Bearing, Motor, PLC, Spindle, Servo, Collet

machinery test report

Provided

video outgoing-inspection

Provided

key selling points

High Productivity

warranty

1 Year

range of spindle speed(r.p.m)

0 - 200000

place of origin

Guangdong, China

power (kw)

0.85

weight (kg)

7200

brand name

CHIKIN

model number

CK-04DPLUS

dimension(l*w*h)

3580*2050*1600mm

Spindle cooling

Water-cooling

X.Y.Z rail

Germany Rexroth / Japan THK

X.Y.Z driving method

Linear motor

X.Y Axis rapid speed

80m/min

Z Axis rapid speed

30~35m/min

Scale resolution

±0.001mm

Repeatability

±0.005mm

Table dimension

635*750mm

Tool magazine capacity

300PCS

Drilling tool diameter

0.15-6.35mm

Packaging and delivery

Selling Units

Single item

Lead time

Product descriptions from the supplier
