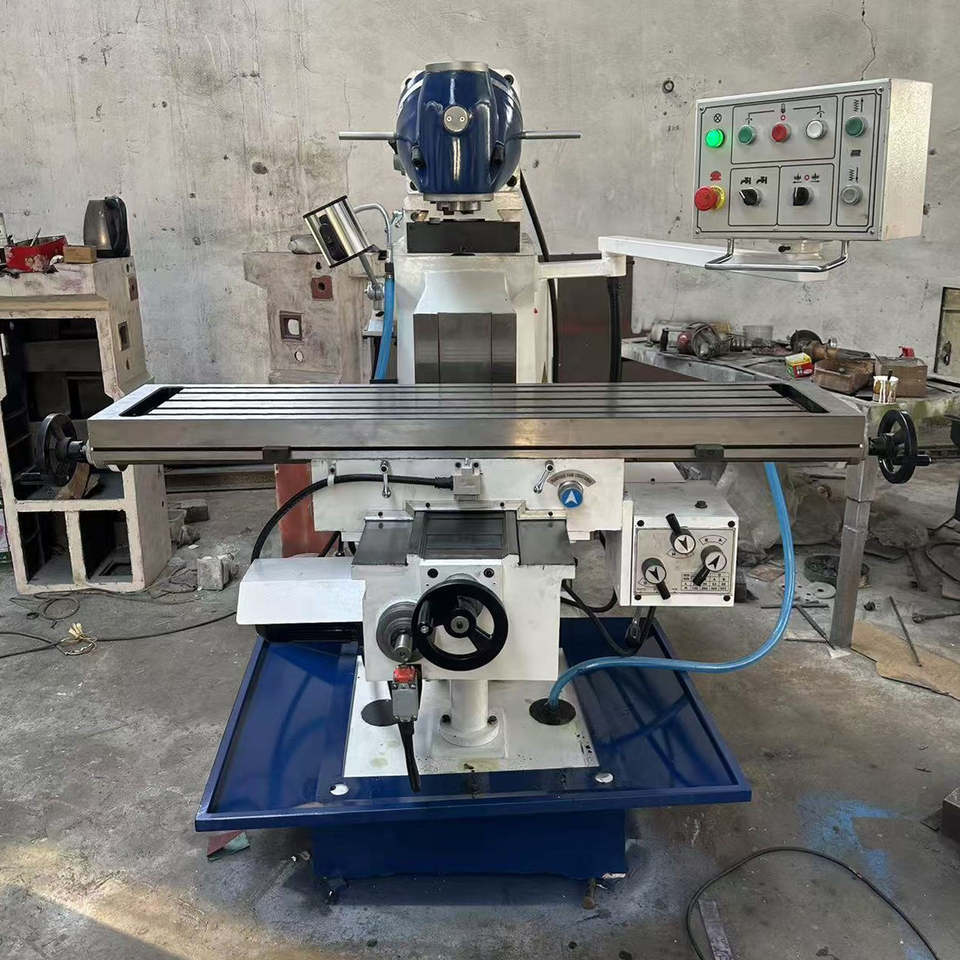

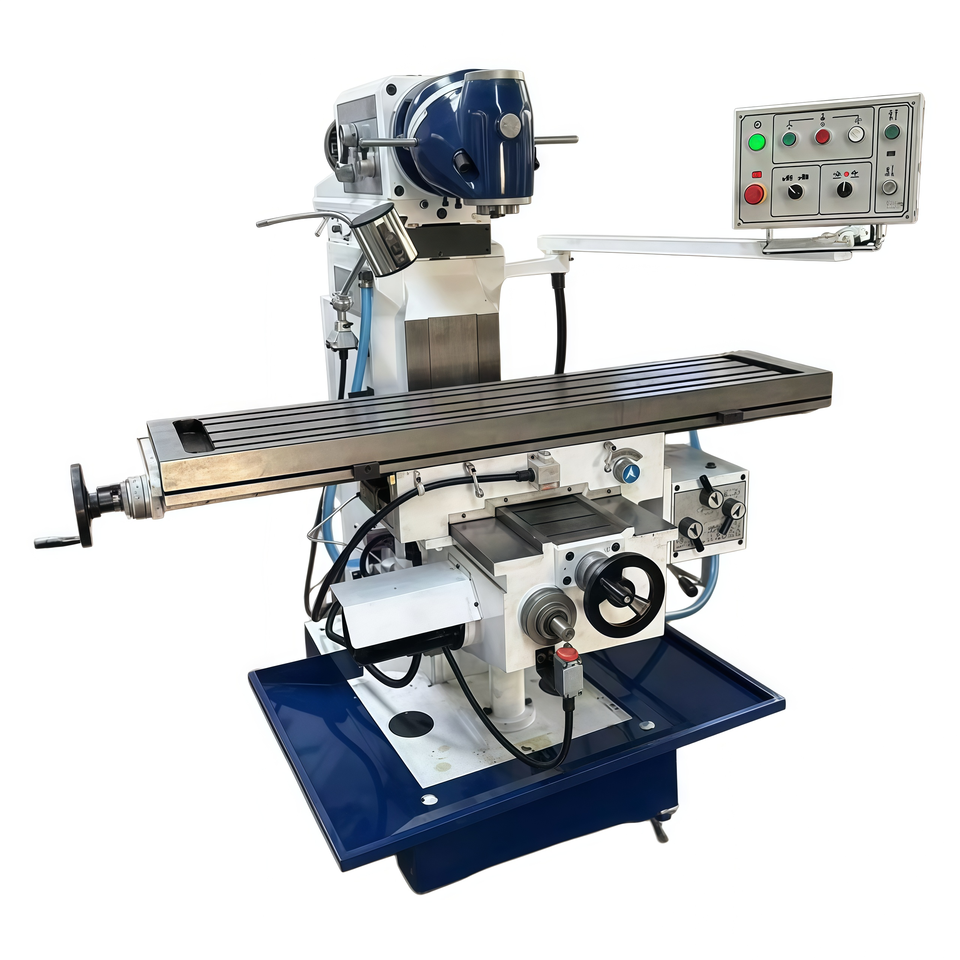

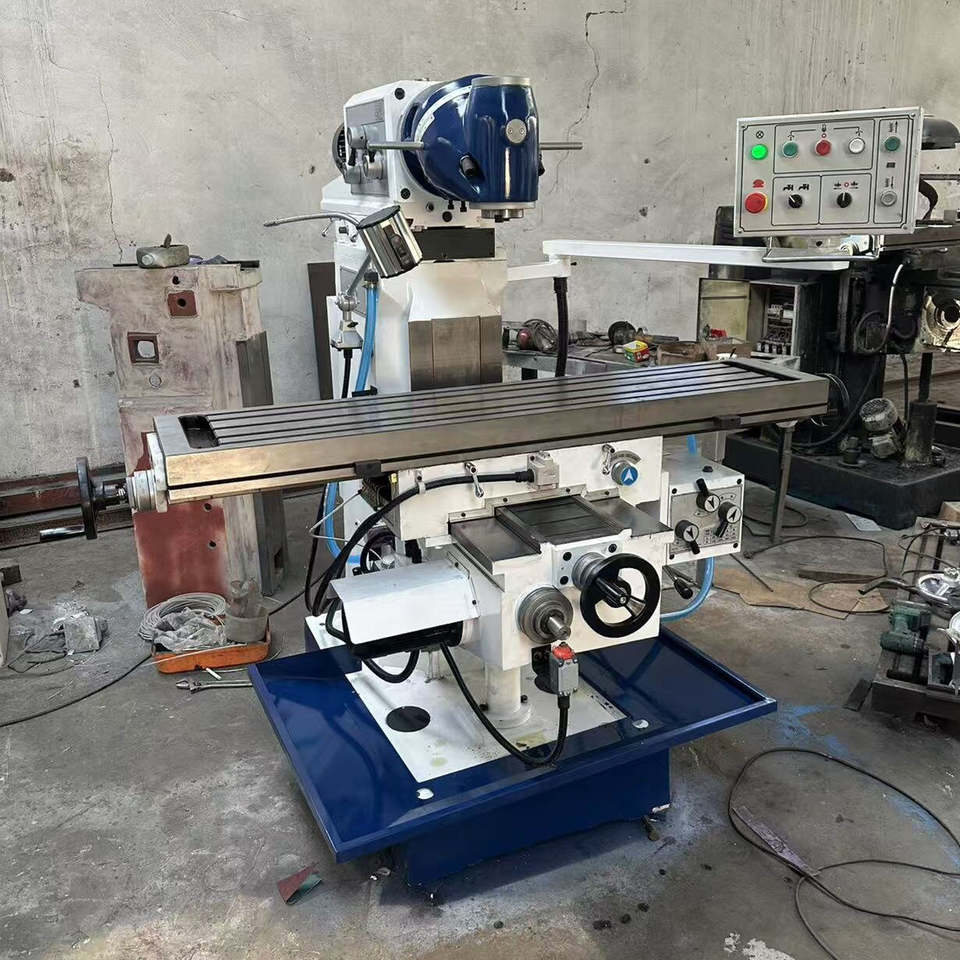

High Accuracy Medium Duty Multifunctional 3 Axis Vertical Turret Manual Milling Machine for Metal

No reviews yet
$5,280
1-2 sets
$4,900
3-5 sets
$4,500
6-9 sets
$3,350
≥10 sets
Select now

table size

1370*305

spindle motor power(kw)

2.25kw
Customization options
Customized logo (Min. order: 1 set)
Customized packaging (Min. order: 1 set)
Graphic customization (Min. order: 1 set)

Key attributes

type

VERTICAL

table travel (x) (mm)

600

table travel (y) (mm)

260

table travel (z) (mm)

None

voltage

380V

spindle taper

ISO40

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Key attributes

type
VERTICAL
table travel (x) (mm)
600
table travel (y) (mm)
260
table travel (z) (mm)
None
voltage
380V
spindle taper
ISO40
machining capacity
Medium Duty
key selling points
High-Accuracy
warranty
1 Year
video outgoing-inspection
Provided
machinery test report
Provided
range of spindle speed(r.p.m)
115 - 1750 r.p.m
weight (kg)
1200
max. table load(kg)
1000
place of origin
China
brand name
SMAC
model number
DML6350A
dimension(l*w*h)
1400 x 1630 x 2350
Spindle travel
120
Motor (kw)
0.85
Max. boring dia (mm)
120
Max. tapping dia (mm)
M16
Max. drilling dia (mm)
50; 30

Packaging and delivery

Selling Units
Single item
Single volume
0 cm³
Single gross weight
0.0 kg

Lead time

Customization options

Customized logo(+ from /Min. order: 1 set)
Customized packaging(+ from /Min. order: 1 set)
Graphic customization(+ from /Min. order: 1 set)
View details
