High Precision 106 Ton 2000mm Pure Electric Press Brake CNC Green Press Brake Industrial 4.0 (Mini 3T 200mm)
No reviews yet
Attributes
Brass / Copper, Stainless Steel, Alloy, Carbon Steel, Aluminummaterial / metal processed
2000length of working table (mm)
Synchronizedmachine type
Fully Automaticautomatic level
Bearing, Motorcore components
Providedmachinery test report
video outgoing-inspection:Provided
warranty:1 Year
automation:Automatic
key selling points:High-Accuracy
extra services:End Forming
dimension:2200m x 1380 x 2200 mm
motor power (kw):77
place of origin:Anhui, China
weight (kg):4350
Model Number:EP 105/2000S
slider stroke (mm):180
throat depth (mm):300
brand name:JialiPRESS
Nominal Pressure:1050 KN
Maximum Bending Size:6.4mm x 2000mm Carbon Steel
Function:Fast Bending with High Accuracy, Cost Effective and Eco-friendly
Power Type:All Electric, Free from Hydraulic Oil Leakage or Replacements

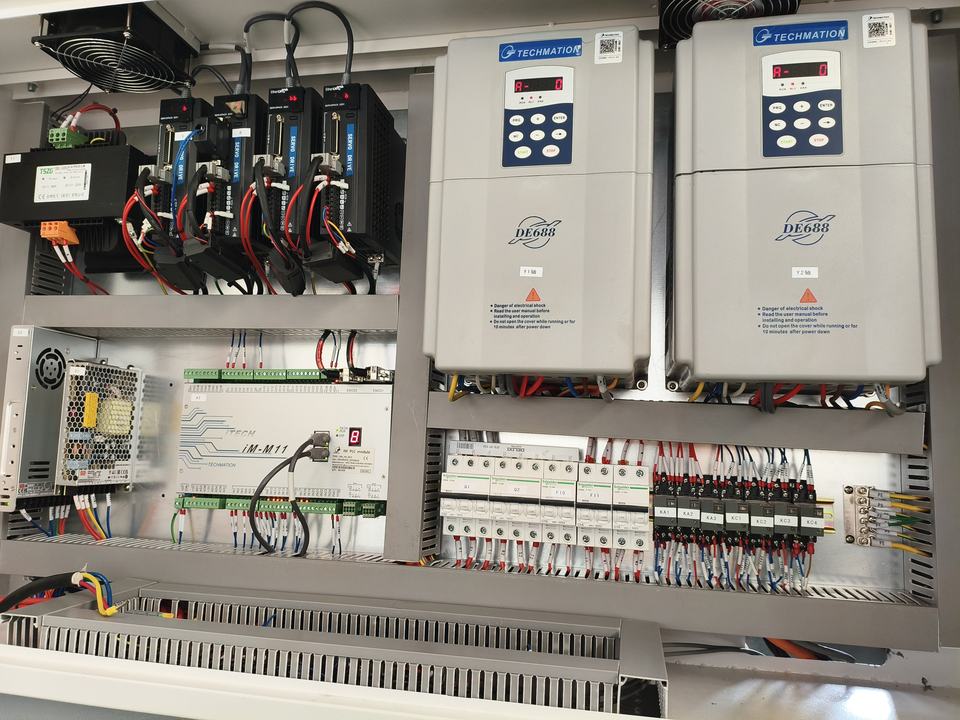

CNC Control System:Spectrum Control System SCS700 from TechMation Taiwan

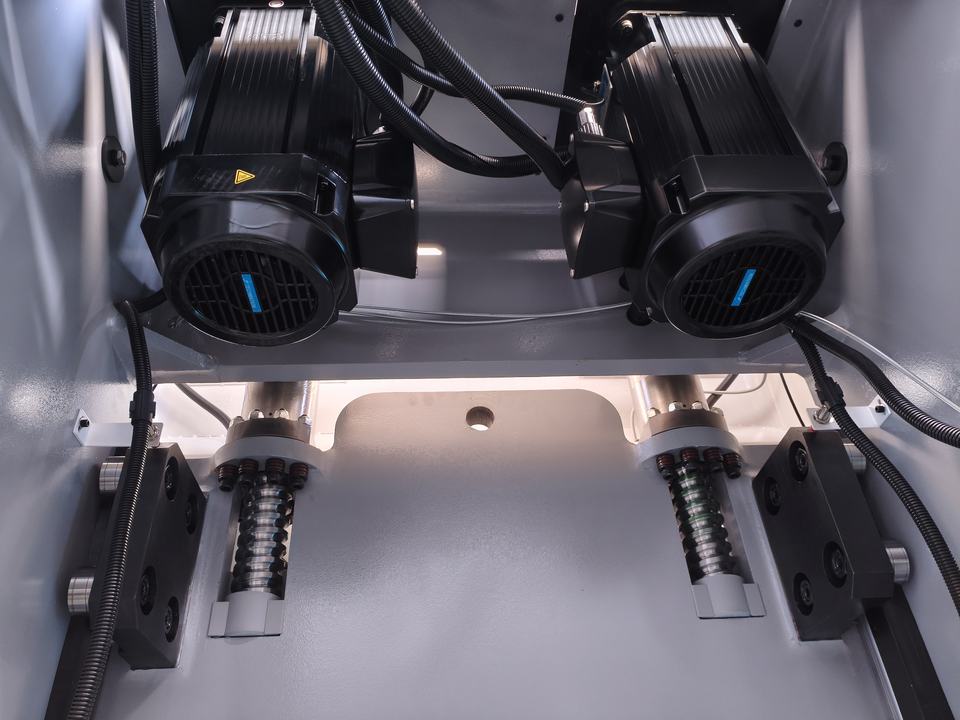

High Precision Mechanism:On-demand Ball Screw Drive Mechanism from TechMation Taiwan
Main Servo Motors/Drives:On-demand Servo Motors and Drives from TechMation Taiwan
Thrust Bearings:from IKO Japan
Certification:CE Certification
After-sales Service Provided:Video Technical Support
Service
Free replacement parts & online technical support
1-year warranty
Key attributes
material / metal processed
Brass / Copper, Stainless Steel, Alloy, Carbon Steel, Aluminum
length of working table (mm)
2000
machine type
Synchronized
automatic level
Fully Automatic
core components
Bearing, Motor
machinery test report
Provided
video outgoing-inspection
Provided
warranty
1 Year
automation
Automatic
key selling points
High-Accuracy
extra services
End Forming
dimension
2200m x 1380 x 2200 mm
motor power (kw)
77
place of origin
Anhui, China
weight (kg)
4350
Model Number
EP 105/2000S
slider stroke (mm)
180
throat depth (mm)
300
brand name
JialiPRESS
Nominal Pressure
1050 KN
Maximum Bending Size
6.4mm x 2000mm Carbon Steel
Function
Fast Bending with High Accuracy, Cost Effective and Eco-friendly
Power Type
All Electric, Free from Hydraulic Oil Leakage or Replacements
CNC Control System
Spectrum Control System SCS700 from TechMation Taiwan
High Precision Mechanism
On-demand Ball Screw Drive Mechanism from TechMation Taiwan
Main Servo Motors/Drives
On-demand Servo Motors and Drives from TechMation Taiwan
Thrust Bearings
from IKO Japan
Certification
CE Certification
After-sales Service Provided
Video Technical Support
Packaging and delivery
Selling Units
Single item
Lead time
Customization options
Name plate(+ from /Min. order: 1 set)
length of working table (mm)(+ from /Min. order: 1 set)
dimension(+ from /Min. order: 1 set)
extra services(+ from /Min. order: 1 set)
View details
Customizable
1 - 1 sets
$4,999
>= 2 sets
$3,499
Variations
Select nownominal pressure (kn)
100
160
200
250
300
400
500
+5
Customization options
Name plate (Min. order: 1 set)
length of working table (mm) (Min. order: 1 set)
dimension (Min. order: 1 set)
+1 more options
