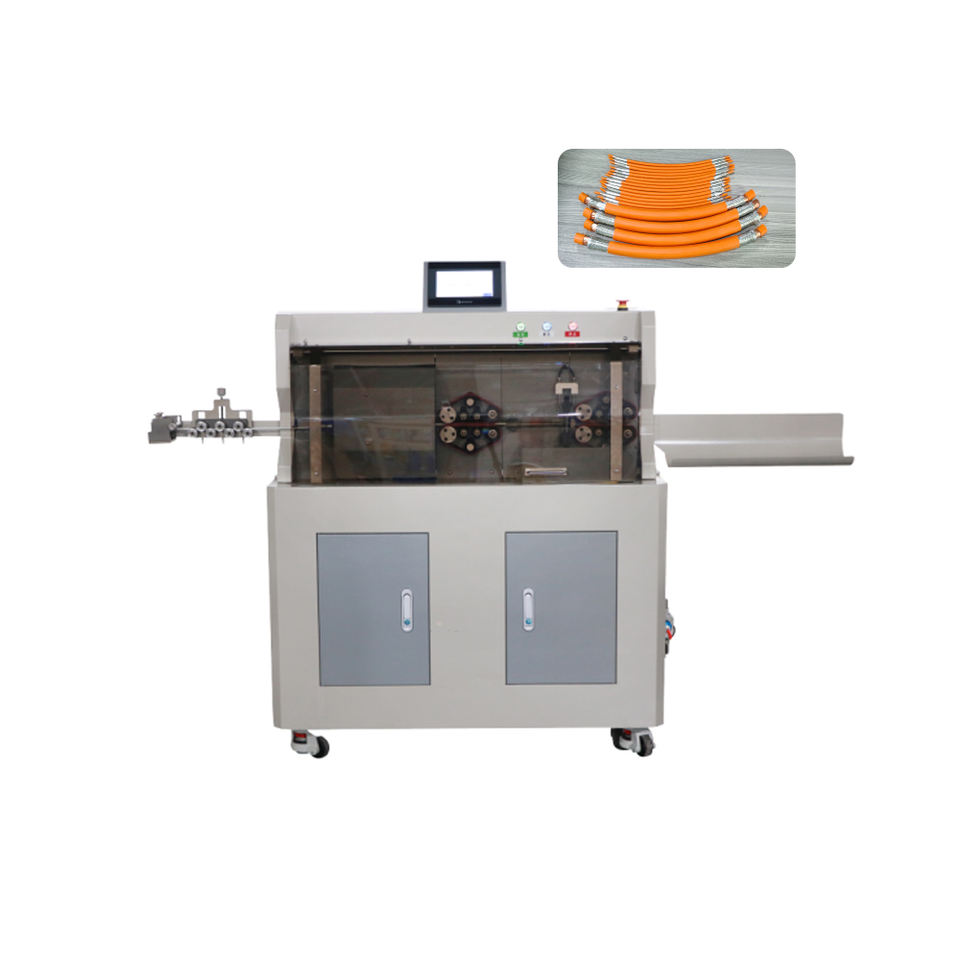

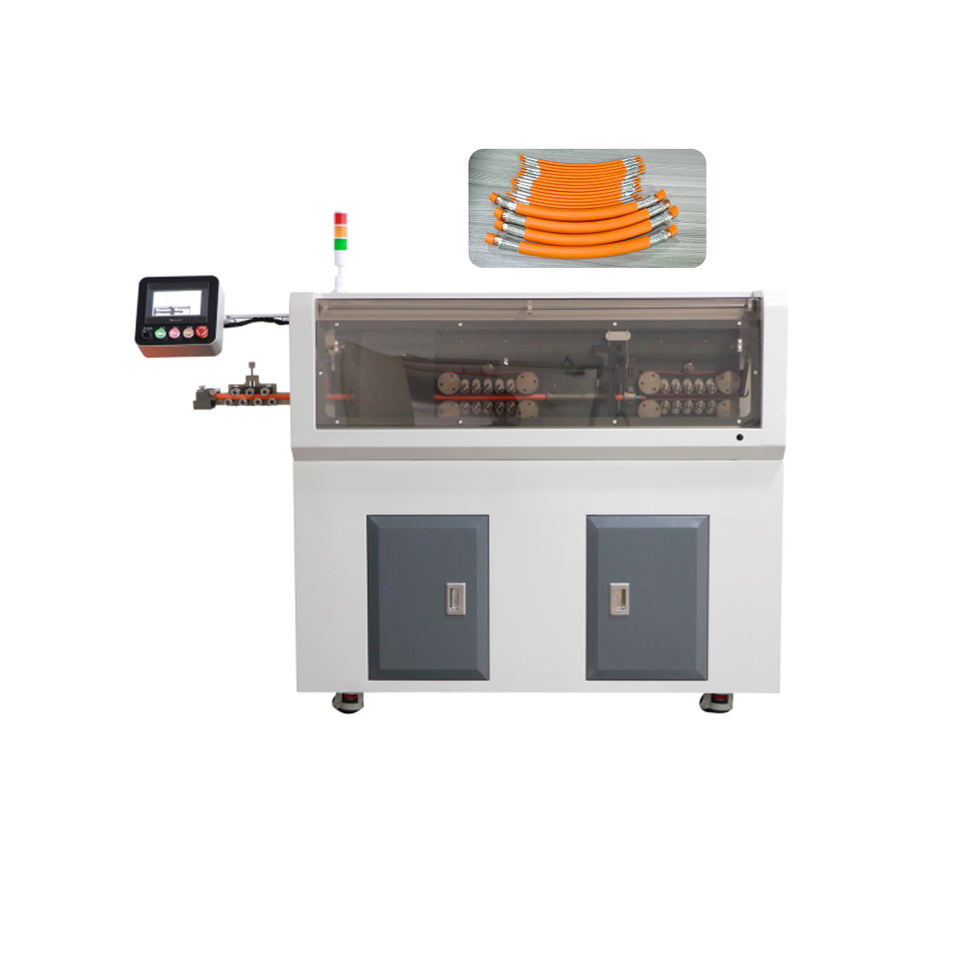

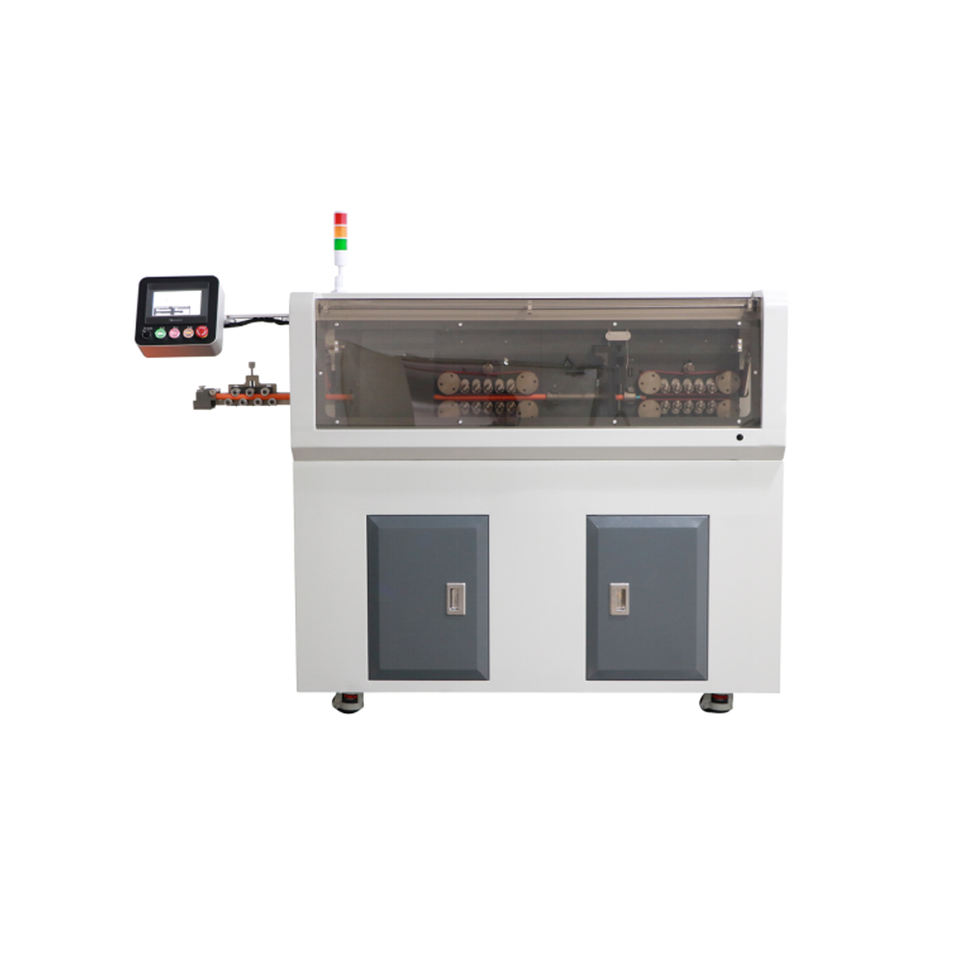

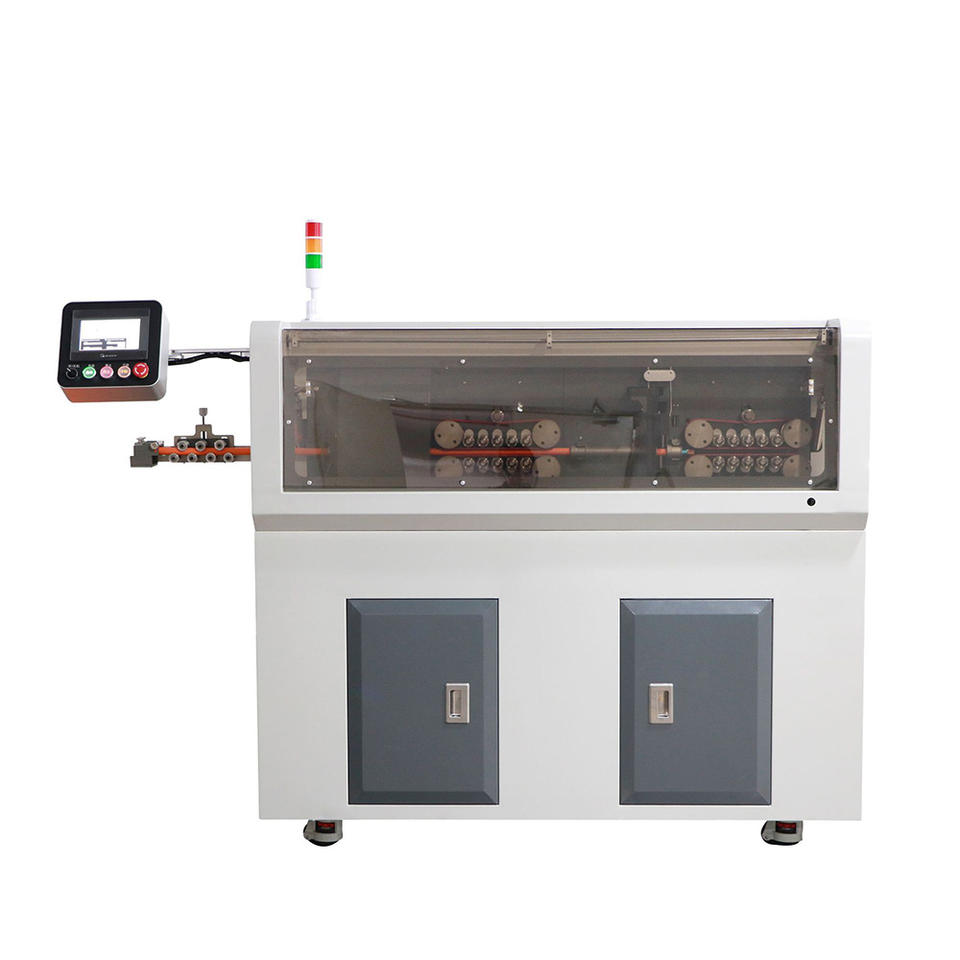

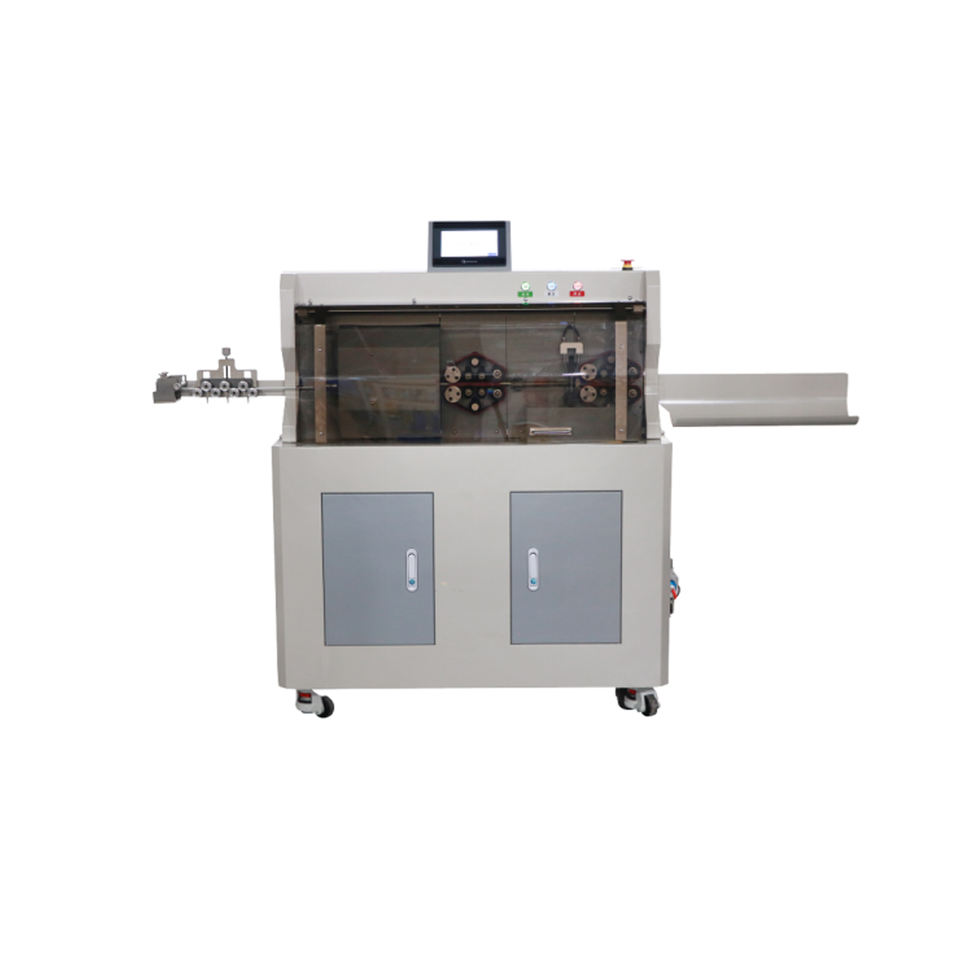

High Precision Coaxial Cable Cutting Stripping Machine with 3-Blade Rotary Head Technology
No reviews yet
Attributes
Strippingusage
AutomaticOperating Mode
213Weight (KG)
Guangdong, Chinaplace of origin
Sinradbrand name
SR-9615model number
Dimension(L*W*H):106*51*135cm
Model:SR-9615
Display method:touchscreen

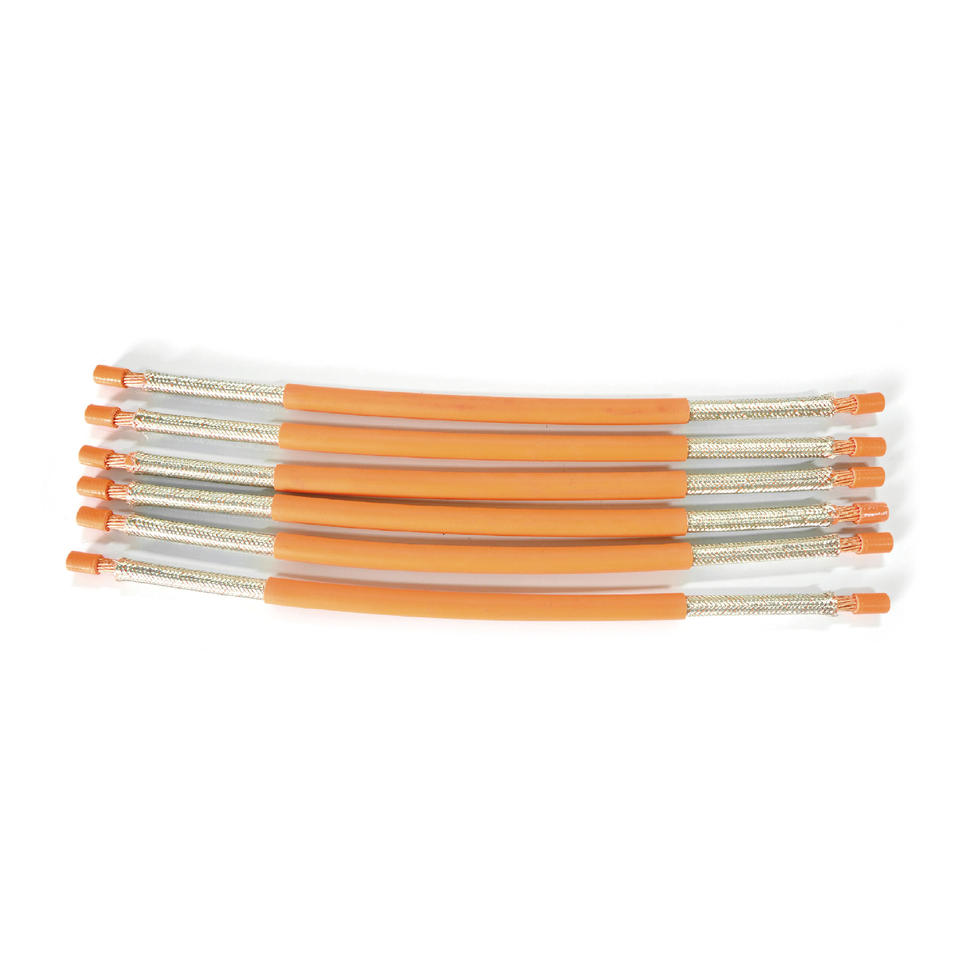

Applicable wires:New energy lines, power lines, coaxial cables, multi-core cables, etc.
Wire cutting capability:50mm-99999mm
Cutting wire diameter range:2.5mm-14mm (shielded cable 25mm2, non-shieled cable 35mm2)
Stripping length:Right end max220mm, left end max130mm
Cutting accuracy:±0.5MM + total length * 1 ‰
Stripping precision:± 0.3mm
Cutting depth setting unit:0.01mm
Maximum number of stripping layers:6 layers
Display interface:Chinese and English LCD 153mm*85mm
Power supply:AC220V/110V 50/60HZ
Drive method:Servo motor/Ball screw drive/Pulley feeding
Stripping method:Rotary blade + stripping blade
Knife material:Imported tungsten steel + imported high-speed steel
Storage capacity:99 types of processing parameter data
Production efficiency:400-700pcs/h (depending on the material)
Key attributes
usage
Stripping
Operating Mode
Automatic
Weight (KG)
213
place of origin
Guangdong, China
brand name
Sinrad
model number
SR-9615
Dimension(L*W*H)
106*51*135cm
Model
SR-9615
Display method
touchscreen
Applicable wires
New energy lines, power lines, coaxial cables, multi-core cables, etc.
Wire cutting capability
50mm-99999mm
Cutting wire diameter range
2.5mm-14mm (shielded cable 25mm2, non-shieled cable 35mm2)
Stripping length
Right end max220mm, left end max130mm
Cutting accuracy
±0.5MM + total length * 1 ‰
Stripping precision
± 0.3mm
Cutting depth setting unit
0.01mm
Maximum number of stripping layers
6 layers
Display interface
Chinese and English LCD 153mm*85mm
Power supply
AC220V/110V 50/60HZ
Drive method
Servo motor/Ball screw drive/Pulley feeding
Stripping method
Rotary blade + stripping blade
Knife material
Imported tungsten steel + imported high-speed steel
Storage capacity
99 types of processing parameter data
Production efficiency
400-700pcs/h (depending on the material)
Packaging and delivery
Selling Units
Single item
Single package size
150.00X80.00X170.00 cm
Single gross weight
260.000 kg
Lead time
Product descriptions from the supplier
Minimum order quantity: 1 set
$20,000
Variations
Select nowCapacity (kg/h): 100 kg/h(220.46lb/h)
100 kg/h(220.46lb/h)
Power(W)
2500W(3.35hp)
