Attributs
Ip65, Ip66Indice de Protection
pressure transmitterType
SingaporePoint d'origine
PDSNuméro de Type
PDSMarque nom
OEM, ODM, OBMSupport personnalisé
Matériel:stainless steel
Garantie:3 ans

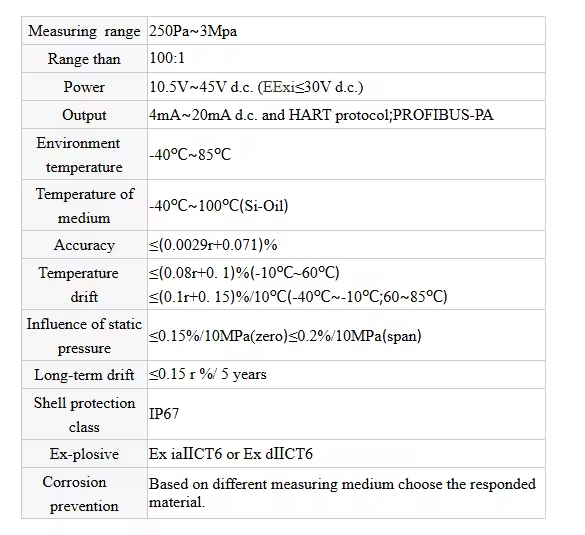

Measuring range:250Pa~3Mpa
Range than:100:1
Power:10.5V~45V d.c. (EExi≤30V d.c.)
Output:4mA~20mA d.c. and HART protocol;PROFIBUS-PA
Environment temperature:-409C~85°C
Temperature ofmedium:-409C~100°C(Si-0i1)
Accuracy:≤(0.0029r+0.071)%
Temperature drift:≤(0.08r+0.1)%(-10°C-60°C) ≤(0.1r+0.15)%/10°C(-40°C~-10C;60~85°C)
Influence of static pressure:≤0.15%/10MPa(zero)≤0.2%/10MMPa(span)
Long-term drift:≤0.15 r %/ 5 years
