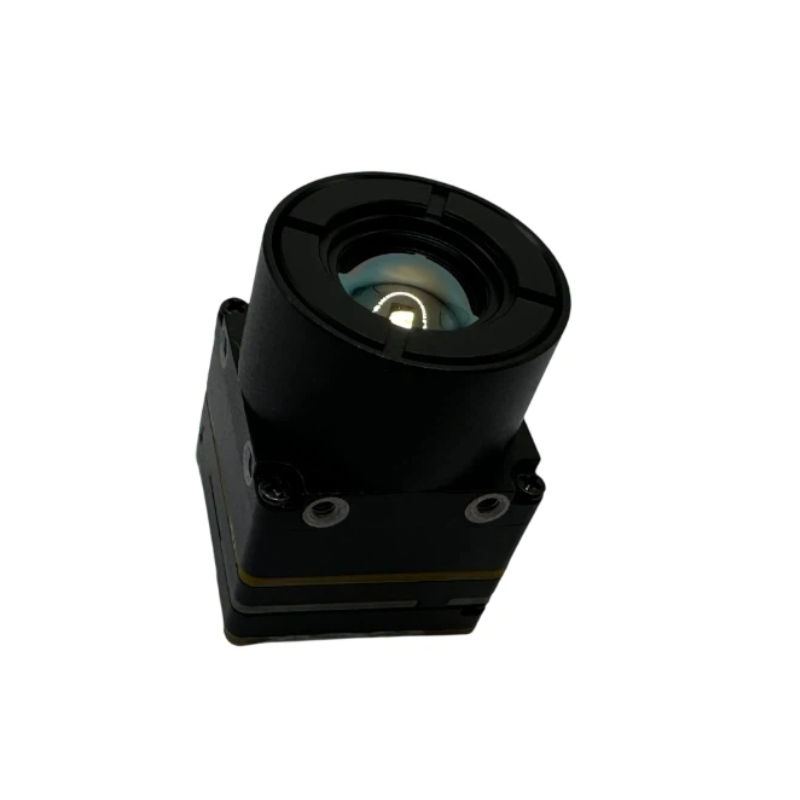

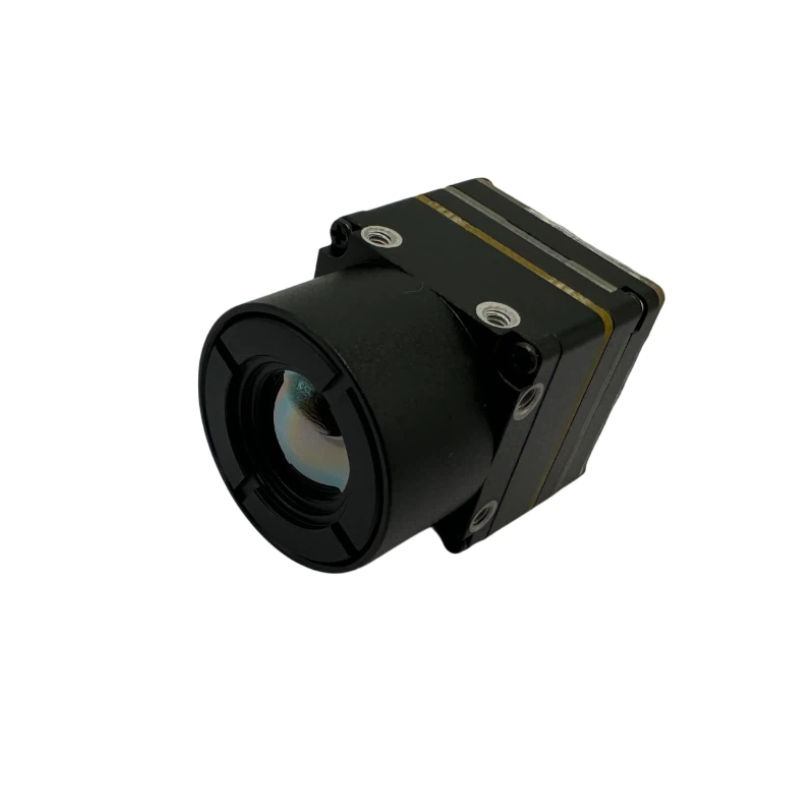

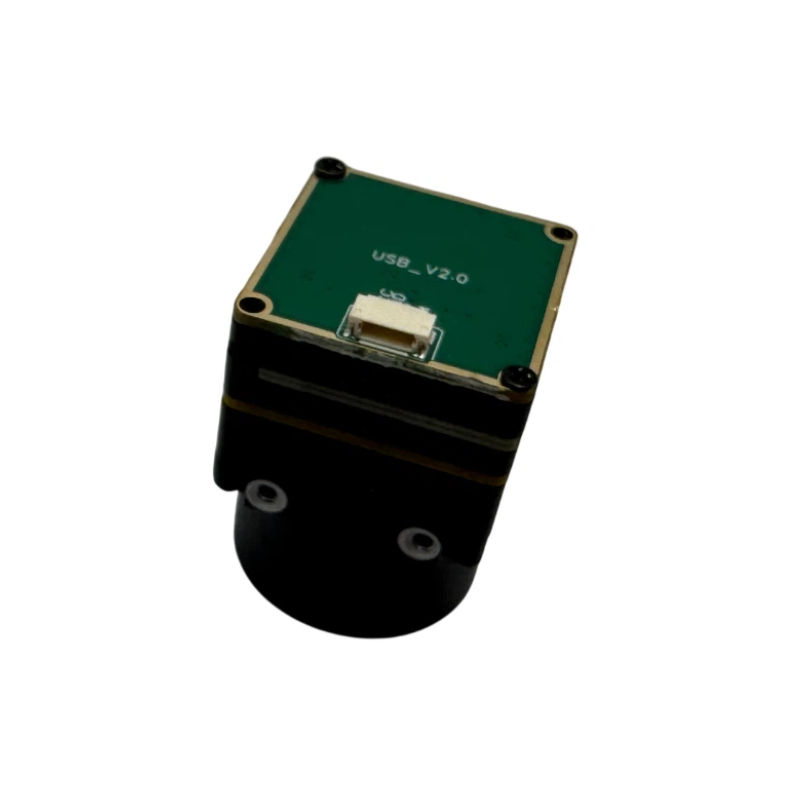

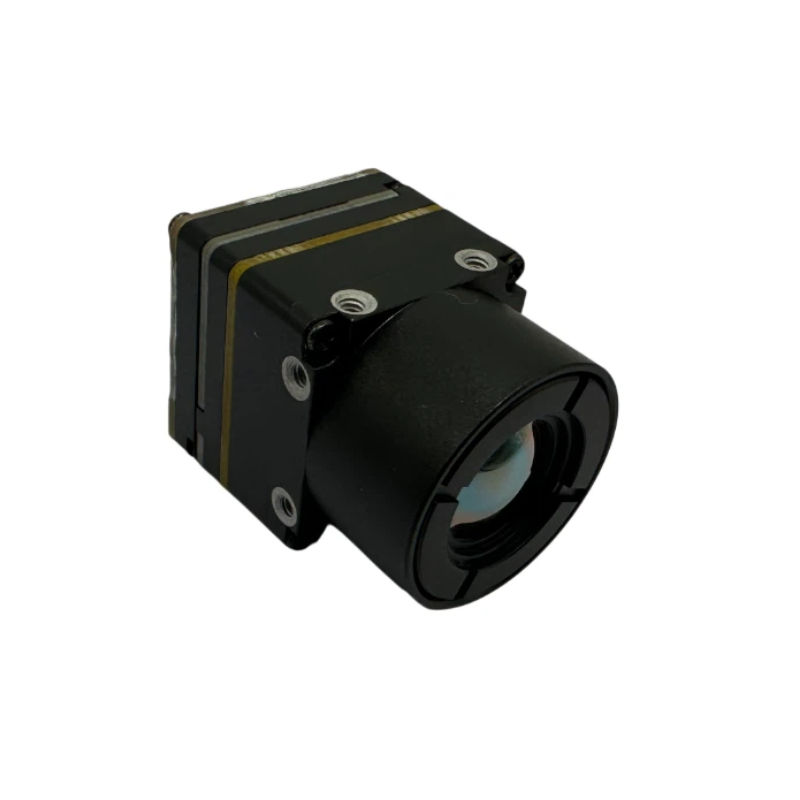

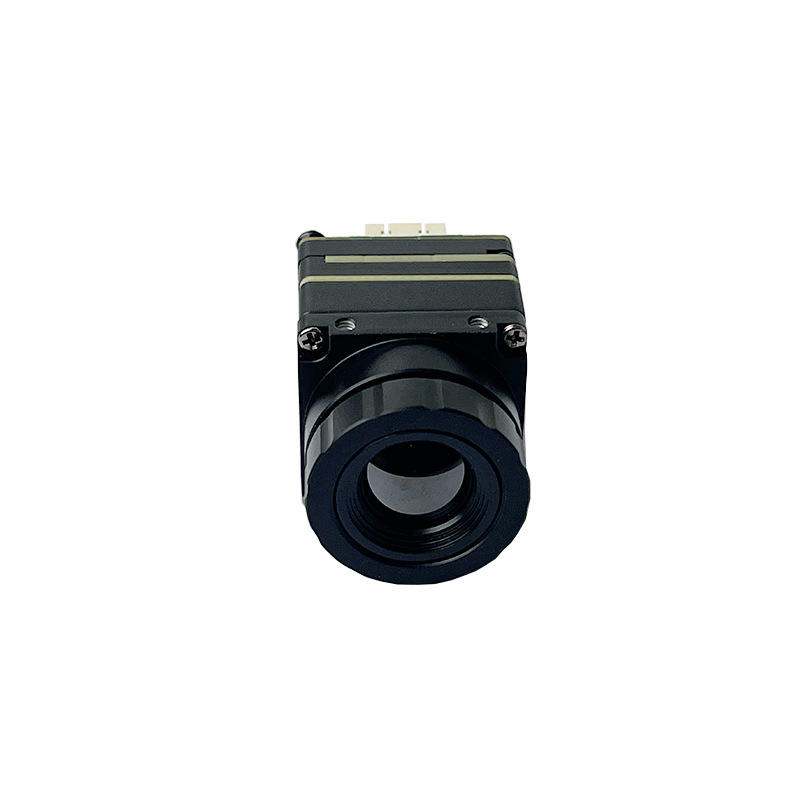

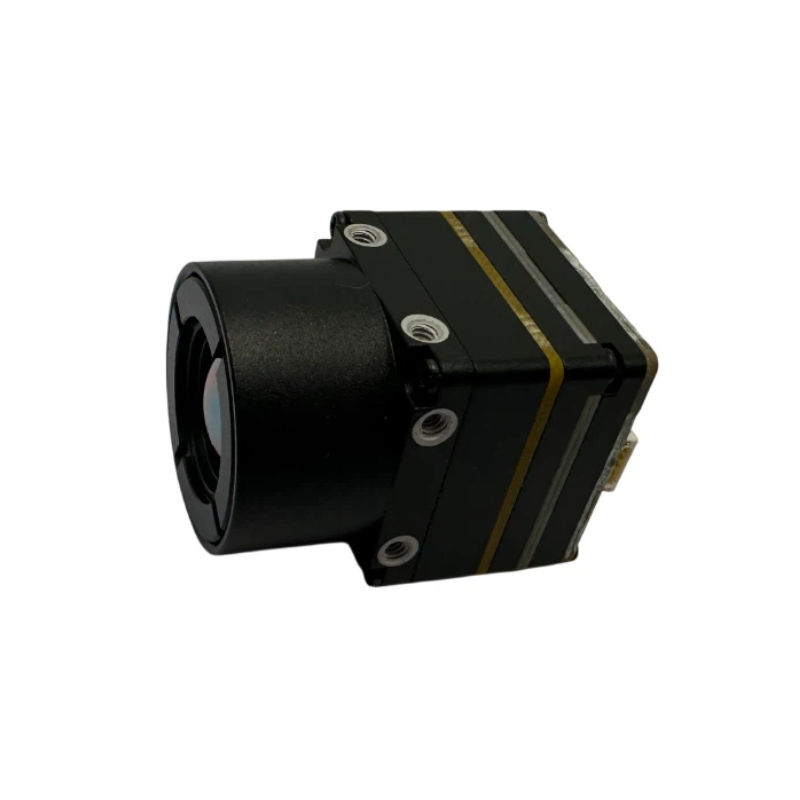

High Resolution 640*512 Thermal Imager New Thermal Camera Module with OEM CVBS/USB 9mm Analog Interface
Store rating:4.3
(82 reviews)2 sold#11Most popular in Thermal Imaging Camera Modules
Attributes
256X192/384X288/640X512Resolution
USB UVC/CVBSnetwork
HSTD-Mini2 640X512Model Number
HSTDBrand Name
Guangdong, ChinaPlace of Origin
EASY INSTALLEDMounting Type
Description:no
Application:INSUDTRY
Series:1mp
Features:Starlight Sensor
Size / Dimension:21x21x10.3 mm
SENSOR:Vanadium Oxide Uncooled Infrared Focal Plane Detector
Pixel Pitch:12um
LENS:9.1 mm 6/11/13/15/19/25/35/50/75mm
INTERFACE:USB UVC/CVBS
Spectral Band:8~14um
NETD:≤40mK@25℃,F#1.0,25Hz
Thermal Time Constant:<12ms
Non-uniformity Correction:Shutter correction/shutter-less algorithm correction
Brightness/Contrast Adjustment:0~100, optional
Polarity/Palette:White-hot/Black-hot/Various palettes supported
Key attributes
Resolution
256X192/384X288/640X512
network
USB UVC/CVBS
Model Number
HSTD-Mini2 640X512
Brand Name
HSTD
Place of Origin
Guangdong, China
Mounting Type
EASY INSTALLED
Description
no
Application
INSUDTRY
Series
1mp
Features
Starlight Sensor
Size / Dimension
21x21x10.3 mm
SENSOR
Vanadium Oxide Uncooled Infrared Focal Plane Detector
Pixel Pitch
12um
LENS
9.1 mm 6/11/13/15/19/25/35/50/75mm
INTERFACE
USB UVC/CVBS
Spectral Band
8~14um
NETD
≤40mK@25℃,F#1.0,25Hz
Thermal Time Constant
<12ms
Non-uniformity Correction
Shutter correction/shutter-less algorithm correction
Brightness/Contrast Adjustment
0~100, optional
Polarity/Palette
White-hot/Black-hot/Various palettes supported
