Attributes
CNC Routermachine type
CNCcnc or not
Shandong, Chinaplace of origin
380 V, 240V, 400V, 1P/3P, 50HZ/60HZvoltage
2000weight (kg)
3 yearswarranty
range of spindle speed(r.p.m):6000 - 30000
positioning accuracy (mm):0.01
number of axes:5
No. of Spindles:ATC
travel (x axis)(mm):2500
travel (y axis)(mm):5000
repeatability (x/y/z) (mm):0.01
Spindle Motor Power (kw):13.5
brand name:BCAMCNC
dimension(l*w*h):2500*5000*1800mm
key selling points:Multifunctional
machinery test report:Provided
video outgoing-inspection:Provided
core components:Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox
Accessory Type:Dust collection, Scanner

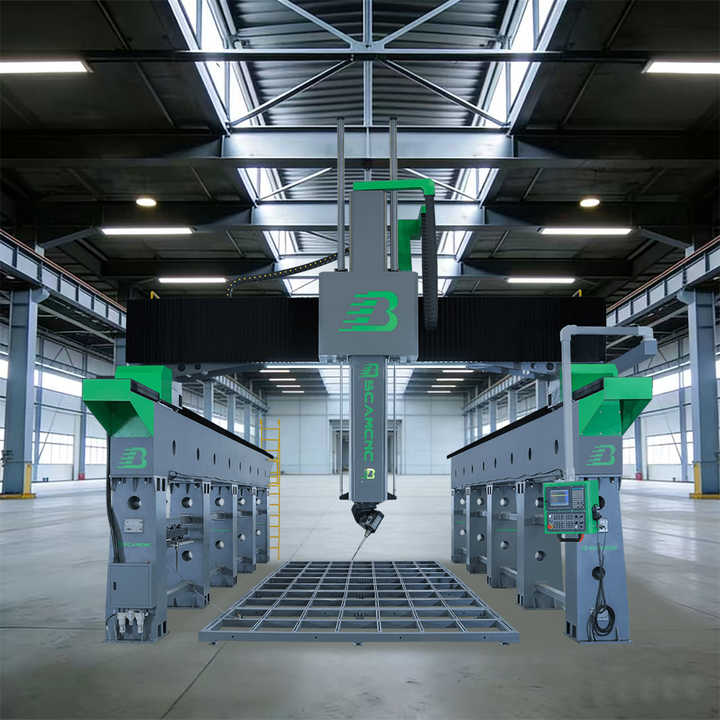

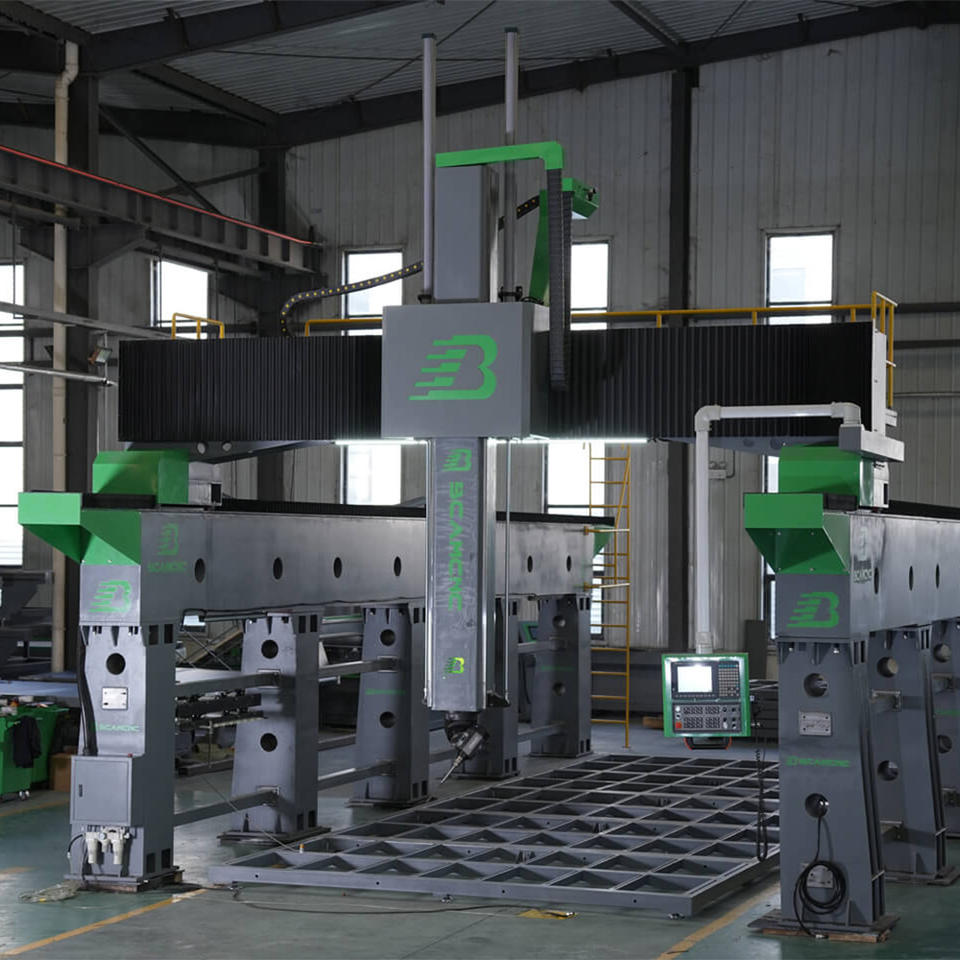

Product name:5 Axis CNC Router Machine
Application:FOAM MDF WOOD ACRYLIC ALUMINUM
Keywords:3d Wood Cutting Cnc Machine
Control system:Nc-studio/Mach3/DSP Control System

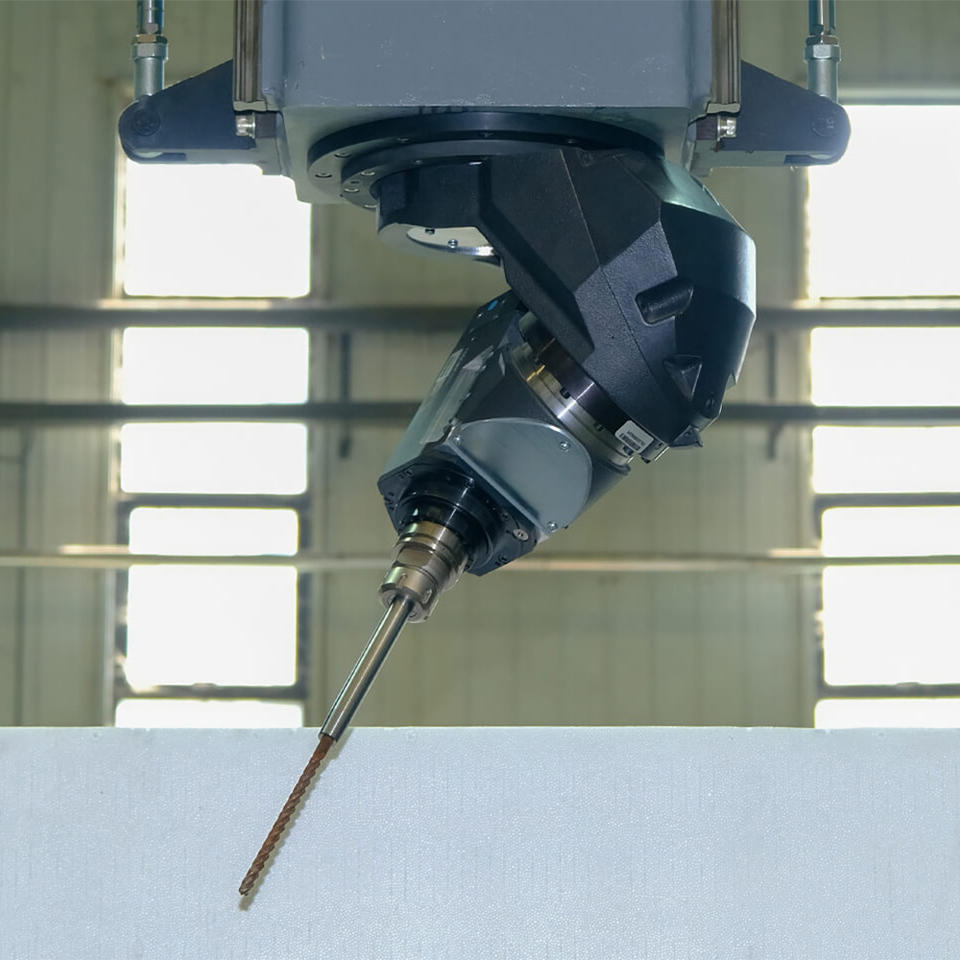

Spindle:13.5kw Italy HITECO air cooling spindle
Function:Foam 3d Models Making
Working area:1300x2500mm/1300x2800mm/Customized
Motor:Japan Yaskawa Servo Motor
Working table:Vacuum Table + Tslot
Transmission:Taiwan TBI Ball Screw
Name:5 Axis Cnc Engraving Machine
Spindle power:13.5kw ATC Air Cooling
Model:1325 Router Machine
Inverter:Delta Inverter
Table Surface:Vacuum Combined T-slot Table
Guide rail:Taiwan Hiwin Square Guide Rail
Software:Ucancam / ArtCam/TYPE3
Type:CNC Router Milling Machines
Working Voltage:AC220V/AC380/50HZ/60HZ
After-sales Service Provided:Service Machinery Overseas
Selling Units:Single item
