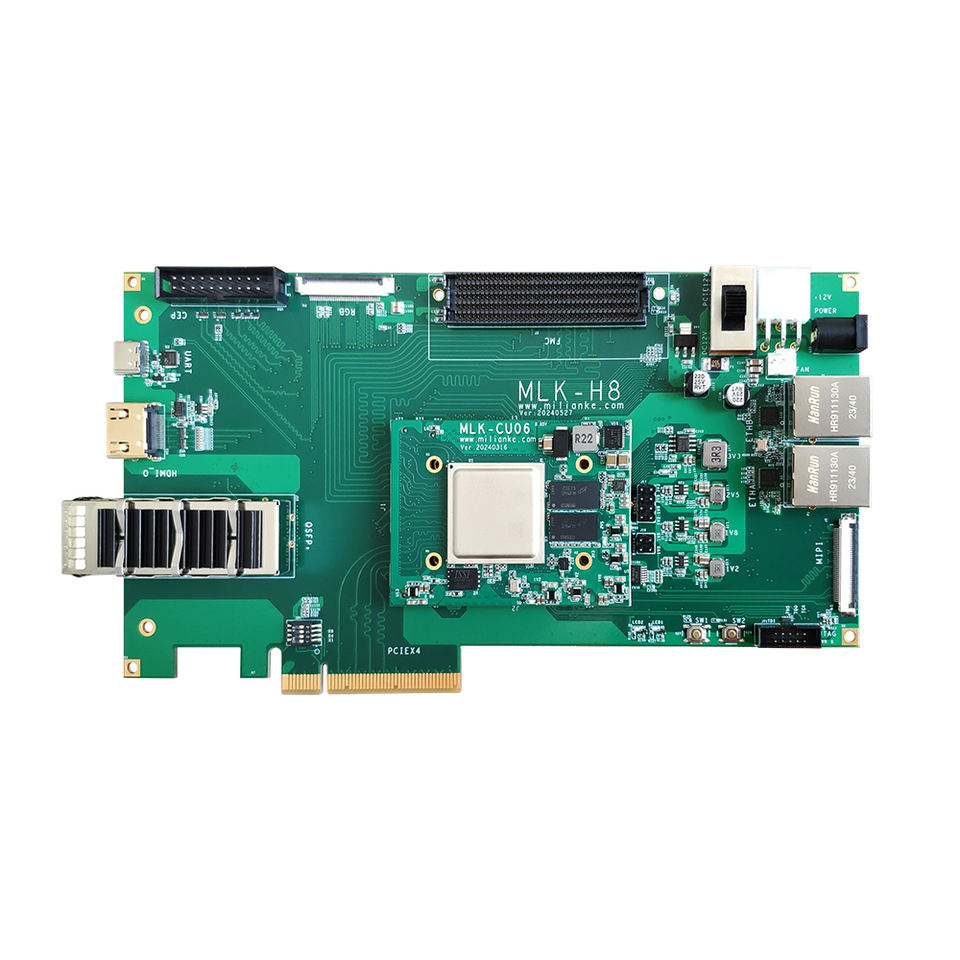

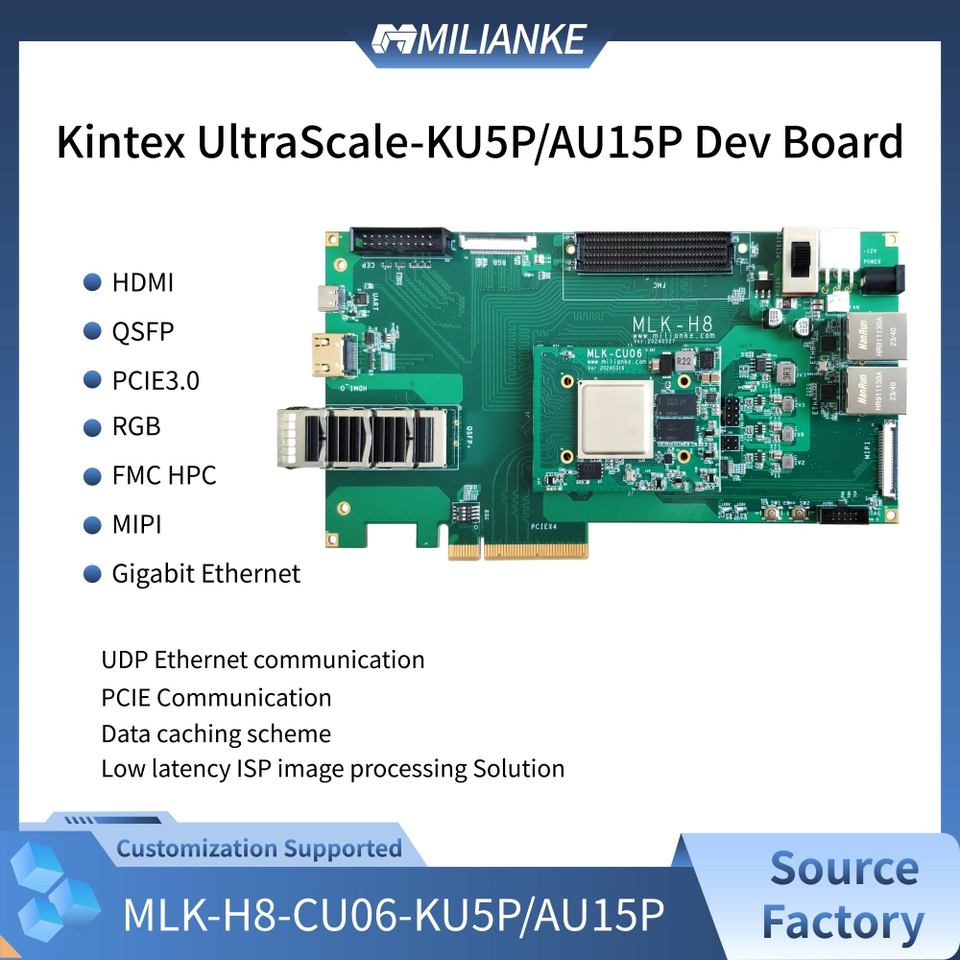

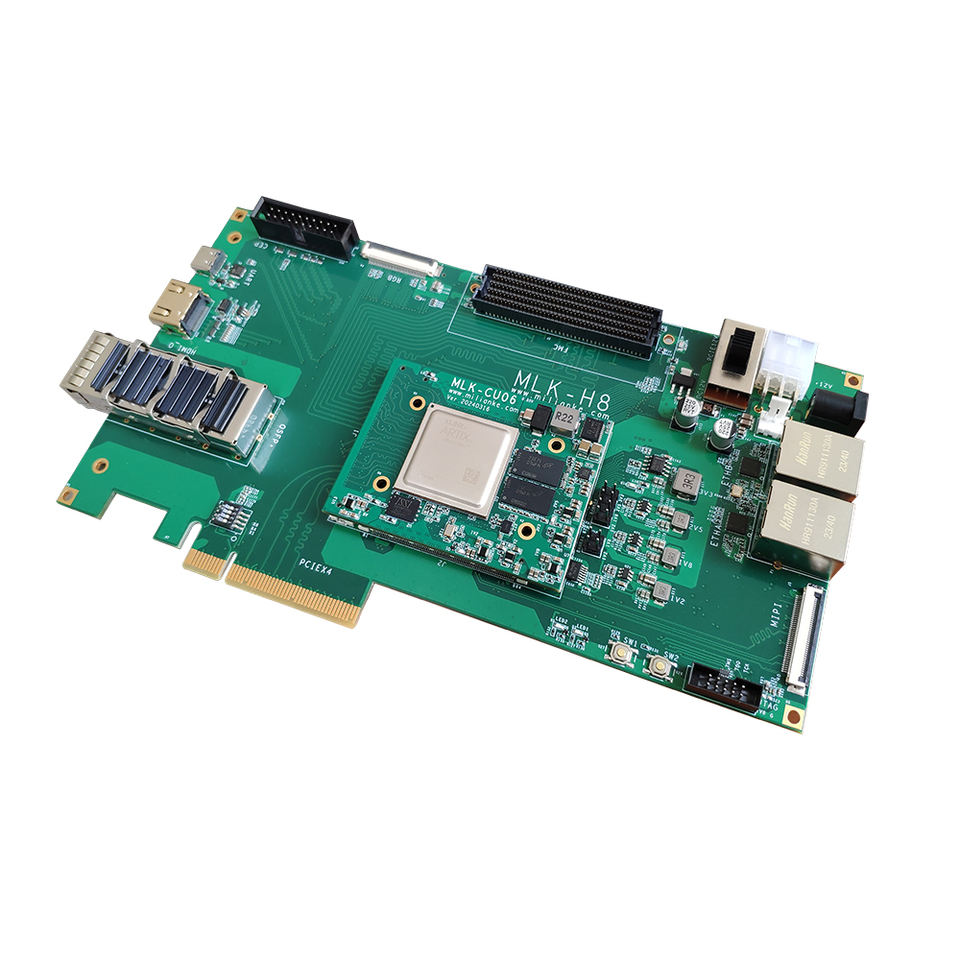

Industrial-grade FPGA Development Board Artix/Kintex UltraScale+ Series Machine Vision High-Speed Communication Equipped PCIe ML

No reviews yet
$454-623
Minimum order quantity: 1 piece
Select now

Specification

MLK-H8-CU06-KU5P
MLK-H8-CU06-AU15P

Key attributes

Type

Development Board

Core Processor

/

Operating System

/

Interface

/

Description

Artix UltraScale+/Kintex UltraScale+ series dev

Model Number

MLK-H8-CU06-KU5P/AU15P

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Key attributes

Type
Development Board
Core Processor
/
Operating System
/
Interface
/
Description
Artix UltraScale+/Kintex UltraScale+ series dev
Model Number
MLK-H8-CU06-KU5P/AU15P
Place of Origin
Jiangsu, China
Brand Name
MILIANKE
Series
Artix UltraScale+/Kintex UltraScale+
Mfg. Date Code
/
Package
FFVB676
Function
Machine vision/high-speed communication
Embedded
No
Utilized IC / Part
/
Number of A/D Converters
/
Number of Bits
/
Sampling Rate (Per Second)
/
Data Interface
/
Input Range
/
Amplifier Type
/
Output Type
/
Max Output Power x Channels @ Load
/
Voltage - Supply
12V/3A
Board Type
Evaluation Platform
Main Purpose
Not Applicable
Outputs and Type
Not Applicable
Power - Output
/
Voltage - Output
/
Current - Output
/
Voltage - Input
/
Frequency - Switching
/
Platform
/
Current - Output / Channel
/
Features
/
Channels per IC
/
Regulator Type
/
-3db Bandwidth
/
Current - Supply (Main IC)
/
Voltage - Supply, Single/Dual (±)
/
Sensor Type
/
Sensitivity
/
Module/Board Type
/
Maximum Number Of IC's
/
Maximum Time
/
Sensing Range
/
Mounting Type
PCB, /

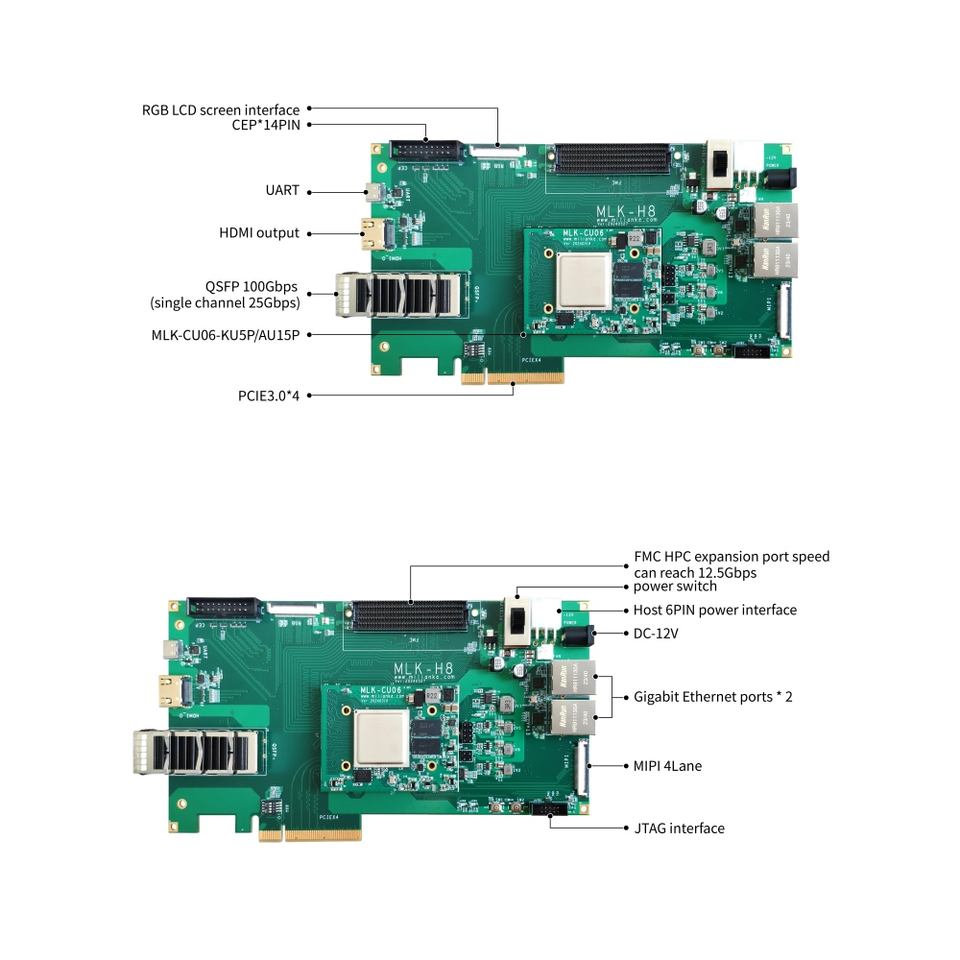

Communication Interface
TYPE-C-UART/QSFP+/PCIE/SDIO/ETH

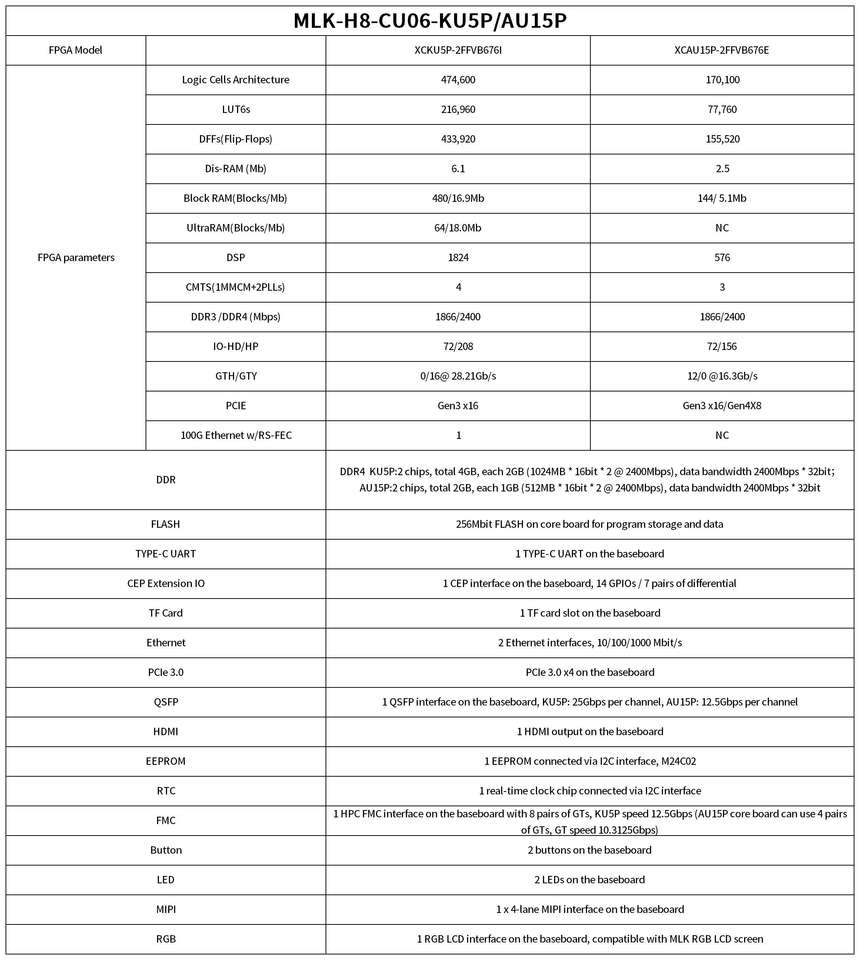

FPGA Model
XCKU5P-2FFVB676I/XCAU15P-2FFVB676E
Logic Cells
KU5P:474600/AU15P:170100
LUT6s
KU5P:216960/AU15P:77760
DFFs(Flip-Flops)
KU5P:433920/AU15P:155520
Dis-RAM(Mb)
KU5P:6.1/AU15P:2.5
Block RAM(Blocks/Mb)
KU5P:480/16.9Mb;AU15P:144/5.1Mb
UltraRAM(Blocks/Mb)
KU5P:64/18.0Mb;AU15P:NC
DSP
KU5P:1824/AU15P:576
CMTS(1MMCM+2PLLS)
KU5P:4/AU15P:3
DDR3/DDR4(Mbps)
KU5P:1866/2400;AU15P:1866/2400
