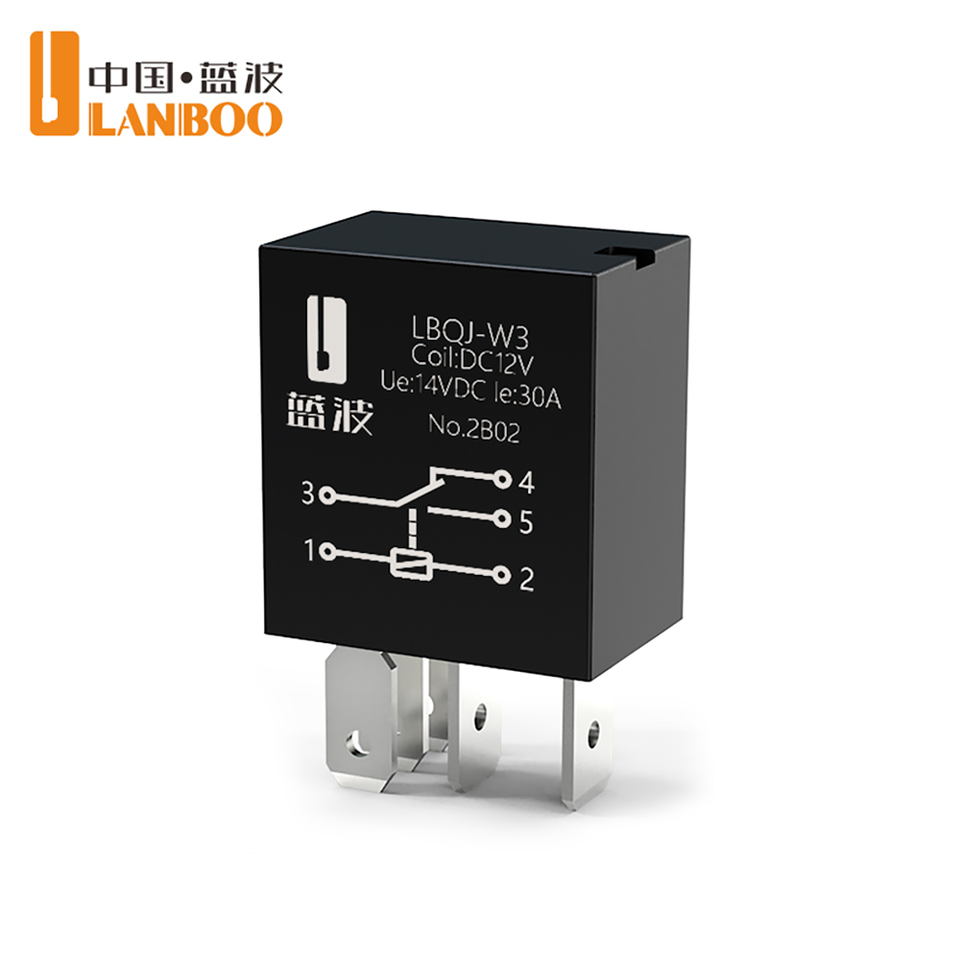

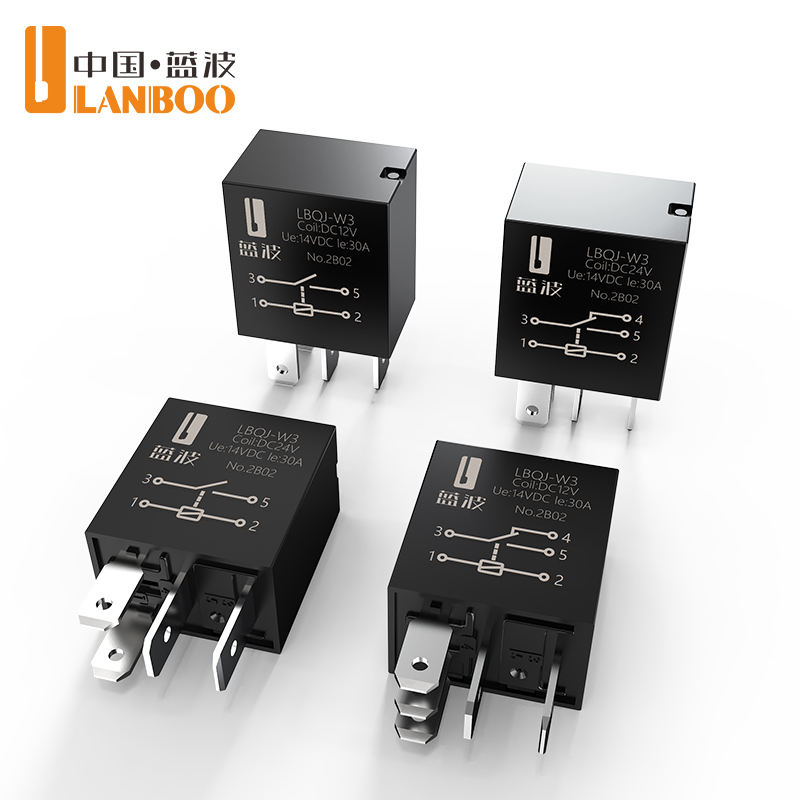

LANBOO 30A 12V 24V Automotive Relay 4 Pin 5 Pin SPST SPDT Universal Waterproof Car Auto Relay for Truck Motorcycle Electrical
No reviews yet#15 most popular in Relays Normally Closed+3 more
+3 more
Attributes
Electromagnetic RelayTheory
12V DC, 24V DCMax. switching voltage
30ARated Current
DCPower Source
1NO / 1NO1NCContact Form
30AMax. switching current
Contact Load:High Power
Place of Origin:Zhejiang, China

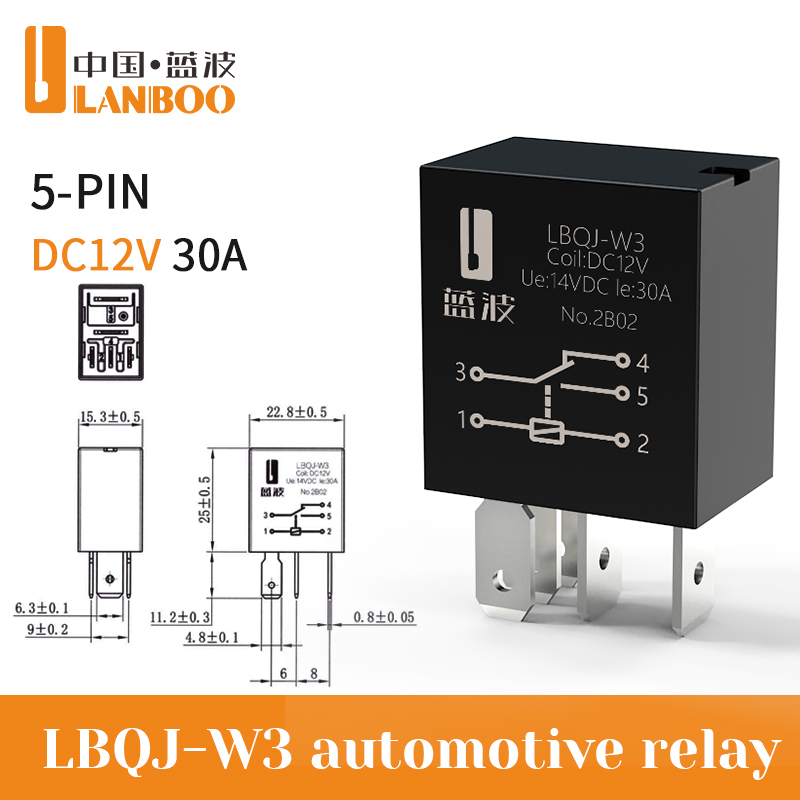

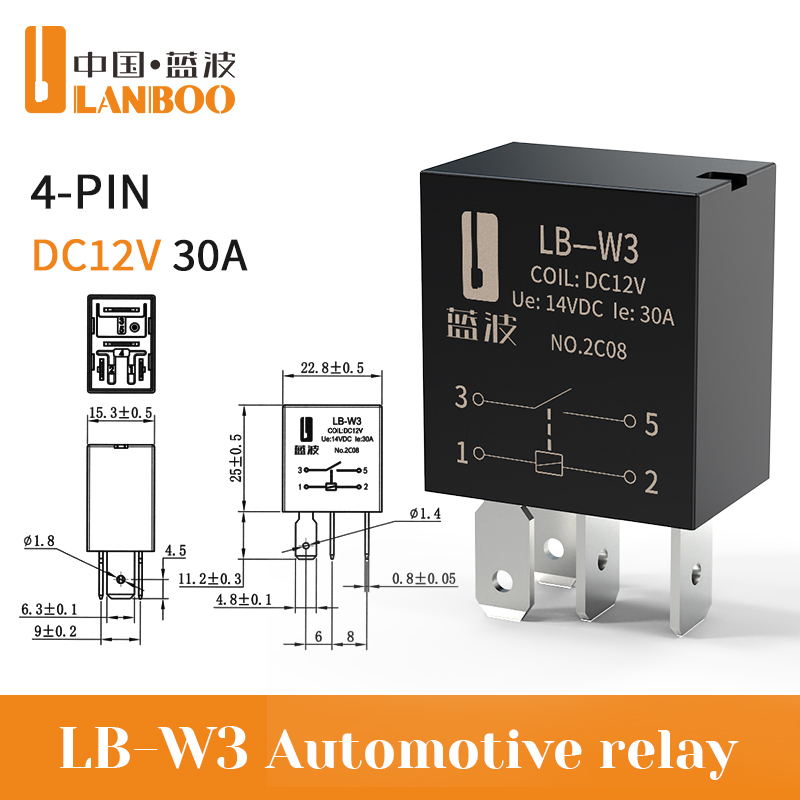

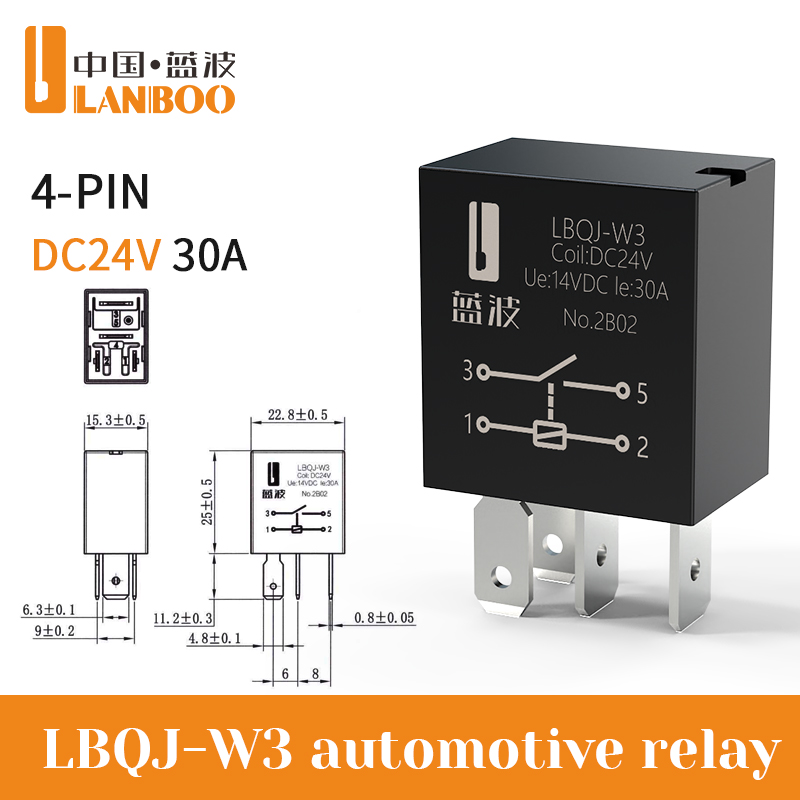

Model Number:LBQJ-W3 / LB-J4 / LB-J5
Brand Name:LANBOO
Contact Material:Silver Alloy
Pins:4P, 5P
Protect Feature:Sealed
Size:Miniature
Terminal Shape:Plug-In Terminal, Pin Type
application:Auto
Operating Temperature:-40°C to +125°C (High Temp Resistant)
Mechanical Life:≥ 30,000,000 Operations
Electrical Life:≥ 100,000 Operations
Max Continuous Current:30A (NO Contact) / 20A (NC Contact)
Contact Voltage Drop:≤ 250mV (Measured at 10A)
Insulation Resistance:100MΩ (at 500VDC)
Dielectric Strength:500VAC 1min (Between open contacts)
Vibration Resistance:10Hz~1000Hz, 31m/s²
Housing Material:V0 Grade Flame Retardant

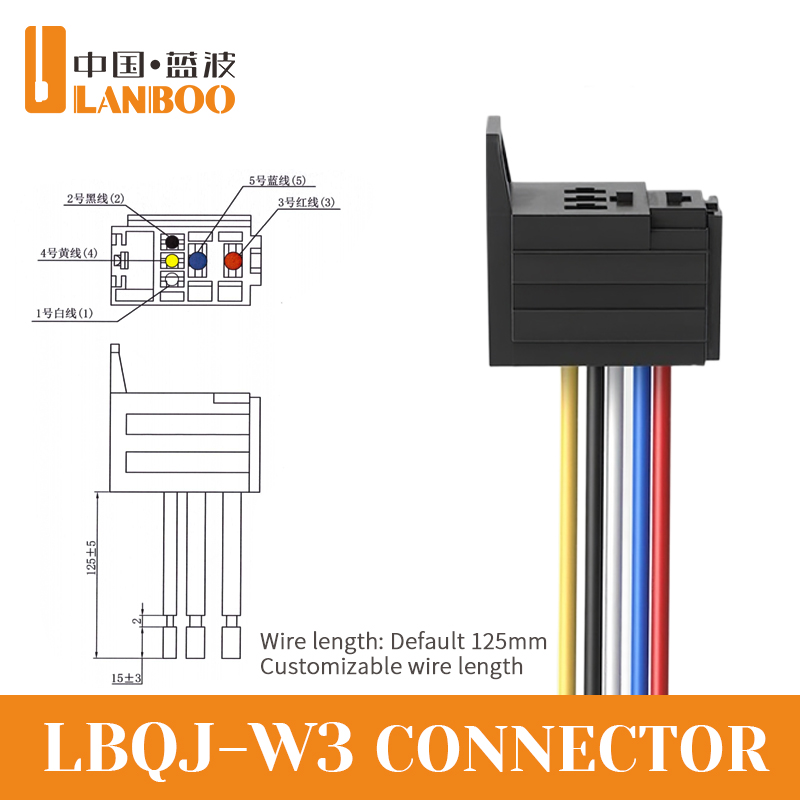

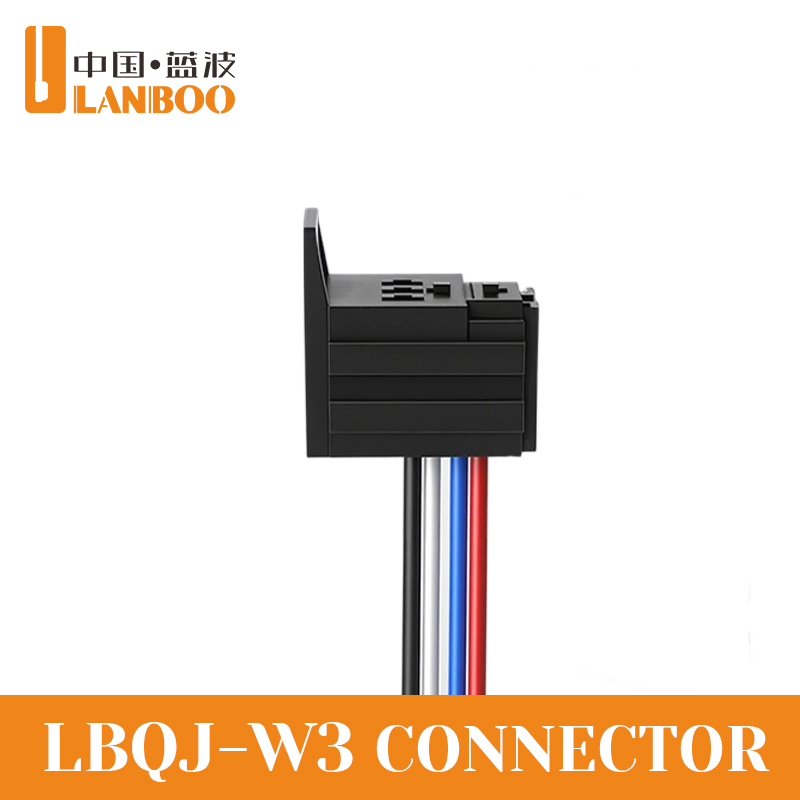

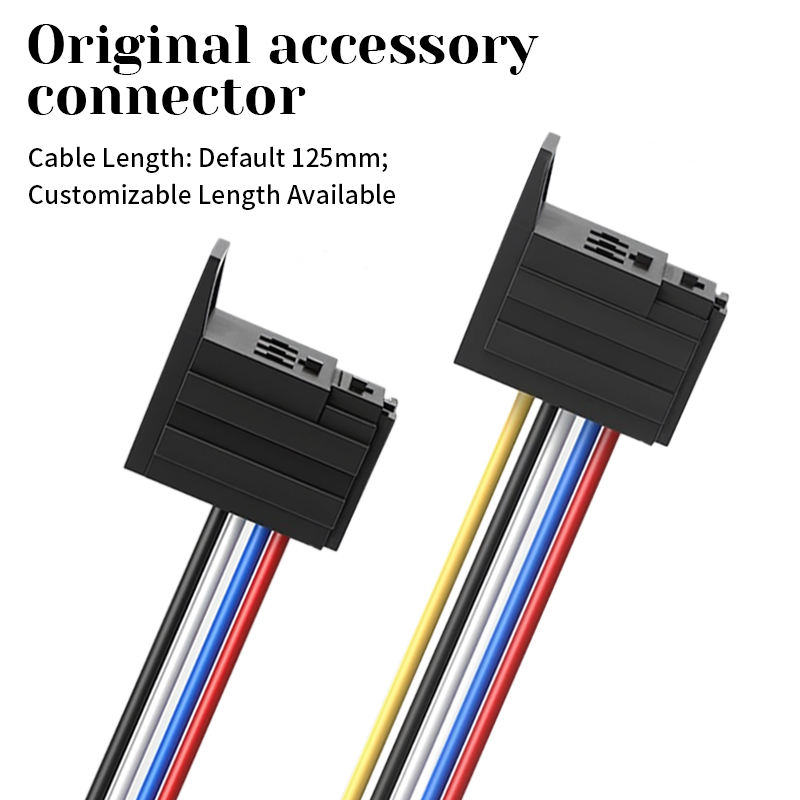

Matched Accessories:Specialized 4-Pin / 5-Pin Relay Connectors (Sockets)
Key attributes
Theory
Electromagnetic Relay
Max. switching voltage
12V DC, 24V DC
Rated Current
30A
Power Source
DC
Contact Form
1NO / 1NO1NC
Max. switching current
30A
Size
Miniature
Terminal Shape
Plug-In Terminal, Pin Type
Pins
4P, 5P
Protect Feature
Sealed
Contact Load
High Power
Contact Material
Silver Alloy
application
Auto
Model Number
LBQJ-W3 / LB-J4 / LB-J5
Place of Origin
Zhejiang, China
Brand Name
LANBOO
Operating Temperature
-40°C to +125°C (High Temp Resistant)
Mechanical Life
≥ 30,000,000 Operations
Electrical Life
≥ 100,000 Operations
Max Continuous Current
30A (NO Contact) / 20A (NC Contact)
Contact Voltage Drop
≤ 250mV (Measured at 10A)
Insulation Resistance
100MΩ (at 500VDC)
Dielectric Strength
500VAC 1min (Between open contacts)
Vibration Resistance
10Hz~1000Hz, 31m/s²
Housing Material
V0 Grade Flame Retardant
Matched Accessories
Specialized 4-Pin / 5-Pin Relay Connectors (Sockets)
Packaging and delivery
Selling Units
Single item
Single package size
22X14X7 cm
Single gross weight
0.030 kg
Lead time
FREE shipping capped at $20
Lower priced than similar
Minimum order quantity: 3 pieces
$0.78-1.26
Sample price: $2
