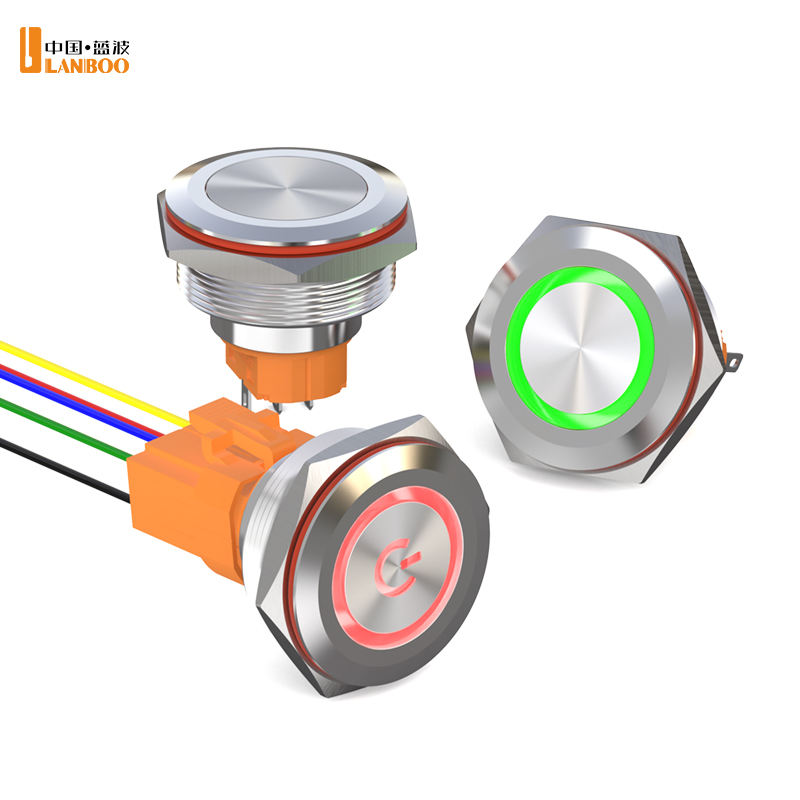

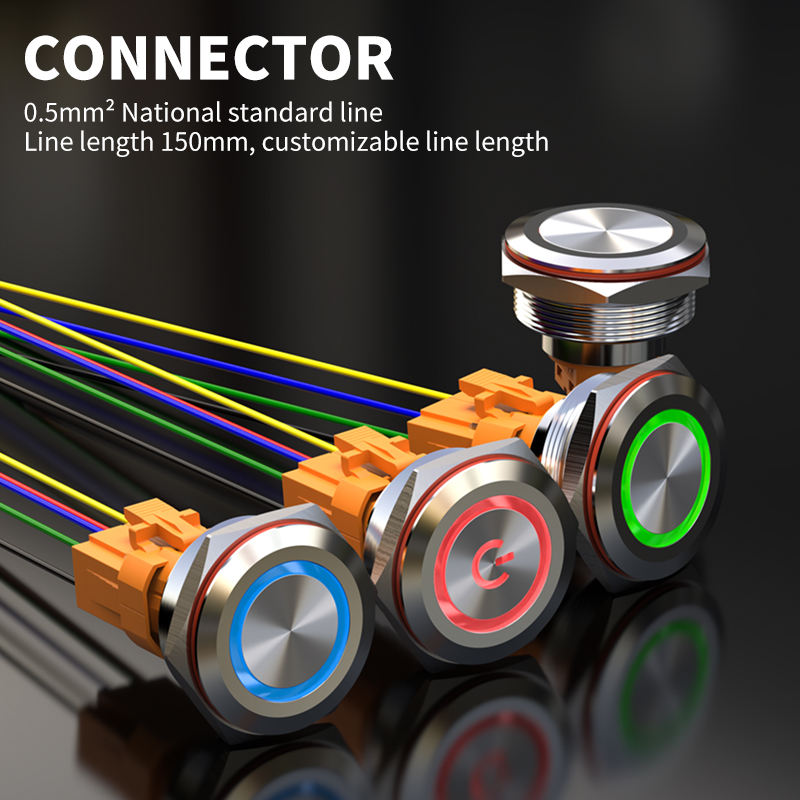

LANBOO 30mm Metal Pushbutton Switch (1 NO + 1 NC)Momentary or Latching Type,with LED,Supports 9-24V/220V,Includes Connector

No reviews yet17 soldbillboard#13 most popular in Push Button Switches Normally Closed
+2 more
$8.30-10.20
Minimum order quantity: 5 pieces
Sample price: $11
Select now

Color

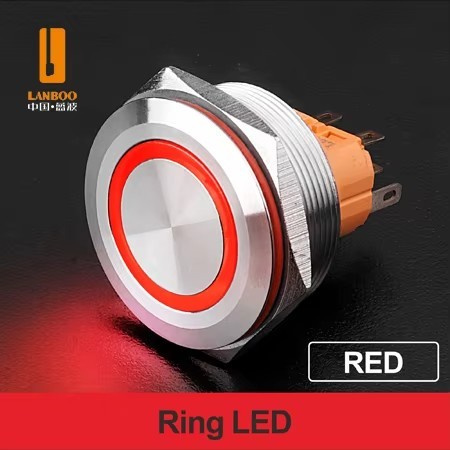

R LED Ring

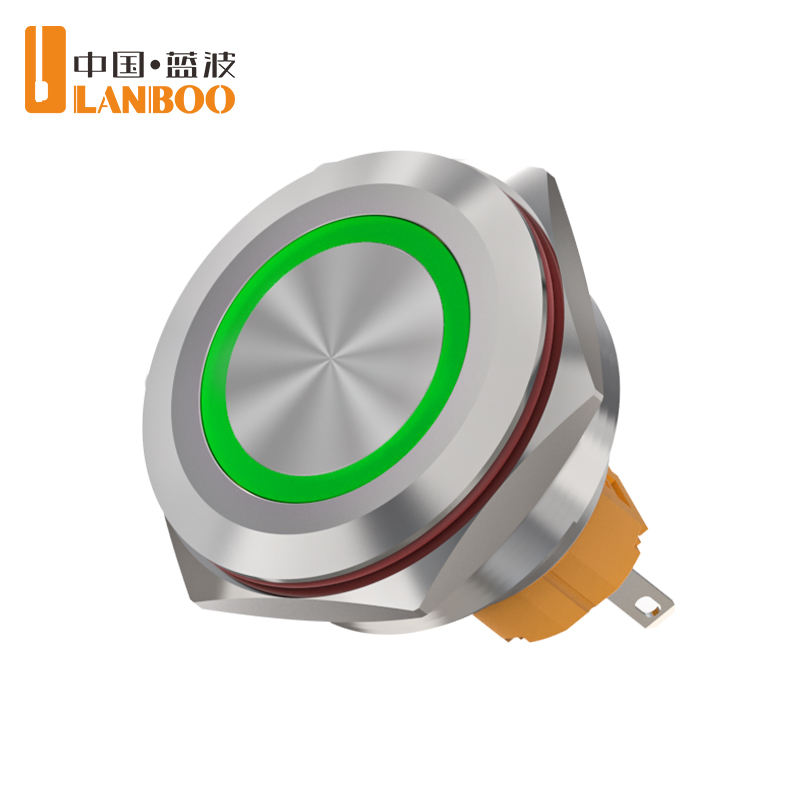

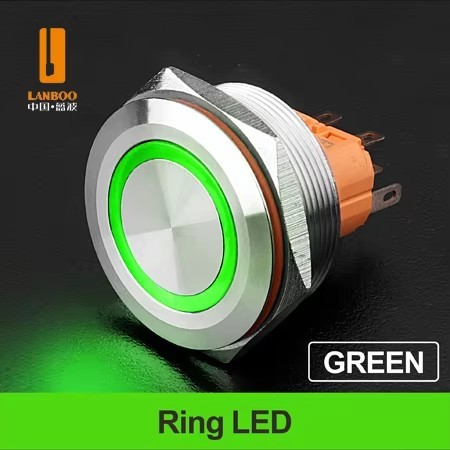

G LED Ring

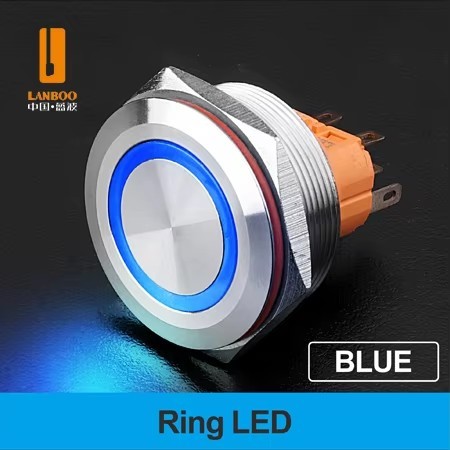

B LED Ring

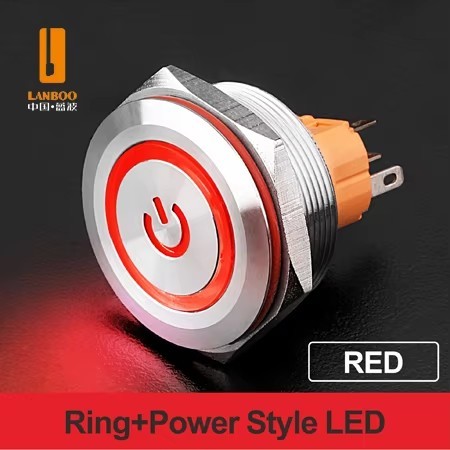

R LED Power

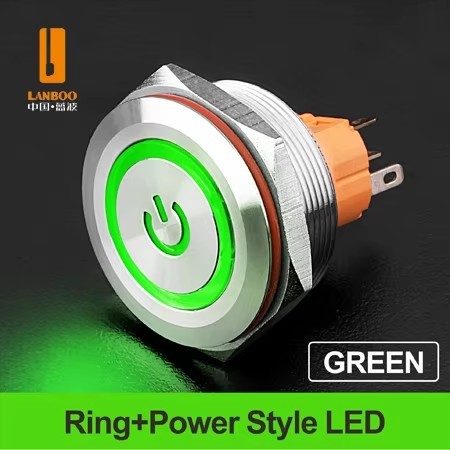

G LED Power

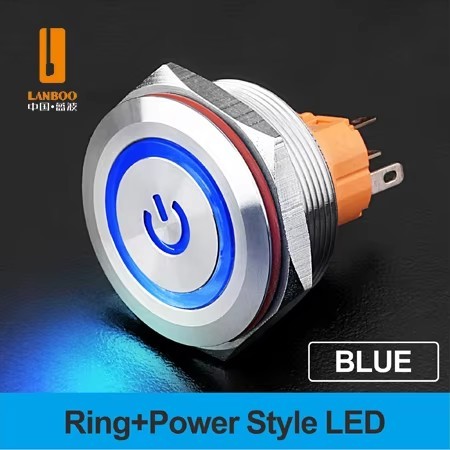

B LED Power

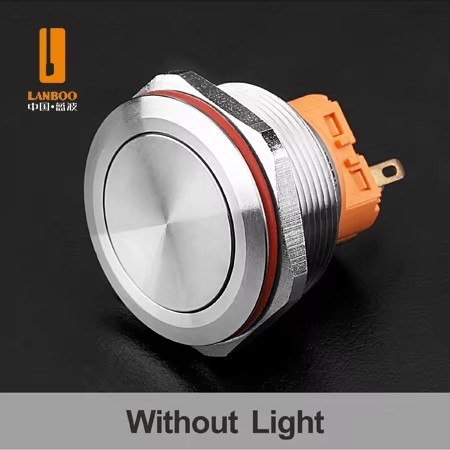

Without LED

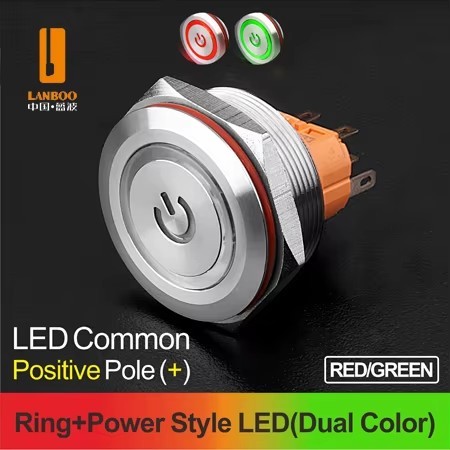

RG LED+
RG LED-
RGB LED+

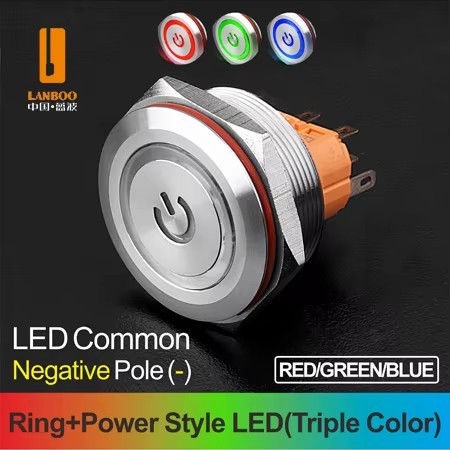

RGB LED-

Rated Voltage

9-24V
220V
Without LED

Size

30mm Momentary Stainless Steel
30mm Latching Stainless Steel
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization

Key attributes

Max. Current

1 A

Max. Voltage

220 V

Mechanical Life

Latching: 300000 times, Momentary: 1 million times

Switch Combination

1NO1NC

Place of Origin

Zhejiang, China

Model Number

LB30A

At a glance

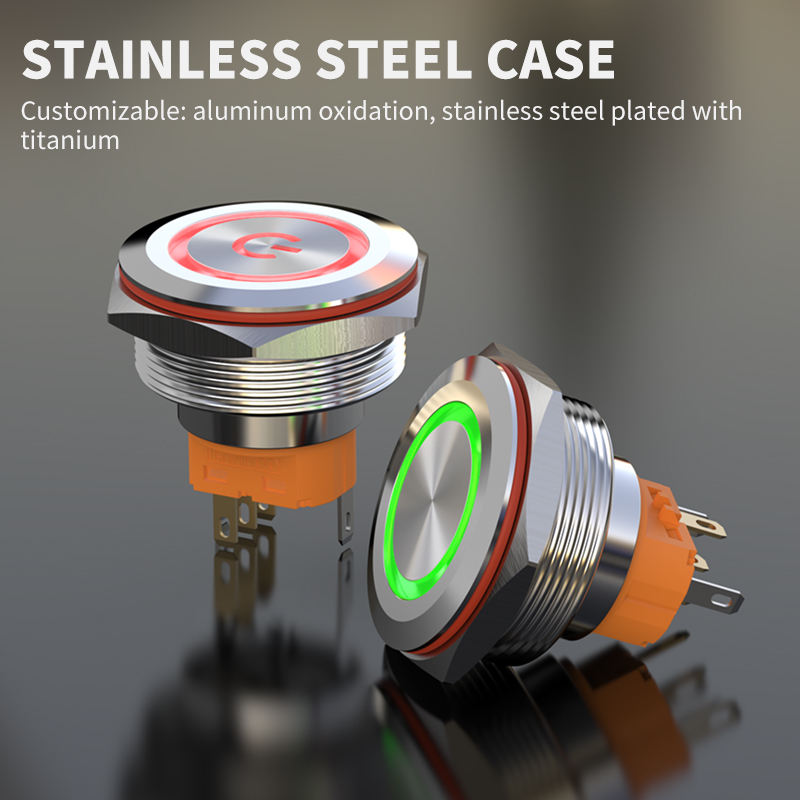

  • Stainless Steel Material: Constructed from stainless steel, this switch offers enhanced durability and resistance to corrosion, making it suitable for a variety of environments.

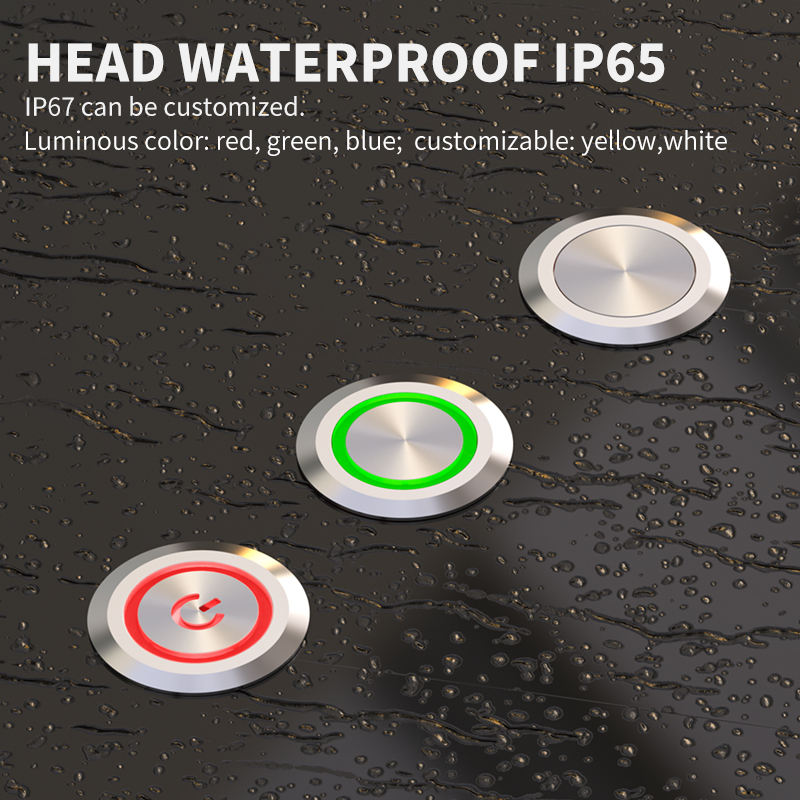

  • IP65 Protection Level: With an IP65 rating, the switch is protected against dust and water jets, ensuring reliable performance in harsh conditions.

  • 1NO1NC Contact Type: Featuring a 1 normally open (NO) and 1 normally closed (NC) contact configuration, this switch provides versatile control options for different applications.

  • 9-24V/220V LED Voltage: Supporting a wide range of input voltages, the switch can be used in various electrical systems, enhancing its compatibility and flexibility.

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Key attributes

Max. Current
1 A
Max. Voltage
220 V
Mechanical Life
Latching: 300000 times, Momentary: 1 million times
Switch Combination
1NO1NC
Place of Origin
Zhejiang, China
Model Number
LB30A
Brand Name
LANBOO
Application
Electric, Home Appliance, Industrial Control, Latching
Head Type
Flat Head
Illuminated Type
Ring Illuminated
IP level
IP65
LED
Yes
Material
Stainless Steel
Structure
Mechanical
Terminal Type
Pin Terminal, Quick Connect Terminal, Solder Terminal
Whether The Smart
No
Product number
LB30A
Installation hole diameter
30MM
head shape
P-Flat head,custom:G-high head
Contact type
1NO1NC
Operation type
Z-self-locking(Latching), F-self-resetting(momentary)
LED luminous color
R-red,G-green,B-blue,customized:Y-yellow,W-white
LED voltage
9-24V,220V,

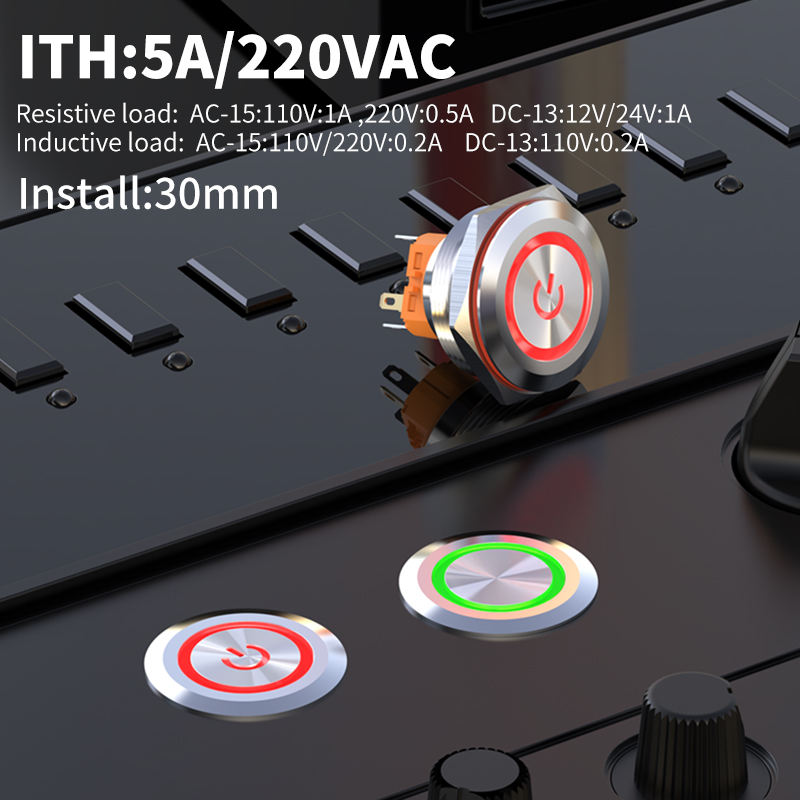

Resistive load
AC-15:110V:1A,220V:0.5A DC-13:12V/24V:1A
Inductive load
AC-15:110V/220V:0.2A DC-13:110V:0.2A
LED life
>50000h

Packaging and delivery

Selling Units
Single item
Single package size
22X14X7 cm
Single gross weight
0.08 kg

Lead time
