Leopard Imaging LI-AR0234CS-YUV-GMSL2 2.3MP Global Shutter GMSL2 Camera FAKRA Module for High Speed Robotics Autonomous ADAS
No reviews yet
Attributes
2MPPixels
CMOSSensor
YesLens
Waterproof / Weatherproof, Vandal-ProofSpecial Features
Ip67IP Rating
H.264/H.265(HEVC)Video Compression Format
Data Storage Options:Storage Area Network (SAN)
Function:Waterproof / Weatherproof, Wide Angle, Vandal-Proof
Style:Mini Camera
Smart App:Other
Place of Origin:Guangdong, China
Aperture:f2.0
Viewing Angle:60°/122°
Model Number:GMSL2
Brand Name:Leopard
Customized support:Online Technical Support
Material:Aluminum Alloy, Aluminium, Stainless Steel
Warranty:1 Year

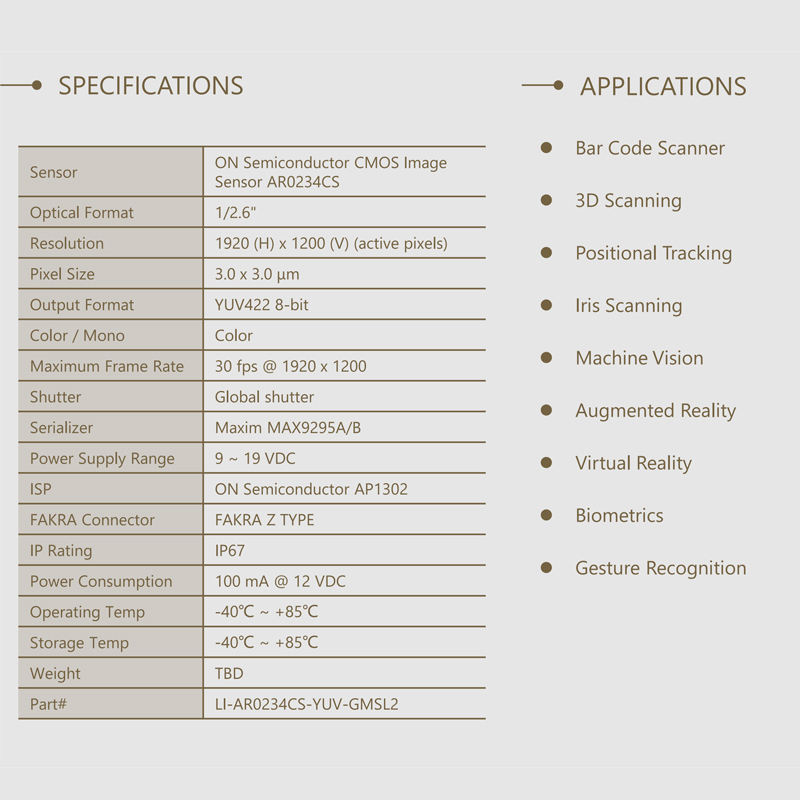

Part#:LI-AR0234CS-YUV-GMSL2
Optical Format:1/2.6"
Resolution:1920 (H) x 1200 (V) (active pixels)
Pixel Size:3.0 x 3.0 μm
Output Format:YUV422 8-bit
Color / Mono:Color
Maximum Frame Rate:30 fps @ 1920 x 1200
Shutter:Global shutter
Serializer:Maxim MAX9295A/B
Power Supply Range:9 ~ 19 VDC
ISP:ON Semiconductor AP1302
FAKRA Connector:FAKRA Z TYPE
Power Consumption:100 mA @ 12 VDC
Operating Temp:-40℃ ~ +85℃
Storage Temp:-40℃ ~ +85℃
Weight:TBD
Key attributes
Pixels
2MP
Sensor
CMOS
Lens
Yes
Special Features
Waterproof / Weatherproof, Vandal-Proof
IP Rating
Ip67
Video Compression Format
H.264/H.265(HEVC)
Data Storage Options
Storage Area Network (SAN)
Style
Mini Camera
Aperture
f2.0
Function
Waterproof / Weatherproof, Wide Angle, Vandal-Proof
Smart App
Other
Warranty
1 Year
Customized support
Online Technical Support
Material
Aluminum Alloy, Aluminium, Stainless Steel
Model Number
GMSL2
Viewing Angle
60°/122°
Place of Origin
Guangdong, China
Brand Name
Leopard
Part#
LI-AR0234CS-YUV-GMSL2
Sensor
ON Semiconductor CMOS Image Sensor AR0234CS
Optical Format
1/2.6"
Resolution
1920 (H) x 1200 (V) (active pixels)
Pixel Size
3.0 x 3.0 μm
Output Format
YUV422 8-bit
Color / Mono
Color
Maximum Frame Rate
30 fps @ 1920 x 1200
Shutter
Global shutter
Serializer
Maxim MAX9295A/B
Power Supply Range
9 ~ 19 VDC
ISP
ON Semiconductor AP1302
FAKRA Connector
FAKRA Z TYPE
IP Rating
IP67
Power Consumption
100 mA @ 12 VDC
Operating Temp
-40℃ ~ +85℃
Storage Temp
-40℃ ~ +85℃
Weight
TBD
Packaging and delivery
Selling Units
Single item
Single package size
25X20X20 cm
Single gross weight
1.200 kg
Lead time
Customization options
Customized packaging(+ from /Min. order: 200 pieces)
View details
Product descriptions from the supplier
Minimum order quantity: 1 piece
$465
Sample price: $465
Variations
Select nowNetwork: Fakra
Fakra
Resolution
1920 X 1200
Customization options
Customized packaging (Min. order: 200 pieces)
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
