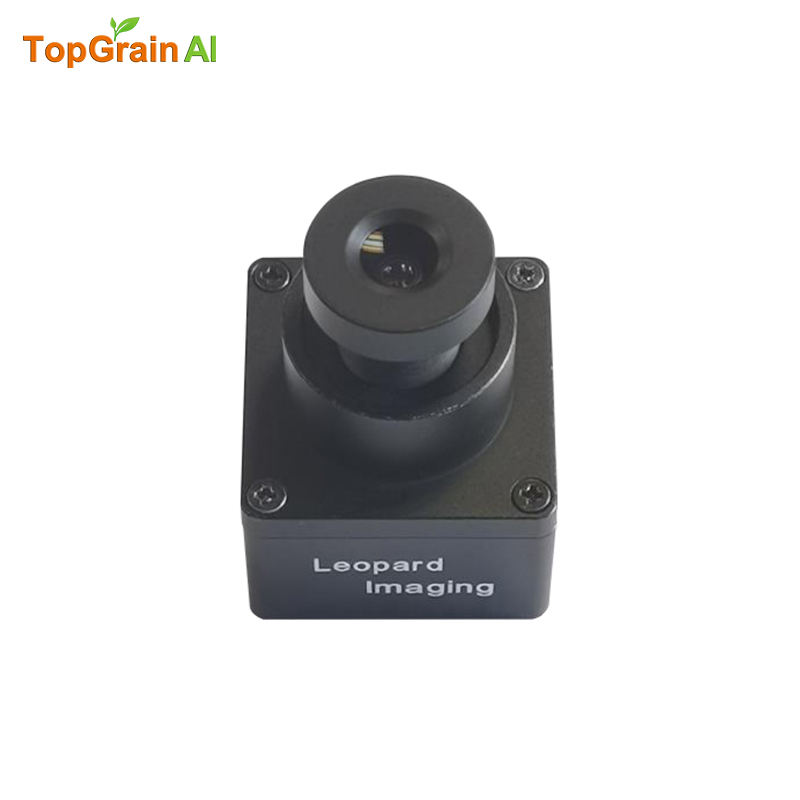

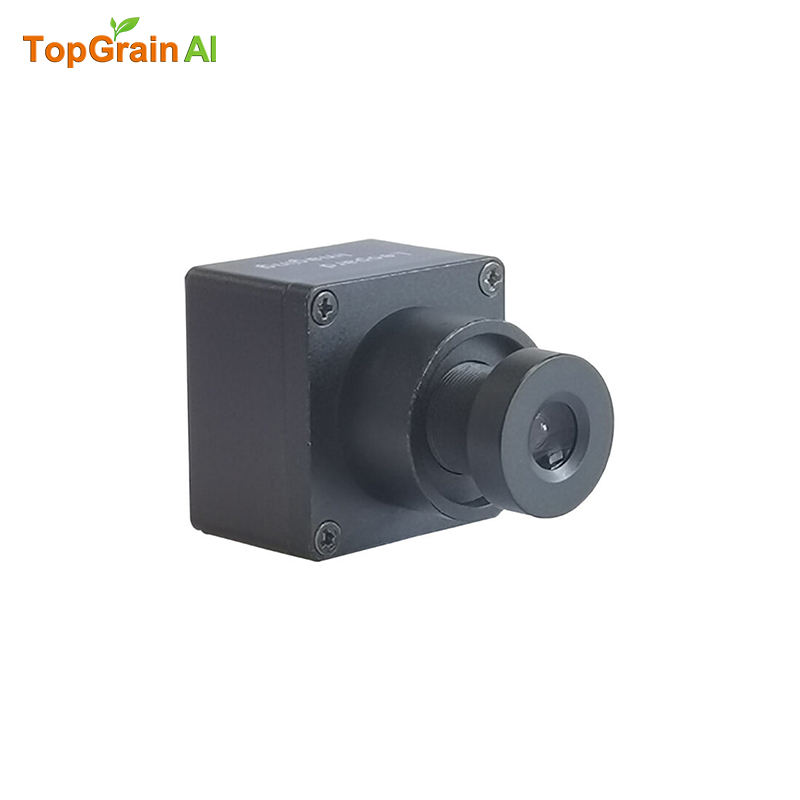

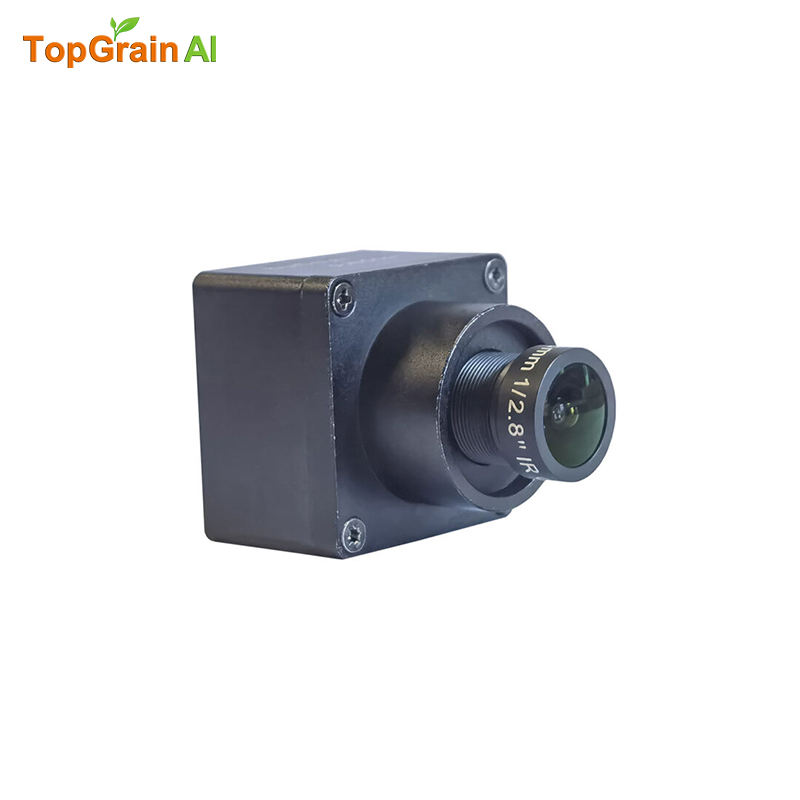

Leopard Imaging LI-OV10640-490-GMSL GMSL2 Camera 1.3MP HDR 120dB Interface for Automotive Surround View ADAS Perception Robotics
No reviews yet
Attributes
1MPPixels
CMOSSensor
yesLens
Waterproof / Weatherproof, Vandal-ProofSpecial Features
Ip67IP Rating
H.265Video Compression Format
Data Storage Options:Storage Area Network (SAN)
Style:Mini Camera
Aperture:f1.8
Function:Waterproof / Weatherproof, Vandal-Proof, Wide Angle
Smart App:Other
Warranty:1 Year
Customized support:Online Technical Support
Material:Aluminum Alloy
Model Number:LI-OV10640-490-GMSL
Viewing Angle:FOV H 55°/ 115°
Place of Origin:Guangdong, China
Brand Name:Leopard
Part#:LI-OV10640-490-GMSL-xxxH
Sensor:OmniVision CMOS 1.3MP HDR Sensor OV10640
Optical format:1/2.56"
Active pixels:1280 (H) x 1080 (V) (active pixels)
Pixel size:4.2 x 4.2 μm
Output Format:Tuned YUV data Coax Serial real time streaming
Color / Mono:Color sensor
Frame Rate:30 fps @ 1280 x 1080
Build-in ISP:OV490
HDR (High Dynamic Range):Supported
Lens:FOV H 55°/ 115°
Serializer:Maxim MAX96705
Power Supply Range:5 ~ 17 VDC

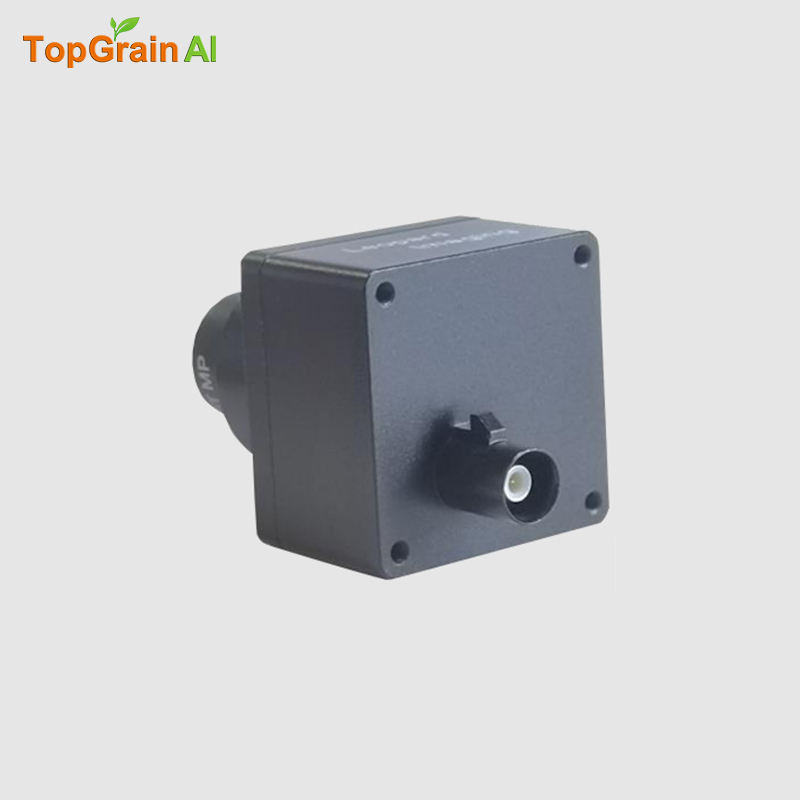

Connector:FAKRA Z TYPE
Power Consumption:425 mA @ 5 VDC (1280 x 1080 @ 30 fps)
IP Rating:TBD
Operating Temp:-40℃~ +85 ℃
Storage Temp:-40℃~ +85 ℃
Weight:~ 45 g

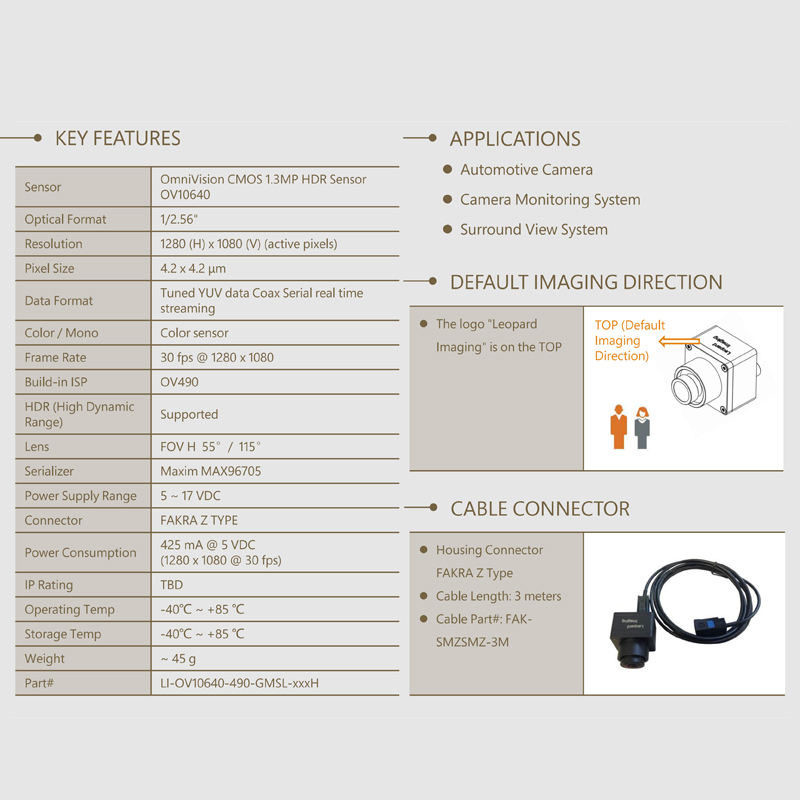

Key attributes
Pixels
1MP
Sensor
CMOS
Lens
yes
Special Features
Waterproof / Weatherproof, Vandal-Proof
IP Rating
Ip67
Video Compression Format
H.265
Data Storage Options
Storage Area Network (SAN)
Style
Mini Camera
Aperture
f1.8
Function
Waterproof / Weatherproof, Vandal-Proof, Wide Angle
Smart App
Other
Warranty
1 Year
Customized support
Online Technical Support
Material
Aluminum Alloy
Model Number
LI-OV10640-490-GMSL
Viewing Angle
FOV H 55°/ 115°
Place of Origin
Guangdong, China
Brand Name
Leopard
Part#
LI-OV10640-490-GMSL-xxxH
Sensor
OmniVision CMOS 1.3MP HDR Sensor OV10640
Optical format
1/2.56"
Active pixels
1280 (H) x 1080 (V) (active pixels)
Pixel size
4.2 x 4.2 μm
Output Format
Tuned YUV data Coax Serial real time streaming
Color / Mono
Color sensor
Frame Rate
30 fps @ 1280 x 1080
Build-in ISP
OV490
HDR (High Dynamic Range)
Supported
Lens
FOV H 55°/ 115°
Serializer
Maxim MAX96705
Power Supply Range
5 ~ 17 VDC
Connector
FAKRA Z TYPE
Power Consumption
425 mA @ 5 VDC (1280 x 1080 @ 30 fps)
IP Rating
TBD
Operating Temp
-40℃~ +85 ℃
Storage Temp
-40℃~ +85 ℃
Weight
~ 45 g
Packaging and delivery
Selling Units
Single item
Single package size
25X20X20 cm
Single gross weight
3.000 kg
Lead time
Customization options
Customized packaging(+ from /Min. order: 200 pieces)
View details
Product descriptions from the supplier
Minimum order quantity: 1 piece
$399
Sample price: $399
Variations
Select nowNetwork: Fakra
Fakra
Resolution
1280H x 1080V
Customization options
Customized packaging (Min. order: 200 pieces)
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
