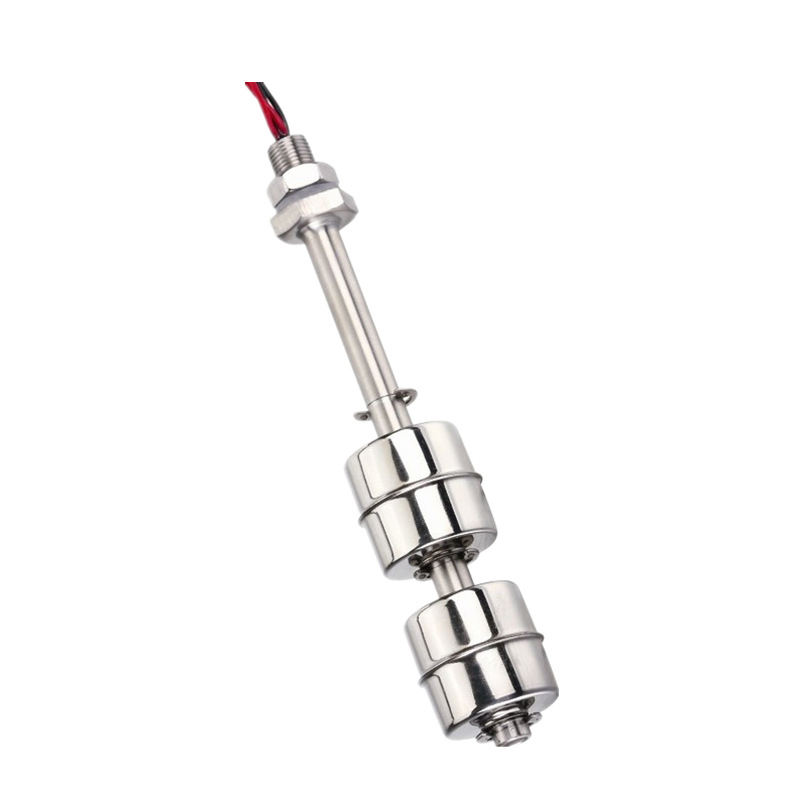

Vertical SUS304 Double Float Level Switch M10×1.5 Thread Dual Independent SPST Liquid Sensor 100mm Stem

No reviews yet
$2.50
1-99 pieces
$2.20
100-199 pieces
$2
≥200 pieces
Select now

Specification

Depth: 45~180 mm

Package / Case

BOX

Mfg. Date Code

2610
Customization options
Graphic customization (Min. order: 10 pieces)
Wirelength (Min. order: 1 piece)

Key attributes

Mounting Type

Vertical Top Mount Straight Rod Installation

Manufacturer Part Number

FAST-30LP-1A1

Brand Name

HKFAST

Usage

High & low liquid level dual-point monitoring

Description

Vertical double SUS304 float dual separate SPST li

Type

Liquid Level Sensor

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Payment & financing

4 interest-free payments with

Key attributes

Mounting Type
Vertical Top Mount Straight Rod Installation
Manufacturer Part Number
FAST-30LP-1A1
Brand Name
HKFAST
Usage
High & low liquid level dual-point monitoring
Description
Vertical double SUS304 float dual separate SPST li
Type
Liquid Level Sensor
Place of Origin
Guangdong, China
Series
FAST-30LP-1A1
Features
water level float switch
Theory
Two sets of independent magnetic reed switch
Output
Two Separate Independent SPST Switch Signals
Description
water level float switch
Float / Stem Material
SUS304 Stainless Steel
Mounting Thread
M10*1.5
Float Dimension
diameter 28*diameter 10*28mm
Stem Effective Length
100mm
Output Mode
Dual Separate Independent SPST Contacts

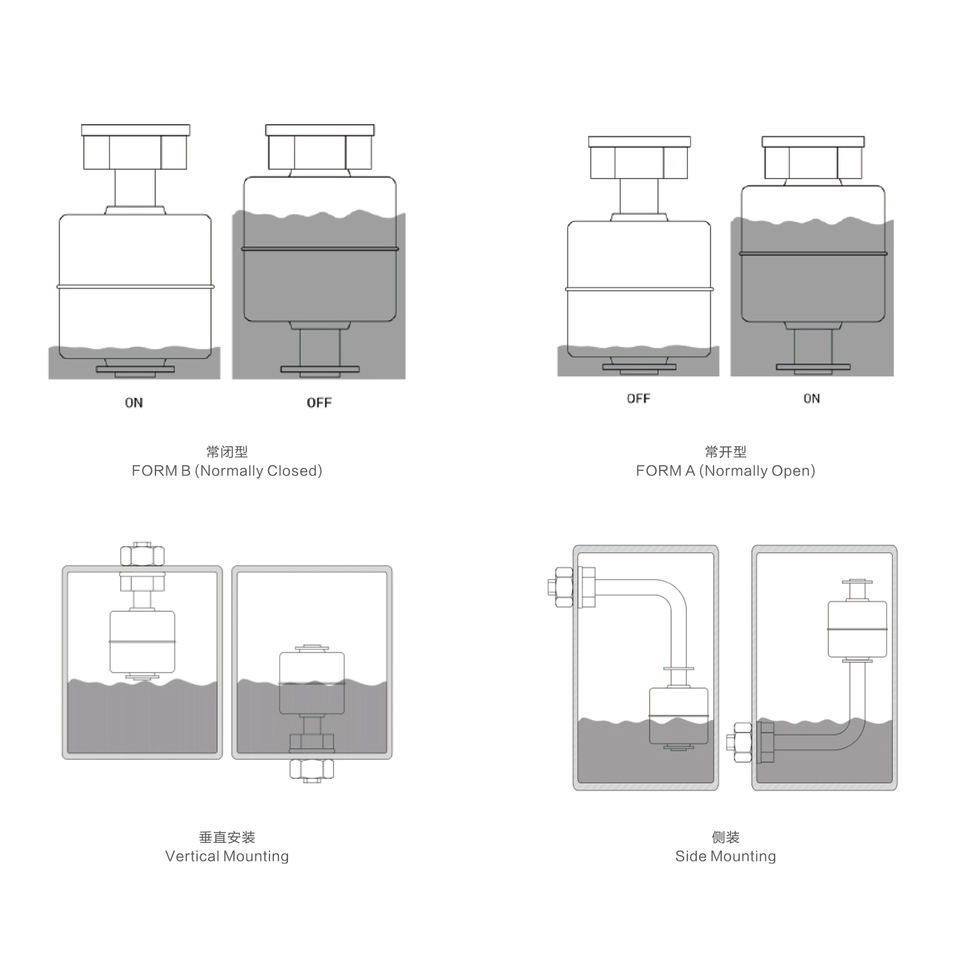

Trigger Logic
Lower float D1≤3±1mm , Blue wire ON; Upper float D2≤3±1mm
Max Switch Power
10W
Max Switch Current
0.5A
Max Switch Voltage
100VAC
Min Breakdown Voltage
200VDC
