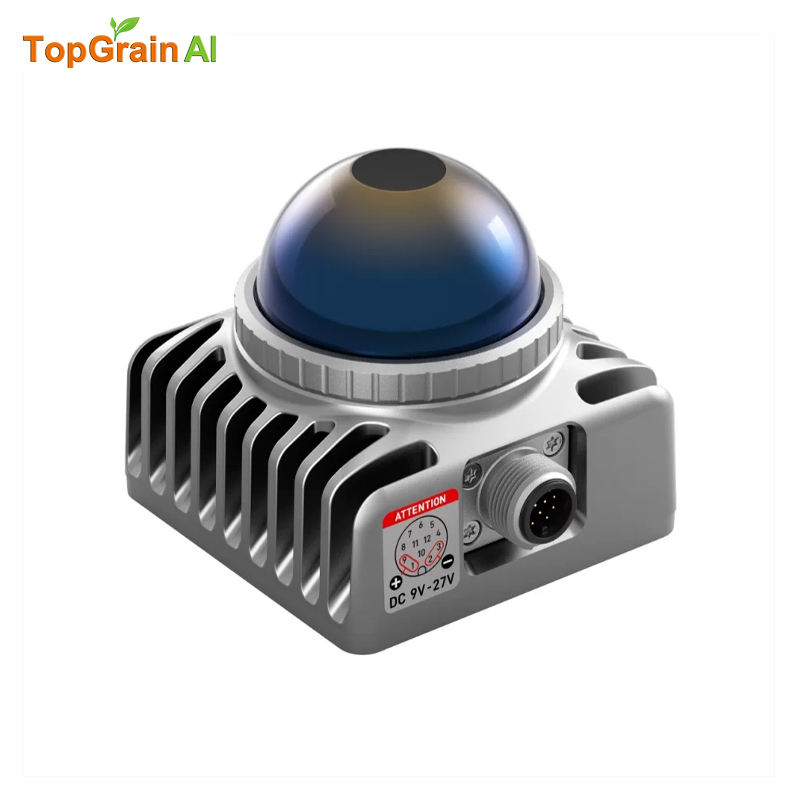

Livox Mid-360S 3D Laser Radar IP67 360° FOV 100m Range for AMR AGV High Precision SLAM Mapping

No reviews yet1 sold
Lowest among similar
$710-780
Minimum order quantity: 1 piece
Select now

Specification

livox Mid-360S LiDAR (Without cables)
livox Mid-360S (1:1 Cable)
livox Mid-360S (Original Cable)

Key attributes

Mounting Type

Embedded installation

Manufacturer Part Number

Mid-360S

Brand Name

Livox

Usage

Autonomous Forklift,AMR Robot,Service Robot,Autono

Output

Other

Description

Original Livox 3D LiDAR

At a glance

  • 360 Degree FOV: The 360-degree horizontal field of view ensures comprehensive coverage, ideal for high-precision SLAM mapping and obstacle detection in AMR and AGV applications.

  • IP67 Rating: With an IP67 rating, the device is protected against dust and water immersion, making it suitable for use in harsh environments and ensuring long-term reliability.

  • 100m Detection Range: A 100-meter detection range at 10% reflectivity allows for effective long-distance object detection, enhancing the accuracy and safety of autonomous navigation systems.

  • 200K Points Per Second: A point rate of 200,000 points per second provides dense and detailed point cloud data, enabling precise and reliable mapping and object recognition.

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Delivery via

Expect your order to be delivered before scheduled dates or receive a 5% delay compensation

Easy Return

Make free local returns for defects on qualifying purchases

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Dropship this product to your store

···

Key attributes

Mounting Type
Embedded installation
Manufacturer Part Number
Mid-360S
Brand Name
Livox
Usage
Autonomous Forklift,AMR Robot,Service Robot,Autono
Output
Other
Description
Original Livox 3D LiDAR
Place of Origin
Guangdong, China
Series
Mid-360S
Theory
Launch laser beam and receive its reflected signal
Brand
Livox LiDAR
Amplifier Type
Other
Voltage - Supply
9-27 V DC
Output Type
Other
Current - Supply
Other
Operating Temperature
Other
Resolution (Bits)
Other
Features
High precision, high resolution, etc.
Current - Supply (Max)
Other
Packaging
Other
Frequency
10 Hz
Output Configuration
Other
Current
Other
Voltage Rating
Other
Operating Force
Other
Oxygen Range
Other
Humidity Range
-20° C to 55° C (-4° F to 131° F )
Size
Other
Size / Dimension
-20° C to 55° C (-4° F to 131° F )
Measuring Range
40 m@10% reflectivity (typical value)
Resolution
Other
Interface
Other
Technology
Other
Sensing Range
40 m@10% reflectivity (typical value)
Current - Output (Max)
Other
Bandwidth
Other
Function
Other
Acceleration Range
Other
Sensitivity (LSB/g)
Other
Sensitivity (mV/g)
Other
Sensitivity (LSB/(°/s))
Other
Sensitivity (mV/°/s)
Other
Sensing Distance
40 m@10% reflectivity (typical value)
Current - Output
Other
Power - Rated
9-27 V DC
Voltage - Output Difference (Typ) @ Distance
Other
Voltage - Output (Typ) @ Distance
Other
Voltage - Max
Other
Voltage - DC Reverse (Vr) (Max)
Other
Power - Max
6.5 W
Sensing Object
Autonomous Forklift,AMR Robot,Service Robot,Autono
Sensing Light
Other
Resistance
Other
Resistance Tolerance
Other
Sensing Temperature - Local
Other
Sensing Temperature - Remote
Other
Current Rating - AC
Other
Current Rating - DC
Other
Tolerance
≤2 cm (@10 m) ≤4 cm (@0.2 m)
Voltage - Rated
9 ~ 27 V DC
Flow Sensor Type
Other
Voltage - Input
9 ~ 27 V DC
Application
Robots, drones, surveying, security
Output Function
3D point cloud information and its own motion data
Mfg Date Code
Other
Cross Reference
Other
Model
Mid-360S
Laser Wavelength
905 nm
Laser Safety
Class 1 (IEC60825-1:2014) (Eye Safety)
Detection Range (@ 100 klx)
40 m@10% reflectivity (typical value) 100 m (cut-off range)
Close Proximity Blind Zone
0.1 m
FOV
Horizontal: 360°, Vertical: -7°~52° (typical value)
Range Precision
≤2 cm (@10 m) ≤4 cm (@0.2 m)
Angular Precision
<0.15°
Point Rate
200,000 points/s (first return)
Frame Rate
10 Hz (typical value)
Data Port
100 BASE-TX Ethernet
Data Synchronization
IEEE 1588-2008 (PTPv2), GPS
Anti-Interference Function
Available
False Alarm Rate (@ 100 klx)
<0.01%
IMU
Built-in IMU Model: ICM40609
Operating Temperature
-20° C to 55° C (-4° F to 131° F )
IP Rating
6.5 W
Power
6.5 W
Power Supply Voltage Range
9 ~ 27 V DC
Dimensions
65x65x60 mm
