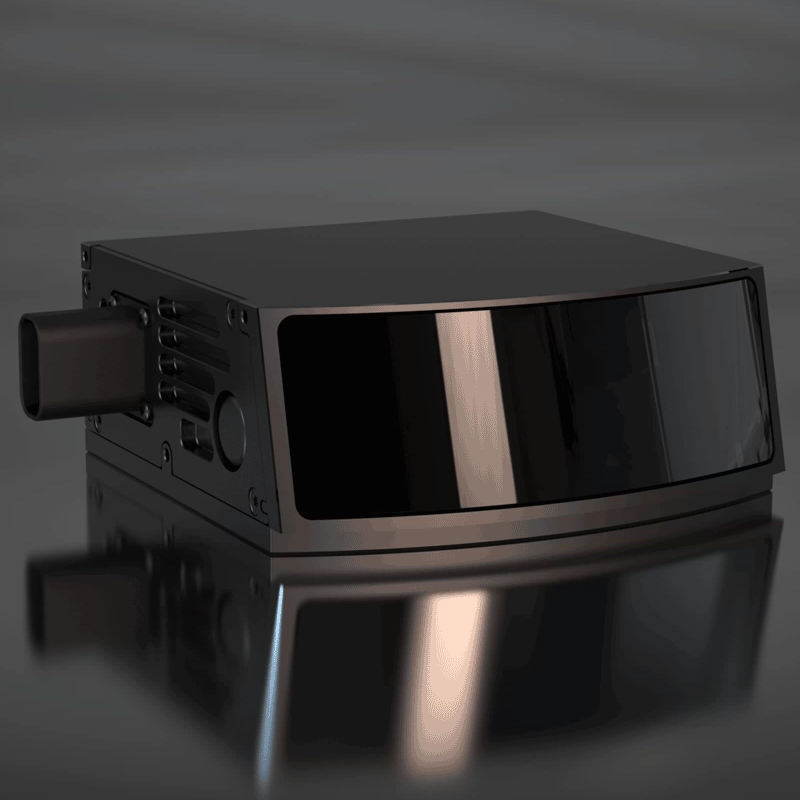

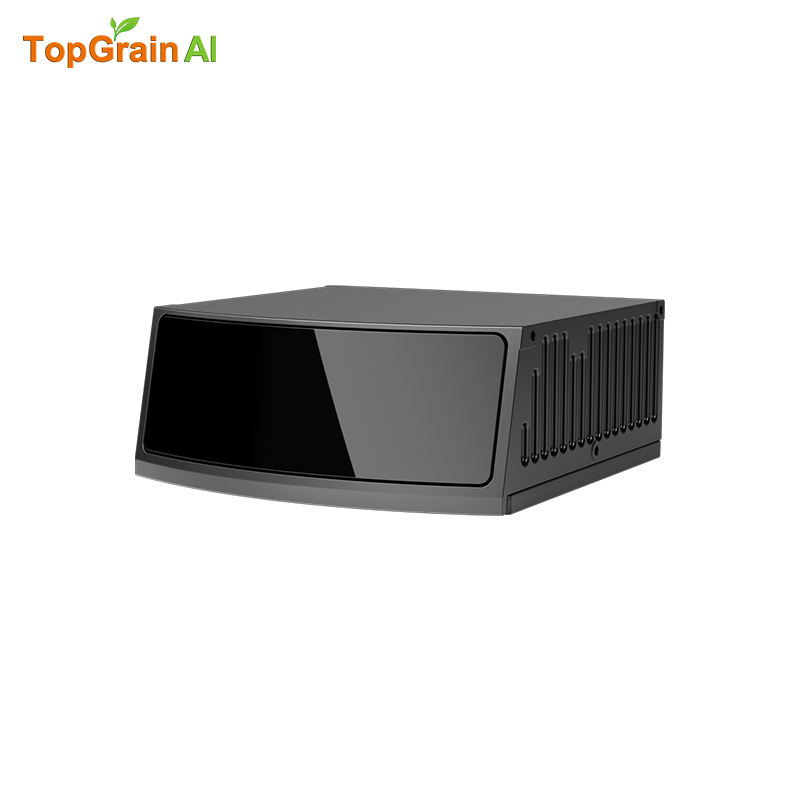

M1 Plus Solid State LiDAR 125 Lines 200m High Precision Laser Sensor for Autonomous Car SLAM Mapping & Industrial Automation AGV
No reviews yet
Attributes
High precision 3D environment perception capabilitUsage
Launch laser beam and receive its reflected signalTheory
Point cloud dataOutput
OtherInterface
0.2 ° (horizontal) x 0.2 ° (vertical)Resolution (Bits)
OtherApplication
Technology:Other
Function:Other
Output Function:Other
Amplifier Type:905nm laser transceiver scheme
Manufacturer Part Number:M1 Plus
Operating Temperature:-40°C ~ +85°C
Description:Original Robosense 126 beam LiDAR
Mounting Type:Embedded installation
Brand Name:Robosense LiDAR
Place of Origin:Guangdong, China
Series:M1 Plus LiDAR
Brand:Robosense
Voltage - Supply:9V~16V
Output Type:Point cloud data
Current - Supply:1.25A
Features:High definition perception, ultimate compactness
Current - Supply (Max):1.5A
Packaging:Official original packaging
Frequency:10 Hz
Output Configuration:Ethernet
Current:1.5A
Voltage Rating:12V DC
Operating Force:Other
Oxygen Range:Other
Humidity Range:Other
Size:Other
Size / Dimension:111mm(D)x 110mm(W)x 45mm(H)
Measuring Range:200m (180m@10%)
Resolution:0.2 ° (horizontal) x 0.2 ° (vertical)
Sensing Range:200m (180m@10%)
Current - Output (Max):Other
Bandwidth:Other
Acceleration Range:Other
Sensitivity (LSB/g):Other
Sensitivity (mV/g):Other
Sensitivity (LSB/(°/s)):Other
Sensitivity (mV/°/s):Other
Sensing Distance:200m (180m@10%)
Current - Output:Other
Power - Rated:Other
Voltage - Output Difference (Typ) @ Distance:Other
Voltage - Output (Typ) @ Distance:Other
Voltage - Max:Other
Voltage - DC Reverse (Vr) (Max):Other
Power - Max:15W
Sensing Object:People,vehicles,obstacles,traffic signs etc.
Sensing Light:Other
Resistance:Other
Resistance Tolerance:Other
Sensing Temperature - Local:Other
Sensing Temperature - Remote:Other
Current Rating - AC:Other
Current Rating - DC:Other
Tolerance:Other
Voltage - Rated:Other
Flow Sensor Type:Other
Voltage - Input:Other
Mfg Date Code:2025 and Beyond
Cross Reference:Other
Product Name:Robosense 3D LiDAR
Sensor:M1 Plus
Laser Wavelength:905nm
Laser Safety:Class 1 eye safey
Range:200m (180m@10% NIST)
Blind Spot:≤0.5m
Range Accuracy (Typical):5cm
Horizontal FOV:120°
Vertical FOV:25°
Horizontal Resolution:Average 0.2°
Vertical Resolution:Average 0.2° (ROI: Average 0.1°)
Frame Rate:10Hz
Key attributes
Usage
High precision 3D environment perception capabilit
Theory
Launch laser beam and receive its reflected signal
Output
Point cloud data
Interface
Other
Resolution (Bits)
0.2 ° (horizontal) x 0.2 ° (vertical)
Application
Other
Technology
Other
Function
Other
Output Function
Other
Amplifier Type
905nm laser transceiver scheme
Manufacturer Part Number
M1 Plus
Operating Temperature
-40°C ~ +85°C
Description
Original Robosense 126 beam LiDAR
Mounting Type
Embedded installation
Brand Name
Robosense LiDAR
Place of Origin
Guangdong, China
Series
M1 Plus LiDAR
Brand
Robosense
Voltage - Supply
9V~16V
Output Type
Point cloud data
Current - Supply
1.25A
Features
High definition perception, ultimate compactness
Current - Supply (Max)
1.5A
Packaging
Official original packaging
Frequency
10 Hz
Output Configuration
Ethernet
Current
1.5A
Voltage Rating
12V DC
Operating Force
Other
Oxygen Range
Other
Humidity Range
Other
Size
Other
Size / Dimension
111mm(D)x 110mm(W)x 45mm(H)
Measuring Range
200m (180m@10%)
Resolution
0.2 ° (horizontal) x 0.2 ° (vertical)
Sensing Range
200m (180m@10%)
Current - Output (Max)
Other
Bandwidth
Other
Acceleration Range
Other
Sensitivity (LSB/g)
Other
Sensitivity (mV/g)
Other
Sensitivity (LSB/(°/s))
Other
Sensitivity (mV/°/s)
Other
Sensing Distance
200m (180m@10%)
Current - Output
Other
Power - Rated
Other
Voltage - Output Difference (Typ) @ Distance
Other
Voltage - Output (Typ) @ Distance
Other
Voltage - Max
Other
Voltage - DC Reverse (Vr) (Max)
Other
Power - Max
15W
Sensing Object
People,vehicles,obstacles,traffic signs etc.
Sensing Light
Other
Resistance
Other
Resistance Tolerance
Other
Sensing Temperature - Local
Other
Sensing Temperature - Remote
Other
Current Rating - AC
Other
Current Rating - DC
Other
Tolerance
Other
Voltage - Rated
Other
Flow Sensor Type
Other
Voltage - Input
Other
Mfg Date Code
2025 and Beyond
Cross Reference
Other
Product Name
Robosense 3D LiDAR
Sensor
M1 Plus
Laser Wavelength
905nm
Laser Safety
Class 1 eye safey
Range
200m (180m@10% NIST)
Blind Spot
≤0.5m
Range Accuracy (Typical)
5cm
Horizontal FOV
120°
Vertical FOV
25°
Horizontal Resolution
Average 0.2°
Vertical Resolution
Average 0.2° (ROI: Average 0.1°)
Frame Rate
10Hz
Packaging and delivery
Selling Units
Single item
Single package size
40X30X25 cm
Single gross weight
5.000 kg
