MEATROL NRC High accuracy 0.5% High Accuracy Flexible Rogowski Coil current transformer AC Rogowski Sensor 100A

Name: MEATROL NRC High accuracy 0.5% High Accuracy Flexible Rogowski Coil current transformer AC Rogowski Sensor 100A
Brand: Shanghai Pinyan M&C Technology Co., Ltd.
SKU: 1600771020577
Price: 20 USD
Availability: InStock

5.0(4 reviews)9 sold#19Most popular in Current Sensors

Shanghai Pinyan M&C Technology Co., Ltd.

Custom Manufacturer

14 yrs

Attributes

Current sensorType

85mV/kASensitivity

50mV/kA@50Hz, 85mV/kA@50Hz, 100mV/kA@50HzOutput

/Number of channels

/Communication Interface

/Material

Mounting Type:OPEN

Manufacturer Part Number:NRC Current sensor

Brand Name:MEATROL

Usage:AC current detection and measurement

Current - Sensing:/

Description:Current sensor

Place of Origin:Shanghai, China

Series:NRC

Features:FLEXBEL

Theory:The principle of electromagnetic induction

Description:NRC Flexible Rogowski coil

Frequency:50hz

Accuracy:0.5

Voltage - Supply:/

Linearity:/

Accuracy:Calibrated <0.5% (central position, 25℃)

Current input:Maximum 100kA

Voltage insulation:Coil: 2000V, Signal cable: 1000V

Lead length:2meter

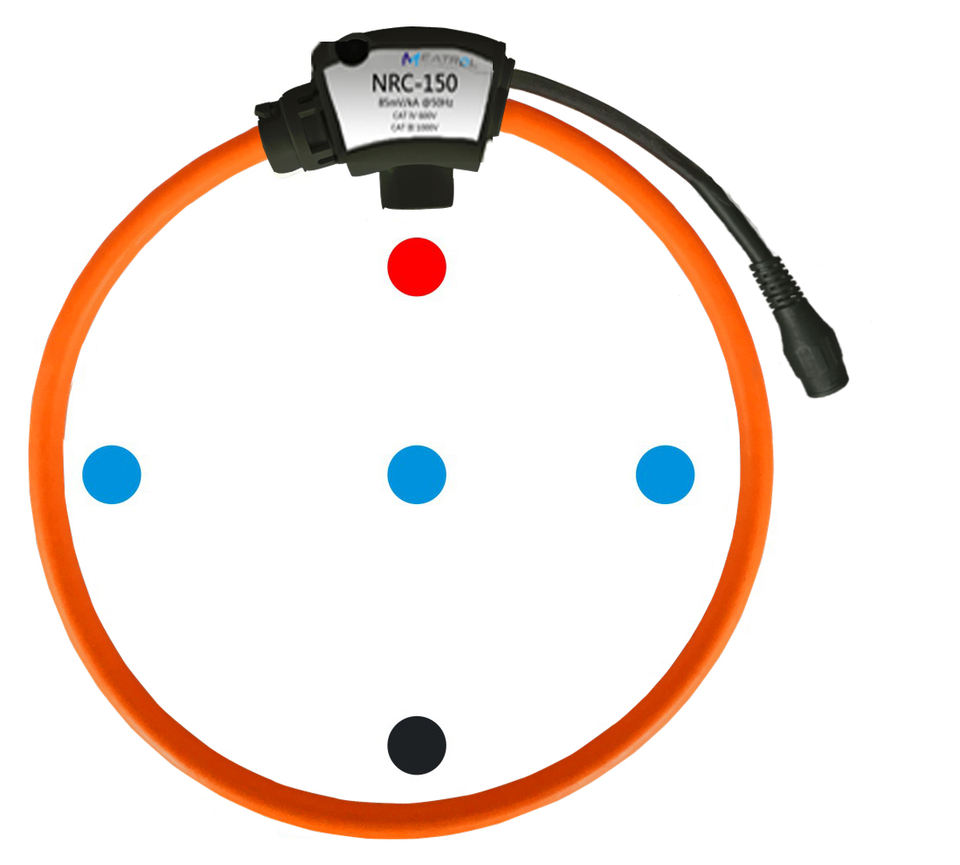

Position Error:±1% maximum

Phase error:≤0.5°

Linearity:±0.2% of reading

Bandwidth:1Hz to 100kHz(-3dB)

Certificate:CE, ROHS 2.0 , IP68(Option)

Manufacturing Date Code:2023

High Accuracy and Reliability: This current sensor boasts an accuracy of <0.5%, ensuring precise measurements and reliable performance in demanding applications. Our customer, who requires high accuracy, will appreciate this feature.
Wide Measurement Range: With a maximum current input of 100A, this sensor is suitable for various applications, from small to medium-sized electrical systems. This flexibility makes it an ideal choice for a wide range of industries.
High Insulation and Protection: The sensor features 2000V coil insulation and 1000V signal cable insulation, ensuring safe operation in harsh environments. This level of protection provides peace of mind for users who work with high-voltage systems.
Long Lead Length and Flexibility: The 2-meter lead length allows for easy installation and flexibility in system design. This feature is particularly useful for users who need to measure current in remote locations.
Compliance with International Standards: The MEATROL NRC current sensor complies with CE, RoHS 2.0, and IP68 (option) certifications, ensuring that it meets the most stringent international standards for safety and performance. This level of compliance provides assurance for users who require a reliable and compliant solution.
