MI Mineral Insulated Heating Cable, Custom Length Available, Explosion-Proof, SS304 Sheath, High Temp & Corrosion Resistant
No reviews yetcertified
certified
Attributes

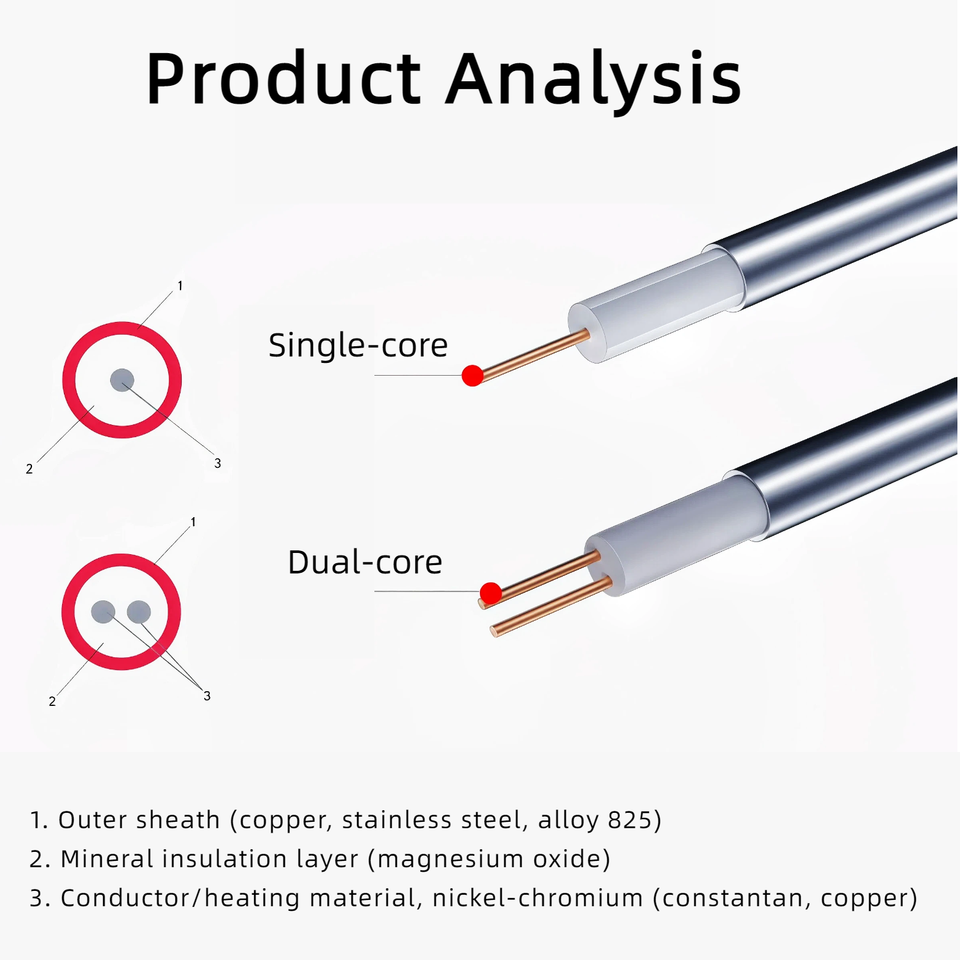

Nickel-Chromium Alloy WireConductor Material

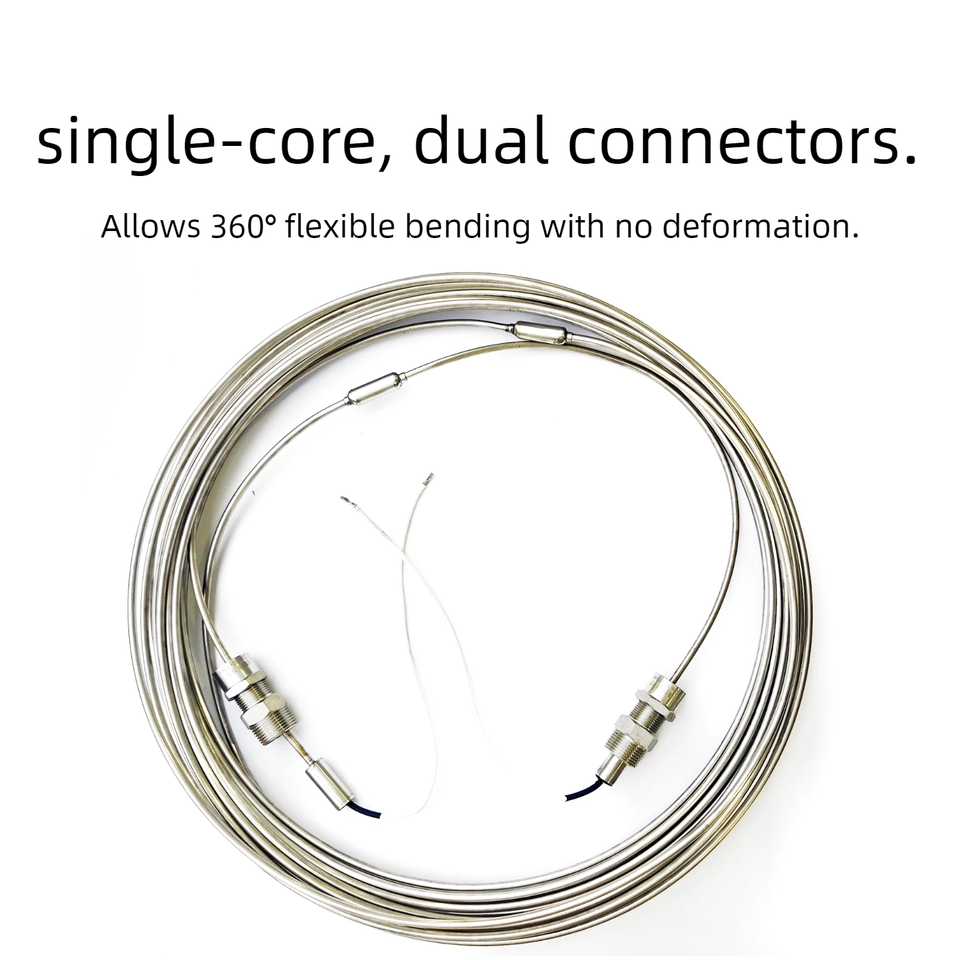

2 Cores, 1CoresNumber of Conductors
Magnesium Oxide (MgO), Aluminium OxideInsulation Material

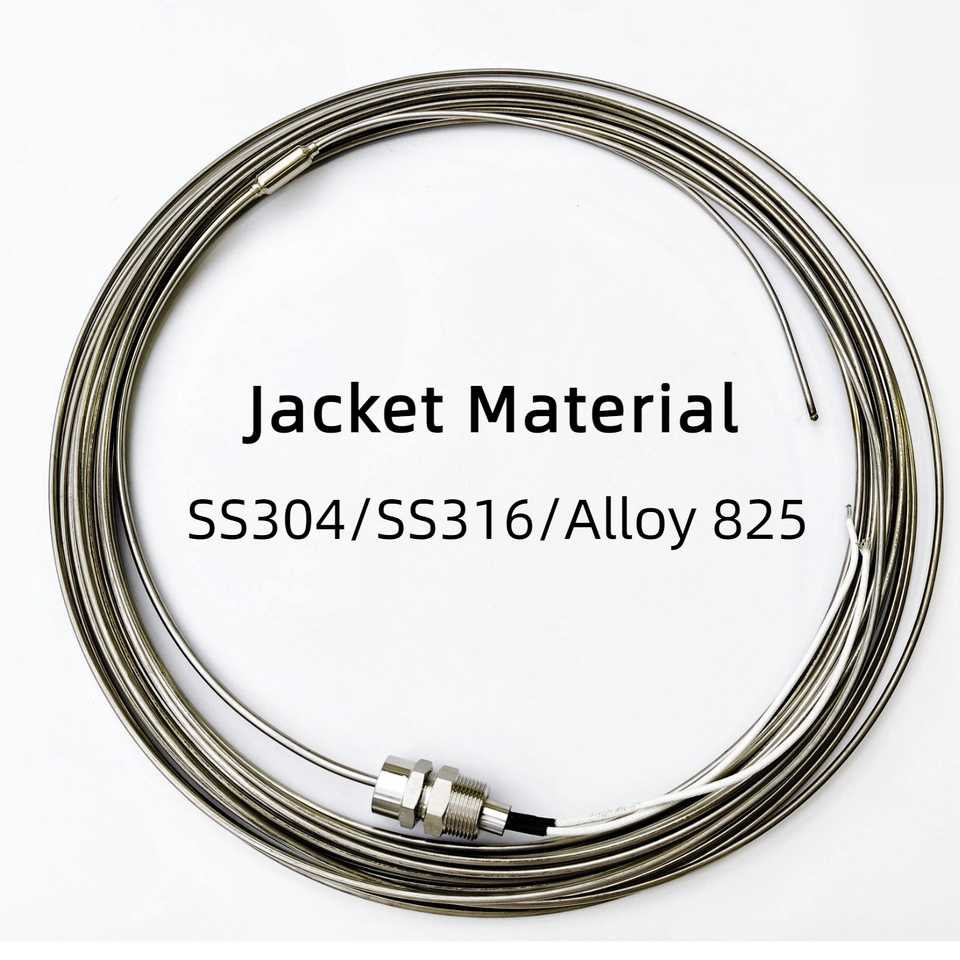

Stainless Steel 304, Alloy 825 SheathJacket
CustomizableLength
Anhui, ChinaPlace of Origin
Model Number:MIHC
Brand Name:WANHUAYANG
Outer Diameter::Diameter: 3mm,4mm, 4.5mm, 5mm, 5.5mm

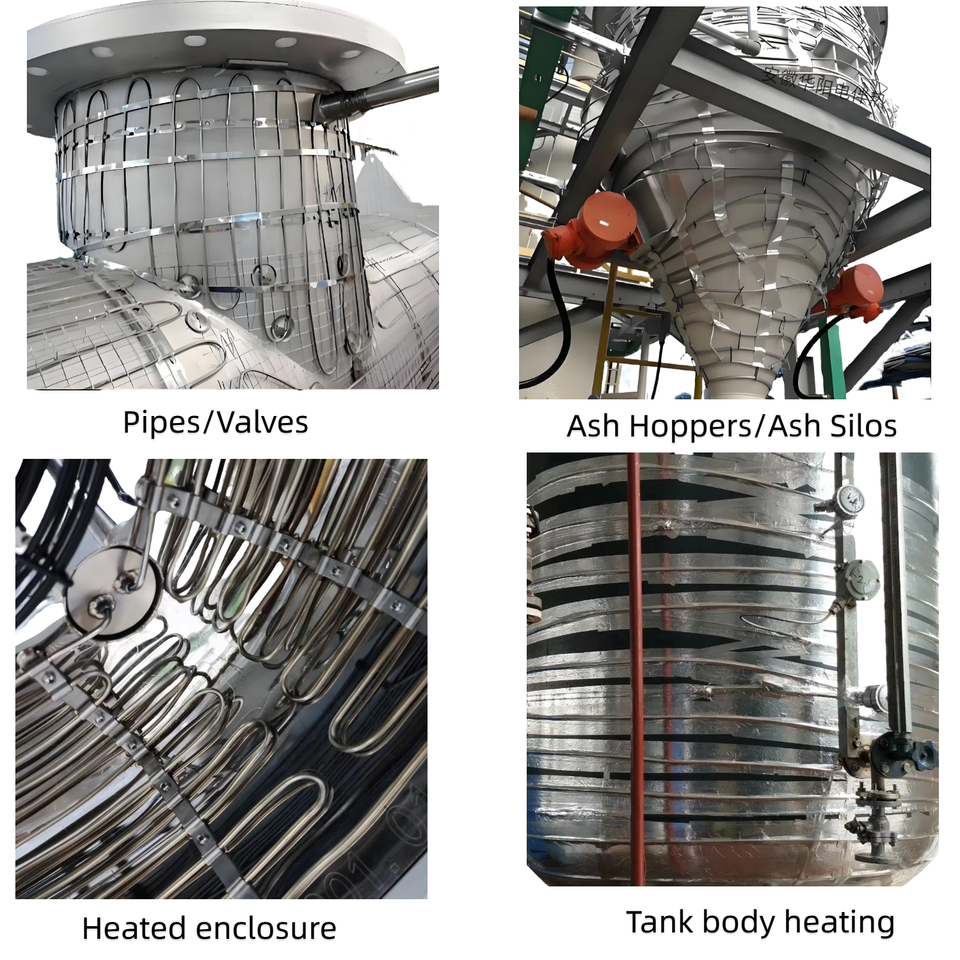

Applications::Strong acid, strong alkali,a and high-temperature heating environments
Temperature Range1::Maximum Maintenance Temperature: 350°C~550℃
Temperature Range2::Max Exposure Temperature: 600℃-800℃
Temperature Range3::Minimum Installation Temperature: -30℃
Operating Voltage::220V,380V
Rated Power::0-250W/M (Customizable)
Resistance Tolerance::±10%
Dielectric Strength::Heating cable withstands 12oovAC/ 1min
Insulation Resistance:100MQ/500VDC
Key attributes
Conductor Material
Nickel-Chromium Alloy Wire
Number of Conductors
2 Cores, 1Cores
Insulation Material
Magnesium Oxide (MgO), Aluminium Oxide
Jacket
Stainless Steel 304, Alloy 825 Sheath
Length
Customizable
Place of Origin
Anhui, China
Model Number
MIHC
Brand Name
WANHUAYANG
Outer Diameter:
Diameter: 3mm,4mm, 4.5mm, 5mm, 5.5mm
Applications:
Strong acid, strong alkali,a and high-temperature heating environments
Temperature Range1:
Maximum Maintenance Temperature: 350°C~550℃
Temperature Range2:
Max Exposure Temperature: 600℃-800℃
Temperature Range3:
Minimum Installation Temperature: -30℃
Operating Voltage:
220V,380V
Rated Power:
0-250W/M (Customizable)
Resistance Tolerance:
±10%
Dielectric Strength:
Heating cable withstands 12oovAC/ 1min
Insulation Resistance
100MQ/500VDC
Packaging and delivery
Selling Units
Single item
Lead time
Customization options
Jacket(+ from +$0.10/meter/Min. order: 5 meters)
View details
Minimum order quantity: 2 meters
$280-18
Variations
Select nowColor: Stainless steel color
Stainless steel color
Number of Cores
1-core
2-core
Customization options
Jacket+$0.10/meter (Min. order: 5 meters)
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
