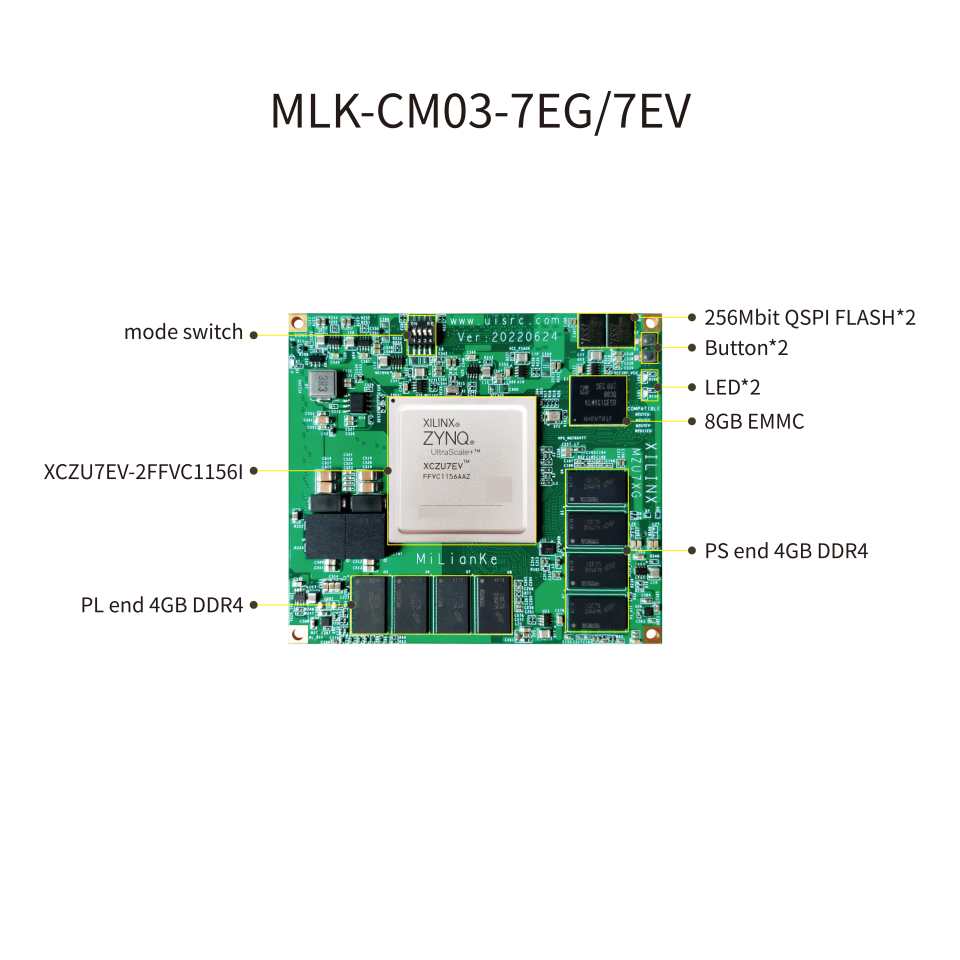

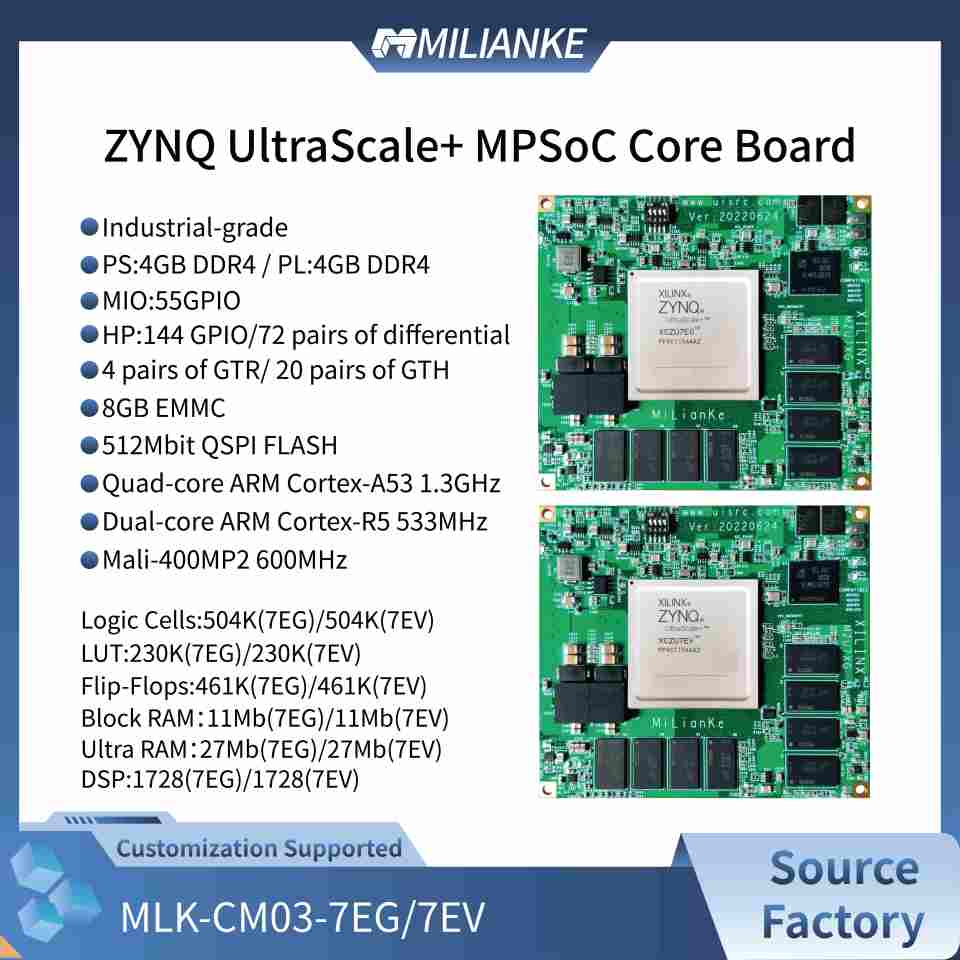

MLK-CM03-7EG/7EV ZYNQ UltraScale+MPSoC Series Core Board Dual-core RPU Cortex-A53 + Cortex-R5 Mali-400MP2 GPU 4GB DDR4 Machine M

Name: Mlk-cm03-7eg/7ev Zynq Ultrascale+mpsoc Series Core Board Dual-core Rpu Cortex-a53 + Cortex-r5 Mali-400mp2 Gpu 4gb Ddr4 Machine M - Buy Product on Alibaba.com
Brand: CONG TY TNHH DUC PHAT CAR
SKU: 1601908071623
Price: 1077 USD
Availability: InStock

No reviews yet

$1,077-1,246

Minimum order quantity: 1 piece

Select now

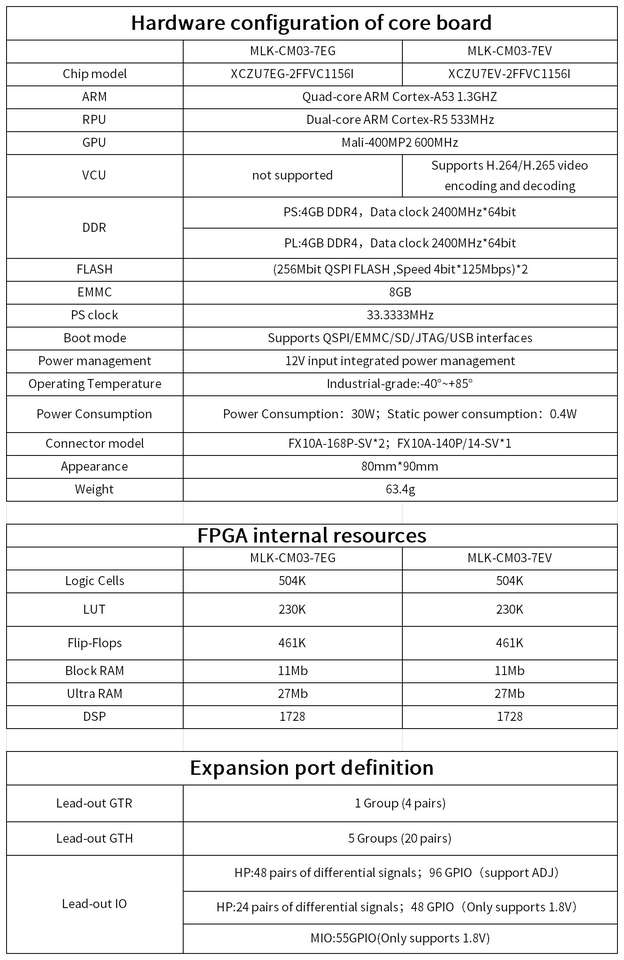

Specification

MLK-CM03-7EG-A(BK67 and BK68 are powered by the core board)

MLK-CM03-7EG-B(BK67 and BK68 are powered by the base board)

MLK-CM03-7EV-A(BK67 and BK68 are powered by the core board)

MLK-CM03-7EV-B(BK67 and BK68 are powered by the base board)

Key attributes

Type

Core Board

Core Processor

XCZU7EG-2FFVC1156I / XCZU7EV-2FFVC1156I

Operating System

Linux Ubuntu debian

Interface

Description

XCZU7EG/XCZU7EV

Model Number

MLK-CM03-7EG/7EV

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Key attributes

Type

Core Board

Core Processor

XCZU7EG-2FFVC1156I / XCZU7EV-2FFVC1156I

Operating System

Linux Ubuntu debian

Interface

Description

XCZU7EG/XCZU7EV

Model Number

MLK-CM03-7EG/7EV

Place of Origin

Jiangsu, China

Brand Name

MILIANKE

Series

ZYNQ UltraScale+MPSoC

Mfg. Date Code

Package

2FFVC1156I

Function

Machine Vision/High Speed Communication

Embedded

Yes

Utilized IC / Part

Number of A/D Converters

Number of Bits

Sampling Rate (Per Second)

Data Interface

Input Range

Amplifier Type

Output Type

Max Output Power x Channels @ Load

Voltage - Supply

12V

Board Type

Evaluation Platform

Main Purpose

Not Applicable

Outputs and Type

Not Applicable

Power - Output

Voltage - Output

Current - Output

Voltage - Input

Frequency - Switching

Platform

Current - Output / Channel

Features

Channels per IC

Regulator Type

-3db Bandwidth

Current - Supply (Main IC)

Voltage - Supply, Single/Dual (±)

Sensor Type

Sensitivity

Module/Board Type

Maximum Number Of IC's

Maximum Time

Sensing Range

Mounting Type

PCB, /

Communication Interface

ARM

Quad-core ARM Cortex-A53 1.3GHz

RPU

Duai-core ARM Cortex-R5 533MHz

GPU

Mali-400MP2 600MHz

VCU

7EV:Supports H.264/H.265 video encoding and decoding

DDR

PS:4GB DDR4 / PL:4GB DDR4

FLASH

(256Mbit QSPI FLASH ,Speed 4bit*125Mbps)*2

EMMC

8GB

Logic Cells

504K

LUT

230K

Flip-Flops

461K
