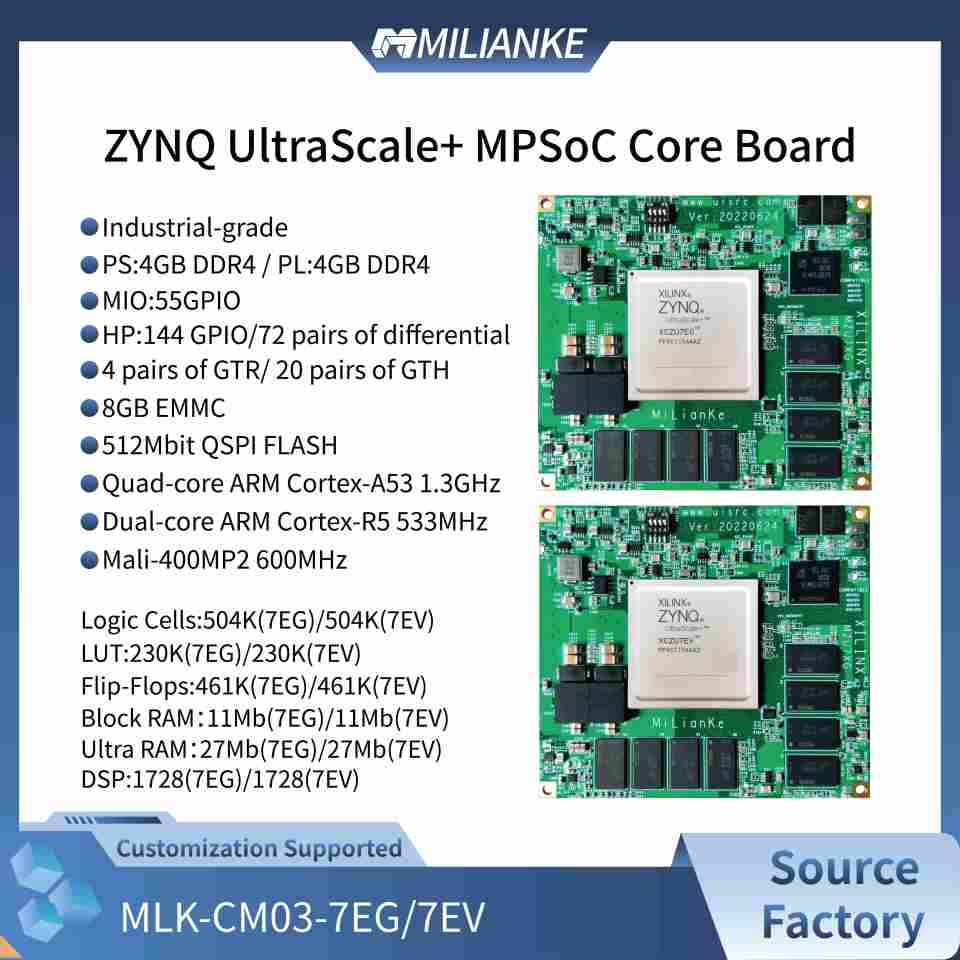

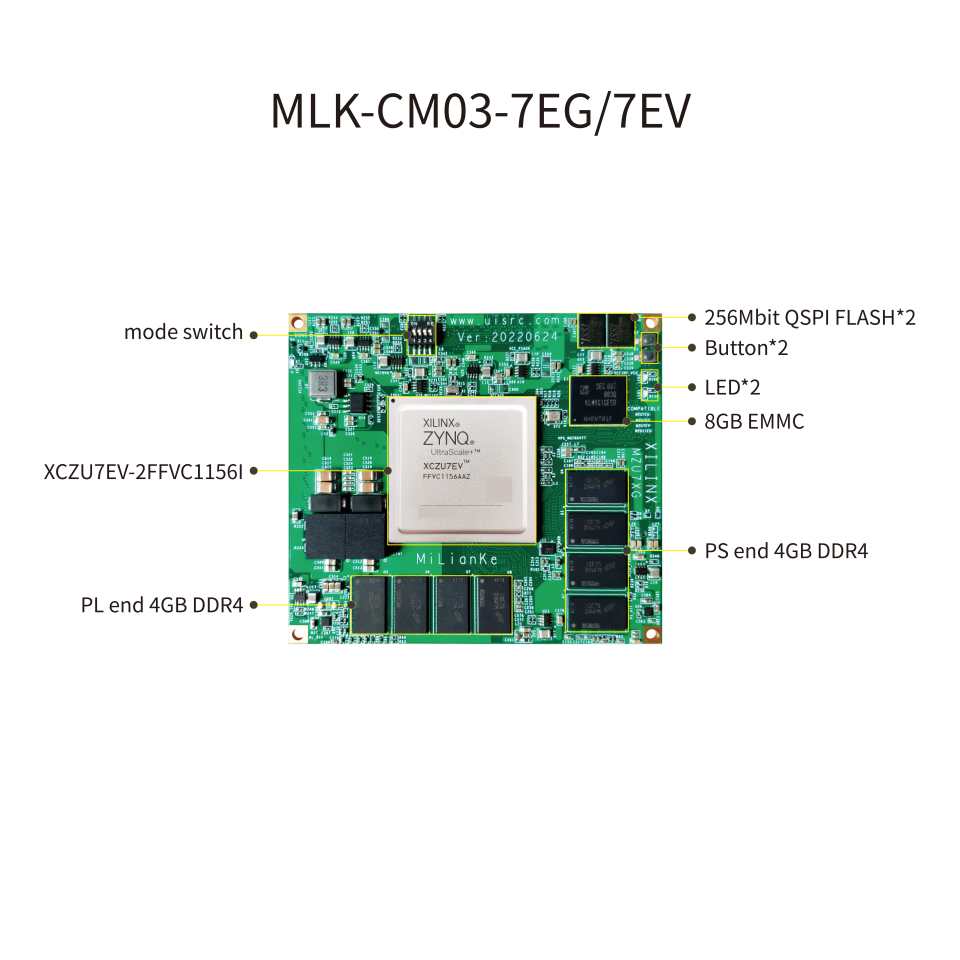

MLK-CM03-7EG/7EV ZYNQ UltraScale+MPSoC Series Core Board Dual-core RPU Cortex-A53 + Cortex-R5 Mali-400MP2 GPU 4GB DDR4 Machine M

No reviews yet
$1,077-1,246
Minimum order quantity: 1 piece
Select now

Specification

MLK-CM03-7EG-A(BK67 and BK68 are powered by the core board)
MLK-CM03-7EG-B(BK67 and BK68 are powered by the base board)
MLK-CM03-7EV-A(BK67 and BK68 are powered by the core board)
MLK-CM03-7EV-B(BK67 and BK68 are powered by the base board)

Key attributes

Type

Core Board

Core Processor

XCZU7EG-2FFVC1156I / XCZU7EV-2FFVC1156I

Operating System

Linux Ubuntu debian

Interface

/

Description

XCZU7EG/XCZU7EV

Model Number

MLK-CM03-7EG/7EV

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Key attributes

Type
Core Board
Core Processor
XCZU7EG-2FFVC1156I / XCZU7EV-2FFVC1156I
Operating System
Linux Ubuntu debian
Interface
/
Description
XCZU7EG/XCZU7EV
Model Number
MLK-CM03-7EG/7EV
Place of Origin
Jiangsu, China
Brand Name
MILIANKE
Series
ZYNQ UltraScale+MPSoC
Mfg. Date Code
/
Package
2FFVC1156I
Function
Machine Vision/High Speed Communication
Embedded
Yes
Utilized IC / Part
/
Number of A/D Converters
/
Number of Bits
/
Sampling Rate (Per Second)
/
Data Interface
/
Input Range
/
Amplifier Type
/
Output Type
/
Max Output Power x Channels @ Load
/
Voltage - Supply
12V
Board Type
Evaluation Platform
Main Purpose
Not Applicable
Outputs and Type
Not Applicable
Power - Output
/
Voltage - Output
/
Current - Output
/
Voltage - Input
/
Frequency - Switching
/
Platform
/
Current - Output / Channel
/
Features
/
Channels per IC
/
Regulator Type
/
-3db Bandwidth
/
Current - Supply (Main IC)
/
Voltage - Supply, Single/Dual (±)
/
Sensor Type
/
Sensitivity
/
Module/Board Type
/
Maximum Number Of IC's
/
Maximum Time
/
Sensing Range
/
Mounting Type
PCB, /

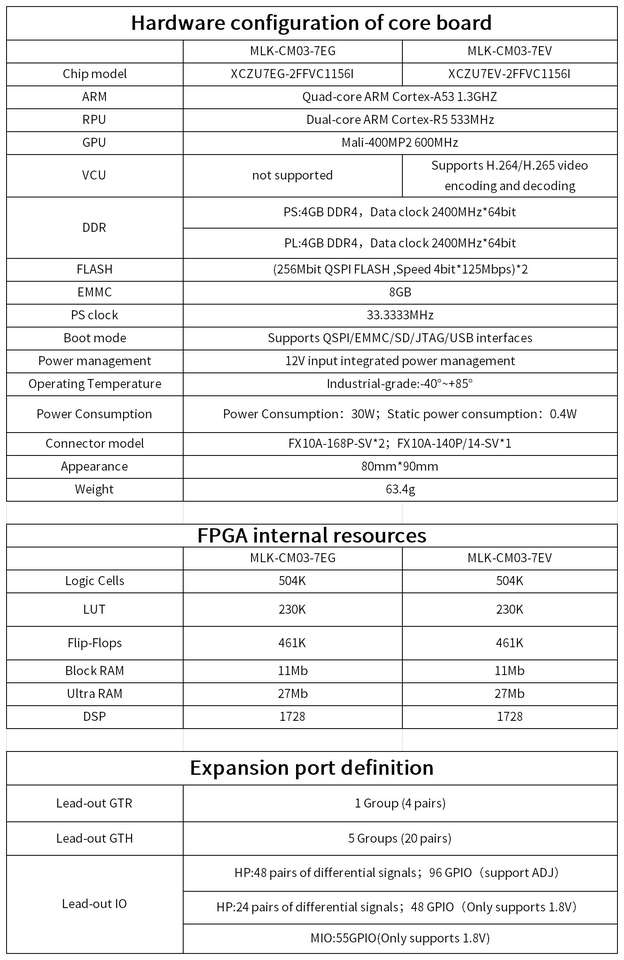

Communication Interface
/
ARM
Quad-core ARM Cortex-A53 1.3GHz
RPU
Duai-core ARM Cortex-R5 533MHz
GPU
Mali-400MP2 600MHz
VCU
7EV:Supports H.264/H.265 video encoding and decoding
DDR
PS:4GB DDR4 / PL:4GB DDR4
FLASH
(256Mbit QSPI FLASH ,Speed 4bit*125Mbps)*2
EMMC
8GB
Logic Cells
504K
LUT
230K
Flip-Flops
461K
