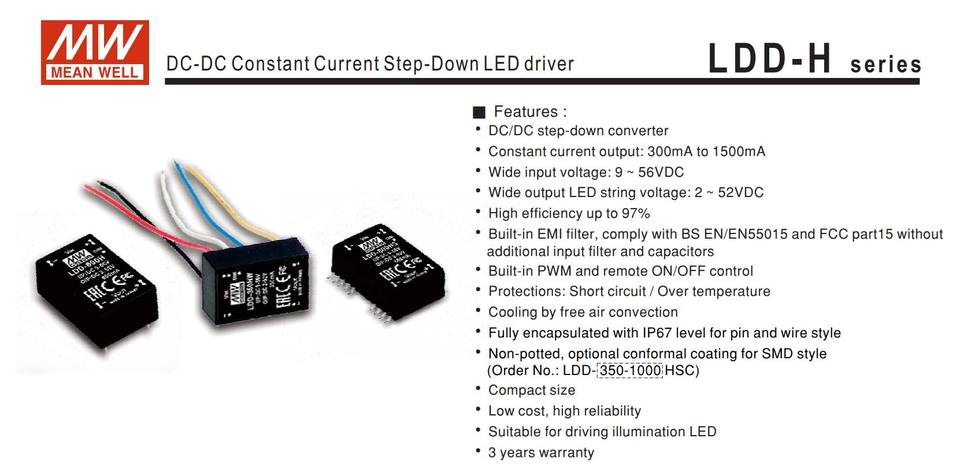

MW LDD-500HW Mean Well Original/Genuine DC/DC Converter Single Output 9-56VDC Input Low Cost FCC & CE for

No reviews yetComplies with EU standards

Ningbo Dericsson Electronics Co., Ltd.

Multispecialty Supplier

14 yrs

CN

Attributes

2~52VDCOutput Voltage

9~56VDCInput Voltage

SingleOutput Type

500mAOutput Current

0HzOutput Frequency

Zhejiang, ChinaPlace of Origin

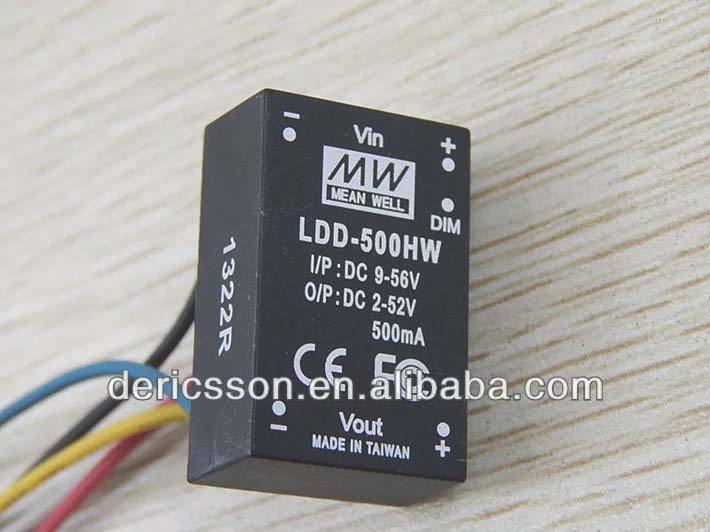

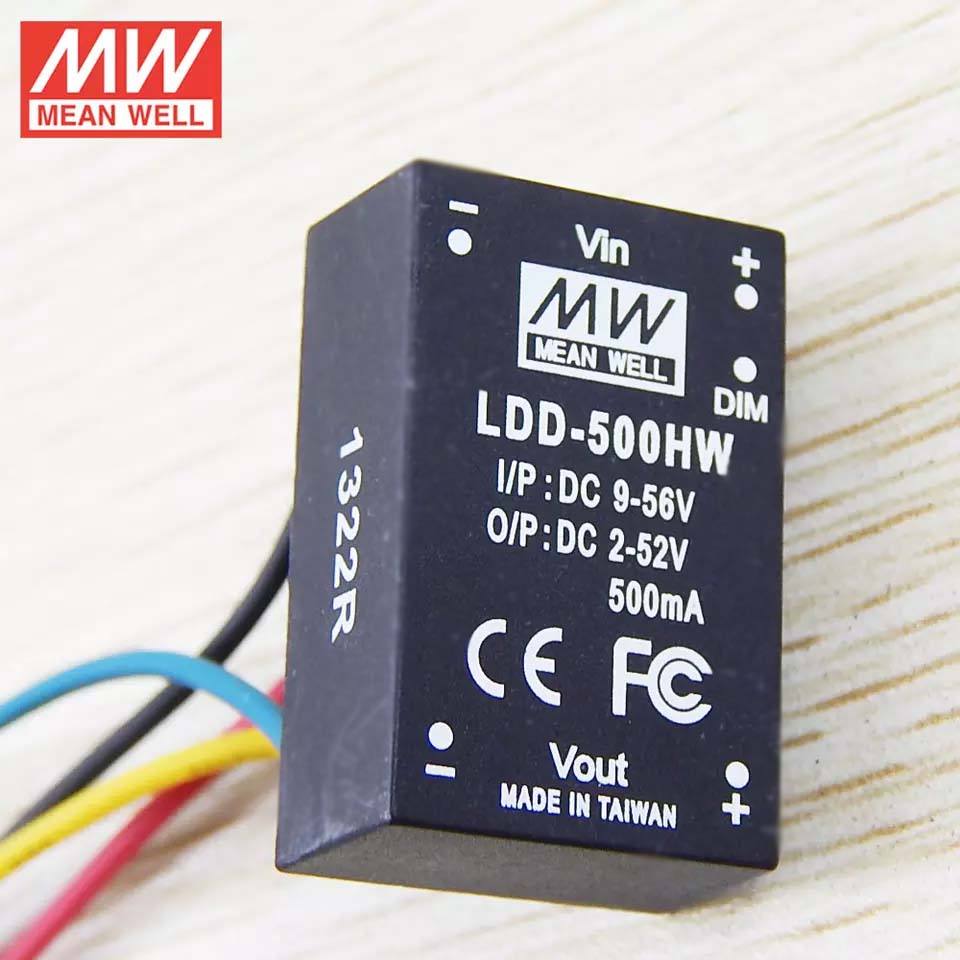

Model Number:LDD-500HW

Brand Name:MEAN WELL

Output mode::500mA constant current

Protections::Short circuit / Over temperature

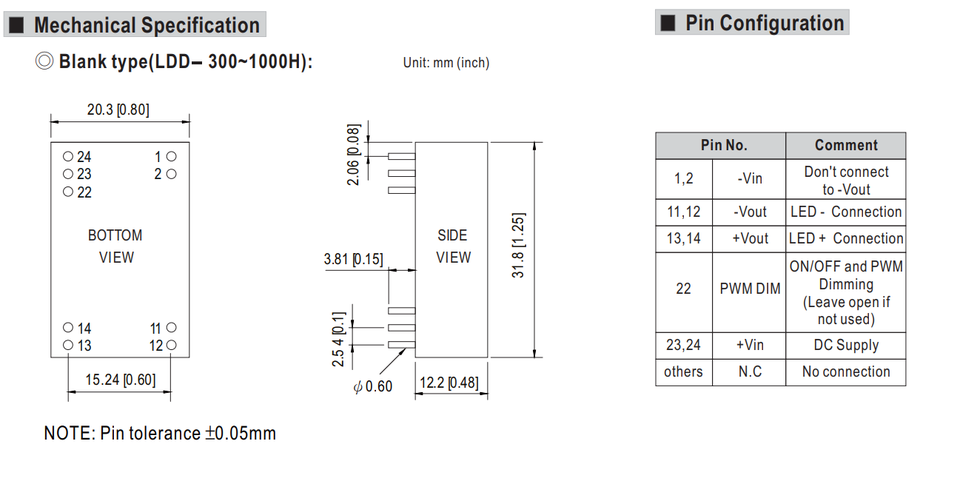

Size::31.8*20.3*12.2mm or 1.25"*0.8"*0.48" inch (L*W*H)

Working temperature::-40℃~+85℃, cooling by free air convection

Dimming function::PWM

Applications::Suitable for driving illumination LED

Certificates::Real FCC & CE

MTBF::2000Khrs min.

Warranty::3 years warranty

Potting Material::Expoxy (UL94-V0)

Key attributes

Output Voltage

2~52VDC

Input Voltage

9~56VDC

Output Type

Single

Output Current

500mA

Output Frequency

0Hz

Place of Origin

Zhejiang, China

Model Number

LDD-500HW

Brand Name

MEAN WELL

Output mode:

500mA constant current

Protections:

Short circuit / Over temperature

Size:

31.8*20.3*12.2mm or 1.25"*0.8"*0.48" inch (L*W*H)

Working temperature:

-40℃~+85℃, cooling by free air convection

Dimming function:

PWM

Applications:

Suitable for driving illumination LED

Certificates:

Real FCC & CE

MTBF:

2000Khrs min.

Warranty:

3 years warranty

Potting Material:

Expoxy (UL94-V0)

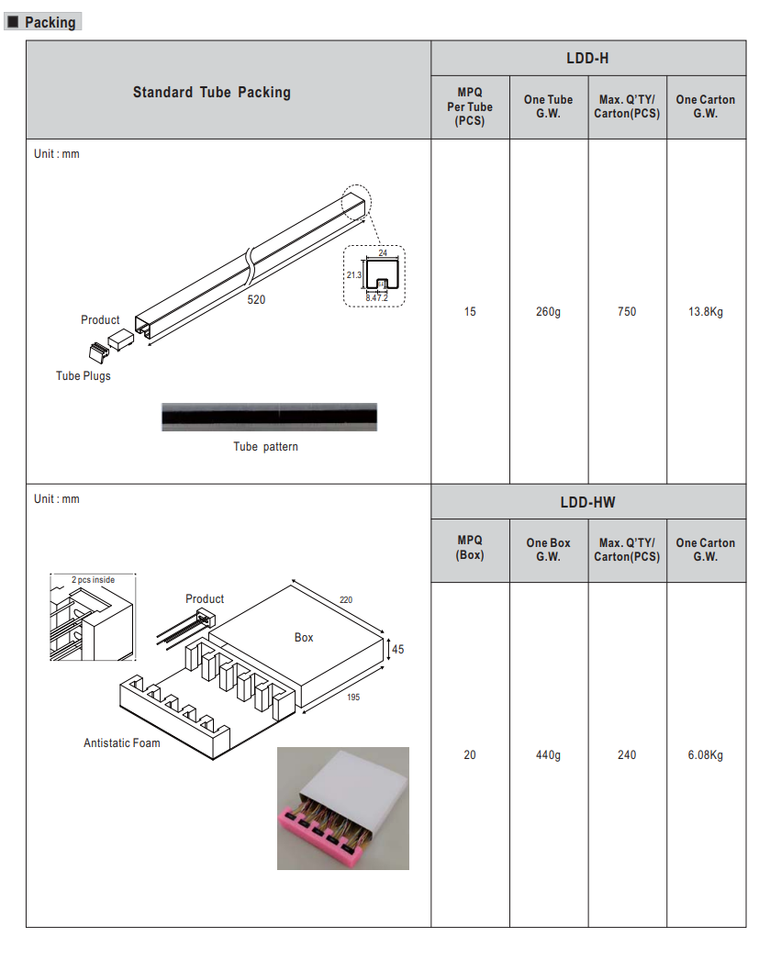

Packaging and delivery

Selling Units

Single item

Single package size

4X3X2 cm

Single gross weight

1.000 kg

Lead time

Product descriptions from the supplier

Minimum order quantity: 5 pieces

$450-550

Variations

Output Power

1W~26W

Supplier’s customization ability

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
