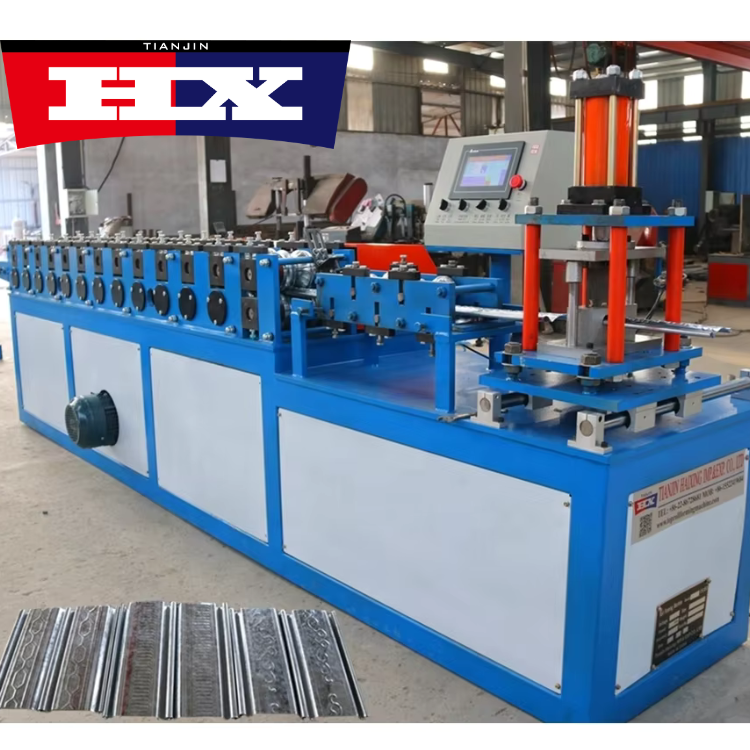

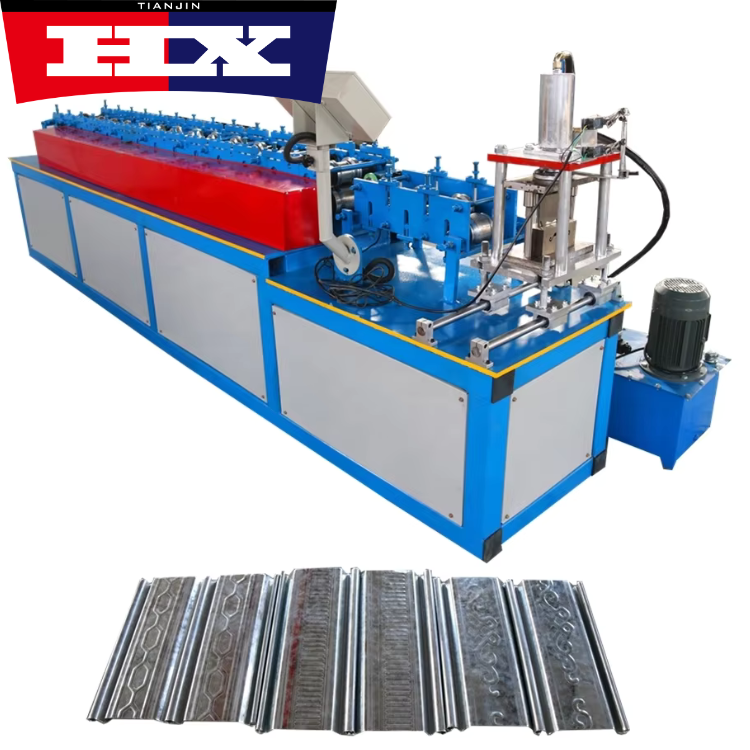

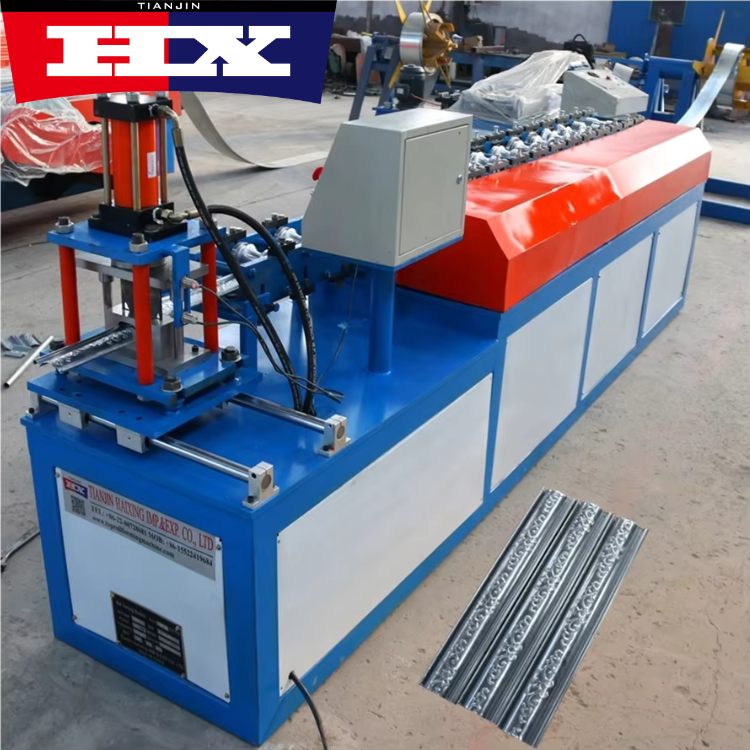

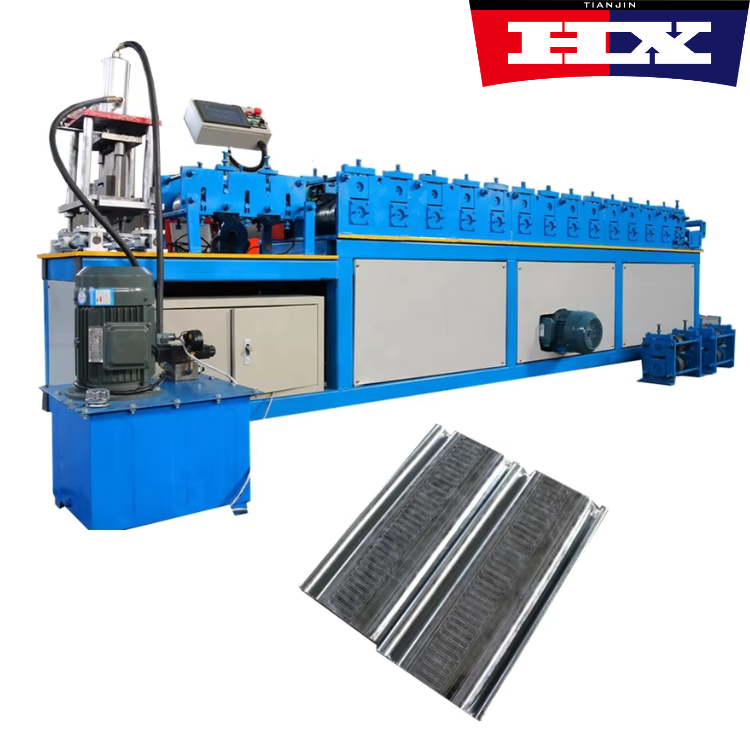

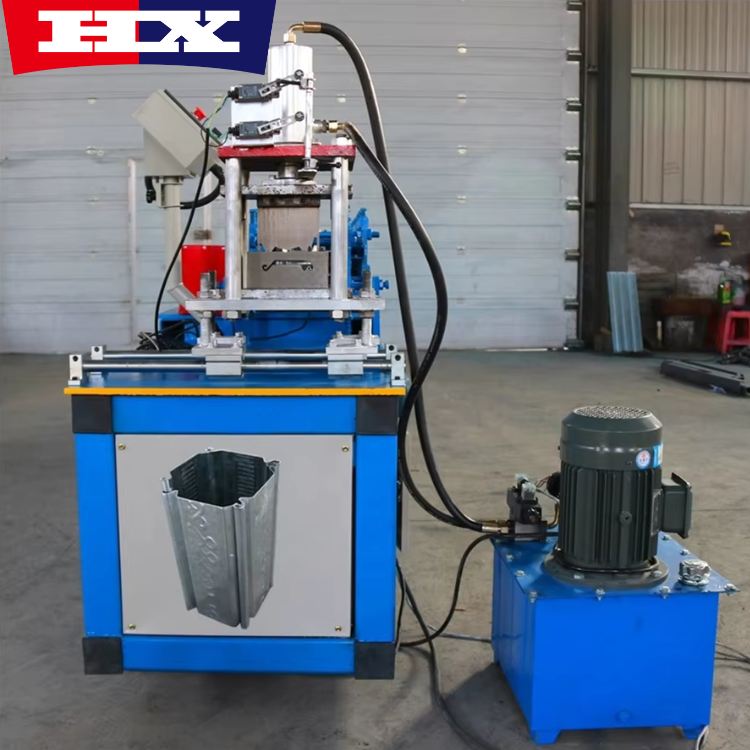

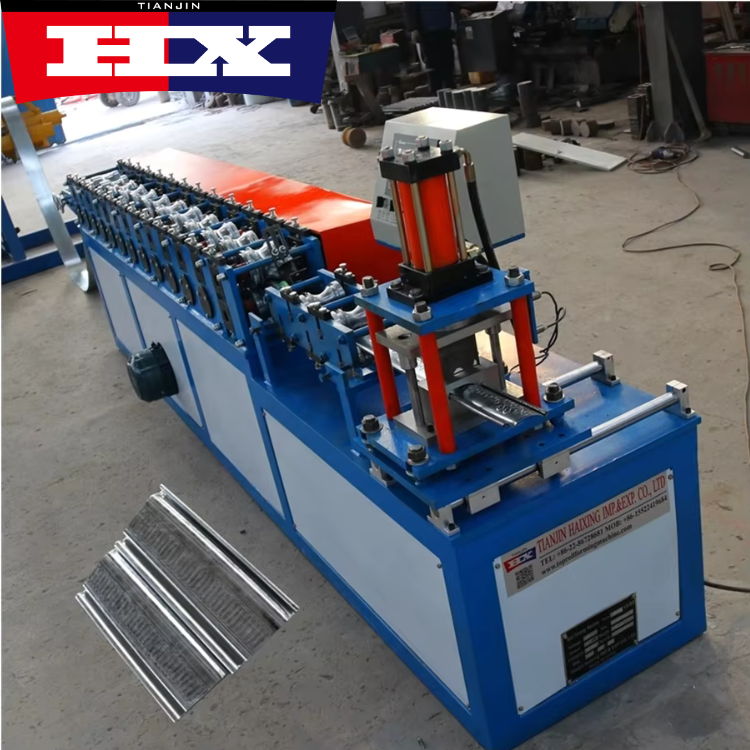

Machine Profilage Avec CNC Pour Lame De Porte En Rouleau Porte a Grille Articulee Roller Shutter Doors Machine in China
No reviews yetComplies with EU standards
Complies with EU standards
Attributes
Tile Forming MachineType
Colored SteelTile Type
125mmFeeding width
0.4-0.8 mmRolling thinckness
380V/440V/220V/415VVoltage
Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLCCore Components
Use:shutter door
Warranty:2 Years
Video outgoing-inspection:Provided
Machinery Test Report:Provided
Key Selling Points:Famous brand PLC and motor
Place of Origin:Hebei, China
Weight:2600 kg
Brand Name:HX
Dimension(L*W*H):5400*1000*1500mm
Product name:machines de Porte a Grille Articulee in china
Roller material:45#steel Chrome Plated
Cutting blade material:Cr 12 High Grade Steel
Shaft material:45# Steel Outer Diameter: 50mm
Main frame:Square steel frame
Control system:PLC(imported Brand)
Feeding width:Based on design drawing
Suitable material:Color Galvanized steel strips
Thickness:0.6-1.0mm
Usage:shutter door
Service
On-site service & free replacement parts
Custom design in 3 days
Key attributes
Type
Tile Forming Machine
Tile Type
Colored Steel
Feeding width
125mm
Rolling thinckness
0.4-0.8 mm
Voltage
380V/440V/220V/415V
Core Components
Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
Use
shutter door
Warranty
2 Years
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Key Selling Points
Famous brand PLC and motor
Place of Origin
Hebei, China
Weight
2600 kg
Brand Name
HX
Dimension(L*W*H)
5400*1000*1500mm
Product name
machines de Porte a Grille Articulee in china
Roller material
45#steel Chrome Plated
Cutting blade material
Cr 12 High Grade Steel
Shaft material
45# Steel Outer Diameter: 50mm
Main frame
Square steel frame
Control system
PLC(imported Brand)
Feeding width
Based on design drawing
Suitable material
Color Galvanized steel strips
Thickness
0.6-1.0mm
Usage
shutter door
Packaging and delivery
Selling Units
Single item
Single package size
540X100X150 cm
Single gross weight
2600.000 kg
Lead time
1-1 sets
$9,850
2-2 sets
$8,450
3-9 sets
$7,250
≥10 sets
$6,500
*Taxes and import charges will be calculated at checkout
Variations
Select nowProduction Capacity: 10-15m/min
10-15m/min
Model Number: HX-75 machine pour porte grille articulee
HX-75 machine pour porte grille articulee
Power(W)
3Kw+3Kw
