Attributes
Generalapplication
DN300-DN400port size
Electricpower
Controlstructure
OEMcustomized support
Taiwan, Chinaplace of origin
model number:UM-12
brand name:MIT-UNID-CNS
media:Base
temperature of media:Normal Temperature
warranty:1 years
Voltage:AC110V. AC220V. DC24V. DC12V. AC380V. AC440V (50/60 Hz)
Power (AC110V.AC220V):100W
Speed 90 sec 60Hz:143 secs
The Size of Value:DN300-DN400
Torque 5% kgf-cm2 110V:35000 kgf-cm2
Torque 5% kgf-cm2 220V:35000 kgf-cm2
Non-load current consumption:0.6A - 1.2A
Type:BALL VALVES

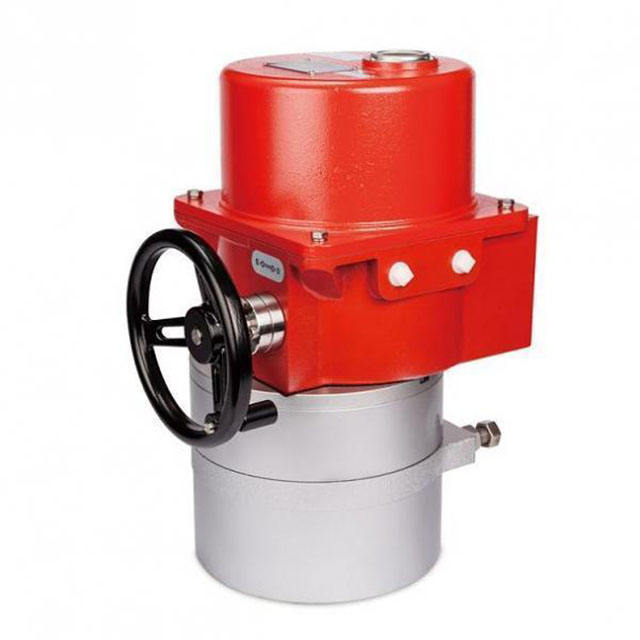

Product name:Electric Ball Valve
Body material:Aluminum Alloy
