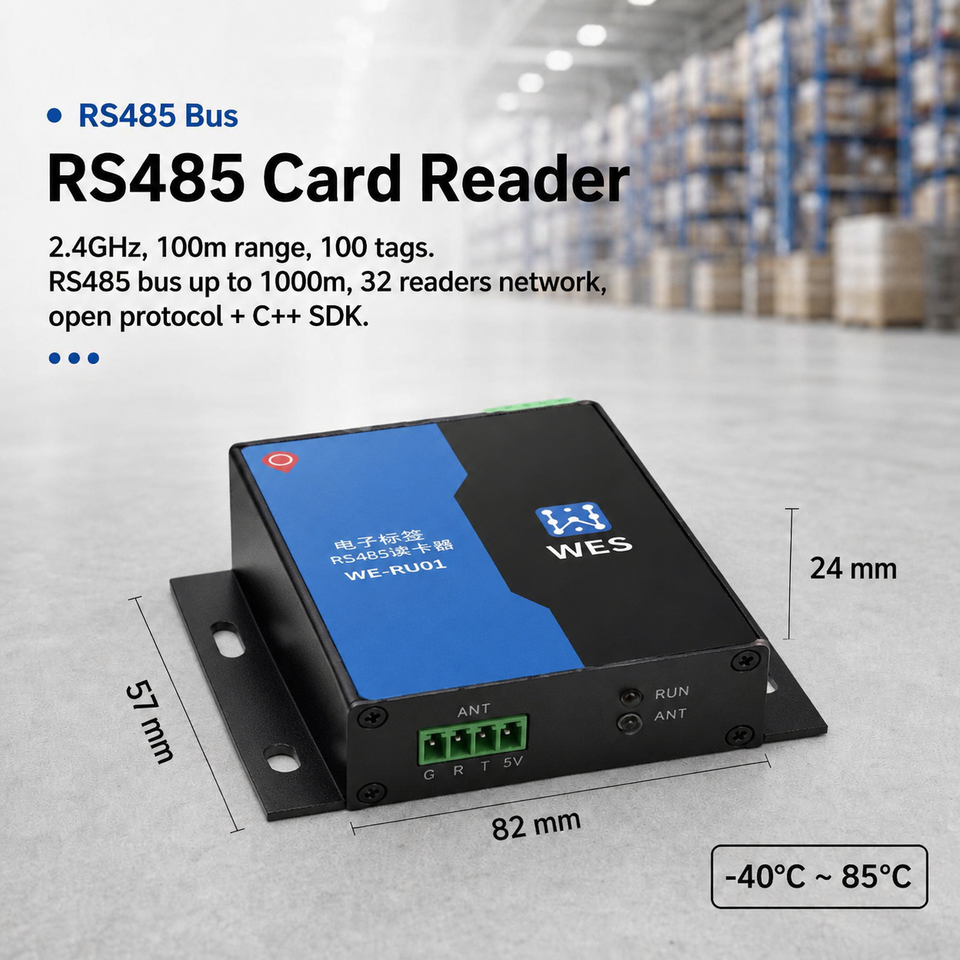

Manufacturer RS485 RFID Reader 100 Tags 100m RSSI 32 Units -40C C++ SDK for Multi-Floor Warehouse Factory RTLS

No reviews yetbillboard#16 most popular in Zigbee Modules
$80
20-499 pieces
$78
500-999 pieces
$76
≥1,000 pieces
Sample price: $10
Select now

Specification

WE-RU01
Customization options
LOGO+$3/piece (Min. order: 100 pieces)
WHITE BOX+$5/piece (Min. order: 100 pieces)
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization

Key attributes

Model Number

WE-RU01

Chipset

RFID

Application Type

Multi-Floor Warehouse Factory RTLS

Place of Origin

Shanghai, China

Type

RS485 RFID Reader

Brand

WES

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Key attributes

Model Number
WE-RU01
Chipset
RFID
Application Type
Multi-Floor Warehouse Factory RTLS
Place of Origin
Shanghai, China
Type
RS485 RFID Reader
Brand
WES

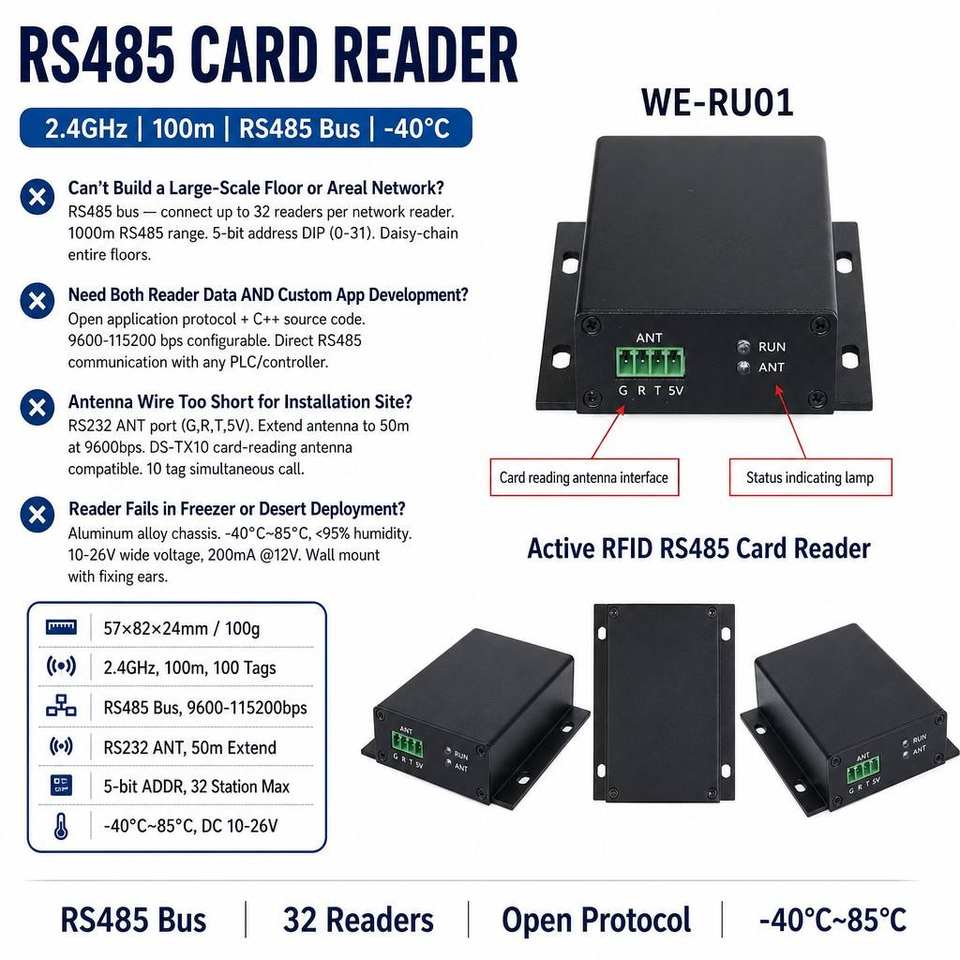

Communication Interface
RS-485
2.4GHz Reading
Reads 100 Tags at 100m via RS232 Antenna, RSSI Distance, C++ SDK
RS485 Backhaul
9600-115200bps Selectable, ≥1000m Range, 5-Bit DIP Address 0-31

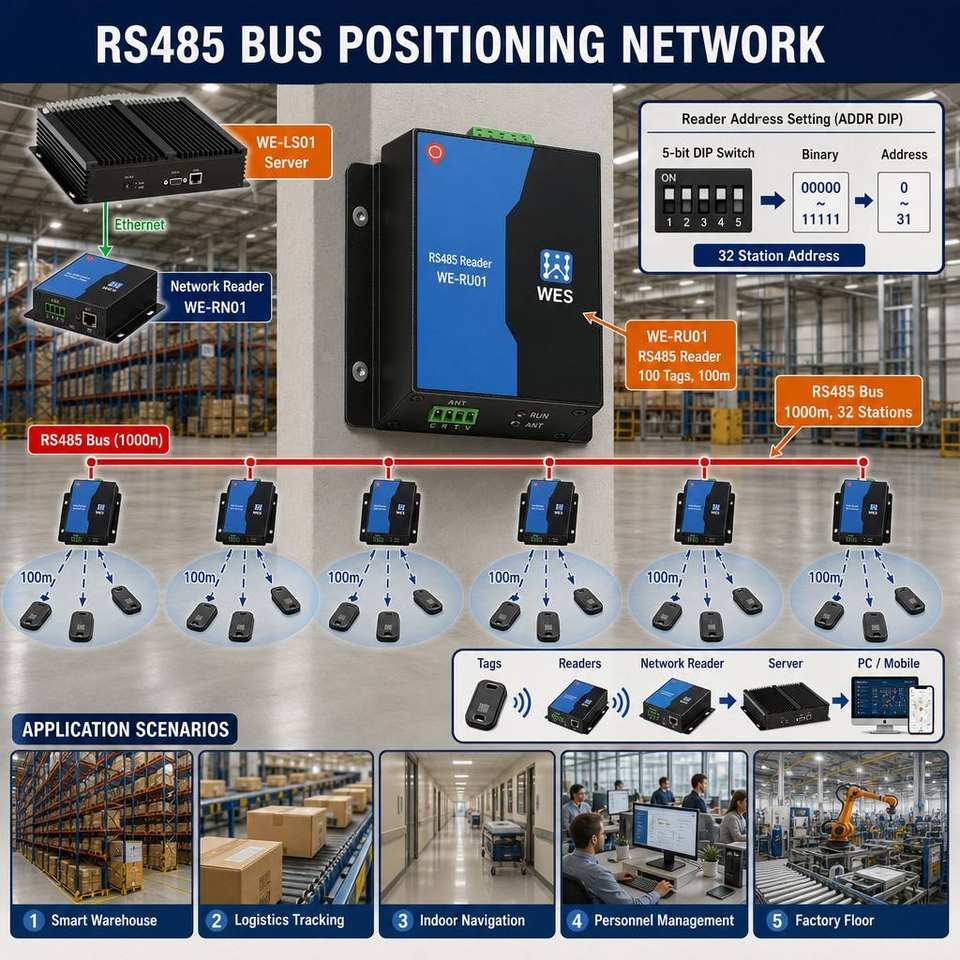

Network Scale
32 RU01 Units on One Bus + 2 Built-in ANT = 34 Total Stations
Tag Calling
10 Acoustic-Optical Tags Simultaneous Call, LED+Buzzer Activation
Power
DC 10-26V Wide Voltage, ≤200mA at 12V, 3.5mm Terminal Block
Environment
-40 to 85C, <95% RH Non-Condensing, Aluminum Alloy, 57x82x24mm, 100g
Antenna Extension
Card Antenna Extendable to 50m at 9600bps, 4-Pin RS232 Terminal
LED Indicators
RUN LED (Online Status) + ANT LED (Tag Read Flash Rate), Visual Diag
Open Protocol
Open Communication Protocol + C++ Source Code, Baud Rate Config Tool
Application Scenarios
Multi-Floor Building, Warehouse, Factory, Hospital, Office, Logistics
