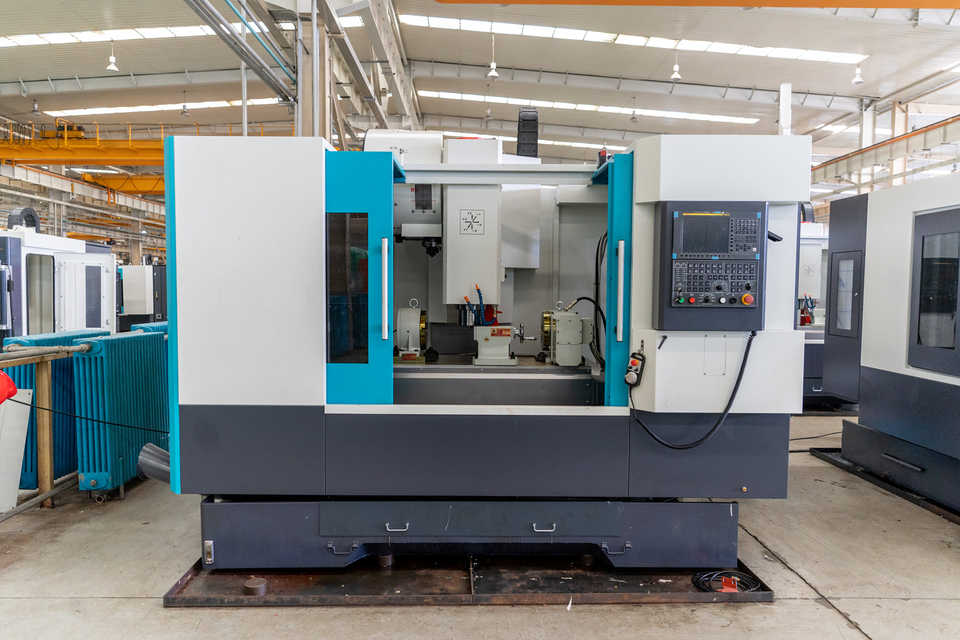

Metal Process Vertical CNC Mill Machine VMC Machining Centre VMC1270 CNC Milling Machine Center up to 5 Axes

Store rating:5.0

(103 reviews)Complies with EU standards

Dalian Jori Co., Ltd.

7 yrs

CN

Attributes

VERTICALtype

±0.008positioning accuracy

±0.005repeatability (x/y/z) (mm)

1220table travel (x) (mm)

620table travel (y) (mm)

685table travel (z) (mm)

table size:1220/620

no. of spindles:Single, 4, 5

weight (t):8.5

max. table load(kg):1200

min. time of tool change(s):2

place of origin:Liaoning, China

spindle taper:BT40

dimension(l*w*h):2990/2641/2759

cnc control system:GSK/fanuc

range of spindle speed:1 - 12000

tool magazine capacity:24

key selling points:Automatic, High-Accuracy, Energy Saving, High Safety Level

warranty:1 Year

brand name:DMTG

voltage:380 V

machinery test report:Provided

video outgoing-inspection:Provided

machining capacity:Medium Duty

Vertical Machine Center:Cnc Vertical Machining Center

Machine Type:Vertical Machining Center

Control system:FANUC GSK Machining Center

Worktable size:1220/620

X/Y/Z axis travel:1220/620/685

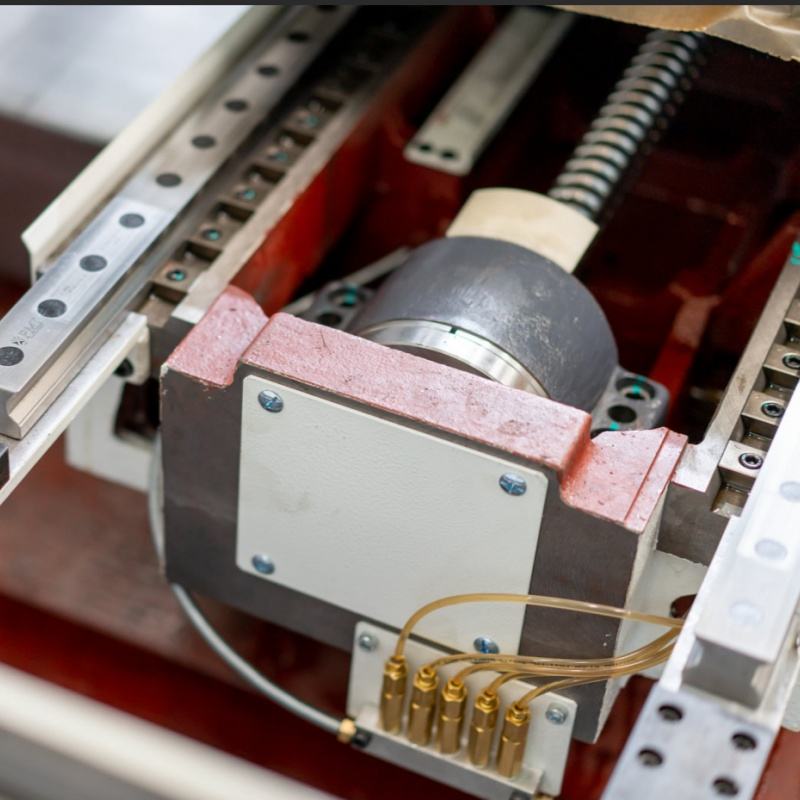

X/Y/Z axis guideway type:Linear guideway

Max spindle speed:12000

Max tool length:300

Vertical CNC Machining Center:Cnc Milling Machine for Metal Working

Automatic Cnc Milling Machine:CNC VERTICAL Machining Center Metal Machining CNC

Key attributes

type

VERTICAL

positioning accuracy

±0.008

repeatability (x/y/z) (mm)

±0.005

table travel (x) (mm)

1220

table travel (y) (mm)

620

table travel (z) (mm)

685

table size

1220/620

spindle taper

BT40

machining capacity

Medium Duty

cnc control system

GSK/fanuc

tool magazine capacity

24

min. time of tool change(s)

2

voltage

380 V

no. of spindles

Single, 4, 5

key selling points

Automatic, High-Accuracy, Energy Saving, High Safety Level

warranty

1 Year

machinery test report

Provided

video outgoing-inspection

Provided

weight (t)

8.5

max. table load(kg)

1200

place of origin

Liaoning, China

dimension(l*w*h)

2990/2641/2759

range of spindle speed

1 - 12000

brand name

DMTG

Vertical Machine Center

Cnc Vertical Machining Center

Machine Type

Vertical Machining Center

Control system

FANUC GSK Machining Center

Worktable size

1220/620

X/Y/Z axis travel

1220/620/685

X/Y/Z axis guideway type

Linear guideway

Max spindle speed

12000

Max tool length

300

Vertical CNC Machining Center

Cnc Milling Machine for Metal Working

Automatic Cnc Milling Machine

CNC VERTICAL Machining Center Metal Machining CNC

Packaging and delivery

Selling Units

Single item

Lead time

Customization options

Name plate+$50/set (Min. order: 1 set)

cnc control system+$7,000/set (Min. order: 1 set)

View details

Customizable

1 - 4 sets

$28,000

>= 5 sets

$21,000

Variations

model number: VMC1270

VMC1270

number of axes: 3

3

4

5

spindle motor power

7.5/11KW

Customization options

Name plate+$50/set (Min. order: 1 set)

cnc control system+$7,000/set (Min. order: 1 set)

Supplier’s customization ability

Minor customization

Drawing-based customization

Sample-based customization

Full customization

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
