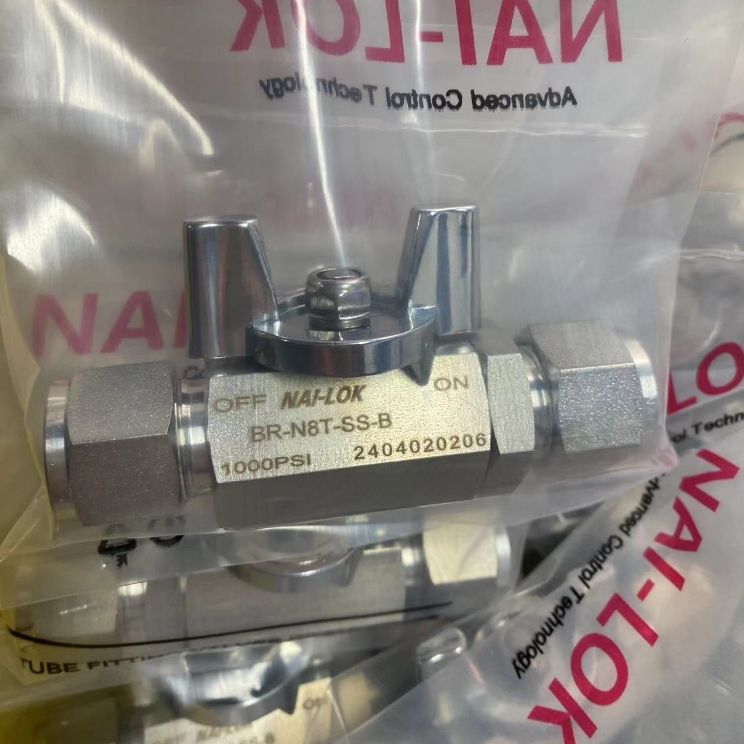

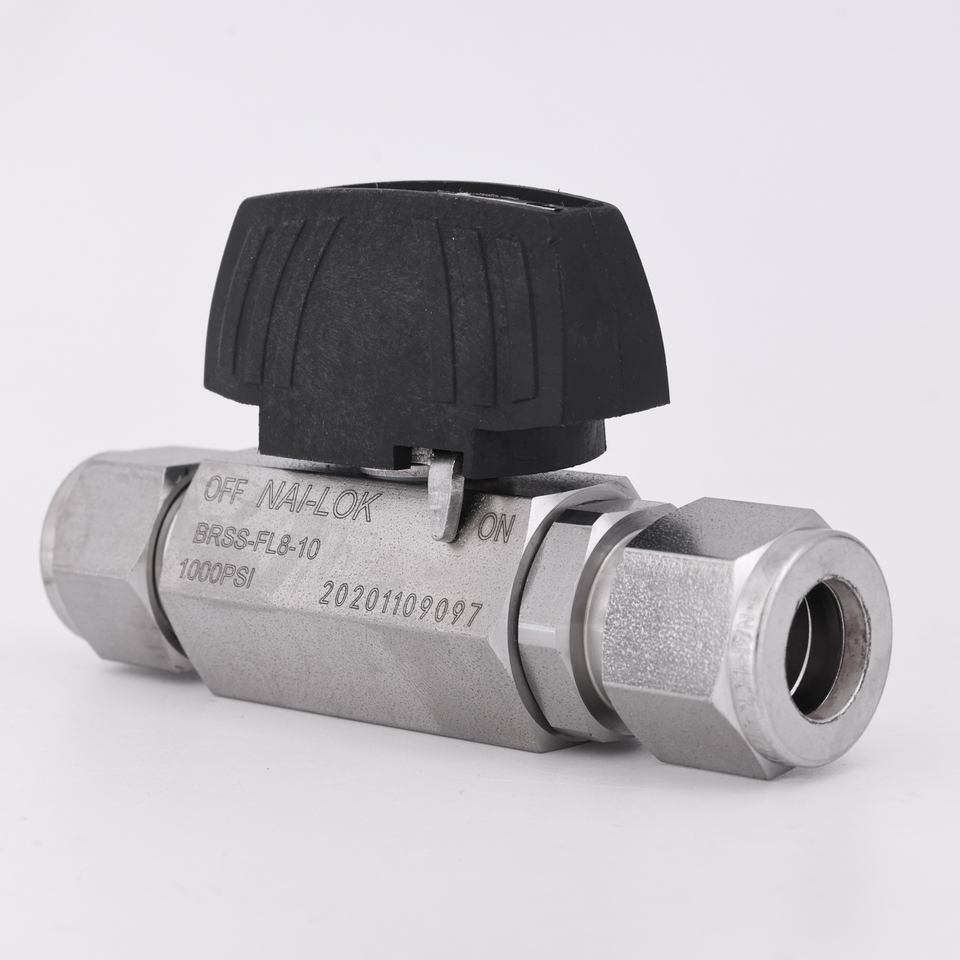

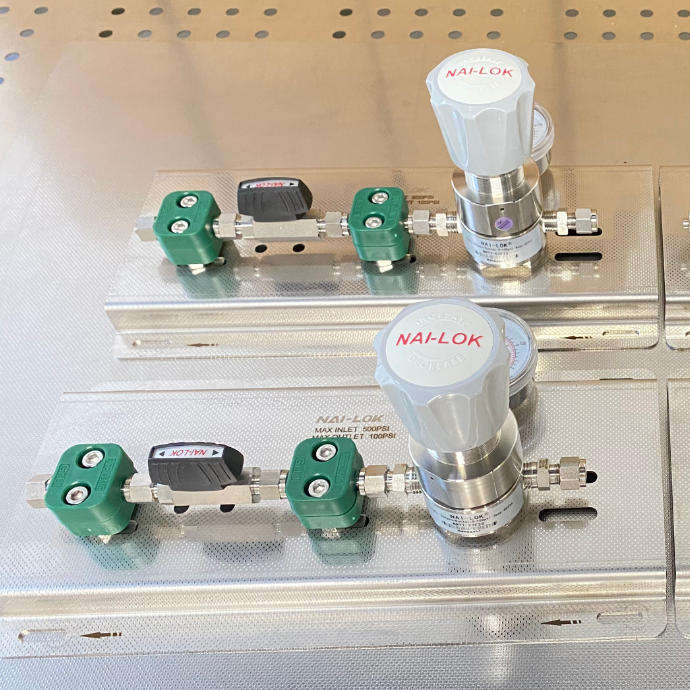

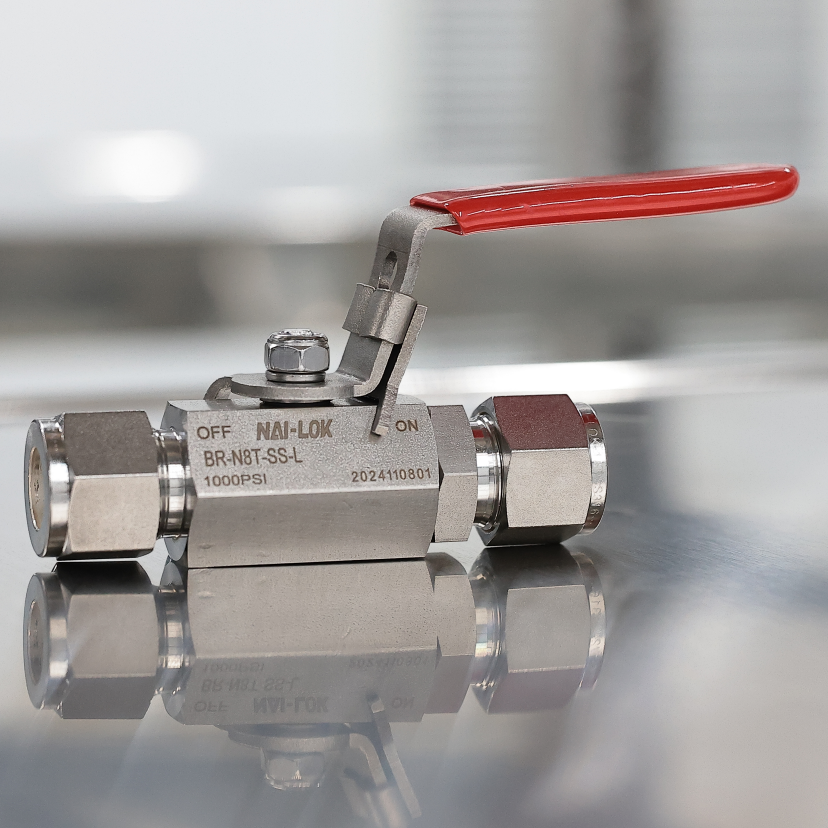

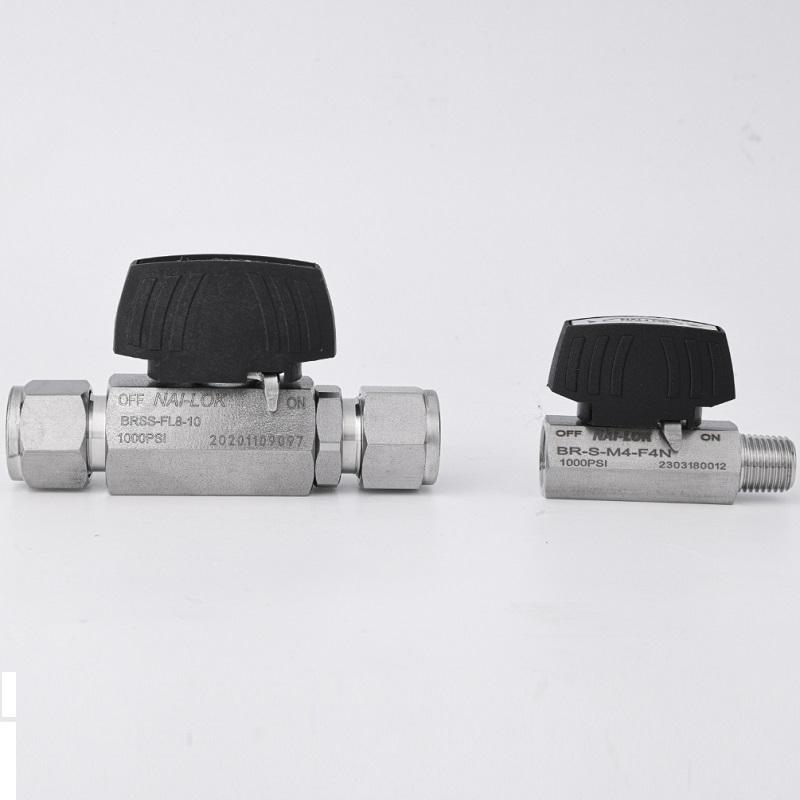

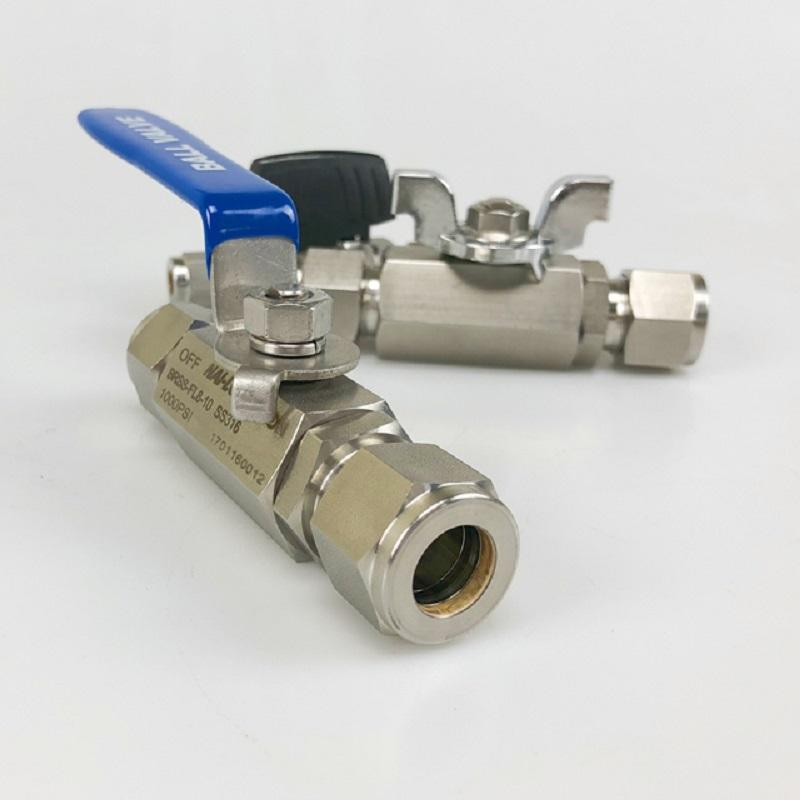

NAI LOK BR Series SS316 Instrument Ball Valve 1/4" OD Double Ferrule 1000psi Low Pressure Control Valve for Gas Sampling System
No reviews yet
Attributes
1/2 in, 3/4 in, 1 inConnection Size
1000 PSIOperating Pressure
Oil and Gasmedia
PTFE, PCTFESealing Material
NPT, Thread, True UnionConnection Type
Pneumaticpower
Ball Material:SS
Port Size:1/4 in, 3/8 in, 1/2 in, 3/4 in, 1 in
For Maximum Pipe Size:25 mm
application:Oil and Gas
temperature of media:Normal Temperature
structure:Ball
customized support:OEM, ODM
warranty:3 Years
place of origin:Jiangsu, China
model number:BR Series Ball Valve
brand name:NAI-LOK
Body Material:Stainless Steel 316 (ASTM A182 F316)
Maximum Operating Pressure:Low Pressure 1000 psig (69 bar)
Temperature Range:-20°F to 450°F (-28°C to 232°C)
End Connection Type:1/4" NAI-LOK Double Ferrule (Tube Fitting)
Seat & Packing Material:PTFE
Orifice & Cv Value:4.8mm Orifice / Cv 1.25 (Standard)
Valve Structure:One-Piece Compact Body / Bi-directional Flow
Quality Control Test:100% Factory Tested with Nitrogen @ 1000 psi
Series Name:NAI-LOK BR Series Low Pressure Ball Valve
Applicable Media:Water, Oil, Gas (WOG), Corrosive Fluids
Key attributes
Connection Size
1/2 in, 3/4 in, 1 in
Operating Pressure
1000 PSI
media
Oil and Gas
Sealing Material
PTFE, PCTFE
Connection Type
NPT, Thread, True Union
power
Pneumatic
Ball Material
SS
Port Size
1/4 in, 3/8 in, 1/2 in, 3/4 in, 1 in
For Maximum Pipe Size
25 mm
application
Oil and Gas
temperature of media
Normal Temperature
structure
Ball
customized support
OEM, ODM
warranty
3 Years
place of origin
Jiangsu, China
model number
BR Series Ball Valve
brand name
NAI-LOK
Body Material
Stainless Steel 316 (ASTM A182 F316)
Maximum Operating Pressure
Low Pressure 1000 psig (69 bar)
Temperature Range
-20°F to 450°F (-28°C to 232°C)
End Connection Type
1/4" NAI-LOK Double Ferrule (Tube Fitting)
Seat & Packing Material
PTFE
Orifice & Cv Value
4.8mm Orifice / Cv 1.25 (Standard)
Valve Structure
One-Piece Compact Body / Bi-directional Flow
Quality Control Test
100% Factory Tested with Nitrogen @ 1000 psi
Series Name
NAI-LOK BR Series Low Pressure Ball Valve
Applicable Media
Water, Oil, Gas (WOG), Corrosive Fluids
Packaging and delivery
Selling Units
Single item
Single package size
25X25X25 cm
Single gross weight
2.000 kg
Lead time
FREE shipping capped at $20
Minimum order quantity: 2 pieces
$21
*Taxes and import charges will be calculated at checkout
Variations
Select nowmaterial: Stainless Steel 316
Stainless Steel 316
pressure: Low Pressure
Low Pressure
1000 PSI
size
1/4 in
