Attributes
SMTMounting Type
XHP70.2Model Number
CreeBrand Name
LEDDescription
LEDType
Florida, United StatesPlace of Origin
Package Type:Surface Mount
Package / Case:RESIN
Operating Temperature:-40-+105
Series:XHP70B
D/C:25+
Application:LIGHTING
Supplier Type:Original Manufacturer
Media Available:Datasheet, Photo
Max. Forward Voltage:12V
Max. Reverse Voltage:3V
Max. Forward Current:9.6A
Max. Reverse Current:1.5A
Diode Type:LED
Technology:~
Voltage - Peak Reverse (max):~
Current - Average Rectified (Io):~
Voltage - Forward (Vf) (Max) @ If:~
Current - Reverse Leakage @ Vr:~
Diode Configuration:~
Voltage - DC Reverse (Vr) (Max):~
Current - Average Rectified (Io) (per Diode):~
Speed:~
Reverse Recovery Time (trr):~
Capacitance @ Vr, F:~
Current - Max:~
Resistance @ If, F:~
Power Dissipation (Max):~
Capacitance Ratio:~
Capacitance Ratio Condition:~
Q @ Vr, F:~
Configuration:~
Voltage - Zener (Nom) (Vz):~
Tolerance:~
Power - Max:28W
Impedance (Max) (Zzt):~

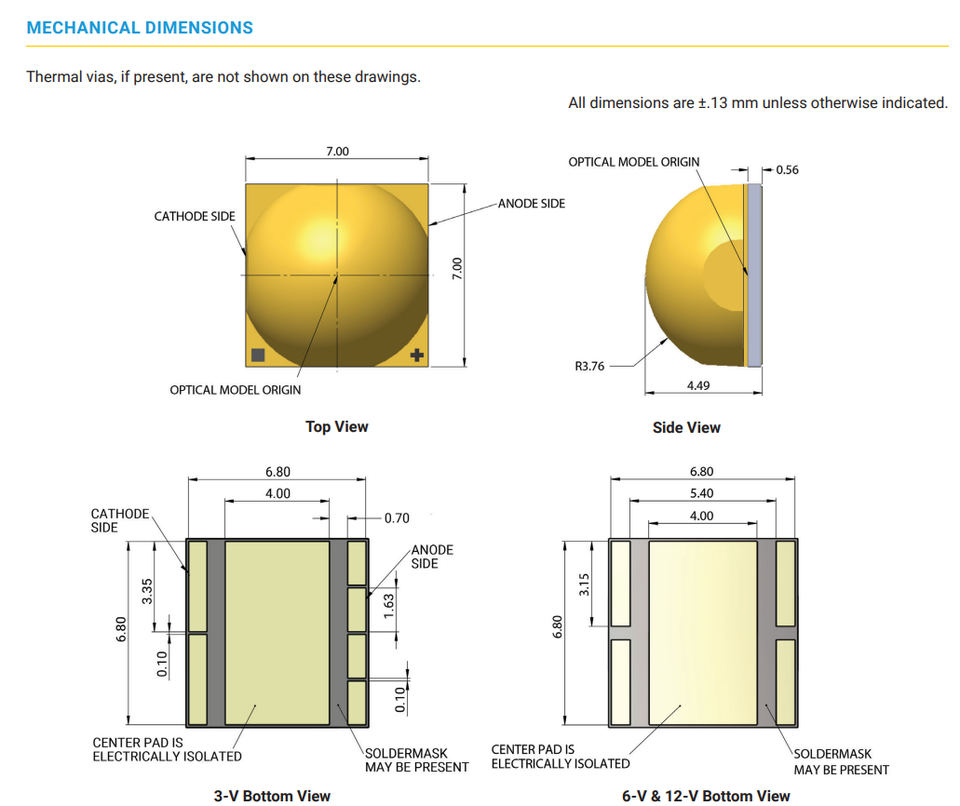

Size:7 x 7 mm
Product Options:High-CRI
Maximum Drive Current (Standard):9.6 A
Max Power (W):28W
Max Light Output (lm):4124lm
Maximum Reverse Voltage:12V
Viewing Angle:125
Maximum Junction Temperature:150
Selling Units:Single item
Single package size:0.7X0.7X0.3 cm
Single gross weight:0.002 kg
