Attributs
±0.5 %précision
liquidMilieu
Électromagnétique mètresType
SwitzerlandPoint d'origine
/Connectivity
/Débit
Matériel:Acier inoxydable, Plastique
Chaîne de mesure:0 to 450 kg/h (0 to 16.54 lb/min)

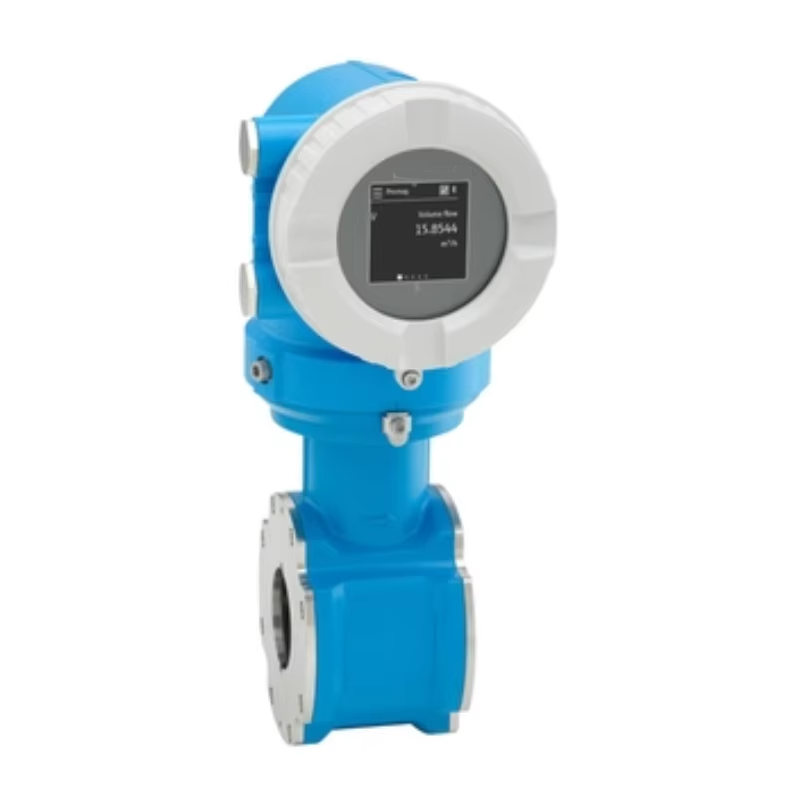

Numéro de Type:Proline Promag D 10(5DBB)
Support personnalisé:OEM, ODM, OBM
Garantie:1 years
Max. measurement error:Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
Measuring range:9 dm/min to 282 m/h (2.5 gal/min to 1250 gal/min)
Medium temperature range:Liner material polyamide: 0 to +60°C (+32 to +140°F)
Max. process pressure:PN 16, Class 150, 10K
Wetted materials:Liner material polyamide: 0 to +60°C (+32 to +140°F)Electrodes: 316L
Nominal diameter range:DN 25 to 100 (1 to 4")
Digital communication:HART, MODBUS RS485
Display/Operation:LCD display with touch & auto rotate
Power supply:DC 24 V AC 100 to 230 V AC 100 to 230 V / DC 24 V (non-hazardous area)
Outputs:4-20 mA HART/Pulse/frequency/switch output Modbus RS485, 4-20 mA
