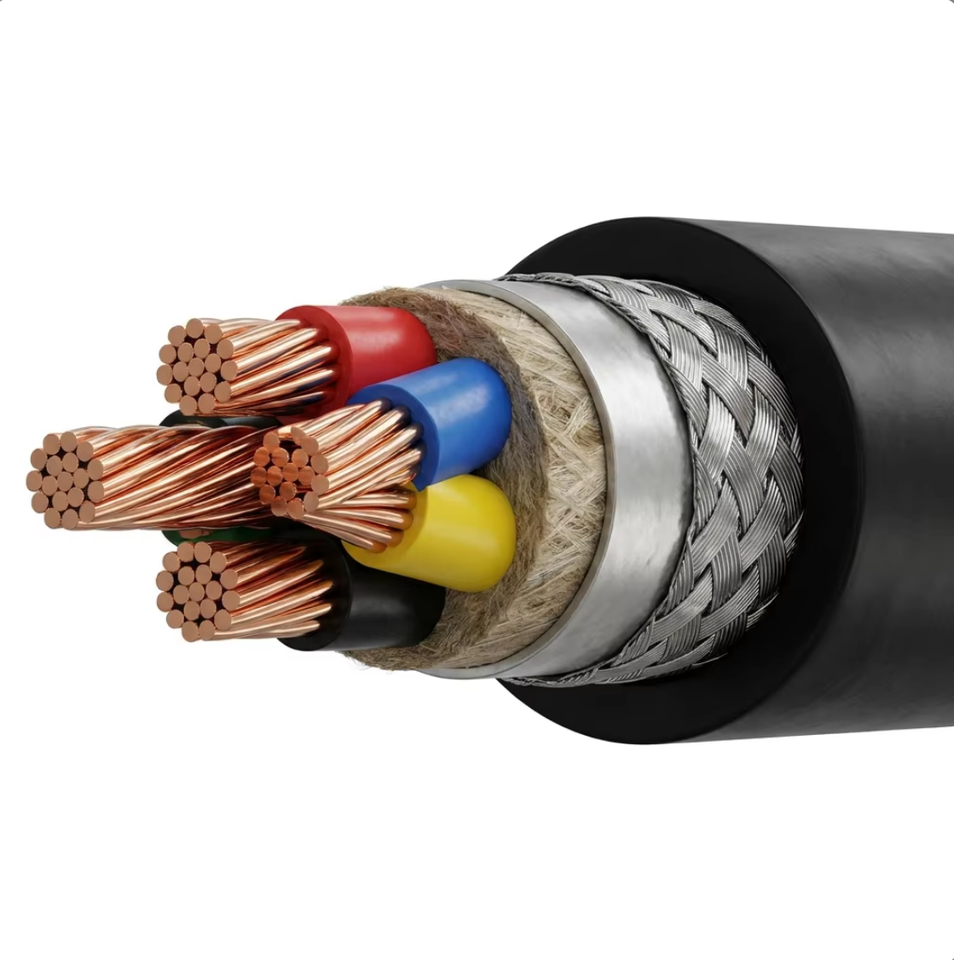

PrimePro 0.6/1kV Marine Power Control Cable IEC 60092-353 LSZH Flame Retardant SHF1 Tinned Copper Offshore Shipboard Wiring

No reviews yet
$1.85-9.50
Minimum order quantity: 100 meters
Select now

Length

100 meters

Number of Cores

3 x 2.5 mm²
3 x 16 mm²
24 x 1.5 mm²

Key attributes

Conductor Material

Tinned Annealed Copper Strands per IEC 60228

Insulation Material

XLPE HF 90°C per IEC 60092-351

Rated Voltage

Rated 0.6/1.0 kV (Max 1.2 kV System Voltage)

Size

1.5mm² to 300mm²; Multi-core (2, 3, 4, 5, 7, 12, 1

Place of Origin

Beijing, China

Model Number

PrimePro-MAR67 Series (M2XH / CJV / CJPF)

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Easy Return

Make free local returns for defects on qualifying purchases

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Key attributes

Conductor Material
Tinned Annealed Copper Strands per IEC 60228
Insulation Material
XLPE HF 90°C per IEC 60092-351
Rated Voltage
Rated 0.6/1.0 kV (Max 1.2 kV System Voltage)
Size
1.5mm² to 300mm²; Multi-core (2, 3, 4, 5, 7, 12, 1
Place of Origin
Beijing, China
Model Number
PrimePro-MAR67 Series (M2XH / CJV / CJPF)
Brand Name
PrimePro
Application

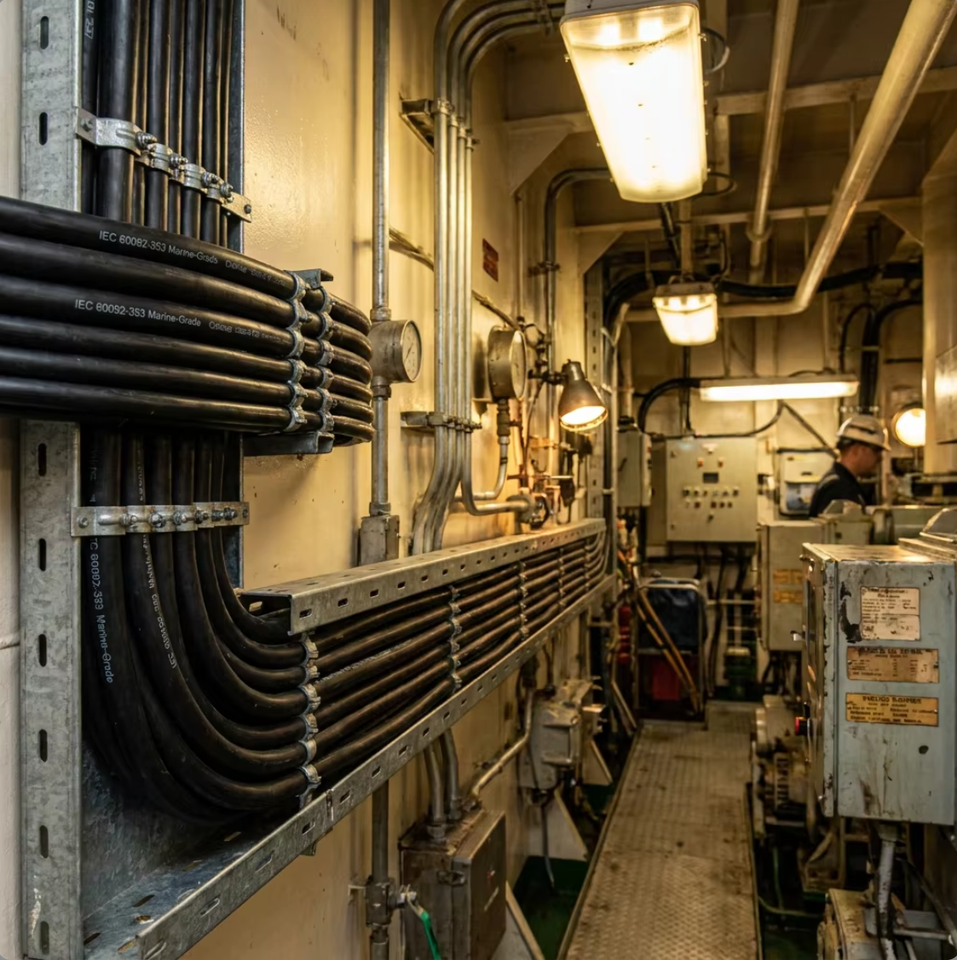

Marine Power, Lighting & Control Systems on Ships/
IP Level
IP67 equivalent in glands
Jacket
LSZH (SHF1)
Rated Current
Calculated per IEC 60092-352 based on ambient 45°C
Type
Marine Power & Control (Flame Retardant/LSZH)
Working Temperature
-35°C to +90°C (Max Conductor Short Circuit 250°C)
Flame Retardant Class
IEC 60332-1-2 Single; IEC 60332-3-22 Cat.A Bunch
Marine Grade
Salt Spray Corrosion Resistant SHF1 Compound
Low Smoke
Light Transmittance >60% per IEC 61034-2
Halogen Free
pH Value >4.3, Conductivity <10 microS/mm per IEC 60754-2
Oil Resistance
SHF2 Option for Mineral Oil & Fuel Resistance
Braid Coverage
>85% Tinned Copper Braid for Mechanical Protection
Fire Performance
Self-extinguishing; Non-flammable Drip per IEC 60332
Durability
25+ Years Service Life in Marine/Offshore Environments
Installation Ease
High Flexibility for Narrow Cable Trays/Conduits
Material Safety
Lead-Free, Mercury-Free, RoHS 2.0 Compliant
System Design
Optimized for Marine Switchboards and Distribution Panels
