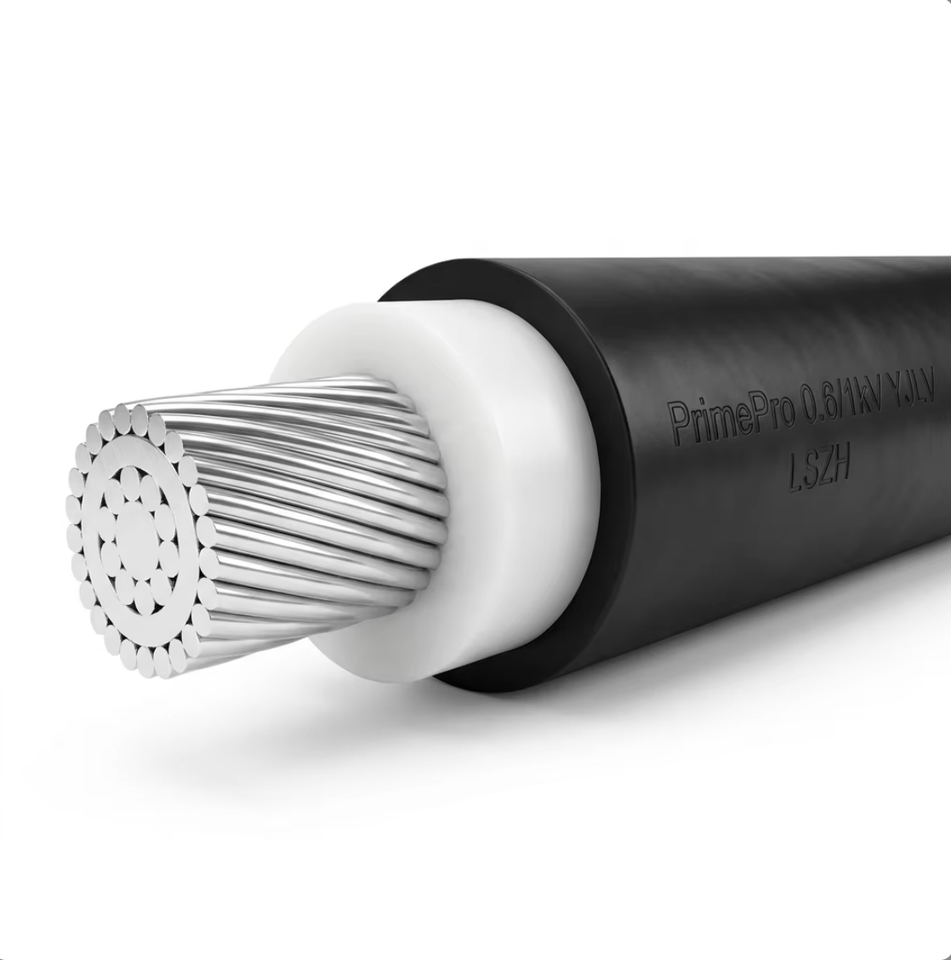

PrimePro 0.6/1kV YJLV Power Cable 1*35-630mm² XLPE Insulated LSZH Jacket Aluminum Core Low Voltage IEC 60502-1 StandardCompliant

No reviews yet
$0.55-9.85
Minimum order quantity: 100 meters
Select now

Length

100 meters

Number of Cores

1 x 35 mm²
1 x 50 mm²
1 x 70 mm²
1 x 95 mm²
1 x 120 mm²
1 x 150 mm²
1 x 185 mm²
1 x 240 mm²
1 x 300 mm²
+3

Key attributes

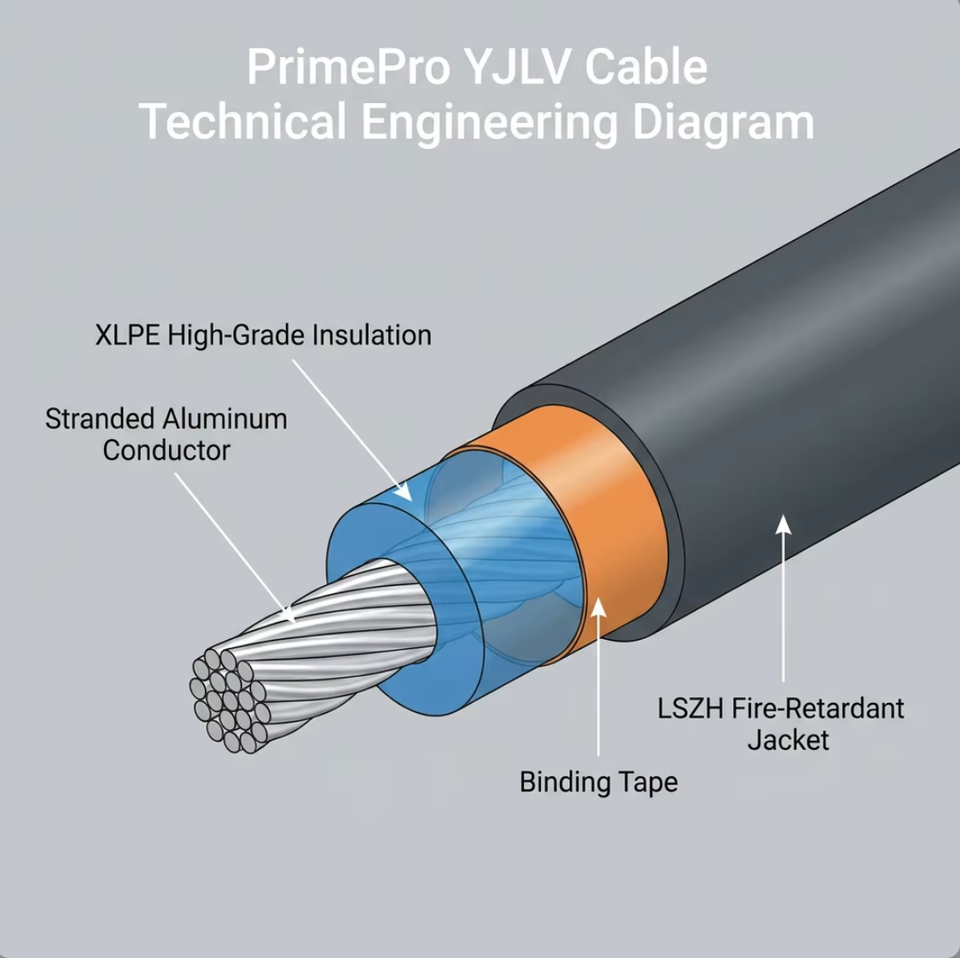

Conductor Material

AAC Compacted Stranded Conductor

Insulation Material

High-Density Cross-linked Polyethylene (XLPE)

Rated Voltage

0.6/1kv

Size

135mm² to 1630mm² Sectional Area Range

Place of Origin

Beijing, China

Model Number

PrimePro-YJLV-Elite-1x(35-630)

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Easy Return

Make free local returns for defects on qualifying purchases

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Key attributes

Conductor Material
AAC Compacted Stranded Conductor
Insulation Material
High-Density Cross-linked Polyethylene (XLPE)
Rated Voltage
0.6/1kv
Size
135mm² to 1630mm² Sectional Area Range
Place of Origin
Beijing, China
Model Number
PrimePro-YJLV-Elite-1x(35-630)
Brand Name
PrimePro
Application
Industrial Power Distribution, Infrastructure, Urb
IP Level
Ip67
Jacket
UV-Stabilized LSZH Compound
Rated Current
120A - 950A (Air @ 40°C / Underground @ 25°C)
Type
Non-Armored Low Smoke Halogen Free Power Cable
Working Temperature
Continuous 90°C | Short-circuit 250°C (max 5s)
Flame Retardant Class
IEC 60332-1-2 / IEC 60332-3-22 Category A
XLPE Density
≥ 0.94 g/cm³ (High Thermal Aging Stability)
LSZH Compliance
Smoke Density < 60% Light Transmittance (IEC 61034)
Halogen Acid Gas
HCL Content ≤ 5mg/g (Zero Halogen IEC 60754)
Tensile Strength
≥ 12.5 MPa for XLPE / ≥ 10 MPa for LSZH Jacket
Elongation at Break
≥ 200% (High Flexibility Industrial Compound)
UV Resistance
Carbon Black Content > 2% for Extreme Outdoor Use
Chemical Resistance
High Resistance to Oils, Acids, and Industrial Alkalis
Service Life
Designed for ≥ 30 Years Continuous Operation
Packing
Export Standard Non-Returnable Steel-Wood Reinforced Drums
Certification
CE, RoHS, ISO9001, IEC 60502-1 Authorized
