PrimePro AU Standard 22kW EV Charging Cable | Type 2 to Type 2 32A 3-Phase | TPU LSZH Fast Charging Electric Vehicle Wire

Name: Primepro Au Standard 22kw Ev Charging Cable | Type 2 To Type 2 32a 3-phase | Tpu Lszh Fast Charging Electric Vehicle Wire - Buy Product on Alibaba.com
Brand: Beijing Xinshunyuan Technology Corp Ltd
SKU: 1601863008328
Price: 3.2 USD
Availability: InStock

No reviews yet

$3.20-5.20

Minimum order quantity: 100 meters

Select now

Length

100 meters

Number of Cores

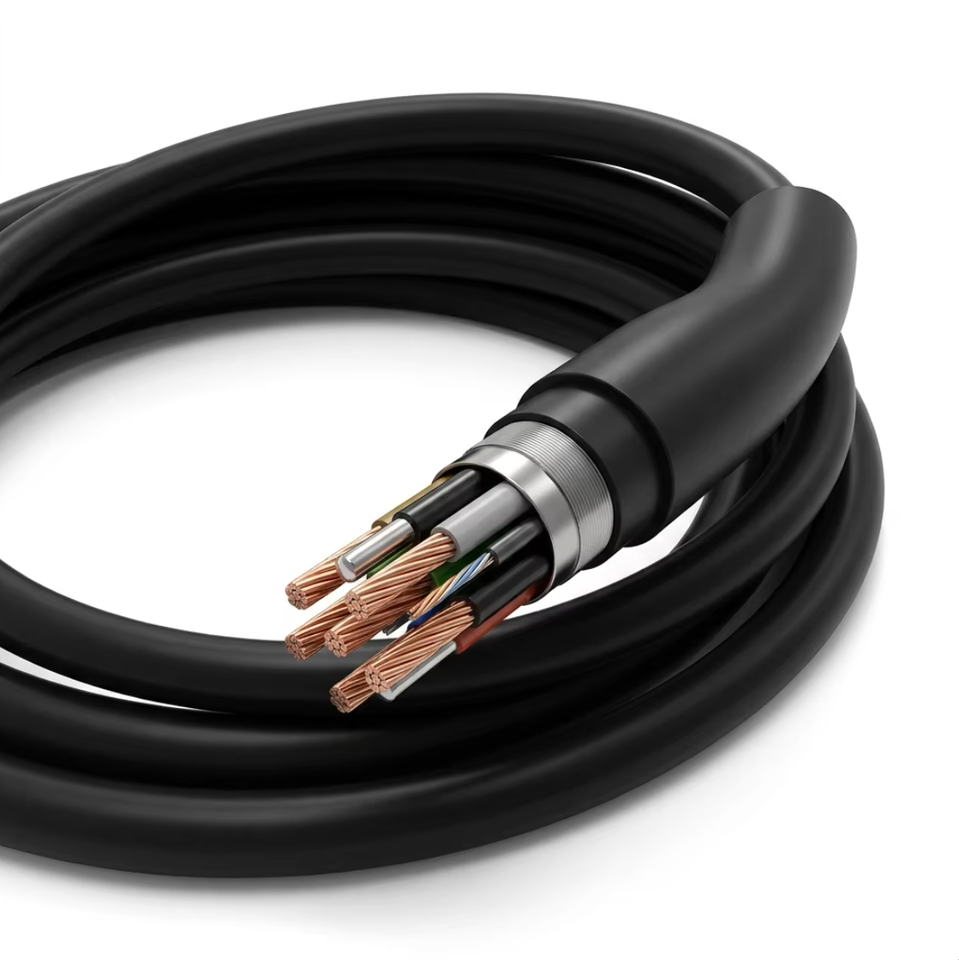

3 *6.0 mm² + 2 * 0.5 mm²

5 * 6.0 mm² + 2 *0.5 mm²

Key attributes

Conductor Material

99.99% Oxygen-Free Pure Copper (High Conductivity)

Insulation Material

XLPO (Cross-Linked Polyolefin)

Rated Voltage

480V AC (3-Phase)

Size

5*6.0mm² + 1*0.5mm² (Standard 22kW configuration)

Place of Origin

Beijing, China

Model Number

PrimePro-EV-AC-AU22

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Easy Return

Make free local returns for defects on qualifying purchases

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Key attributes

Conductor Material

99.99% Oxygen-Free Pure Copper (High Conductivity)

Insulation Material

XLPO (Cross-Linked Polyolefin)

Rated Voltage

480V AC (3-Phase)

Size

5*6.0mm² + 1*0.5mm² (Standard 22kW configuration)

Place of Origin

Beijing, China

Model Number

PrimePro-EV-AC-AU22

Brand Name

PrimePro

Application

Public Charging Stations, Home EVSE, Commercial Pa

IP Level

IP67 (Plugged) / IP55 (Unplugged)

Jacket

High-Performance TPU (Thermoplastic Polyurethane)

Rated Current

32A (Available in 16A/32A)

Type

Mode 3 AC EV Charging Cable (Type 2 - IEC 62196-2)

Working Temperature

-30°C to +50°C (Optimized for AU climate)

Flame Retardant Class

IEC 60332-1-2

Sheath Material

Premium TPU for superior wear and UV resistance

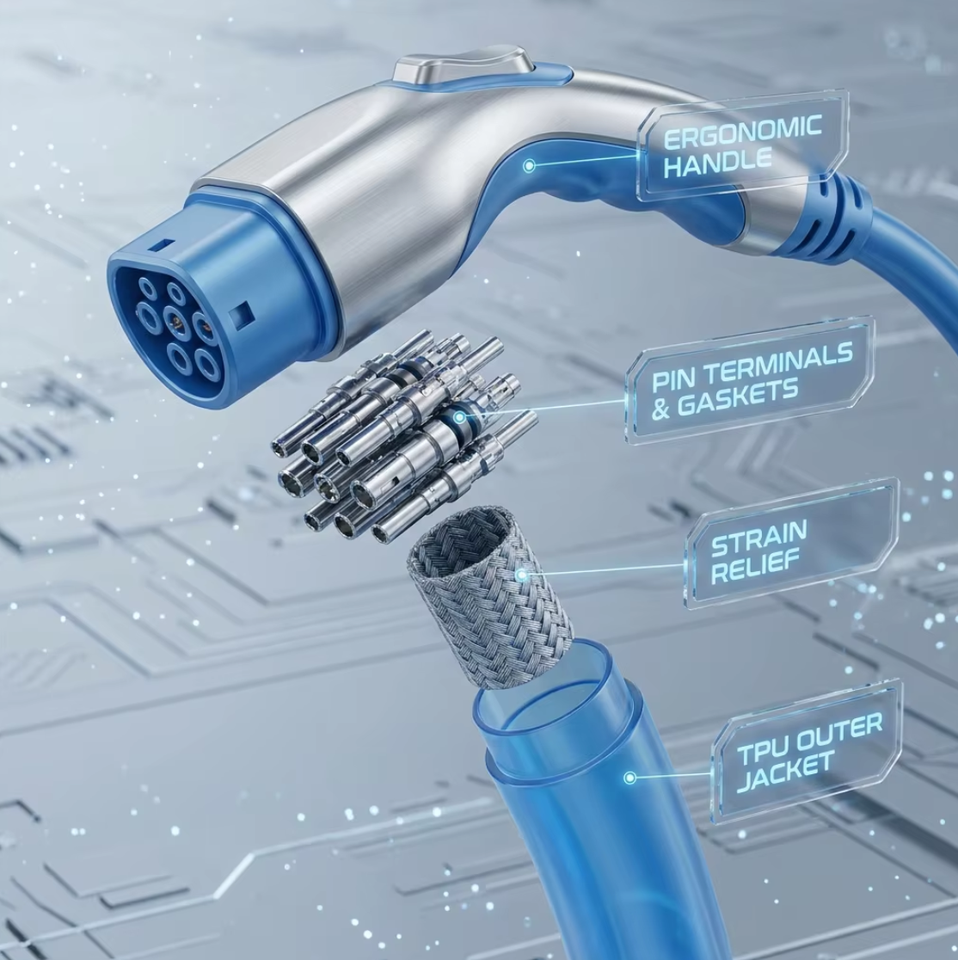

Ergonomic Design

Contoured handle for easy plug/unplug in daily use

Cable Color

High-visibility Orange or Sleek Technical Black

Plug Life

>10,000 mating cycles (Industry-leading durability)

Bending Radius

5* OD (Ultra-flexible for easy coiling)

UV Stability

ASTM G154 compliant for Australian high-UV exposure

Impact Resistance

Withstands a 1-meter drop or 2-ton vehicle run-over

Communication

Integrated CP (Control Pilot) for smart charging sync

Length Options

5m, 7m, 10m (Bespoke lengths for AU wholesalers)

Standard

IEC60245
