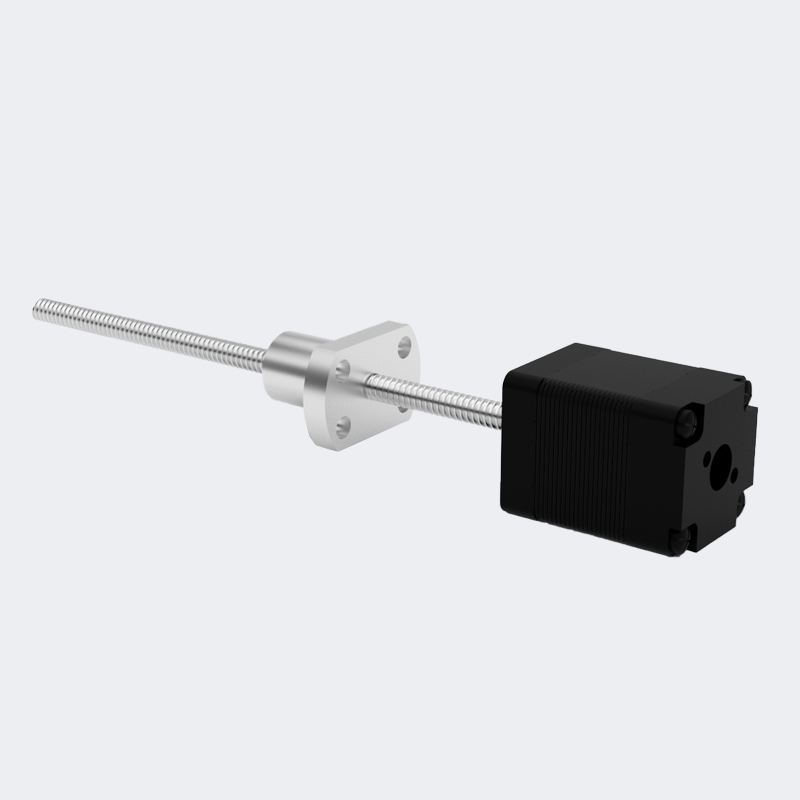

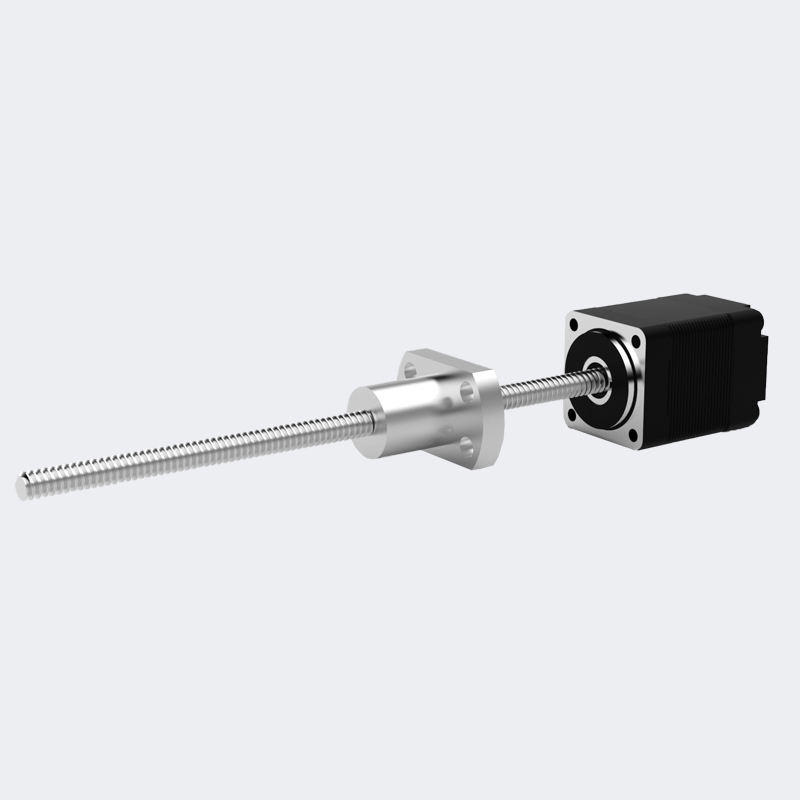

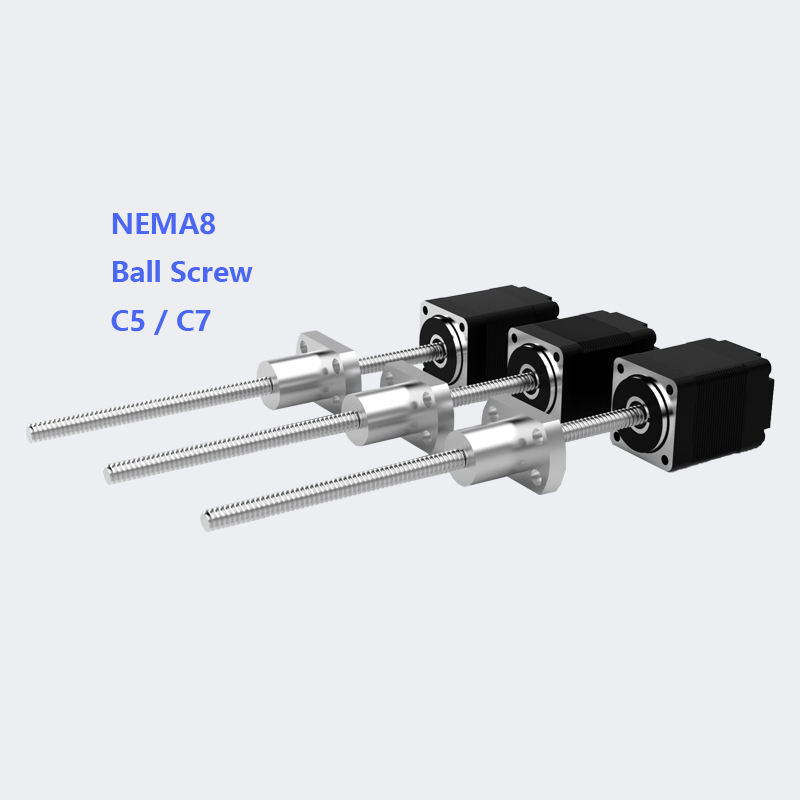

PrimoPal Automation Ball Screw Stepper Motor 20mm 2 Phase 1.8 Degree Nema 8 Stepper Motor Linear Actuator
Store rating:5.0
(83 reviews)Certificates:CE
Attributes
NEMA 8Nema Frame Size
12 V DCVoltage
HybridType
2Phase
3.0mmShaft Diameter
1.4~2.4N.cmTorque
Warranty:2years
Place of Origin:Shanghai, China
Model Number:PHBS20 Series
Brand Name:PrimoPal
Current / Phase:variable
Frame Size:20*20mm
Motor length:27.2~38.1mm
Torque:1.4~2.4N.cm
Product name:NEMA 8 20*20mm Ball Screw Linear Actuator Hybrid Stepper Motor
Application:Medical equipment, Lab analysis instrument, Semi-conduct, CNC, etc.
Motor type:hybrid stepper motor linear actuator
Certification:ISO9001, ISO14001, CE, ROHS, UL, CCC
Resistance:Variable, can be custom
Rated Current:Variable, can be custom
Rated Voltage:Variable, can be custom
Key attributes
Nema Frame Size
NEMA 8
Voltage
12 V DC
Type
Hybrid
Phase
2
Shaft Diameter
3.0mm
Torque
1.4~2.4N.cm
Warranty
2years
Place of Origin
Shanghai, China
Model Number
PHBS20 Series
Brand Name
PrimoPal
Current / Phase
variable
Frame Size
20*20mm
Motor length
27.2~38.1mm
Torque
1.4~2.4N.cm
Product name
NEMA 8 20*20mm Ball Screw Linear Actuator Hybrid Stepper Motor
Application
Medical equipment, Lab analysis instrument, Semi-conduct, CNC, etc.
Motor type
hybrid stepper motor linear actuator
Certification
ISO9001, ISO14001, CE, ROHS, UL, CCC
Resistance
Variable, can be custom
Rated Current
Variable, can be custom
Rated Voltage
Variable, can be custom
Packaging and delivery
Selling Units
Single item
Single package size
2.5X2.5X4.5 cm
Single gross weight
0.200 kg
Lead time
Product descriptions from the supplier
5 - 99 pieces
$60
100 - 499 pieces
$42
>= 500 pieces
$30
Sample price: $60
Variations
Select nowHolding Torque: 1.4~2.4N.cm
1.4~2.4N.cm
Step Angle(degrees)
1.8 degree
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
