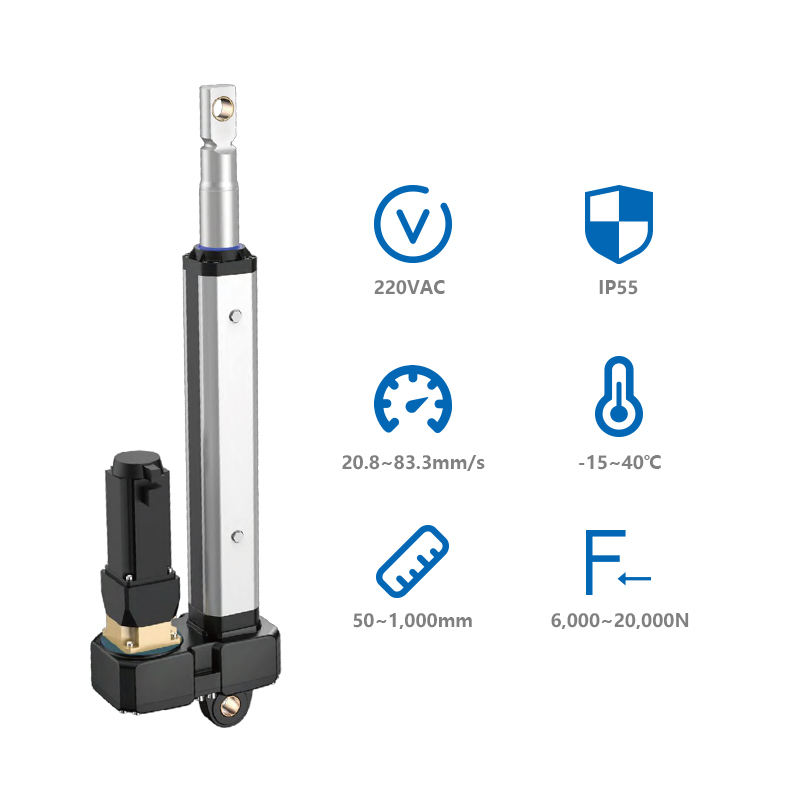

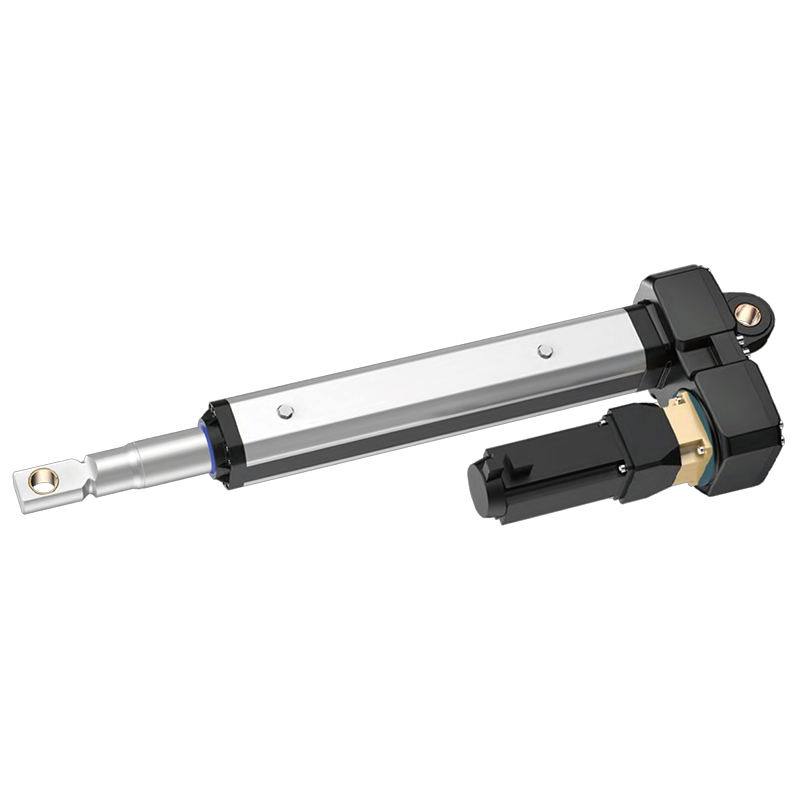

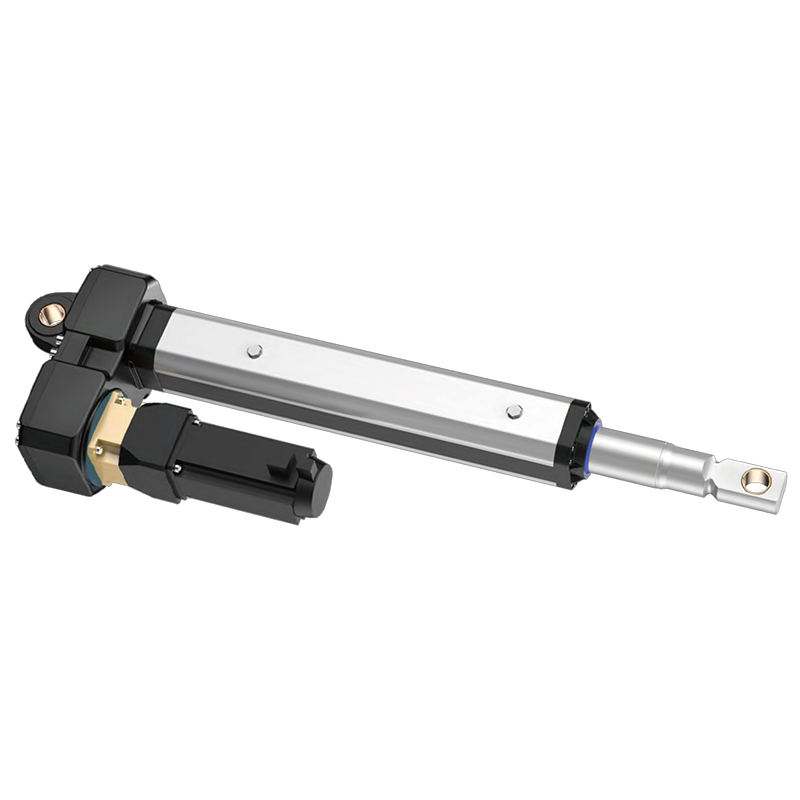

PrimoPal Large Load Linear Actuator Motor 100% Duty Cycle 380V IP55 20000 Newton 350mm 480mm Electric Heavy Duty Linear Actuator

No reviews yet2 sold
Complies with EU standards
$300
10-99 pieces
$271
100-499 pieces
$214
500-999 pieces
$200
≥1,000 pieces
Sample price: $450
Select now

Output Power

Variable, can be custom

Speed of Revolution

19.2-60.9mm/s
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization

Key attributes

Continuous Current(A)

Variable, can be custom

Efficiency

IE 1

Speed(RPM)

19.2-60.9mm/s

Place of Origin

Shanghai, China

Frame

NO

Motor Mounting Type

other

At a glance

  • Max Dynamic Thrust: With a maximum dynamic thrust of up to 20000N, this actuator can handle heavy loads and demanding applications, ensuring reliable performance in various industrial settings.

  • IP55 Rating: The IP55 protection rating ensures that the actuator is dust-protected and can withstand water jets from any direction, making it suitable for harsh environments and outdoor use.

  • 100% Duty Cycle: A 100% duty cycle allows the actuator to operate continuously without the need for cooling downtime, providing sustained power and reliability in high-demand applications.

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Payment & financing

4 interest-free payments with

Key attributes

Continuous Current(A)
Variable, can be custom
Efficiency
IE 1
Speed(RPM)
19.2-60.9mm/s
Place of Origin
Shanghai, China
Frame
NO
Motor Mounting Type
other
Rated Power
Variable, can be custom
Rated Voltage
380VAC
Model Number
PP202
Brand Name
PrimoPal
Commutation
Brush
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home
Warranty
2years
Input Voltage
380VAC

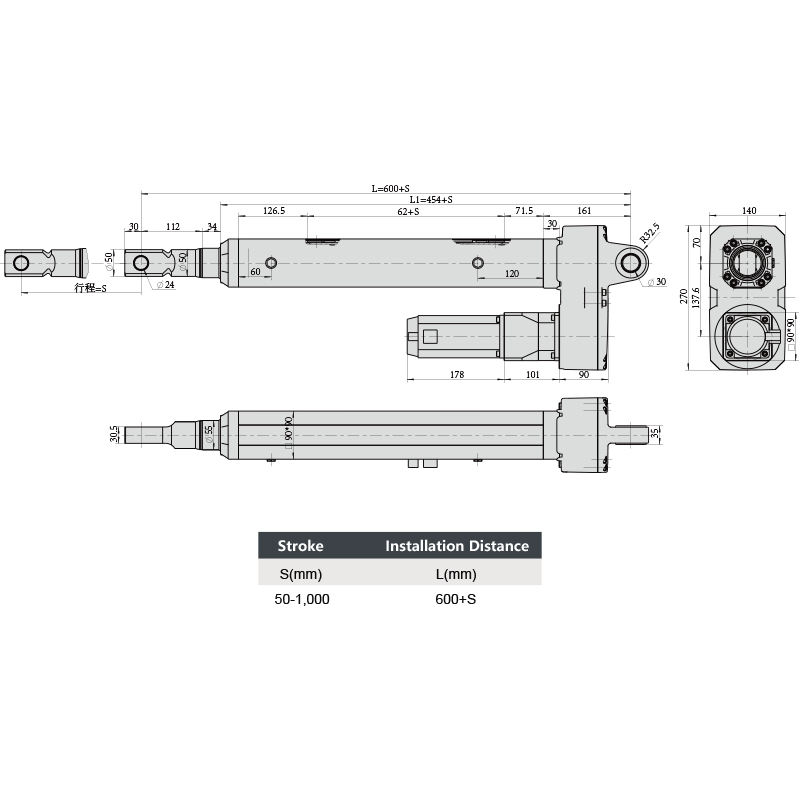

Stroke Length
50-1,000mm

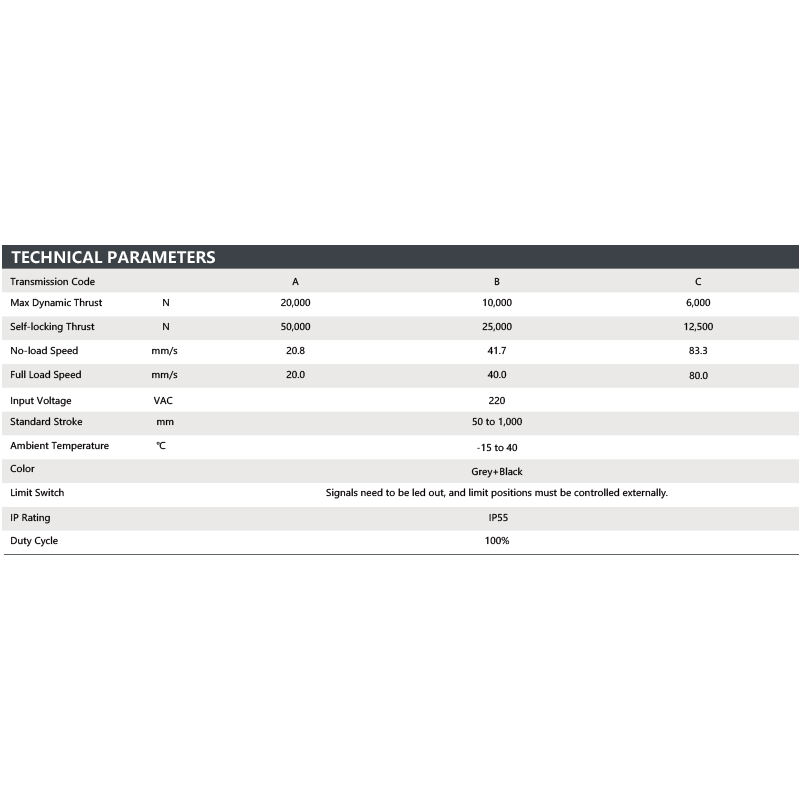

Max Dynamic Thrust
6000~20000N
No Load Speed
19.2-60.9mm/s
IP Rating
IP55
Duty Cycle
100%
Color
Grey+Black
Application
agricultural machinery, medical bed, window blinds,livestock farm, etc
Product Name
Large Load 20000 Newton 3Electric Heavy Duty Linear Actuator
Certificate
ISO9001,ISO14001,CE,ROHS,CCC

Packaging and delivery

Selling Units
Single item
Single package size
51X23X17 cm
Single gross weight
5.2 kg
