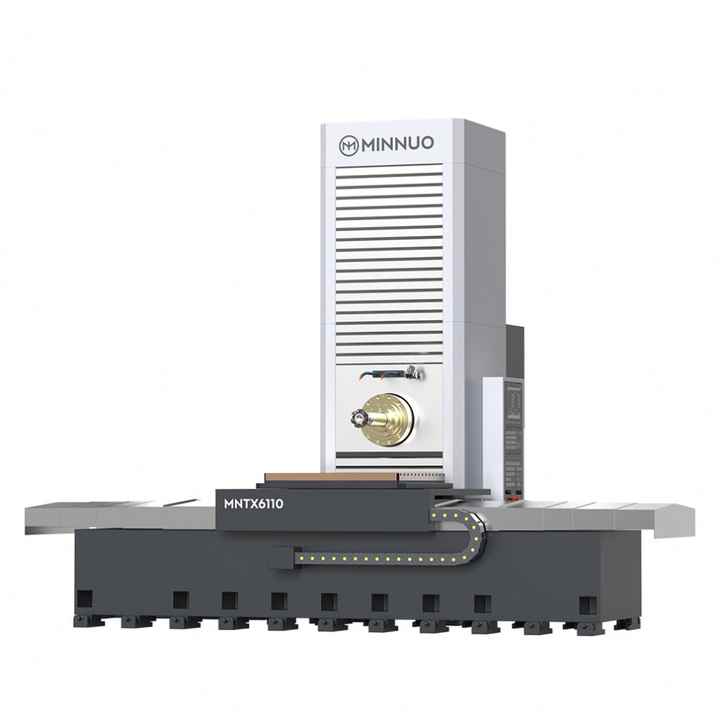

Prototype-friendly High-productivity Horizontal CNC 5-Axis MNTX6110 Boring Mill with Chip Conveyor Bearing & Pump Energy Saving
No reviews yet







Attributes
Horizontaltype
CNCcnc or not
1250*1400table size (mm)
21spindle motor power(kw)
5number of axes
380 V, 220 V, 420Vvoltage
no. of spindles:Single
Automatic Grade:Automatic
machinery test report:Provided
video outgoing-inspection:Provided
warranty:2 Years
core components:PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
key selling points:Energy Saving
table travel (x) (mm):2000
table travel (y) (mm):1500
table travel (z) (mm):1200
range of spindle speed(r.p.m):1500
place of origin:Jiangsu, China
weight (t):25
max. table load(kg):10000
travel (w-axis) (mm):550
positioning accuracy (x axis) mm:0.012
positioning accuracy (y axis) mm:0.012
positioning accuracy (z axis) mm:0.012
production capacity:500
brand name:MINNUO
dimension(l*w*h):4800x5500x4400
Product name:Prototype-friendly High-productivity MNTX6110 Boring Mill
Spindle Diameter(mm):110
Electrical Total Capacity(Approx.)(KVA):87
Movement Speed(mm):1-6000
Distance to Worktable Surface(mm):30-1530
Maximum Spindle Thrust(N):18000
Spindle Nose Diameter(mm):220
Spindle Taper Hole:BT50
Application:Construction Machine Repairing
After-sales Service Provided:Engineers
Key attributes
type
Horizontal
cnc or not
CNC
table size (mm)
1250*1400
spindle motor power(kw)
21
number of axes
5
voltage
380 V, 220 V, 420V
no. of spindles
Single
Automatic Grade
Automatic
machinery test report
Provided
video outgoing-inspection
Provided
warranty
2 Years
core components
PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
key selling points
Energy Saving
table travel (x) (mm)
2000
table travel (y) (mm)
1500
table travel (z) (mm)
1200
range of spindle speed(r.p.m)
1500
place of origin
Jiangsu, China
weight (t)
25
max. table load(kg)
10000
travel (w-axis) (mm)
550
positioning accuracy (x axis) mm
0.012
positioning accuracy (y axis) mm
0.012
positioning accuracy (z axis) mm
0.012
production capacity
500
brand name
MINNUO
dimension(l*w*h)
4800x5500x4400
Product name
Prototype-friendly High-productivity MNTX6110 Boring Mill
Spindle Diameter(mm)
110
Electrical Total Capacity(Approx.)(KVA)
87
Movement Speed(mm)
1-6000
Distance to Worktable Surface(mm)
30-1530
Maximum Spindle Thrust(N)
18000
Spindle Nose Diameter(mm)
220
Spindle Taper Hole
BT50
Application
Construction Machine Repairing
After-sales Service Provided
Engineers
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
Minimum order quantity: 1 set
$198,000
Variations
Select nowmodel number
MNTX6110
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
