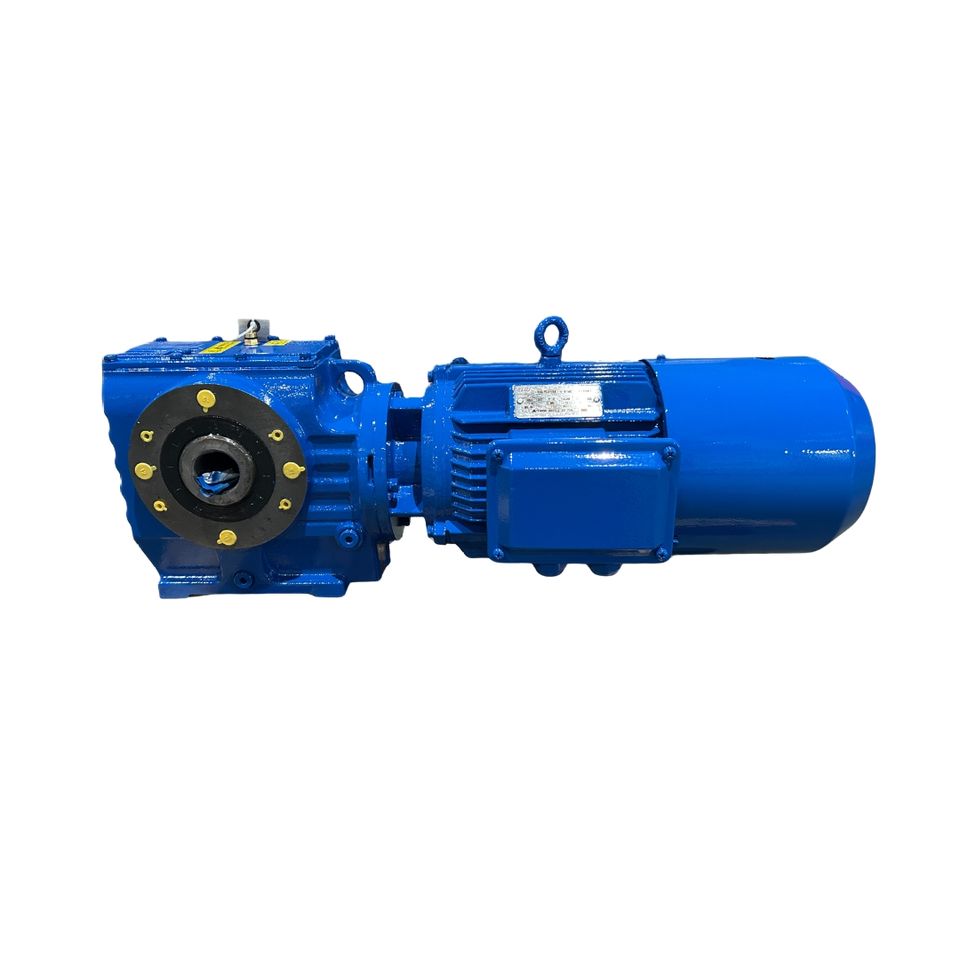

S Series Helical Worm Gear Reducer Motor 37/47/57/67/77/87/97 Model 3 Phase AC Industrial Gear Motor
No reviews yet
Attributes
500–2000 N·mOutput Torque
1:5-1:200Ratio
0.12KW-160KWMaximum Input Horsepower
Helical WormGear Type
Solid ShaftOutput Shaft Type
Flange MountedMounting Orientation
Gearing Arrangement:Helical Worm
Applicable Industries:Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other
Customized support:OEM, ODM
Input Speed:1400/2800 RPM
Output Speed:10-200 RPM
Place of Origin:Jiangsu,China
Brand Name:OEM
Gear Type: Helical Gear:Voltage: 220V / 380V / 415V / Customizable
Mount Type: Foot / Flange:Frequency: 50Hz / 60Hz
Gear Ratio: 1.3 to 289.74:Motor Type: AC / Brake / VFD
Input Power: 0.12kW to 160kW:Insulation Class: F / B
Output Speed: 0.1 to 300 rpm:Protection Class: IP54 / IP55 / IP65
Output Torque: 50Nm to 18000Nm:Housing Material: Cast Iron / Aluminum Alloy
Efficiency: Up to 96%:Gear Material: Alloy Steel (Carburized & Hardened)
Service Factor: 1.0 to 1.8:Shaft Material: High Strength Steel
Noise Level: Low Noise Design:Application: Conveyor / Packaging / Mining / Food Industry
Temperature Rise: ≤40℃:Customization: OEM Available
Key attributes
Output Torque
500–2000 N·m
Ratio
1:5-1:200
Maximum Input Horsepower
0.12KW-160KW
Gear Type
Helical Worm
Output Shaft Type
Solid Shaft
Mounting Orientation
Flange Mounted
Gearing Arrangement
Helical Worm
Applicable Industries
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other
Customized support
OEM, ODM
Input Speed
1400/2800 RPM
Output Speed
10-200 RPM
Place of Origin
Jiangsu,China
Brand Name
OEM
Gear Type: Helical Gear
Voltage: 220V / 380V / 415V / Customizable
Mount Type: Foot / Flange
Frequency: 50Hz / 60Hz
Gear Ratio: 1.3 to 289.74
Motor Type: AC / Brake / VFD
Input Power: 0.12kW to 160kW
Insulation Class: F / B
Output Speed: 0.1 to 300 rpm
Protection Class: IP54 / IP55 / IP65
Output Torque: 50Nm to 18000Nm
Housing Material: Cast Iron / Aluminum Alloy
Efficiency: Up to 96%
Gear Material: Alloy Steel (Carburized & Hardened)
Service Factor: 1.0 to 1.8
Shaft Material: High Strength Steel
Noise Level: Low Noise Design
Application: Conveyor / Packaging / Mining / Food Industry
Temperature Rise: ≤40℃
Customization: OEM Available
Packaging and delivery
Selling Units
Single item
Lead time
Customization options
Ratio(+ from /Min. order: 1 piece)
Mounting Type(+ from /Min. order: 1 piece)
Motor Configuration(+ from /Min. order: 1 piece)
View details
1 - 9 pieces
$140
>= 10 pieces
$120
Variations
Select nowModel Number: S57
S57
S47
S37
SF57
SF47
SF37
Rated Power
0.12kw-160kw
Customization options
Ratio (Min. order: 1 piece)
Mounting Type (Min. order: 1 piece)
Motor Configuration (Min. order: 1 piece)
