Attributes
AC Single PhaseOutput Type
Max 97.6% / Euro 97.0%Inverter Efficiency
Guangdong, ChinaPlace of Origin

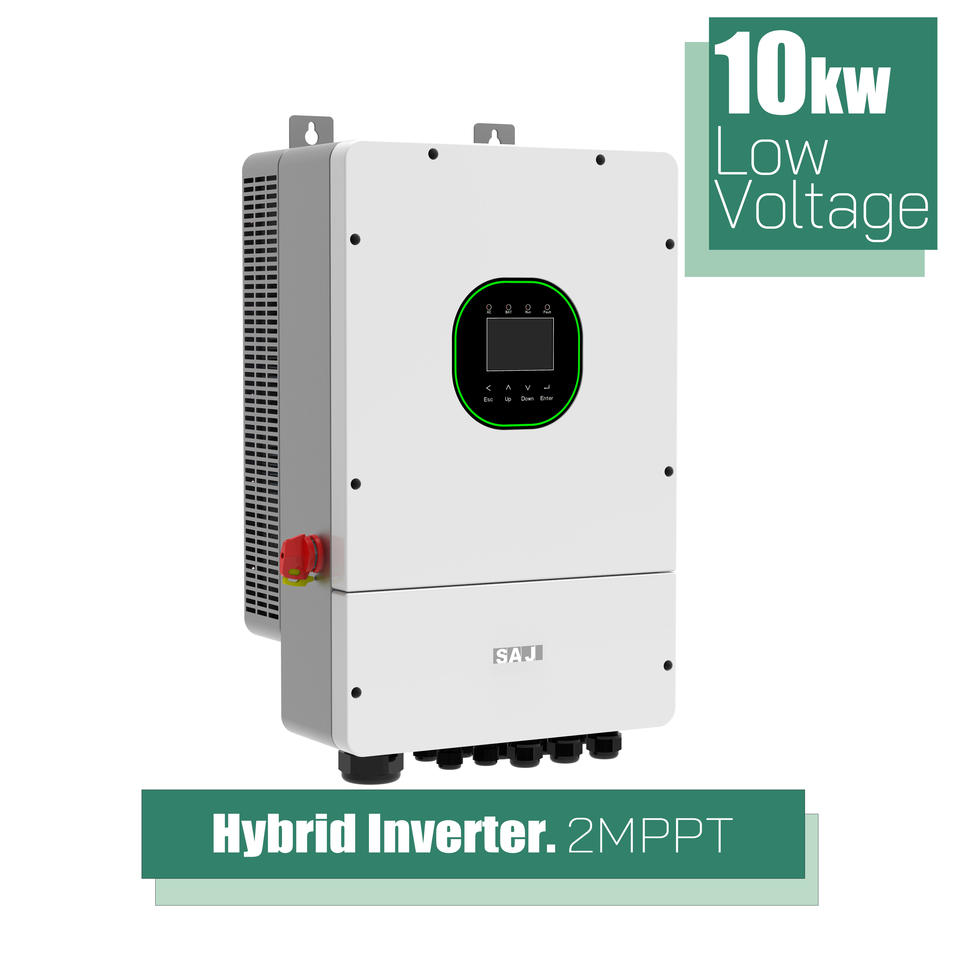

H2-10K-LS2Model Number
SAJBrand Name
PV: 90-480VDC; Battery: 40-60VDCInput Voltage
Output Voltage:L+N+PE, 220/230/240, 180-280
Output Current:43.5A @ 230V
Output Frequency:50/60Hz ±5Hz
Size:588*378*239 mm
Type:Hybrid (On/Off Grid)
Weight:29 kg
MPPT Number:2 Independent MPPTs
Max PV Array Power:20000W (200% Oversizing)
Battery Compatibility:LiFePO4 & Lead-Acid (Optimized for SAJ B2/B3)
Max Battery Current:240A Charge/Discharge
Parallel Capability:Up to 4 Units (Total 40KW)
Backup Peak Power:12000VA for 60s
Protection Rating:IP65 (Weatherproof)
Communication:Wi-Fi / Ethernet / 4G Option / App
Certifications:CE, VDE-AR-N 4105, AS 4777.2, IEC 62116
Warranty:10 Years (Extendable Option)
