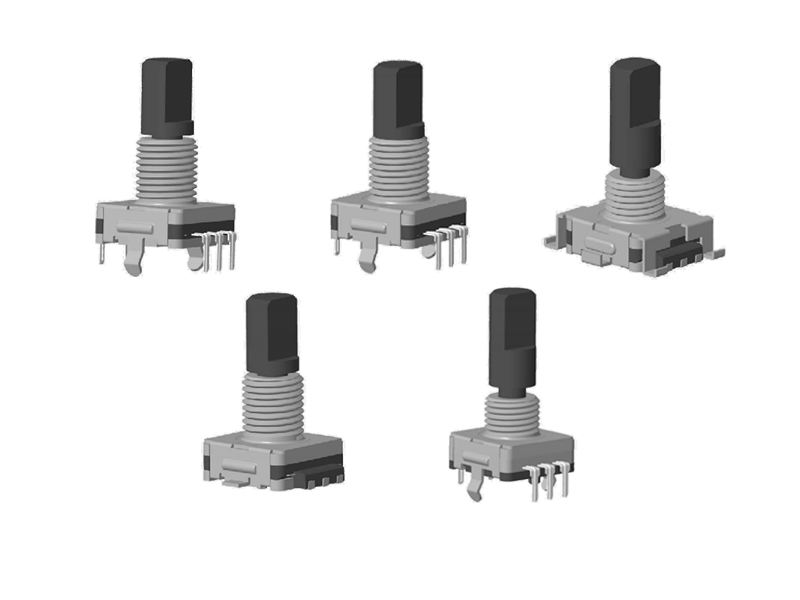

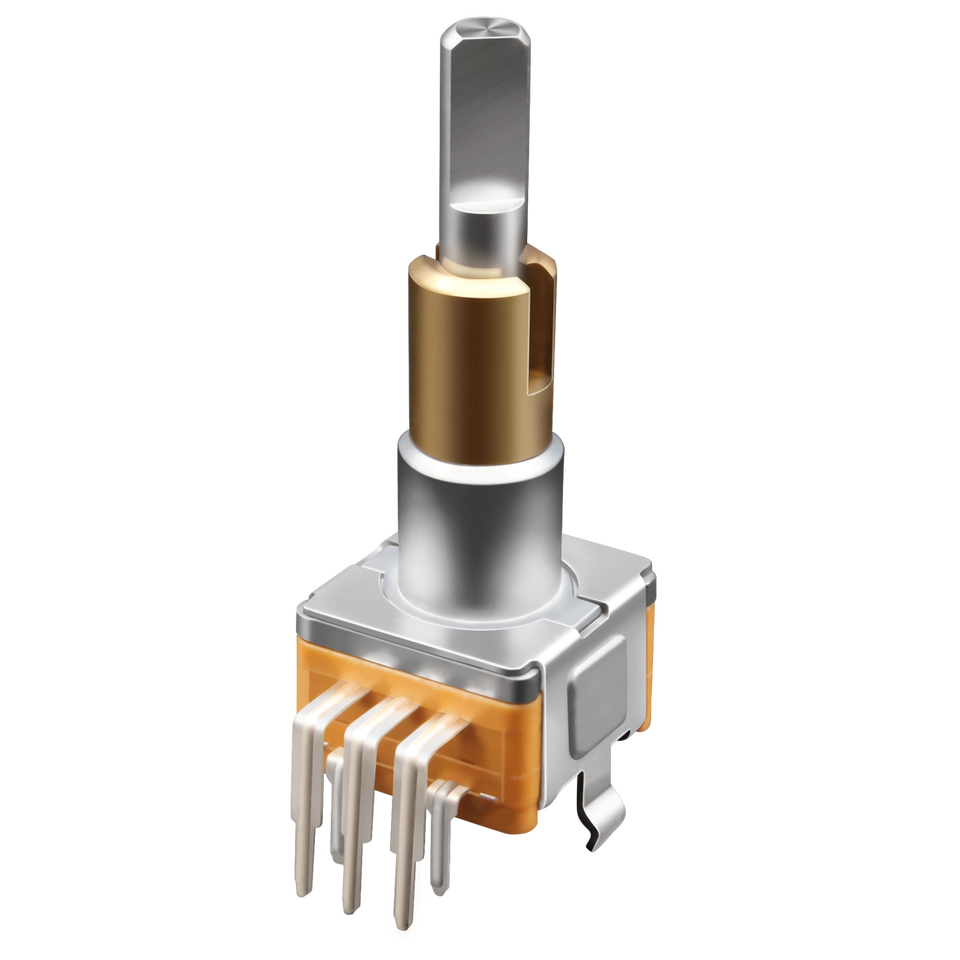

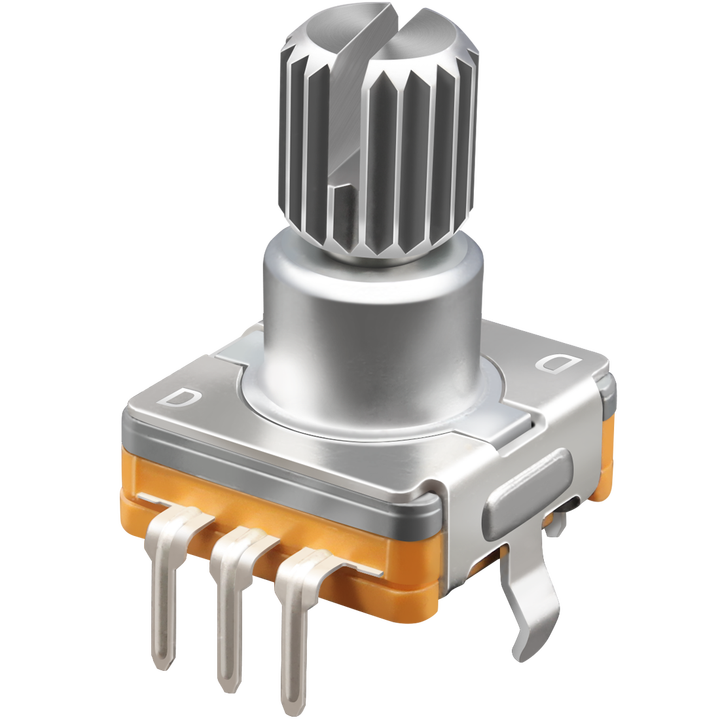

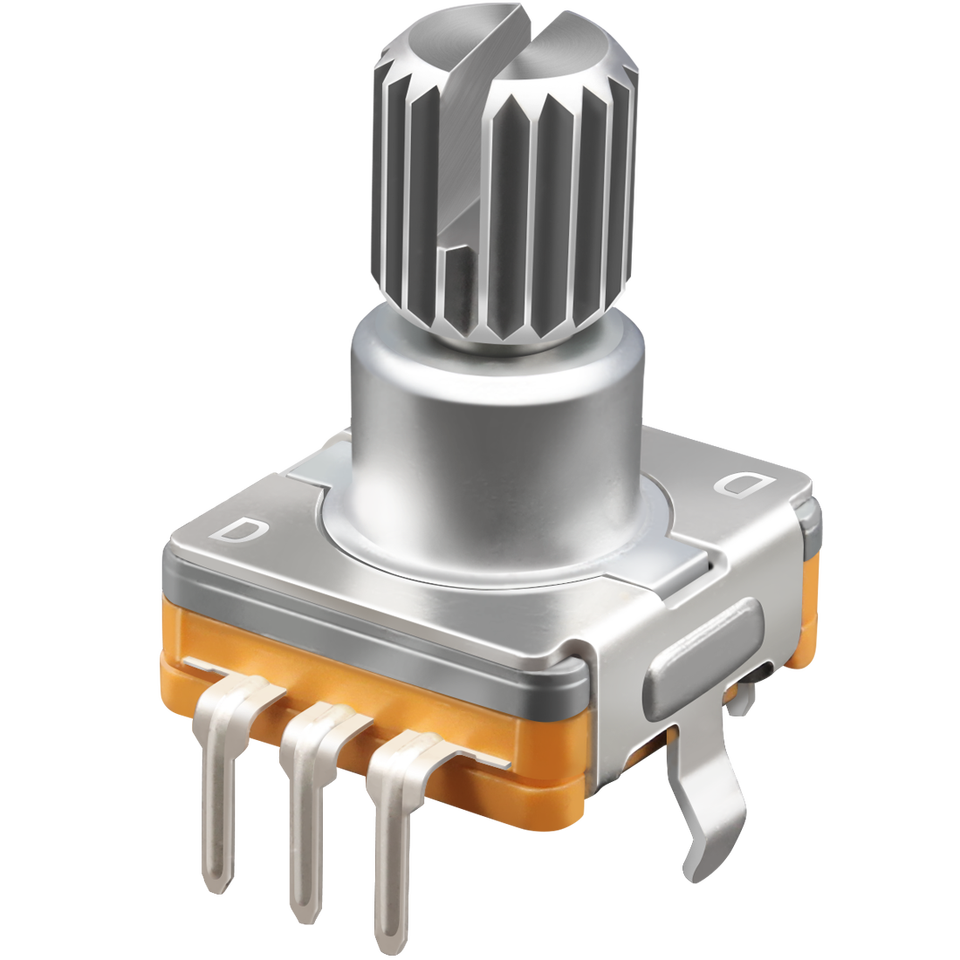

For Factory Linear Rotary Encoder Digital Potentiometer EC11 11mm Switch 15/20/30 Pulse 20/30 Detent Dual Axis PC Pin

No reviews yetbillboard#3 most popular in Encoder With Digital Interface
$1.35
100-999 pieces
$1.15
1,000-9,999 pieces
$1.05
≥10,000 pieces
Sample price: $2
Select now

Mfg. Date Code

New
Customization options
Customized package (Min. order: 10,000 pieces)

Key attributes

Mounting Type

Vertical/Horizontal

Manufacturer Part Number

EC11

Brand Name

SOUNDWELL

Usage

Audio appliances

Actuator Type

/

Description

Car audio power amplifier

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Easy Return

Make free local returns for defects on qualifying purchases

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Payment & financing

4 interest-free payments with

Key attributes

Mounting Type
Vertical/Horizontal
Manufacturer Part Number
EC11
Brand Name
SOUNDWELL
Usage
Audio appliances
Actuator Type
/
Description
Car audio power amplifier
Type
Incremental Encoder
Place of Origin
Guangdong, China
Series
Increment encoder
Features
Pulse encoder
Theory
incremental
Output
The pulse signal
Description
EC11
Built in Switch
/
Voltage - Supply
/
Termination Style
PC Pin
Orientation
/
Communication Interface
/
Rotational Life (cycles Min)
/
Number of detent
16/18/20/30/32
Resolution
8/9/15/16/20 pulses/360°
Rotational torque
20~200gf.cm
Working temperature
-40℃~85℃
Operation life
30,000 cycles Min
Rated power
DC 5V
Shaft wobble
0.20 mm Max
Shaft play
2° Max
Insulation resistance
10MΩ 1 Minute at DC 250V
Dielectric voltage
1 Minute at AC 50V
Manufacturing Date Code
/

Packaging and delivery

Selling Units
Single item
Single package size
15X10X5 cm
Single gross weight
1.0 kg

Lead time

Customization options

Customized package(+ from /Min. order: 10,000 pieces)
