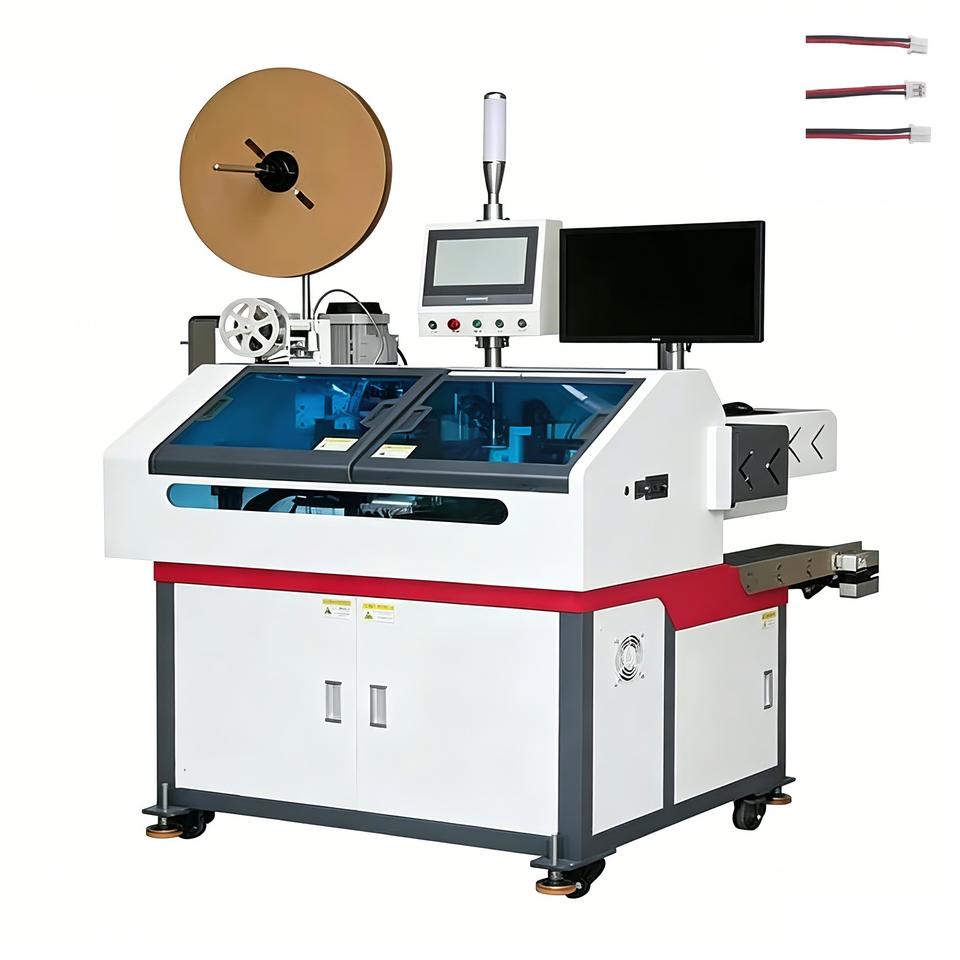

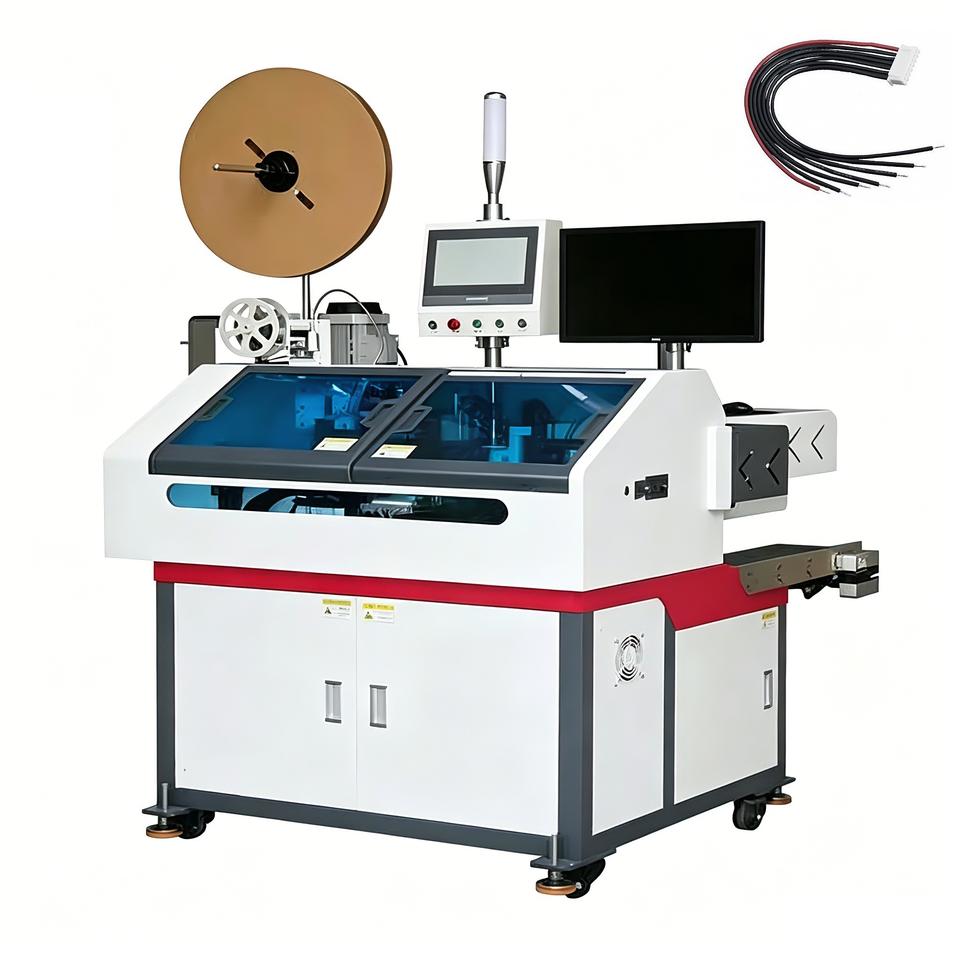

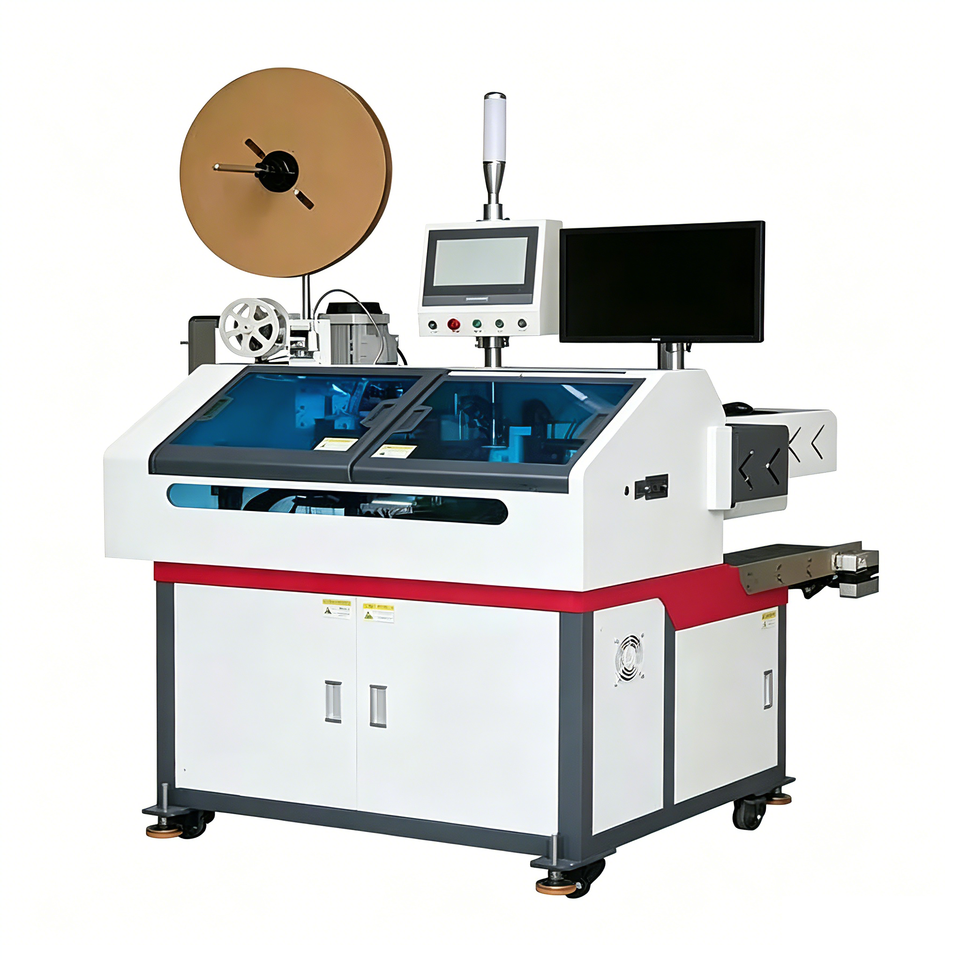

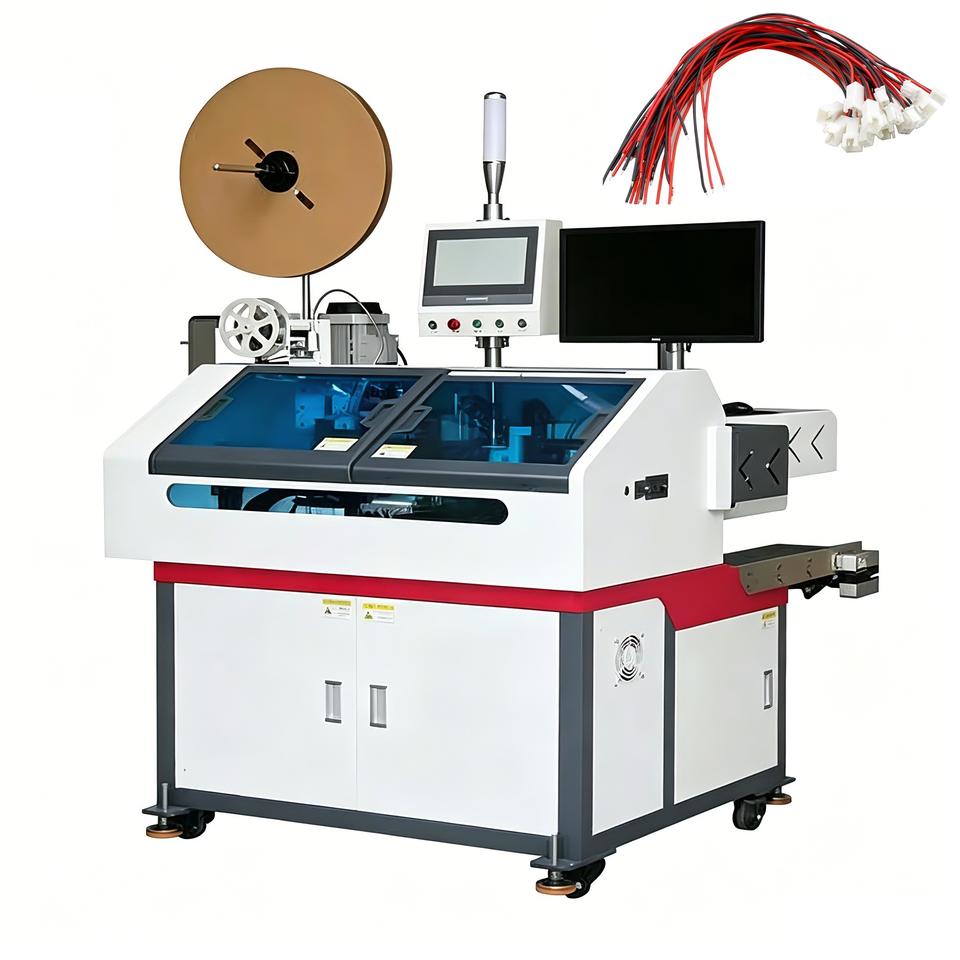

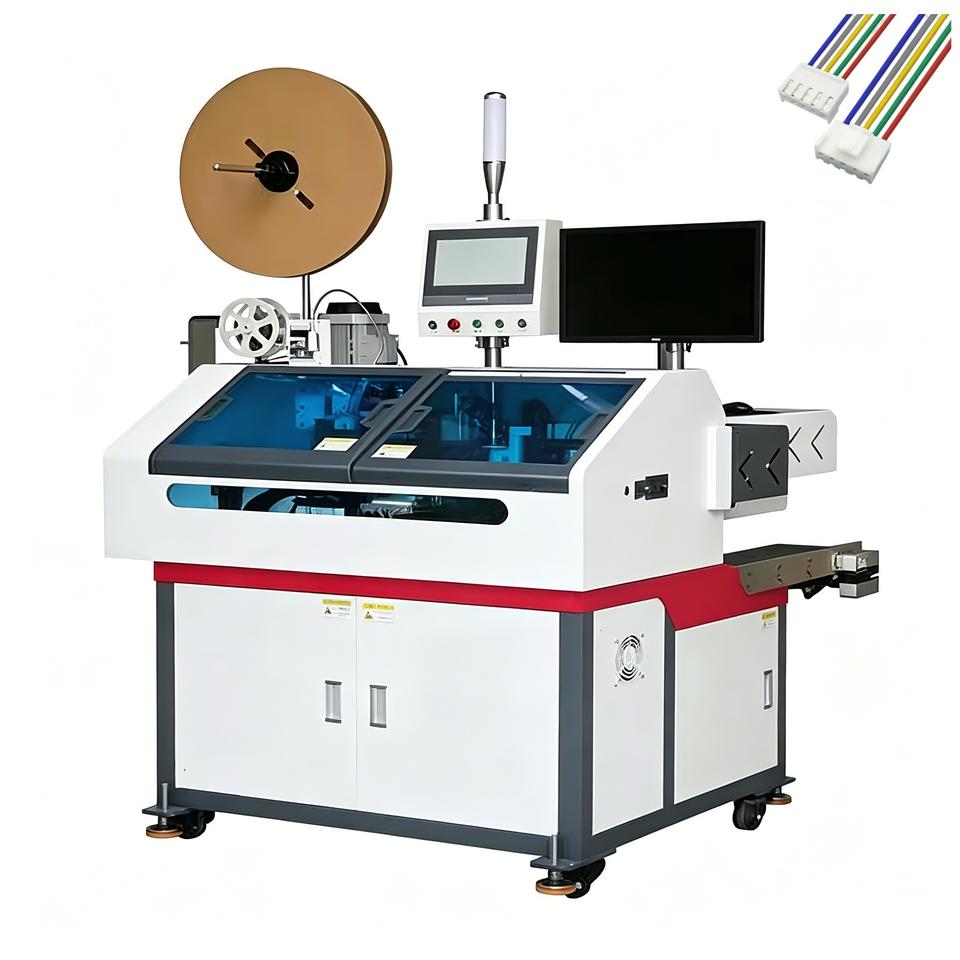

SR-05 Automatic Single-End Crimping & Housing Inserting Machine for EL4.5 2P Wire & Home Appliance Defogging Film Wire

No reviews yet
$31,500
Minimum order quantity: 1 set
Select now

Capacity (kg/h)

400 ~ 450 cycles/hour

Power(W)

2000W

Key attributes

usage

Crimping

Operating Mode

Automatic

model number

SR-05

Dimension(L*W*H)

L 1850 mm x W 1250 mm x H 1760 mm

Weight (KG)

620

brand name

Sinrad

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Delivery via

Expect your order to be delivered before scheduled dates or receive a 5% delay compensation

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Key attributes

usage
Crimping
Operating Mode
Automatic
model number
SR-05
Weight (KG)
620
place of origin
Guangdong, China
brand name
Sinrad
Dimension(L*W*H)
L 1850 mm x W 1250 mm x H 1760 mm
Main Function-1
Auto wire feed, length measuring, cutting & stripping
Main Function-2
End A: crimp & insert housing; End B: strip & tin dip
Detection Functions-1
Wire/tangle/terminal/housing detection, air pressure & motor alarm
Detection Functions-2
CCD visual inspection available
Detection Functions-3
Optional: sequence, position, insertion & pressure monitoring
Wire Gauge
AWG32 ~ AWG20
Process Wire Length
30 mm ~ 800 mm
Cutting Accuracy
±0.1 mm + 0.1% of cutting length or less
Connector Pitch
1.0/1.25/1.5/ 2.0/ 2.54/3.96 mm and other standard pitches
Stripping Length
End A: 1 ~ 6 mm; End B: 1 ~ 9 mm
Tin Dipping Length
1 ~ 9 mm
UPH (Units Per Hour)
400 ~ 450 cycles/hour
Feeding Mode
Wire, terminal, solder & flux auto feed
House Feeding Mode
Vibratory bowl for housing feed
Working Air Pressure
0.6 ~ 0.7 MPa (Clean and dry compressed air required)
Voltage Input
AC 220V 50Hz

Packaging and delivery

Selling Units
Single item
Single package size
200X150X180 cm
Single gross weight
750.0 kg

Lead time
