Attributes

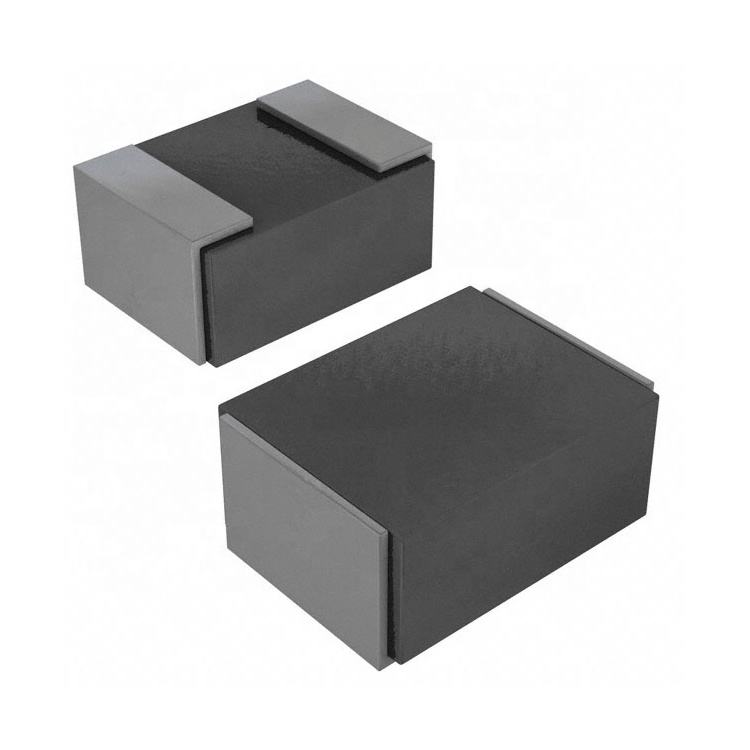

SRP2010-2R2MModel Number
Inductor Surface MountType
BOURNSBrand Name
DC/DC converters for Smart phones ,DVC/DSCsApplication
-Rated Power
SMD/SMTMounting Type
Place of Origin:Guangdong, China
D/C:new and original
Brand:BOURNS
Supplier Type:Agency, Authorized Distributor of BOURNS
Cross Reference:SRP2010-2R2M
Tolerance:±20%
Operating Temperature:-40°C ~ 125°C
Package Type:0806 (2016 Metric)
Resistance Tolerance:-
Temperature Coefficient:-
Resistance:-
Media Available:Datasheet, Free Samples, EDA/CAD Models
Frequency - Self Resonant:-
Features:-
Height - Seated (max):-
Function:-
Inductance:22uH
Q @ Freq:-
Package / Case:SMD 0806 (2016 Metric)
Size / Dimension:2.00mm x 1.60mm
Heigh:1.00mm
Number of Coils:-
Inductance - Connected In Parallel:-
Inductance - Connected In Series:-
Current Rating - Parallel:-
Current Saturation - Parallel:-
Current Saturation - Series:-
DC Resistance (DCR) - Parallel:-
DC Resistance (DCR) - Series:-
Shielding:Shielded
Material - Core:Iron Powder
Current Rating (amps):1.7 A
Current - Saturation:1.9A
DC Resistance (DCR):150mOhm Max
Type:Drum Core, Wirewound Inductor
Inductance:2.2 uH
Shielding:Shielded
Maximum DC Current:2.2 A
Saturation Current:1.9 A
Test Frequency:1 MHz
Core Material:Ferrite
Product Type:SRP2010 Series SMD Power Inductors
Product:SRP2010-2R2M 1.7A 2.2uH ±20% 1.9A 0806 Power Inductors ROHS
Product Name:SRP2010-2R2M fixed inductor 2.2uH 1.7A 150MOHM SMD
Selling Units:Single item
Single package size:25X25X10 cm
Single gross weight:0.500 kg
