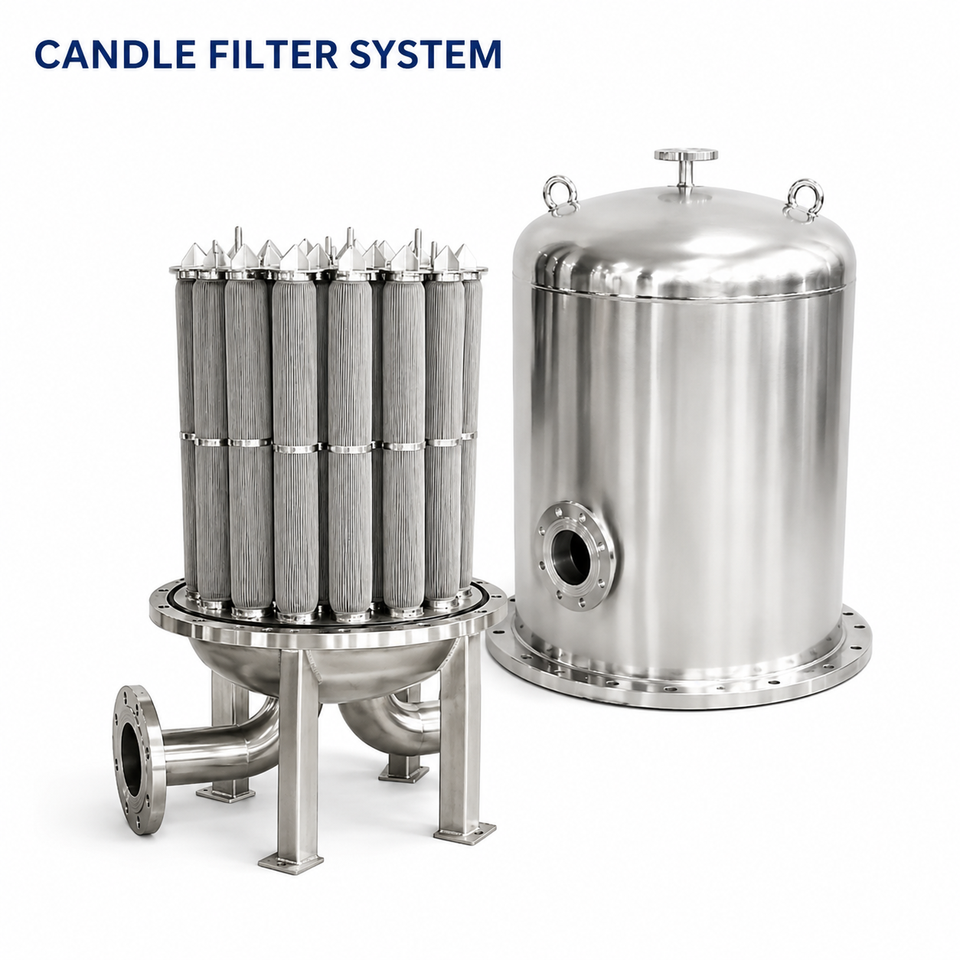

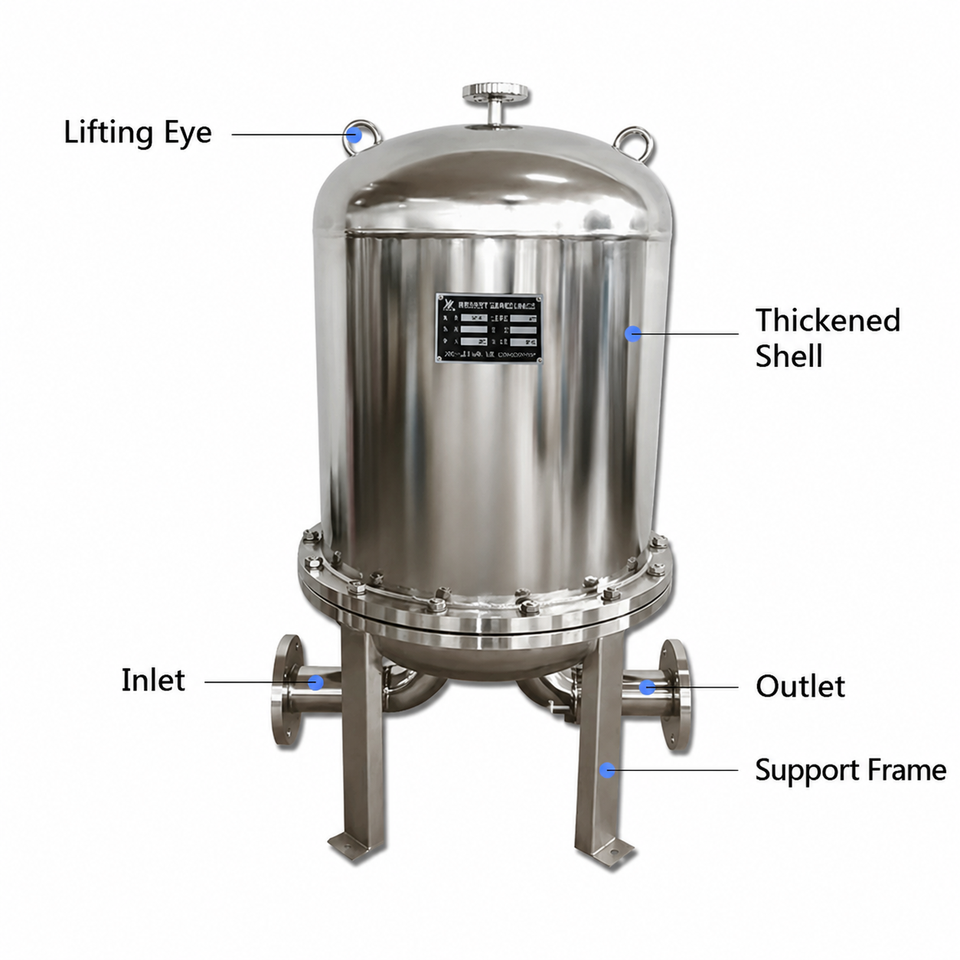

SS304 SS316 Multi Candle Filter Housing 5-60 Elements Industrial Basket Strainer for Wastewater Chemical Liquid Purification

No reviews yet
$2,300
Minimum order quantity: 1 piece
Select now

model number

ED-CFH-DN50-300
Custom DN and Elements
More customization options
Fittings/inlet/outlet Size
Maximum pressure
Filter Type
+1 more options
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization

Key attributes

Maximum pressure

2 MPa / 290 PSI

Flow Rate

240 gpm

Air Flow

30.0 CFM, 50.0 CFM, 60.0 CFM, 75.0 CFM, 100.0 CFM, 150.0 CFM

First Stage Filter Removes

Particulates

Power Options

AC 110V 60Hz, AC 220V 50Hz, AC380V 50Hz Customized

Fittings/inlet/outlet Size

DN50, DN80, DN100, DN150, DN200, DN300

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

1-year warranty

Access to free parts replacement and repair coverage

Only orders placed and paid through Alibaba.com can enjoy free protection by

Payment & financing

4 interest-free payments with

Service

1-year warranty
1-year warranty

Key attributes

Maximum pressure
2 MPa / 290 PSI
Flow Rate
240 gpm
Air Flow
30.0 CFM, 50.0 CFM, 60.0 CFM, 75.0 CFM, 100.0 CFM, 150.0 CFM
First Stage Filter Removes
Particulates
Power Options
AC 110V 60Hz, AC 220V 50Hz, AC380V 50Hz Customized
Fittings/inlet/outlet Size
DN50, DN80, DN100, DN150, DN200, DN300
Application
Industrial, Chemical Processing, Oil & Gas, Water Treatment, Food & Beverage, Pharmaceutical
warranty
1 Year
condition
New
place of origin
Shanghai, China
Particle Size
1-300 micron
brand name
E-TECH PETRO
Max. Capacity
500 L/h, 1000 Sets/Month
Depth
10inch 20inch 30inch 40inch
Diameter
DN50 DN100 DN150 DN200
Filter Type
Candle Filter, Automatic Self Cleaning Filter
Height
580mm
weight (kg)
78
Width
250mm
Filtration Precision
1~300 micron, customizable
Max Working Pressure
2.0MPa, high pressure 4.0MPa optional
Total Filtration Area
1㎡~80㎡ adjustable by candle elements
Flow Treatment Capacity
1m³/h ~ 300m³/h
Main Body Material
SS304 / SS316L / Hastelloy optional
Candle Filter Element Material
Sintered metal /filter cloth /wedge wire
Backblow Air Consumption
15~150CFM customized by filter size
Operating Temperature Range
-20 ~ 425 operating degree
Connection Standard
DN50-DN300, ANSI/DIN/JIS flange
Discharge Mode
Automatic air blow slag discharge, fully closed

Packaging and delivery

Selling Units
Single item
Single package size
84X40X32 cm
Single gross weight
98.000 kg

Lead time

Customization options

Warranty card/instruction manual(+ from +$0/piece/Min. order: 1 piece)
Fittings/inlet/outlet Size(+ from +$0/piece/Min. order: 1 piece)
Maximum pressure(+ from +$0/piece/Min. order: 1 piece)
Filter Type(+ from +$0/piece/Min. order: 1 piece)
Diameter(+ from +$0/piece/Min. order: 1 piece)
