Attributes
Stone Cutting MachineType
Granite,marble and other stones...Use
380VVoltage
16KWPower(W)
60MMCutting thickness (max)
Fujian, ChinaPlace of Origin
Weight:4500 kg
Warranty:1 Year
Core Components:Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
Max Cutting Length:3400mm
Brand Name:STONEPLUS
Dimension(L*W*H):5700/3500/2260 Hmm
Key Selling Points:High-Accuracy
Machinery Test Report:Provided
Video outgoing-inspection:Provided

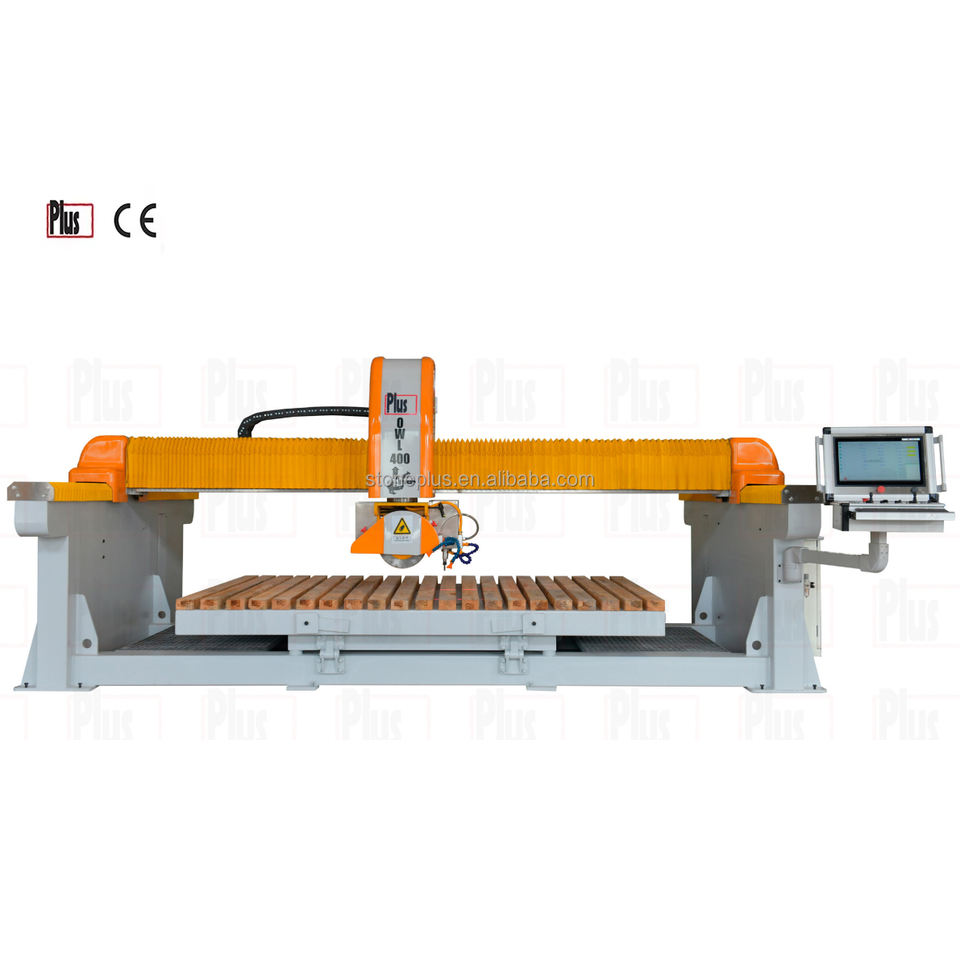

Model:Stoneplus 4 axis bridge cutting machine OWL400
Max cutting length:3200mm
Max cutting width:2000mm
Max cutting thickness:60mm
Diameter of blade(mm):350-400mm
Table dimensions:3200*2000mm
Blade Rotation(C-axis):0-361
Blade tilting (A-axis) by hydraulic:45
Motor power:16kw
Total power:28kw
