Attributs
13.56 MHz & 125 kHzFréquence
ANDROID 10, Android 11, 9.0 android, IOS, Linux, Windows 10, Fenêtres 7, Fenêtres ce, Fenêtres xpSystème d'opération
UL294/cUL**** (US), FCC Certification (US), IC (Canada), CE (EU), C-tick (Australia, New Zealand), SRRC (China), MIC (Korea), NCC (Taiwan), iDA (Singapore), RoHS, FIPS-201 Transparent FASC-N ReaderProtocole
1-9 cmDistance lecture
United StatesPoint d'origine
ABSMatériel
Carte De Support:Iclass caché, MIFARE, Cartes de proximité
Marque nom:HID
Couleur:Noir, Rouge

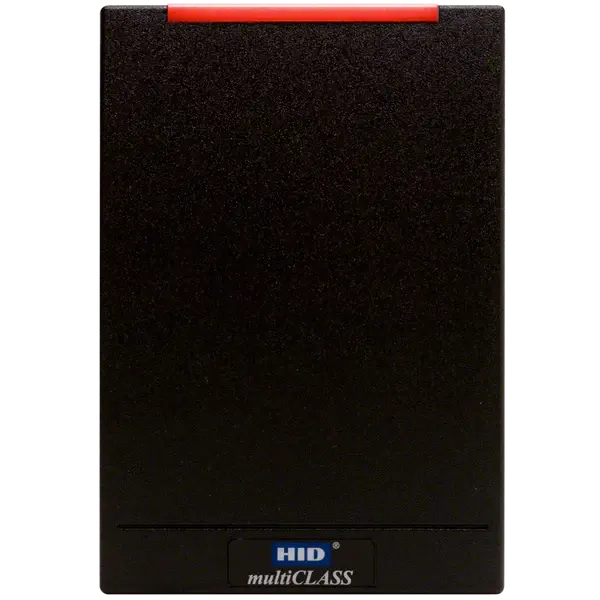

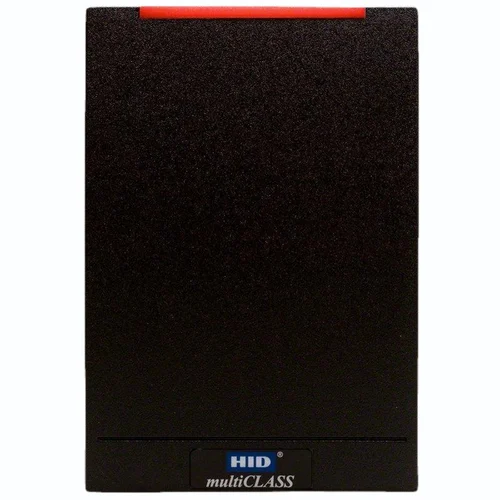

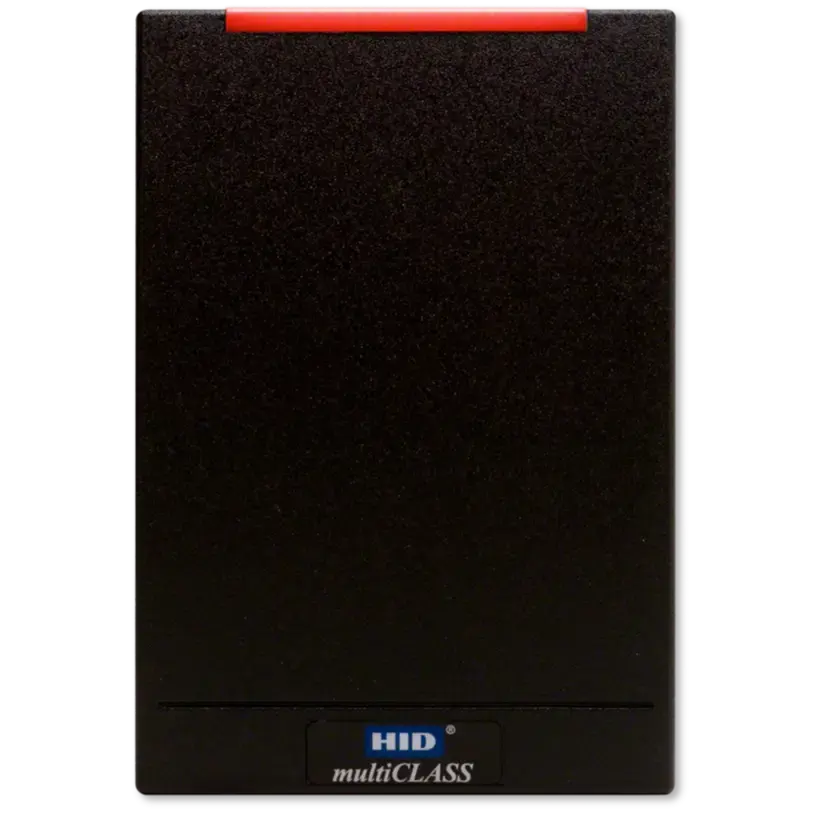

Product Name:HID MultiCLASS SE Readers RP40
Read range:1-9 cm
Mounting:Wall Switch Size
Dimensions:8.4 cm x 12.2 cm x 2.4 cm
Product Weight (Pigtail):7.8oz (222g)
Product Weight (Terminal Strip):7.6oz (216g)
Operating Voltage Range:5-16 VDC, Linear supply recommended
Current Draw - Standard Power Mode (mA):75
Current Draw - IPM Mode (mA):35
Peak Current Draw - Std. or IPM Mode(mA):110
Operating Temperature:-31 to 150 degree F (-35 to 65 degree C)
Storage Temperature:-67 to 185 degree F (-55 to 85 degree C)
Operating Humidity:5% to 95% relative humidity non-condensing
Environmental Rating:IP55
Transmit Frequency:13.56 MHz & 125 kHz
Cable Distance:Wiegand/Clock-and-Data Interface 500ft (150m) (22AWG)
Panel Connection:Pigtail or Terminal Strip
Housing Material:UL94 Polycarbonate
