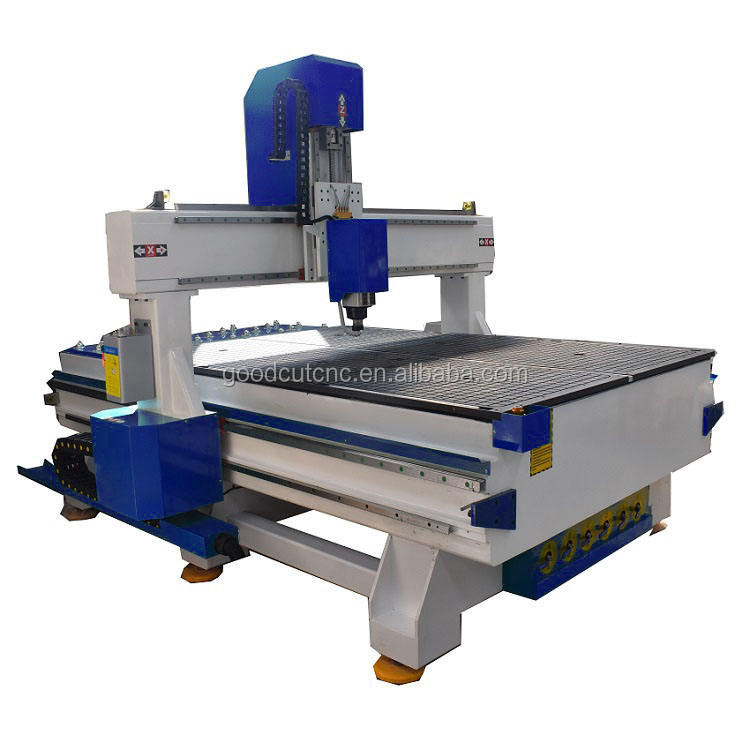

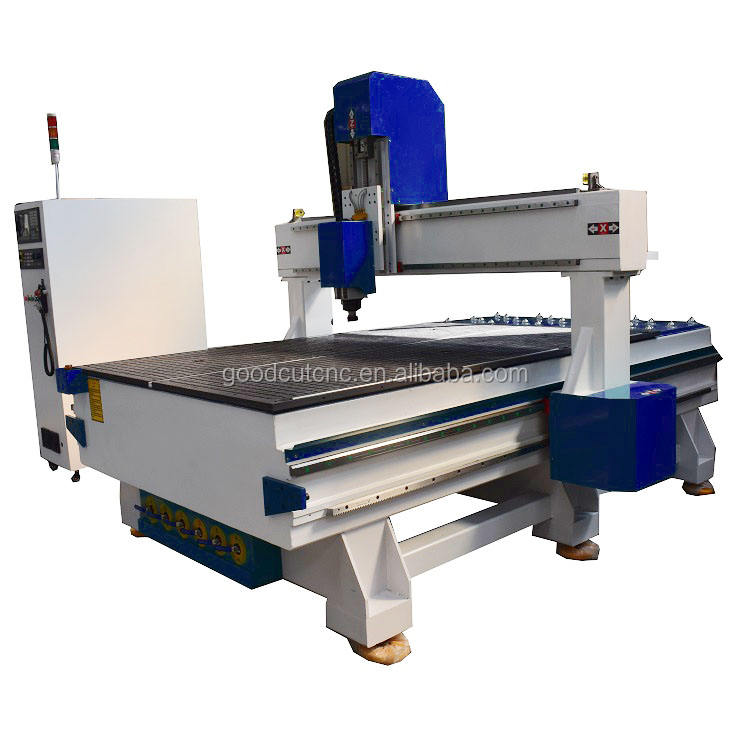

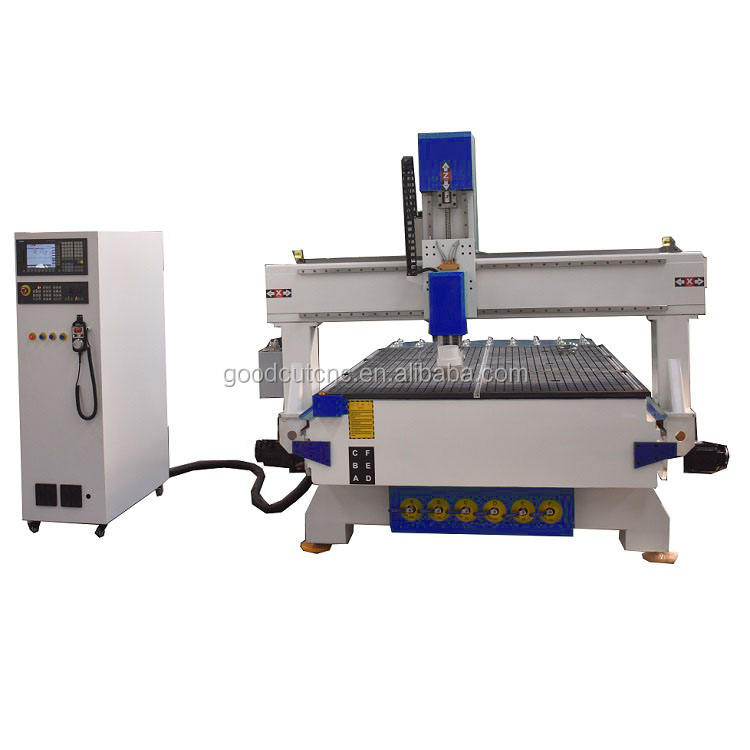

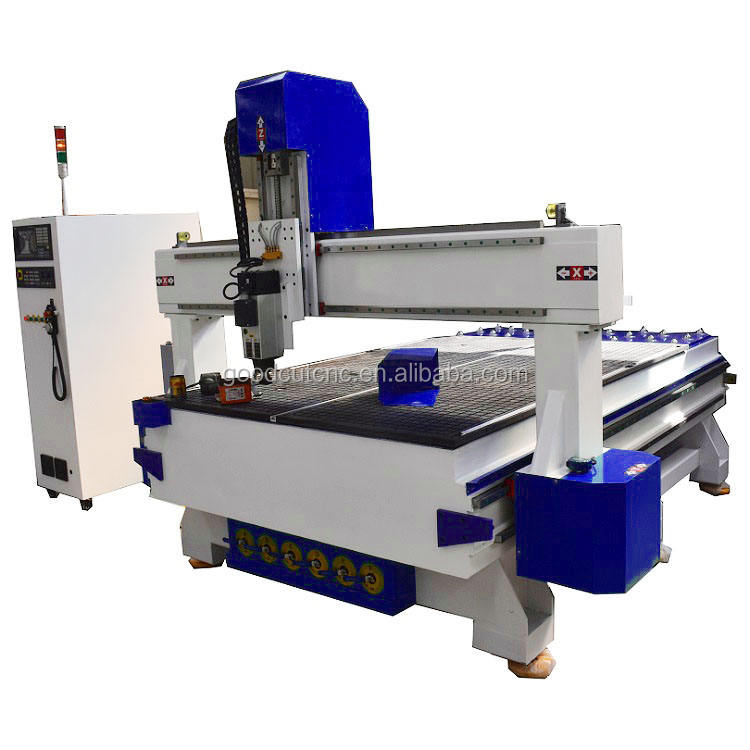

Siemens 808AD Controller V70 Motor Driver 1500 X 3000 Cnc Router
Store rating:5.0
(306 reviews)Complies with EU standards
Complies with EU standards
Attributes
1300×2500Working Table Size(mm)
3number of axes
220V/380Vvoltage
CNC Routermachine type
SingleNo. of Spindles
High Rigiditykey selling points
warranty:1 Year
cnc or not:CNC
video outgoing-inspection:Provided
machinery test report:Provided
place of origin:Shandong, China
weight (kg):3000
range of spindle speed(r.p.m):0 - 18000 rpm
positioning accuracy (mm):0.01 mm
travel (x axis)(mm):1300 mm
travel (y axis)(mm):200 mm
repeatability (x/y/z) (mm):0.01 mm
brand name:GoodCut
dimension(l*w*h):1500*3000*200mm
Product name:Siemens 808AD controller v70 motor driver 1500 x 3000 cnc router
Working area:1500x3000mm

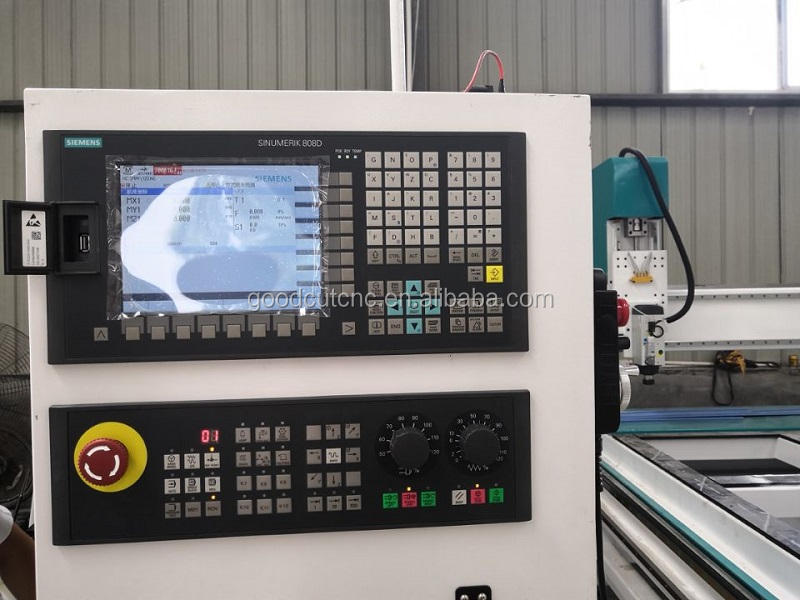

Control system:Siemens 808D 808AD

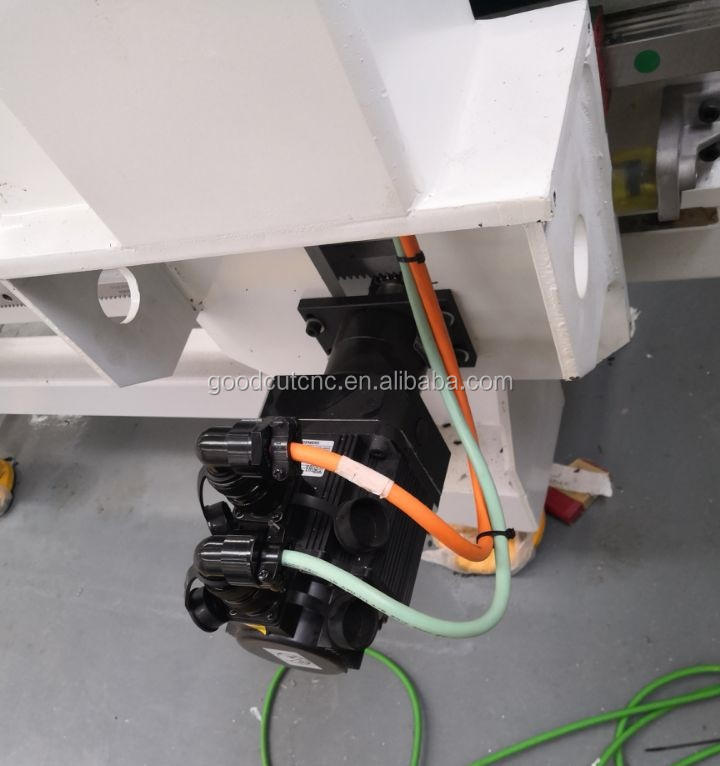

Drive motor:Siemens v70 800w
Spindle:4.5kw/ 6kw HQD/ Italy
Transmission:Taiwan HIWIN 20mm guide rails, Taiwan TBI Ball Screw
Table:vacuum adsorption + T-slot
Inverter:Delta, Fuling Inverter
Optional parts:dust collection, rotary device
Machine frame:heavy duty frame
Service
Free replacement parts & online technical support
Key attributes
Working Table Size(mm)
1300×2500
number of axes
3
voltage
220V/380V
machine type
CNC Router
No. of Spindles
Single
key selling points
High Rigidity
warranty
1 Year
cnc or not
CNC
video outgoing-inspection
Provided
machinery test report
Provided
place of origin
Shandong, China
weight (kg)
3000
range of spindle speed(r.p.m)
0 - 18000 rpm
positioning accuracy (mm)
0.01 mm
travel (x axis)(mm)
1300 mm
travel (y axis)(mm)
200 mm
repeatability (x/y/z) (mm)
0.01 mm
brand name
GoodCut
dimension(l*w*h)
1500*3000*200mm
Product name
Siemens 808AD controller v70 motor driver 1500 x 3000 cnc router
Working area
1500x3000mm
Control system
Siemens 808D 808AD
Drive motor
Siemens v70 800w
Spindle
4.5kw/ 6kw HQD/ Italy
Transmission
Taiwan HIWIN 20mm guide rails, Taiwan TBI Ball Screw
Table
vacuum adsorption + T-slot
Inverter
Delta, Fuling Inverter
Optional parts
dust collection, rotary device
Machine frame
heavy duty frame
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
Warning/Disclaimer
California Proposition 65 Consumer WarningView more
Minimum order quantity: 1 set
$4,500
Variations
Select nowmodel number
GC1530H-Siemens
Supplier’s customization ability
Minor customization
Drawing-based customization
Sample-based customization
Full customization
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
