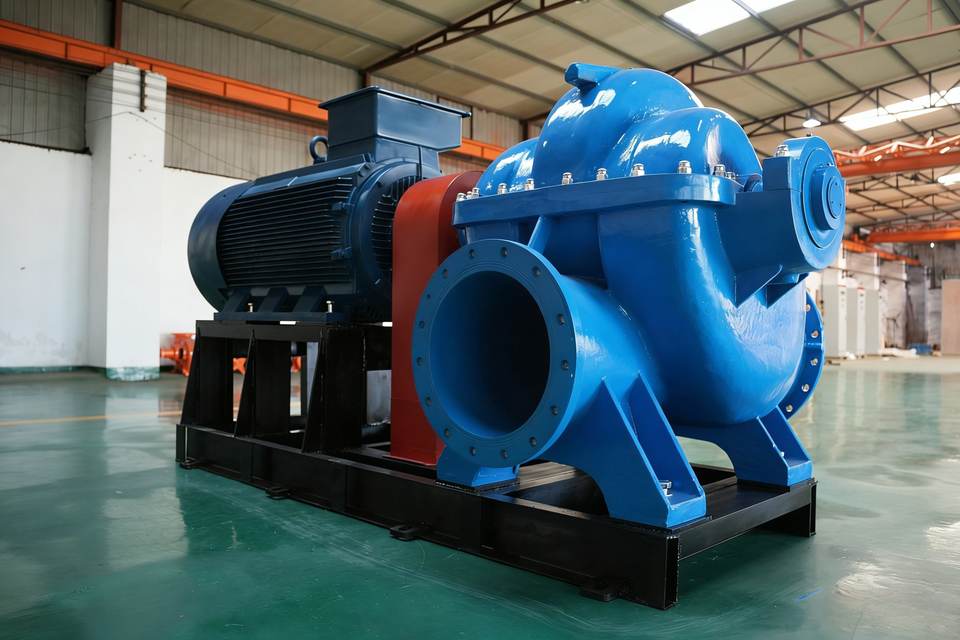

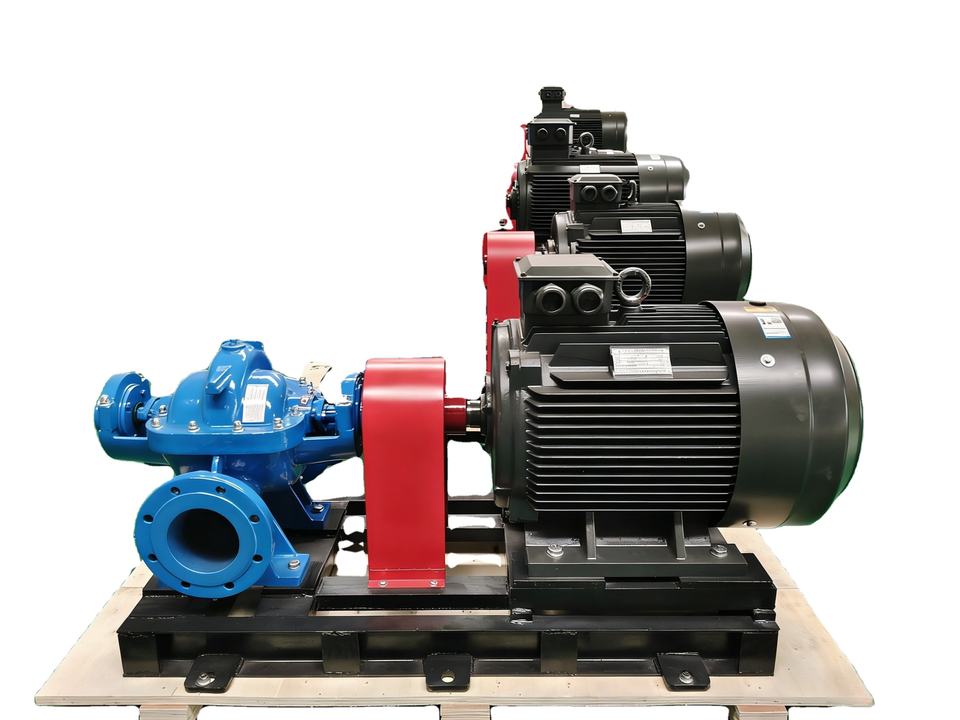

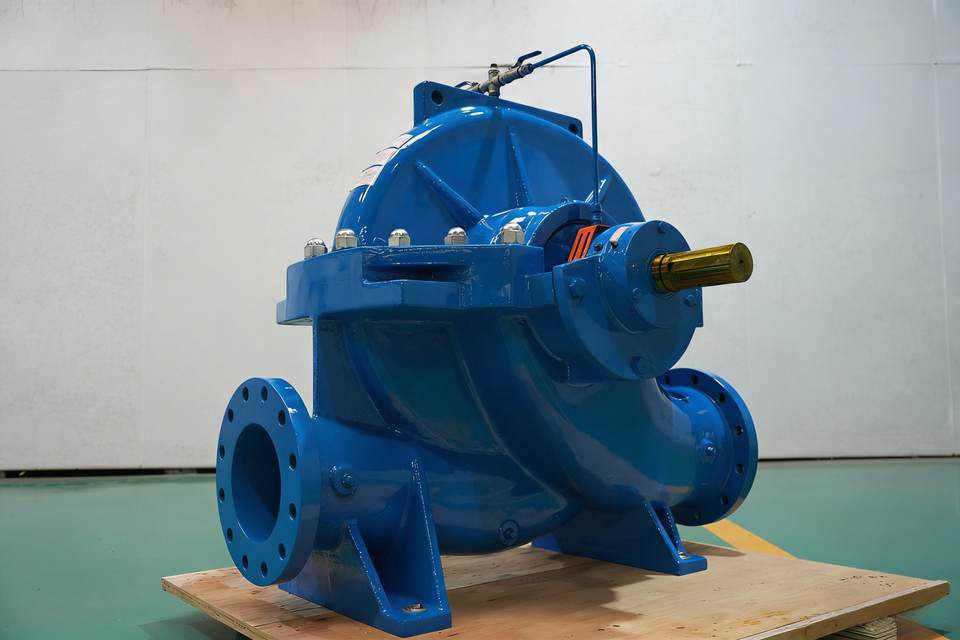

Single-Stage Double-Suction Horizontal Split Centrifugal Pump Used for Water Supply and Drainage QS Advanced Hydraulic Design fo

No reviews yet
$1,221.36
1-5 sets
$1,145.03
≥6 sets
Select now

Flow Rate

14400 m3 per hour (1200QS-85 at rated conditions)

maximum head

140 m

type

Single-Stage Double-Suction Horizontal Split Case

+ 1 more variants

Key attributes

application

Water supply and drainage for factories, mines

pressure

Customizable (see Head range: 6 to 140 m)

customized support

Yes (impeller trim available; CCW rotation on spec

place of origin

Beijing, China

power source

Customizable

warranty

3 Years

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Key attributes

application
Water supply and drainage for factories, mines
pressure
Customizable (see Head range: 6 to 140 m)
customized support
Yes (impeller trim available; CCW rotation on spec
place of origin
Beijing, China
power source
Customizable
warranty
3 Years
model number
QS
brand name
BBP
Applicable temperature
0-200°C
cable length
Customizable
Chemical Compatibility
Clean water and liquids physically and chemically
Connection Type
Flanged suction and discharge nozzles cast integra
Control Method
Customizable
Discharge Pipe Size
150 mm to 1200 mm inlet diameter (model-dependent)
Displacement
Customizable
Dwell time
Customizable
Flow Meter Specification
Customizable
horsepower
Customizable (motor power: 22 to 3450 kW, model-de
Impeller Material
Cast iron (standard); other materials on request
Import Size
150 mm to 1200 mm (model-dependent)
Inlet Height
Customizable
Max Flow Rate
14400 m3 per hour (1200QS-85 at rated speed)
Max Pressure
Customizable (see Max Head: 140 m)
Membrane material
Customizable
motor
Driven by flexible coupling; belt drive with inter
outlet size
Customizable (discharge nozzle integral with casin
Outlet Type
Universal Style
Outlet Water Oil Content
Customizable
Sealing Material
Standard: soft packing with water-seal ring; Mecha
structure
Single-stage double-suction pump; split volute
suction head
Customizable (NPSHr: 4 to 12 m, model-dependent)
Surface Treatment
Customizable
Material
Pump casing, cover, impeller: cast iron (standard)
Pump Type
Single Stage Double Suction Horizontal Split Case Pump
Inlet Diameter Range
150 mm to 1200 mm
Flow Range
120 to 14400 m3 per hour
Head Range
6 to 140 m
Shaft Seal Type
Soft Packing or Mechanical Seal
Impeller Type
Double Suction Impeller static balance calibrated
Max Media Temperature
80 degrees C
Rotation Direction
Clockwise from drive end CW standard CCW on request
Applicable Industry
Water Supply Mining Irrigation Power Station Food Industry
