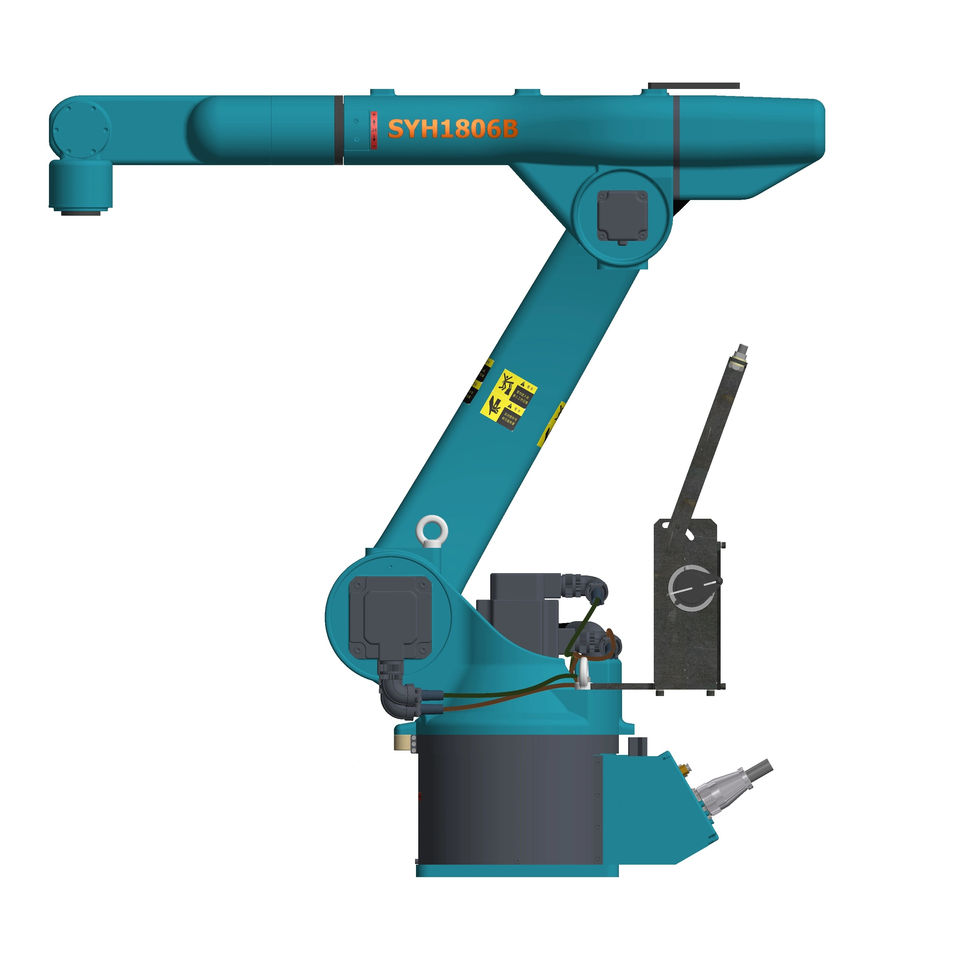

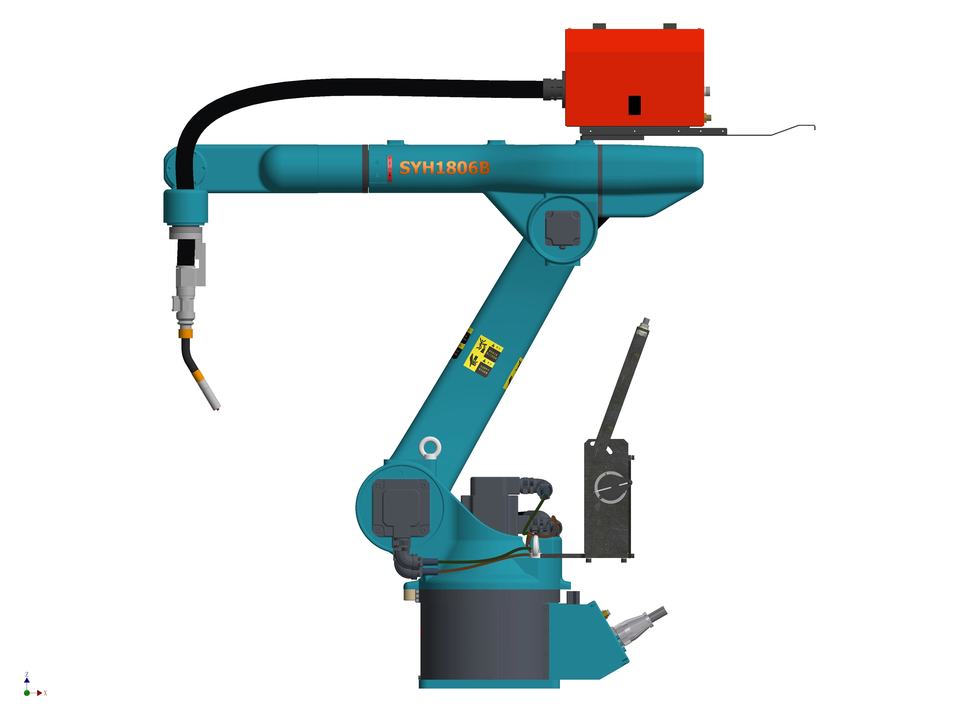

Sooyee SYH1806B 6 Axis Welding Robot Arm 6kg Payload 1800mm Reach PLC Controlled High Precision Robotic Manipulator for Arc Weld

No reviews yet
$8,537
Minimum order quantity: 1 piece
Select now

model number

SYH1806B
Customization options
Minor (Min. order: 3 pieces)
Drawingbased (Min. order: 3 pieces)
Samplebased (Min. order: 3 pieces)
+1 more options
Supplier’s customization ability
Drawing-based customization
Sample-based customization
Full customization

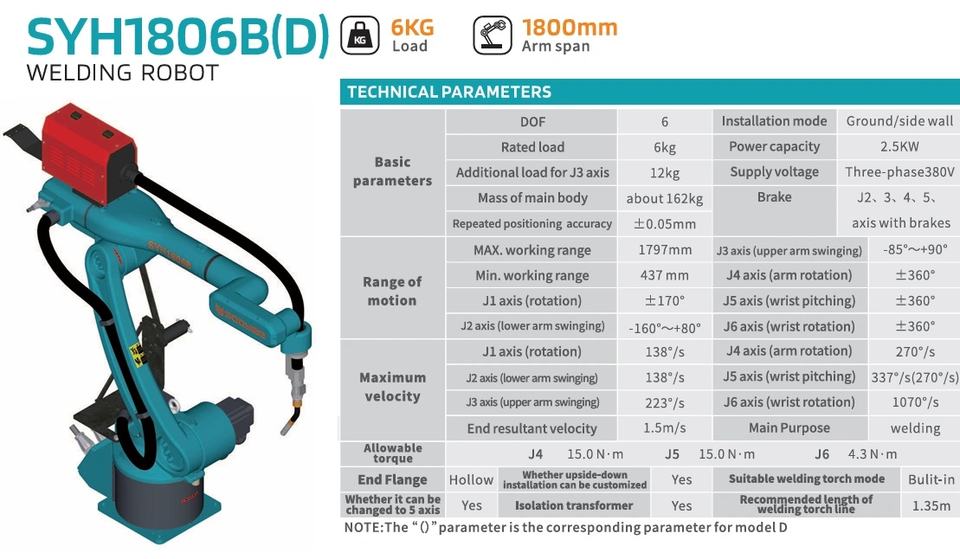

Key attributes

Drive Type

servo-electric

Ingress Protection

Ip67, IP54

core components

Bearing

voltage

380 V

power(w)

2500w

machinery test report

Provided

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Payment & financing

4 interest-free payments with

Key attributes

Drive Type
servo-electric
Ingress Protection
Ip67, IP54
core components
Bearing
voltage
380 V
power(w)
2500w
machinery test report
Provided
Warranty
1 Year
video outgoing-inspection
Provided
production capacity
1000 Units per Year
place of origin
Sichuan, China
weight (kg)
162
brand name
Sooyee
application
Arc Welding, Material Handling, Assembly, Pick and
dimension(l*w*h)
600*600*1800 mm
Number of Jaws
1
Robots
Welding Robot, Machine Tending Robot, Palletizing Robot, Coating Robot
degrees of freedom
6
Rated load
6kg
J3 axis additional load
12kg
Repeated positioning accuracy
± 0.05mm
Installation Method
ground/side
brake
J2, 3, 5 axis with brake
point P
1797mm
P point minimum reach distance
437mm
end synthesis speed
1.5m/s
end flange
hollow
be changed to 5-axis
can
isolation transformer
have
Main Uses
welding
Rated Voltage
380V 50/60Hz
Typical Applications
Arc Welding / Material Handling / Assembly
Control System
PLC Compatible
Mounting Method
Floor / Side / Inverted Mounting
Degrees of Freedom (DOF
6
