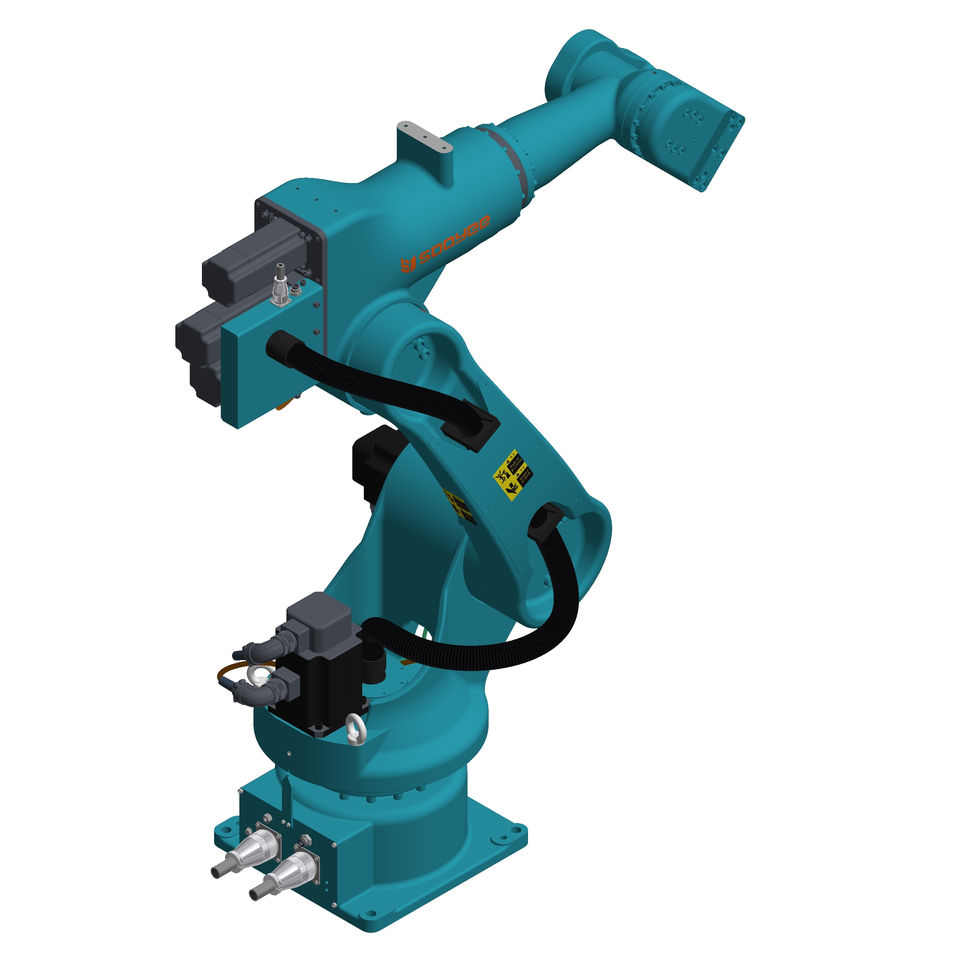

Sooyee SYM1550B 6 Axis PLC Controlled Gearbox Motor Industrial Grinding Robot 50kg Payload 1500mm Reach Deburring Polishing Arm

No reviews yet
$13,388
Minimum order quantity: 1 piece
Select now

model number

SYM1550B
Customization options
Minor (Min. order: 3 pieces)
Drawingbased (Min. order: 3 pieces)
Samplebased (Min. order: 3 pieces)
+1 more options
Supplier’s customization ability
Drawing-based customization
Sample-based customization
Full customization

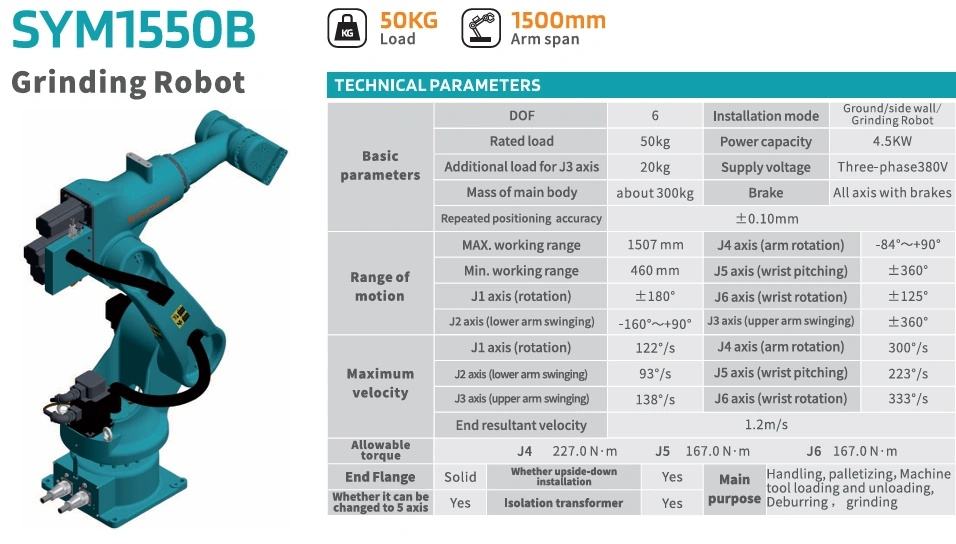

Key attributes

Drive Type

servo-electric

Ingress Protection

IP54

core components

PLC, Bearing, Gearbox, Gear, Motor

voltage

380 V

power(w)

4.5kw

machinery test report

Provided

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Finance Service

4 interest-free payments with

Key attributes

Drive Type
servo-electric
Ingress Protection
IP54
core components
PLC, Bearing, Gearbox, Gear, Motor
voltage
380 V
power(w)
4.5kw
machinery test report
Provided
Warranty
1 Year
video outgoing-inspection
Provided
production capacity
1500
place of origin
China Sichuan Yibin
weight (kg)
300
brand name
Sooyee
application
Material Handling, Palletizing, Machine Tending
dimension(l*w*h)
650mm *550mm * 1250mm
Number of Jaws
0
Robots
Welding Robot
degrees of freedom
6
Rated load
50kg
J3 axis additional load
20kg
Repeated positioning accuracy
± 0.10mm
Installation Method
ground/side/upside down
brake
full shaft with brake

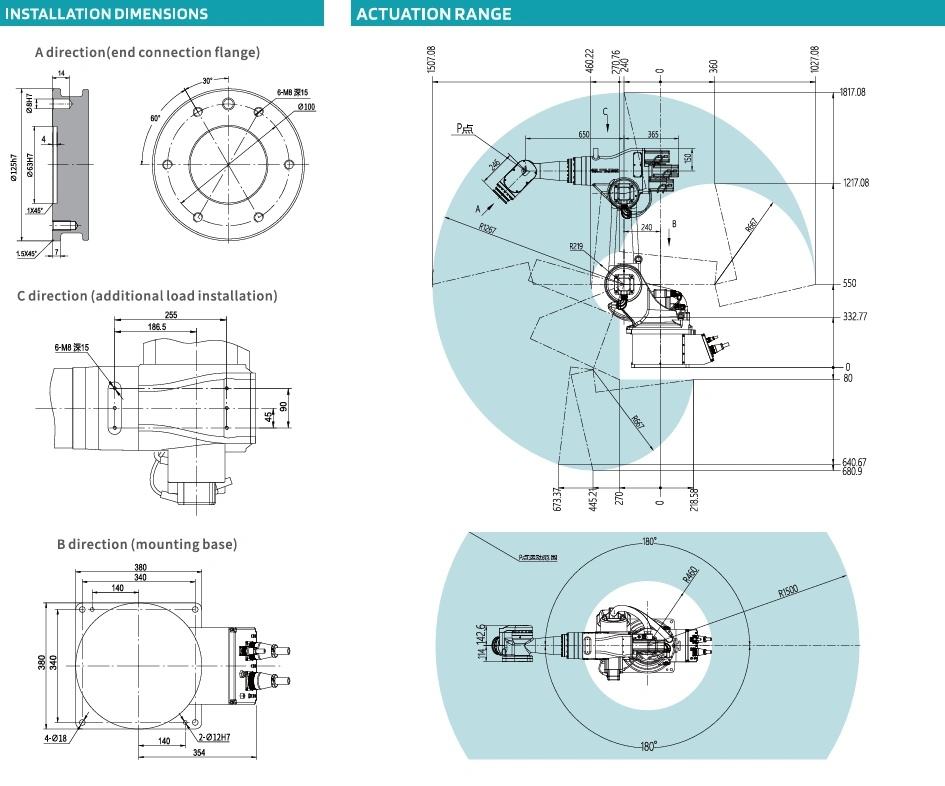

point P
1507mm
P point minimum reach distance
460mm
end synthesis speed
1.2m/s
end flange
solid
be changed to 5-axis
can
isolation transformer
have
