Square Flange M12 Panel Mount Connector A/B/D Code Male and Female Receptacle 3 4 5 6 8 12 17 Pin Waterproof M12 Socket

No reviews yet30 sold
180-day lowest prices
$2.40-6
Minimum order quantity: 2 pieces
Sample price: $5

Color

M12-A-3P Female PCB
M12-A-4P Female PCB
M12-A-5P Female PCB
M12-A-6P Female PCB
M12-A-8P Female PCB
M12-A-12P Female PCB

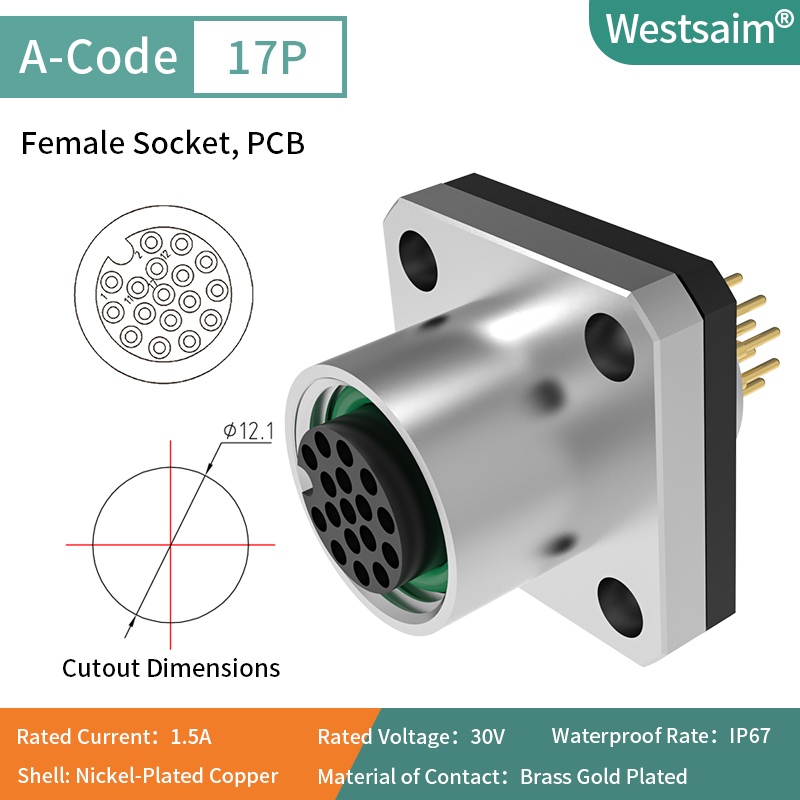

M12-A- 17P Female PCB

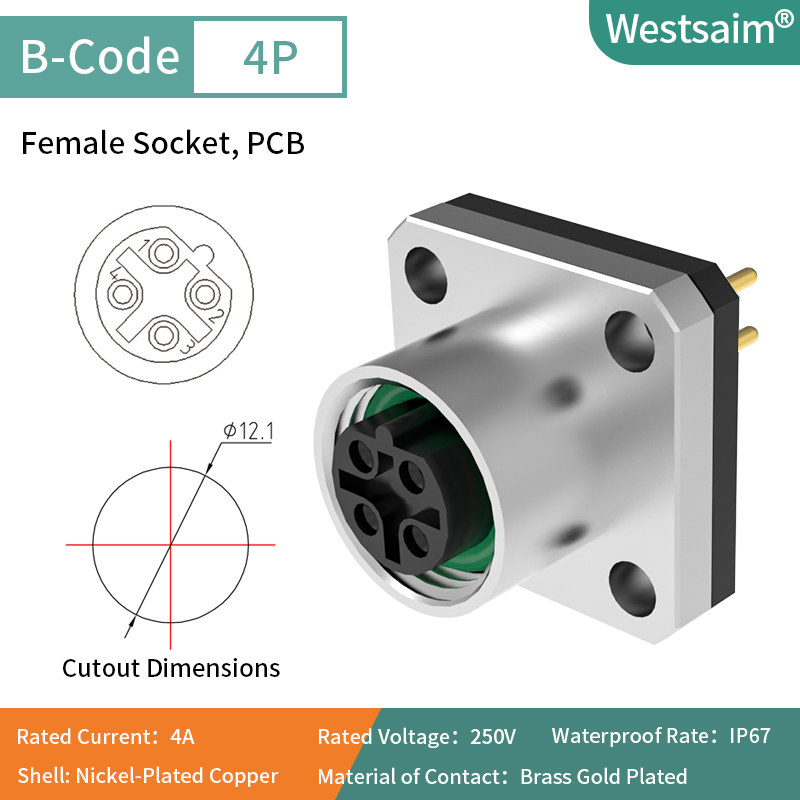

M12-B-4P Female PCB

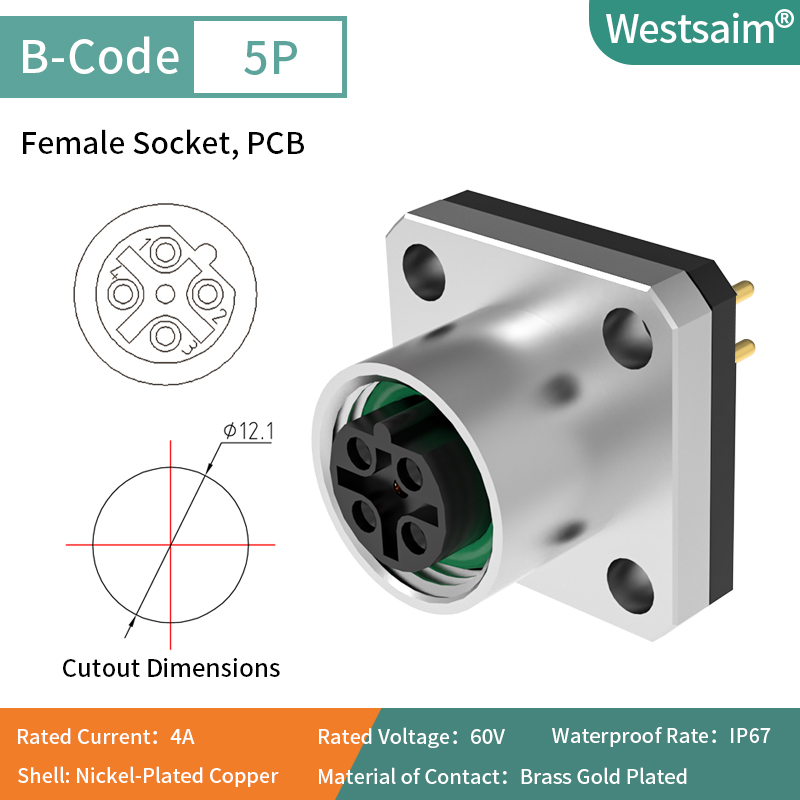

M12-B-5P Female PCB

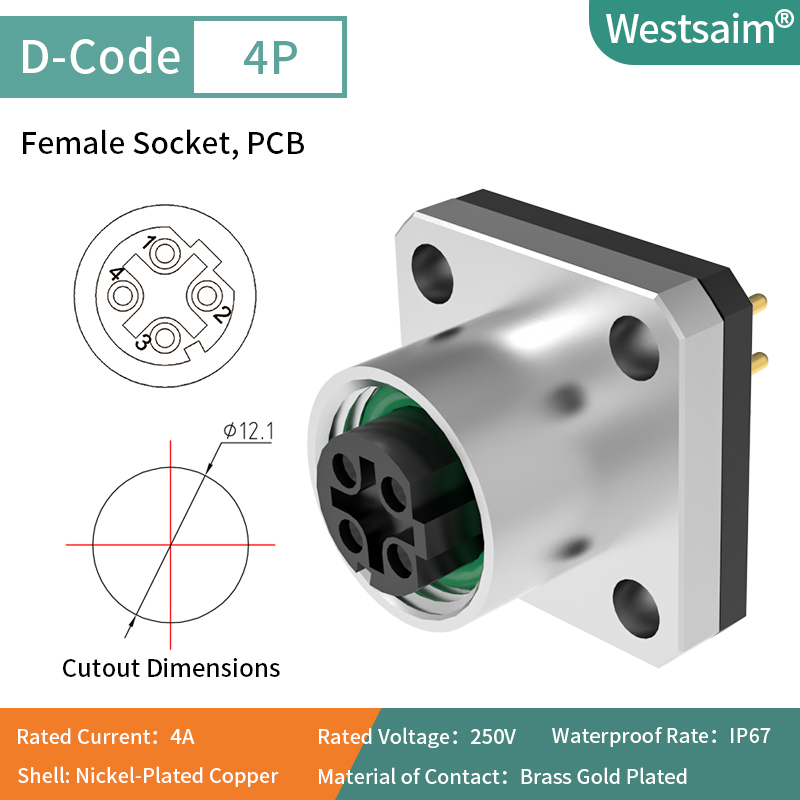

M12-D-4P Female PCB

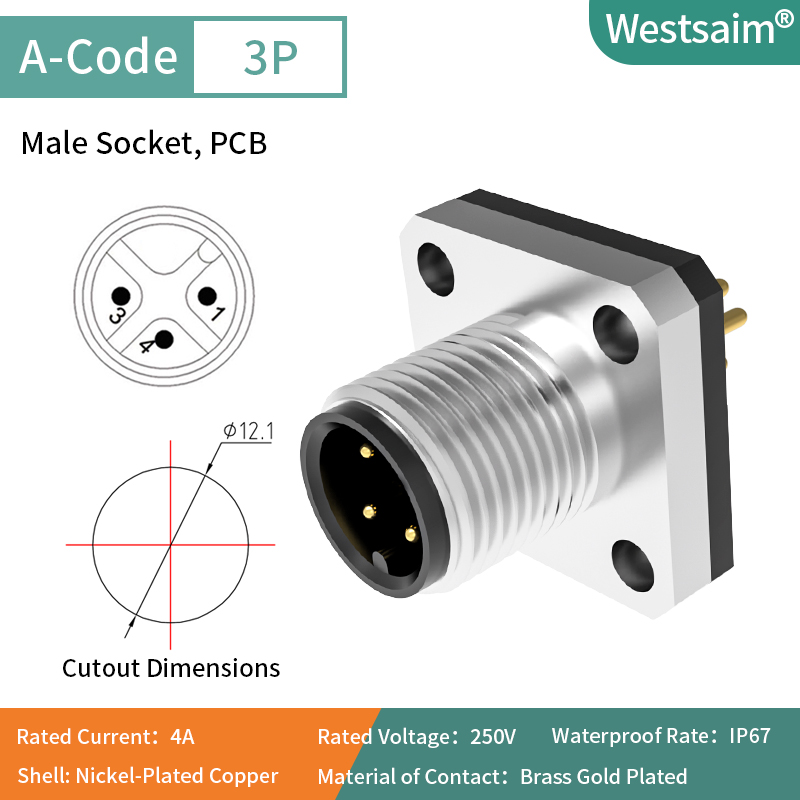

M12-A-3P Male PCB
M12-A-4P Male PCB
M12-A-5P Male PCB
M12-A-6P Male PCB

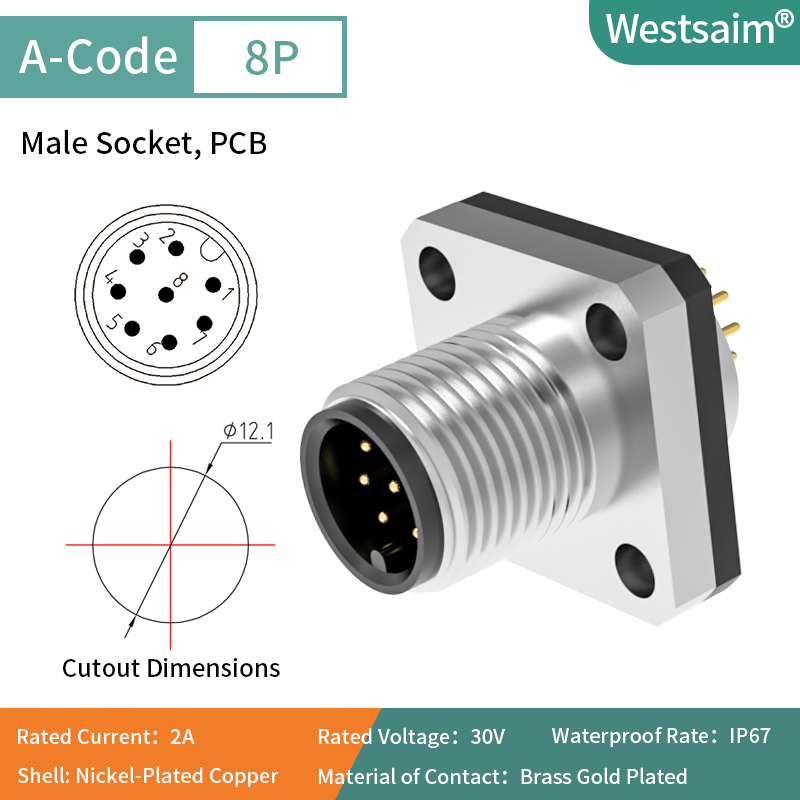

M12-A-8P Male PCB
M12-A-12P Male PCB

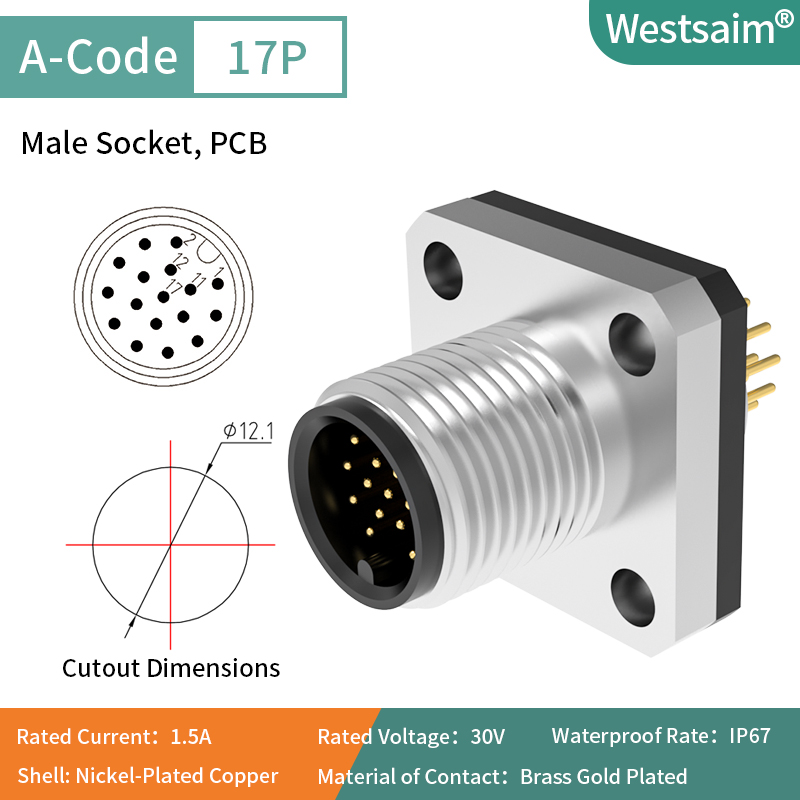

M12-A- 17P Male PCB
+23

Pins

4/5/6/8/12/17 Pin

Key attributes

Application

Automotive

Contact Material

Brass Gold Plated

Rated Current

4A

Rated Voltage

60V

Place of Origin

Guangdong, China

Model Number

M12 square flange socket

At a glance

  • IP67 Waterproof Rate: Ensures reliable performance in wet and dusty environments, making it suitable for industrial and automotive applications.

  • CuZn Contact Material: Provides excellent conductivity and corrosion resistance, ensuring long-lasting and stable electrical connections.

  • Wide Temperature Range: Operates reliably from -45℃ to +125℃, making it suitable for use in extreme temperature conditions.

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Easy Return

Make free local returns for defects on qualifying purchases

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Finance Service

4 interest-free payments with

Key attributes

Application
Automotive
Contact Material
Brass Gold Plated
Rated Current
4A
Rated Voltage
60V
Place of Origin
Guangdong, China
Model Number
M12 square flange socket
Brand Name
Westsaim
Gender
Male/Female
Housing Material
Brass Nickel Plated
IP Level
Ip67
Shape
Round
Type
Waterproof Connector
Item name
M12 A/B/D/X/Y Code PCB Angled Male and Female Mount Socket
Application
Industrial
Contacts
3 4 5 6 8 12 17 Pin
Rated current
6/4/2/1.5/0.5A
Rated voltage
30/48/60V
Wire gauge
AWG20/22/24/26
Temperature range
-45℃ to +125℃
Waterproof rate
IP67
Mating cycles
≥100 times
Salt Mist
48h

Packaging and delivery

Selling Units
Single item
Single package size
16X11X10 cm
Single gross weight
0.5 kg
